Steering Angle Sensor Communication Stop Mode

STEERING ANGLE SENSOR COMMUNICATION STOP MODE

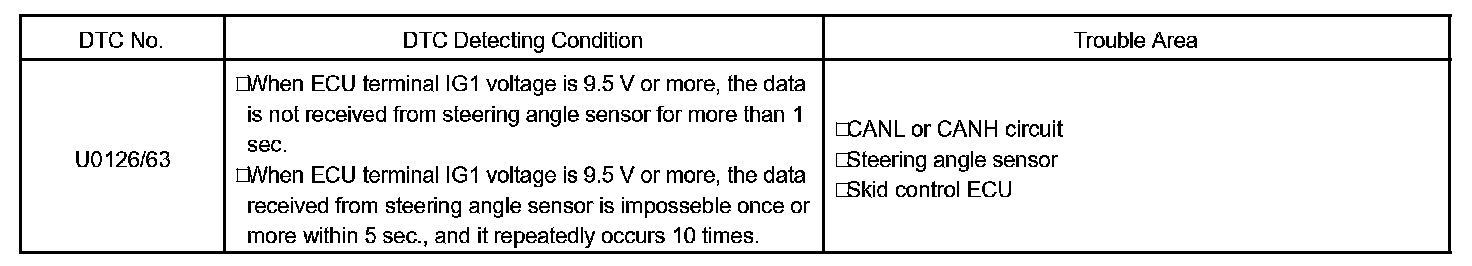

DTC Detection Condition:

CIRCUIT DESCRIPTION

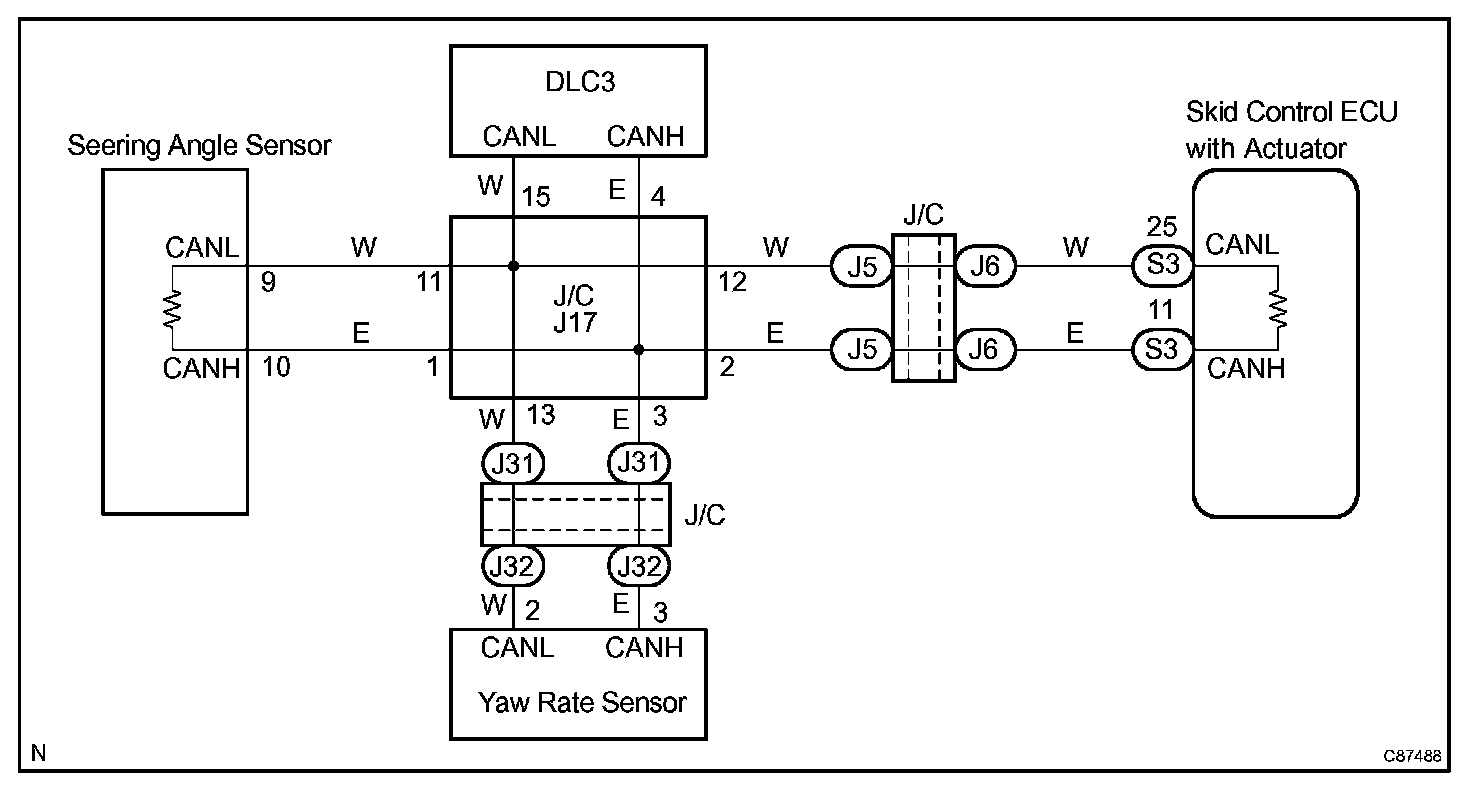

Wiring Diagram:

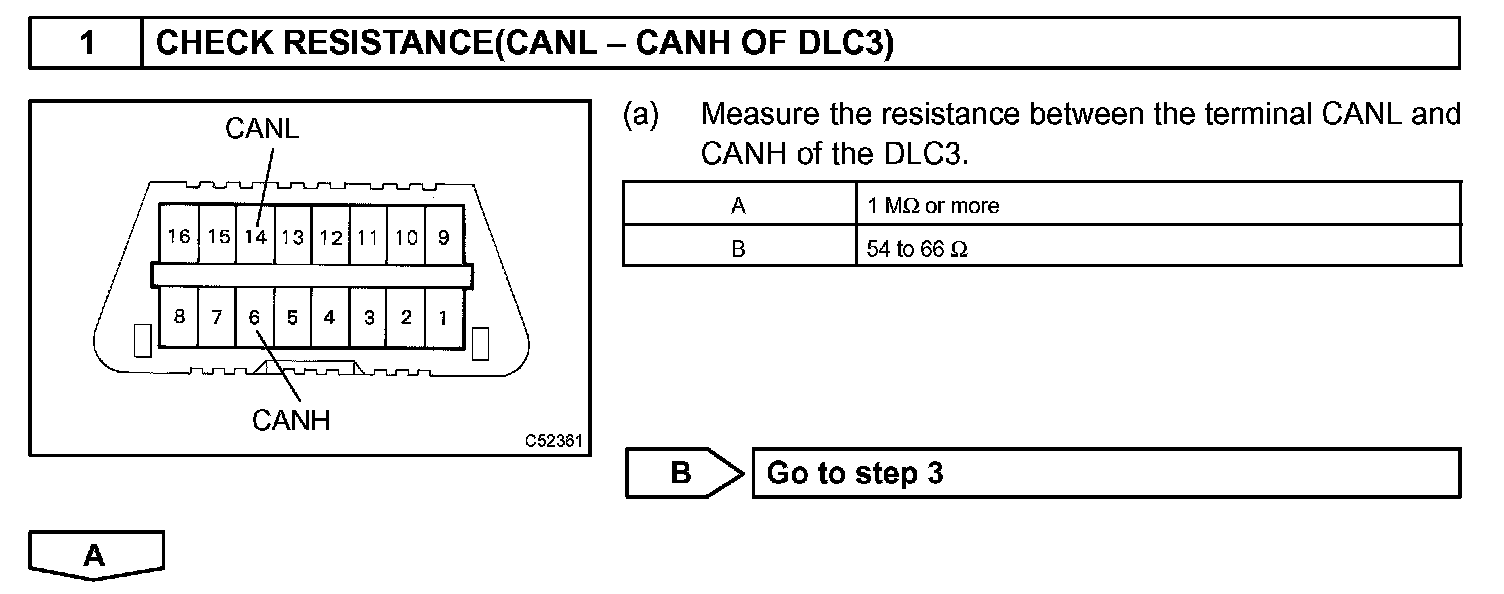

Step 1:

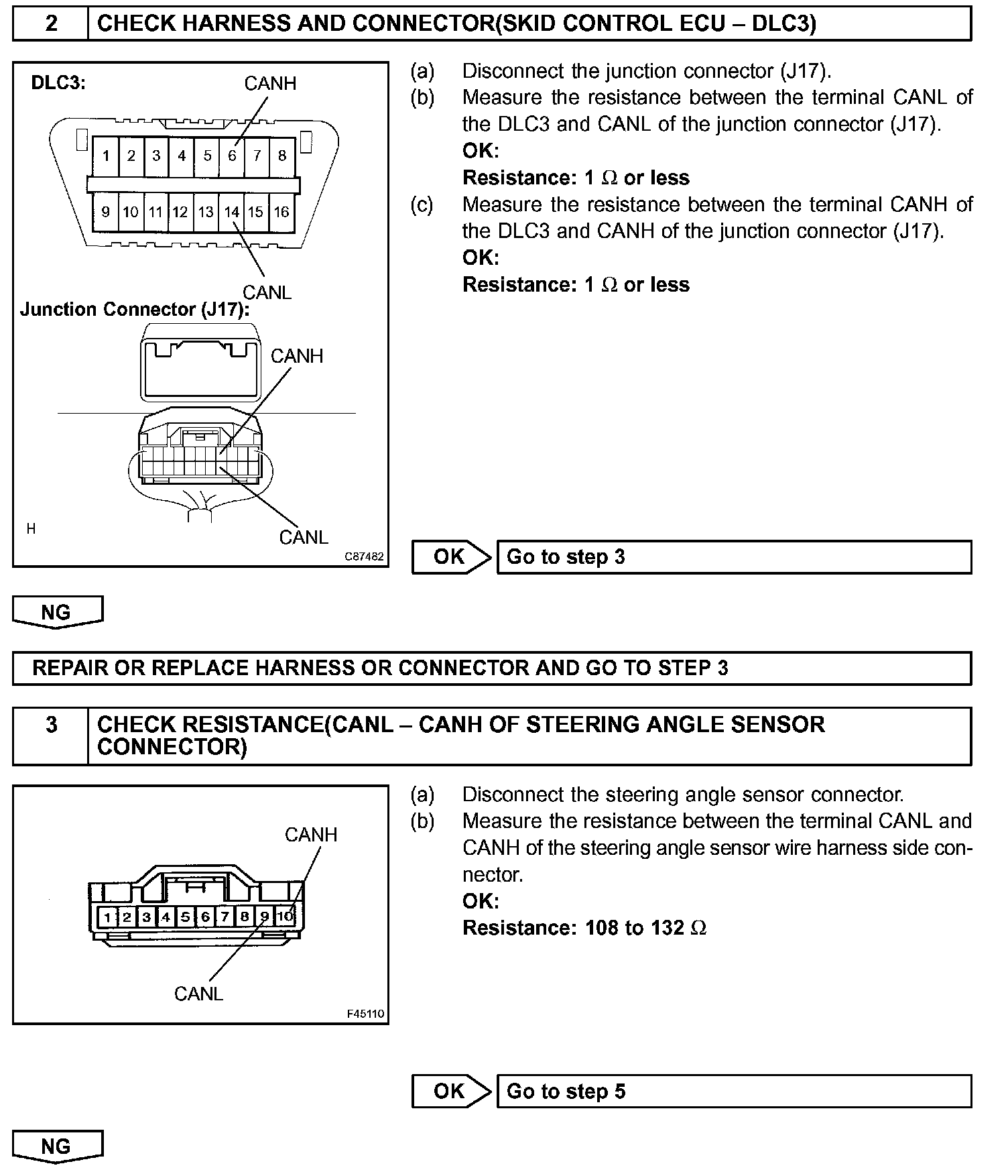

Step 2 - 3:

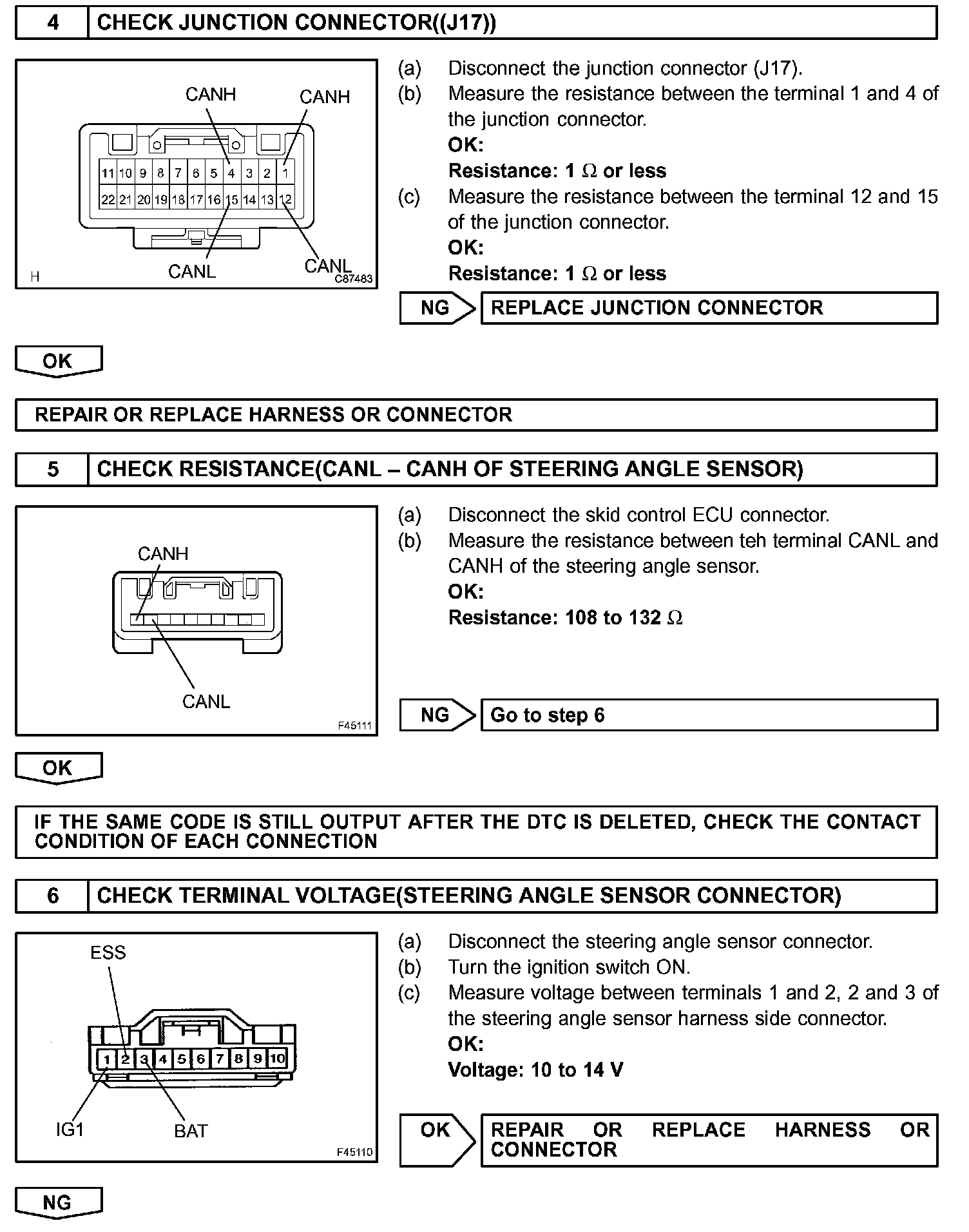

Step 4 - 6:

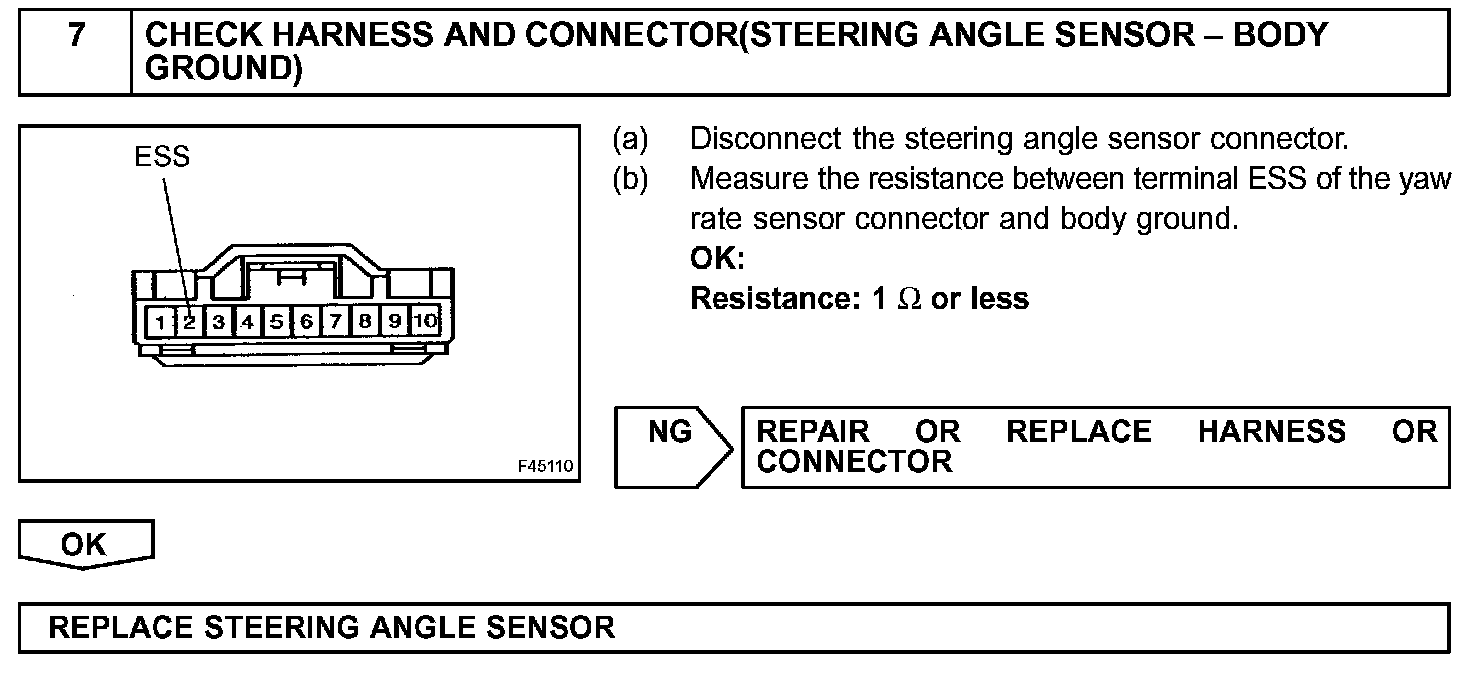

Step 7:

INSPECTION PROCEDURE
