Electronic Brake Control Module: Testing and Inspection

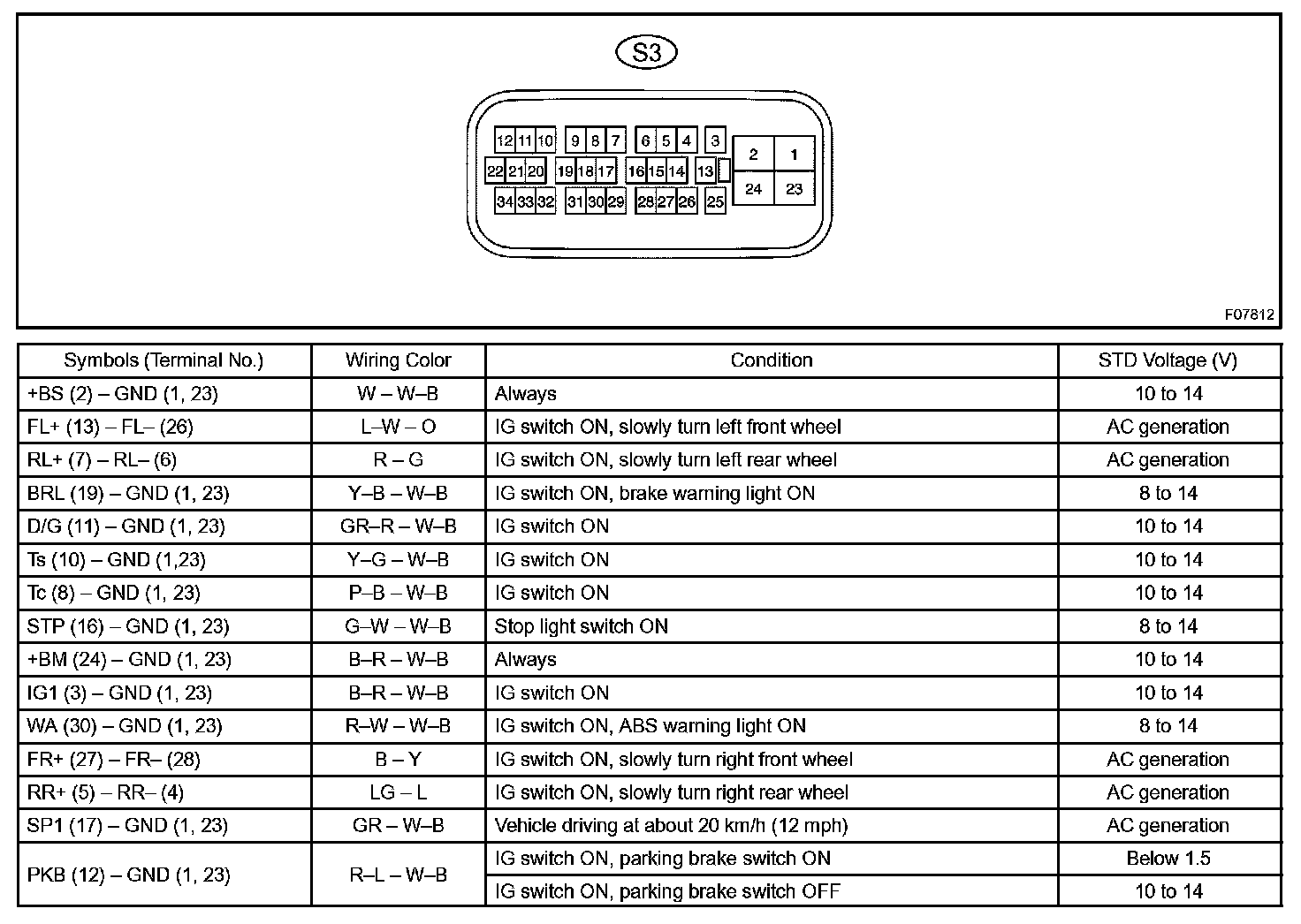

Terminals Of ECU:

Terminals Of ECU Part 1:

Terminals Of ECU Part 2:
