Control Module: Testing and Inspection

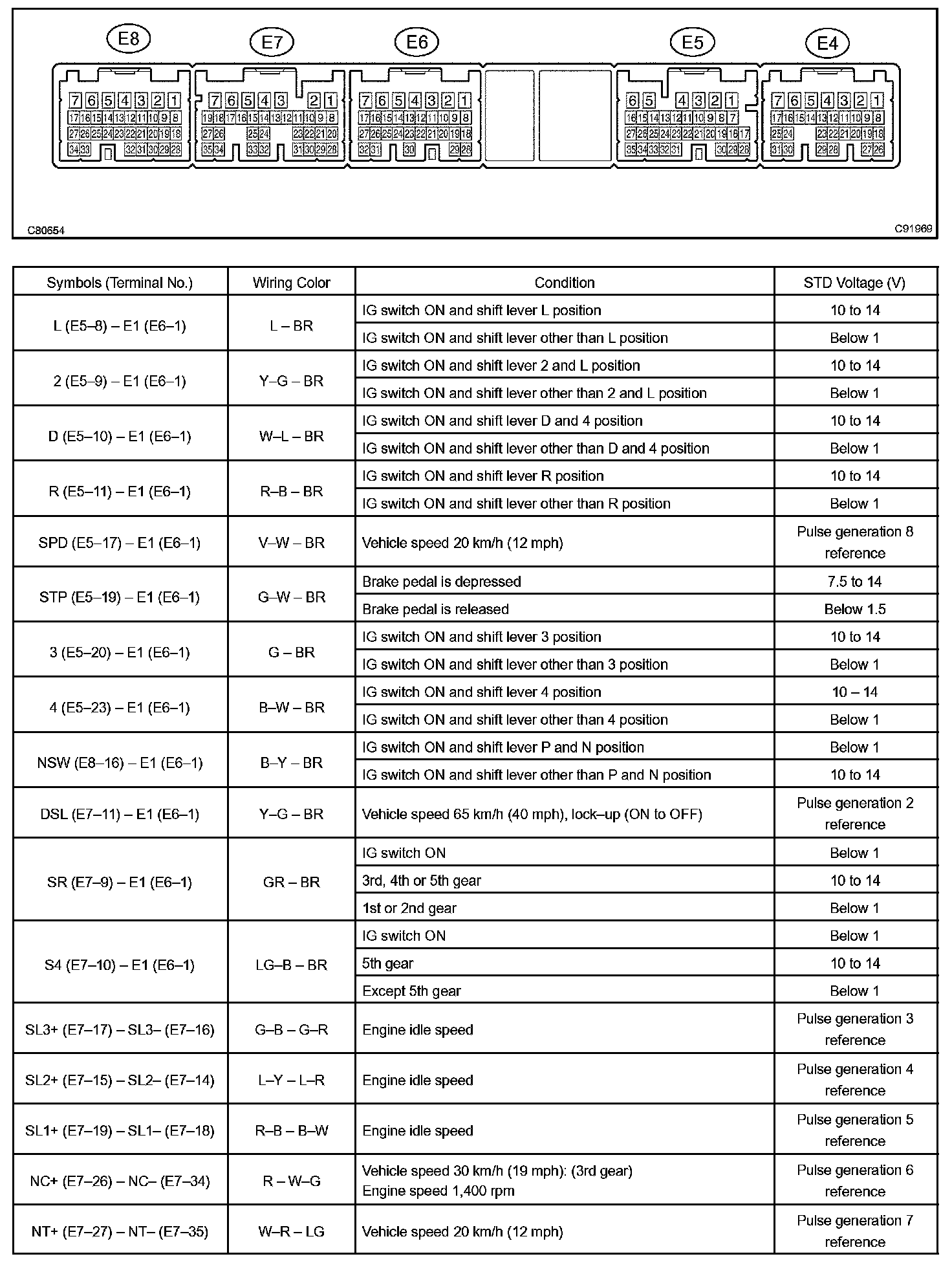

Terminals Of ECU Part 1:

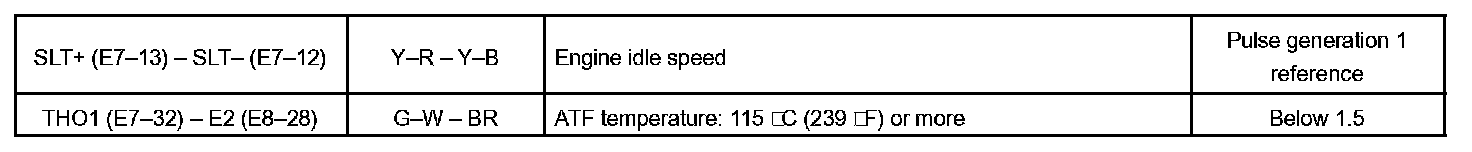

Terminals Of ECU Part 2:

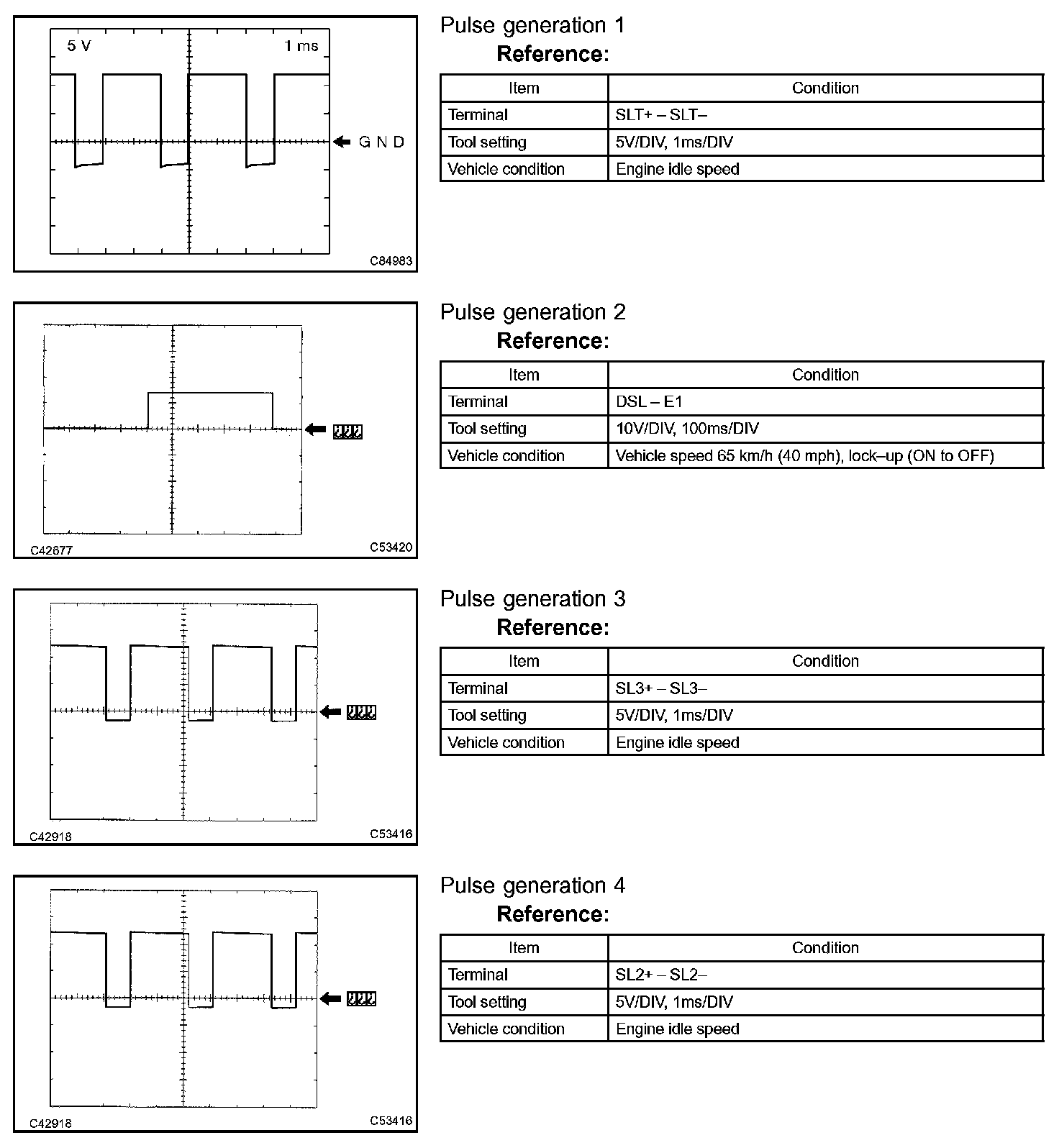

Oscilloscope Waveforms:

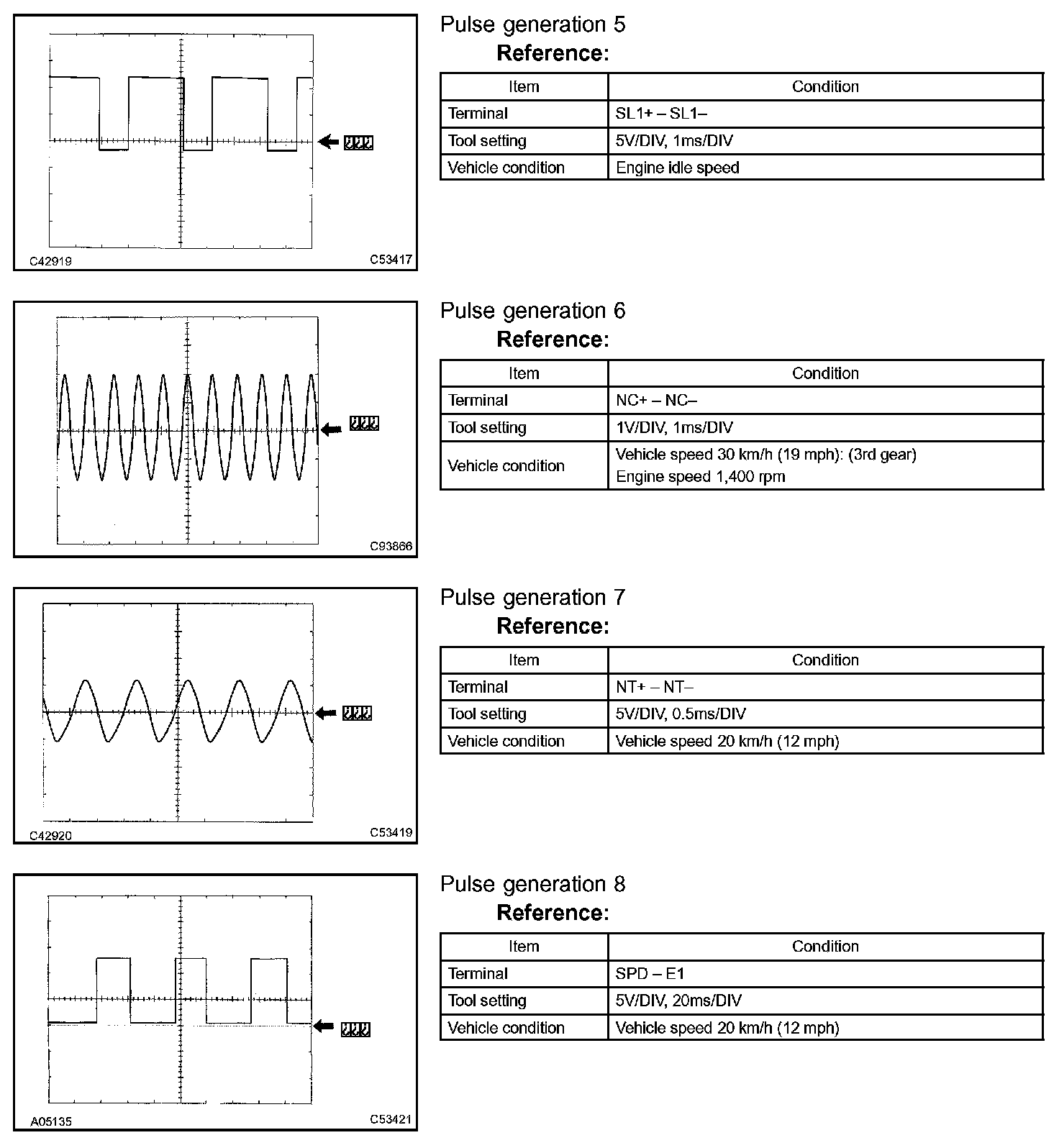

Oscilloscope Waveforms:
