Body - Power Windows/Moonroof
PRODUCT GENERAL INFORMATIONPG004-03
March 14, 2003
Title:
DRIVER'S DOOR POWER WINDOW AND MOON ROOF INITIALIZATION
Models:
'04 Sienna
Introduction
This bulletin outlines the initialization procedure for the Driver's Door Power Window and the Moon Roof on the 2004 model year Sienna.
If the battery has been disconnected, the ECU will not be able to detect and memorize the Driver's Door Power Window and Moon Roof positions, resulting in the following features being inoperative.
^ One-touch open and close of Driver's Door Power Window with jam protection.
^ One-touch slide open and close of Moon Roof with jam protection.
^ One-touch tilt up and down of Moon Roof with jam protection. Please use the following initialization procedure whenever the battery has been disconnected.
Applicable Vehicles
^ 2004 model year Sienna vehicles.

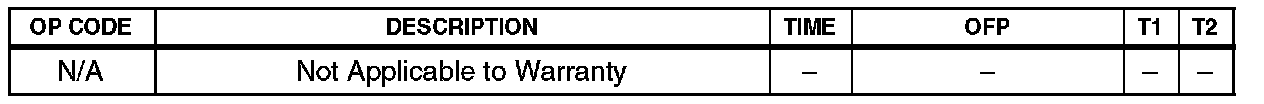

Warranty Information
Initialization Procedure
Driver's Door Power Window
With ignition switch in the "ON" position, do the following:

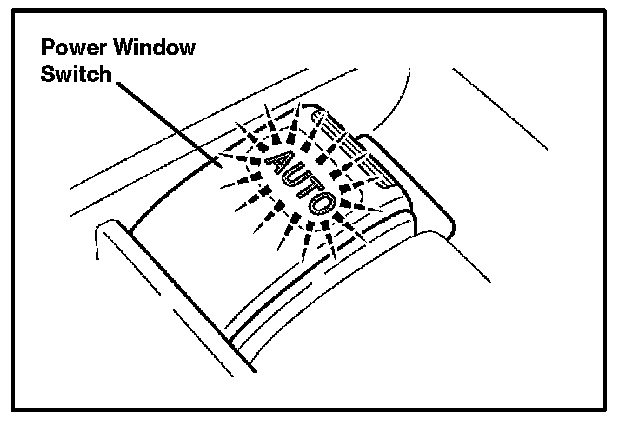

1. At this time the power window switch for the driver's door window should be blinking.
2. Push down and hold the Driver's Door Power Window switch to completely open the window.

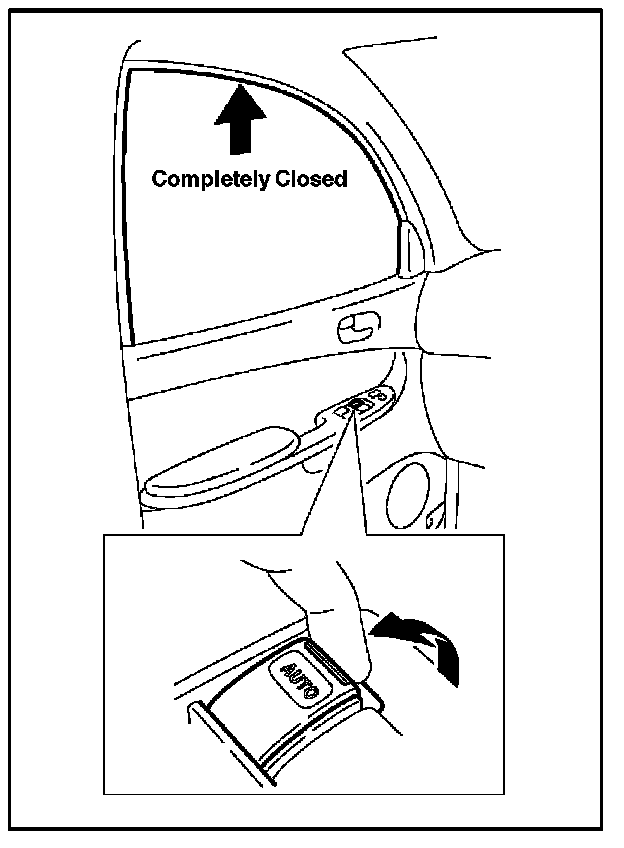

3. Pull and hold up the Driver's Door Power Window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.
4. Check for proper operation of the "One-touch open/close" by pushing the switch briefly to the "DOWN" and "UP" positions.
NOTE:
Jam protection function becomes effective through the above initialization procedure.
Moon Roof
With ignition switch in the "ON" position, do the following:

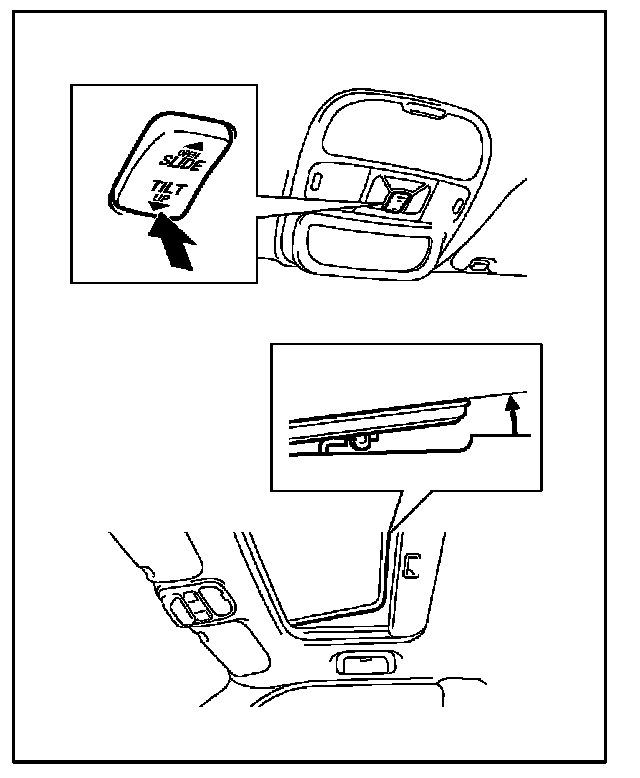

1. Push and hold the "TILT UP" side of the switch until the Moon Roof tilts all the way up and stops.
2. Check for proper operation of the "One-touch slide open/close" and "One-touch tilt up/down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.
NOTE:
Jam protection function becomes effective through the above initialization procedure.
