Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Brakes and Traction Control
>>
Traction Control Module
>>
Testing and Inspection
Traction Control Module: Testing and Inspection

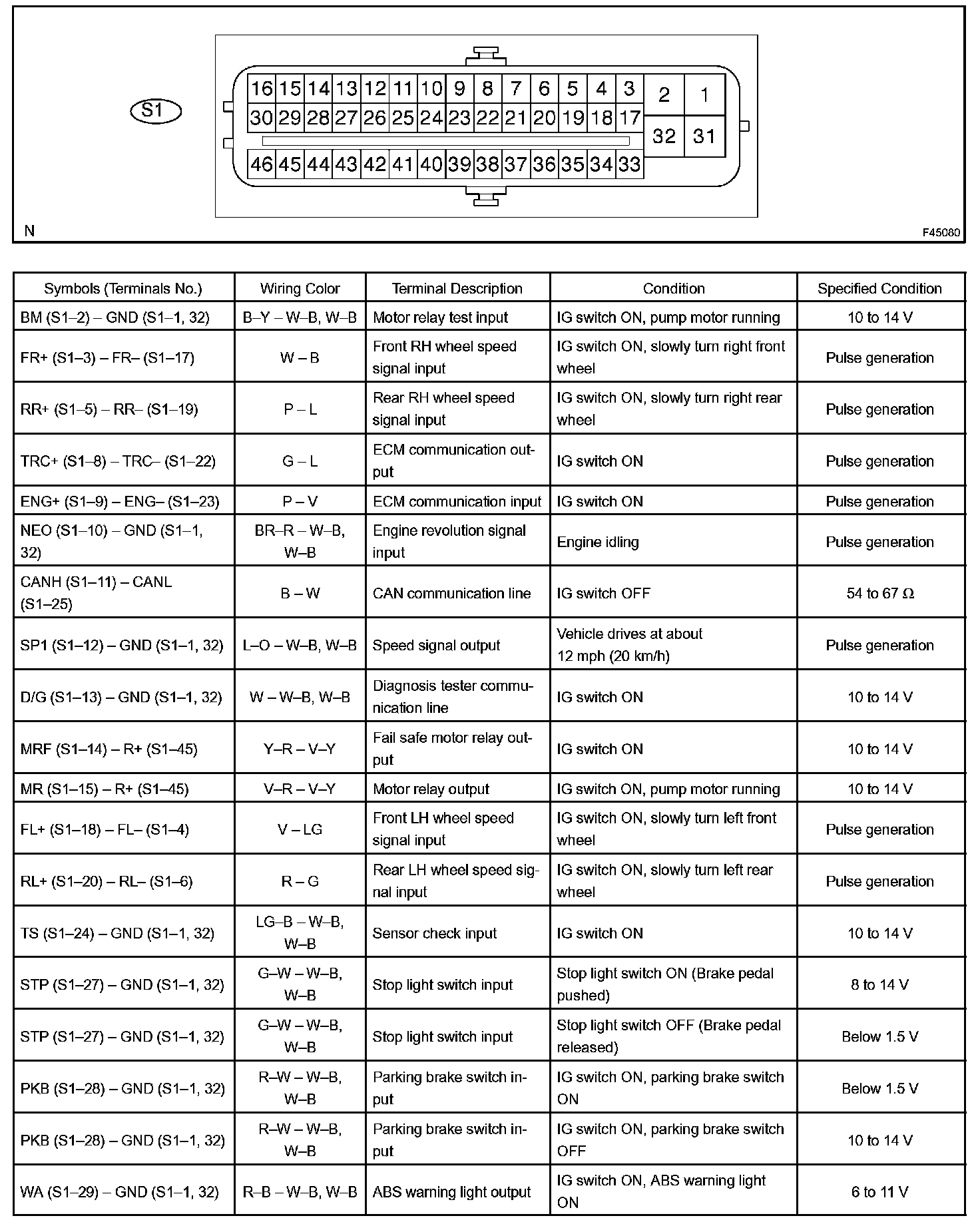

Terminals Of ECU/Pinouts - Skid Control ECU Part 1:
Terminals Of ECU/Pinouts - Skid Control ECU Part 2:
