Partial Engine Assembly

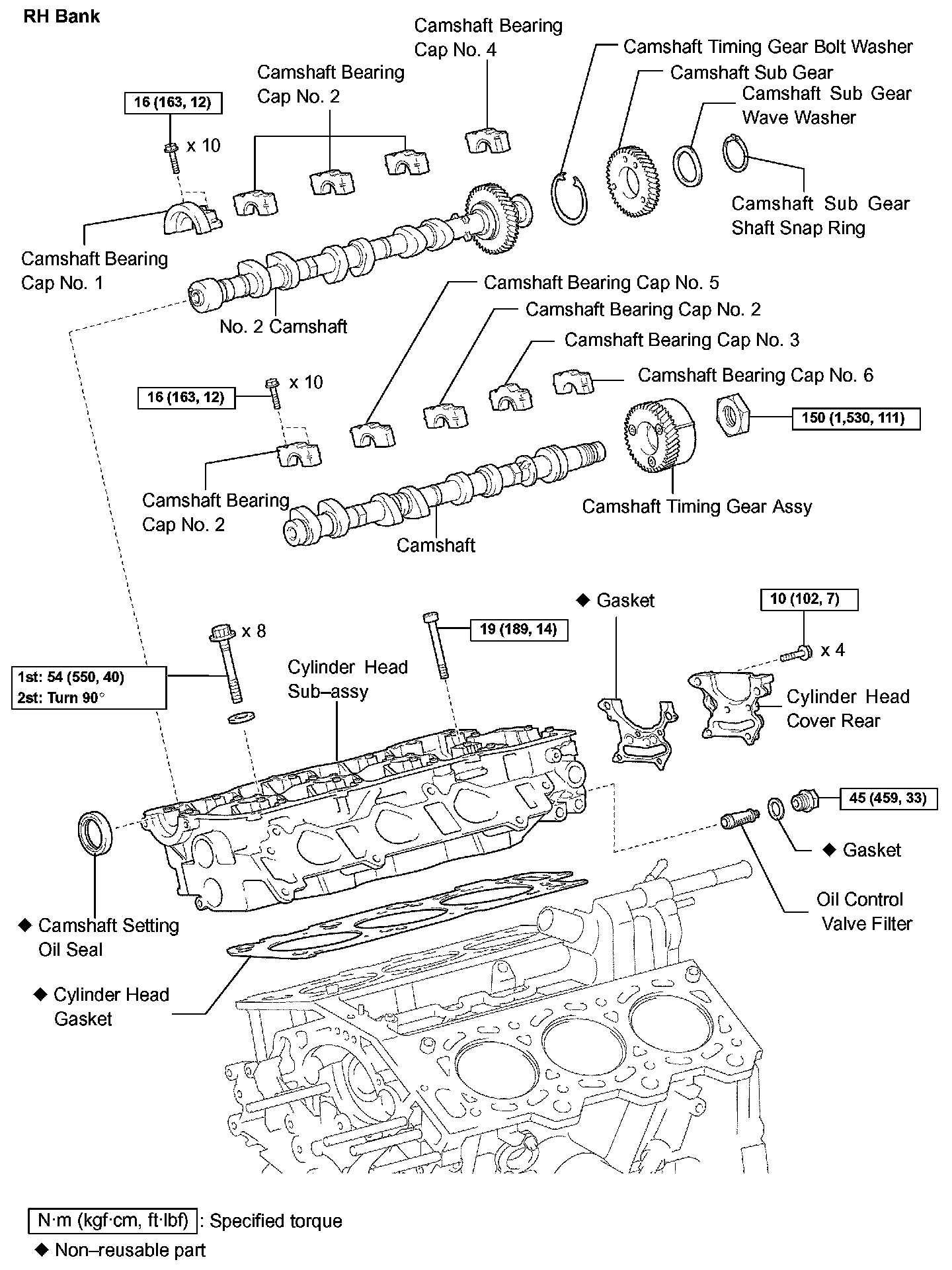

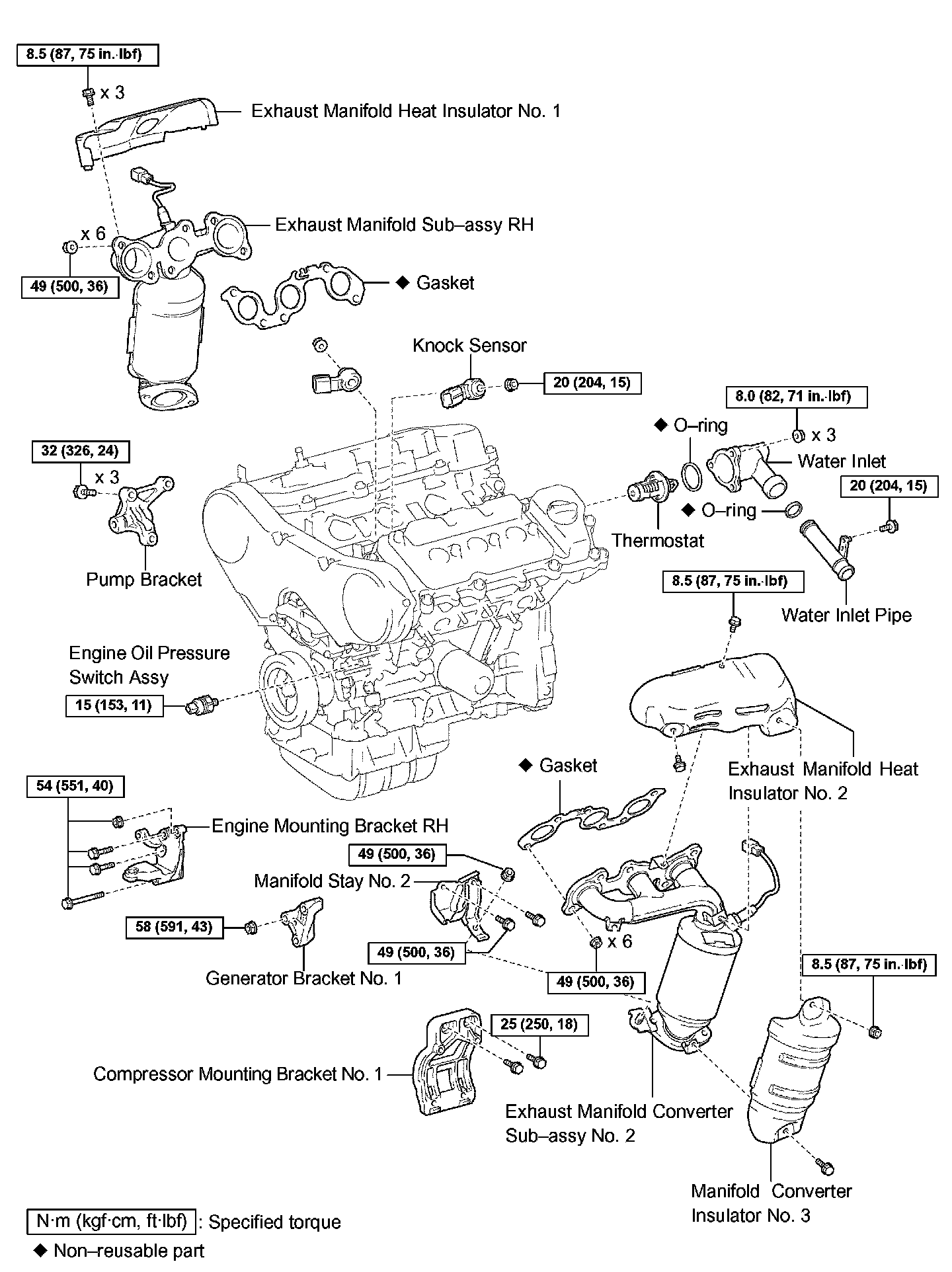

RH Bank:

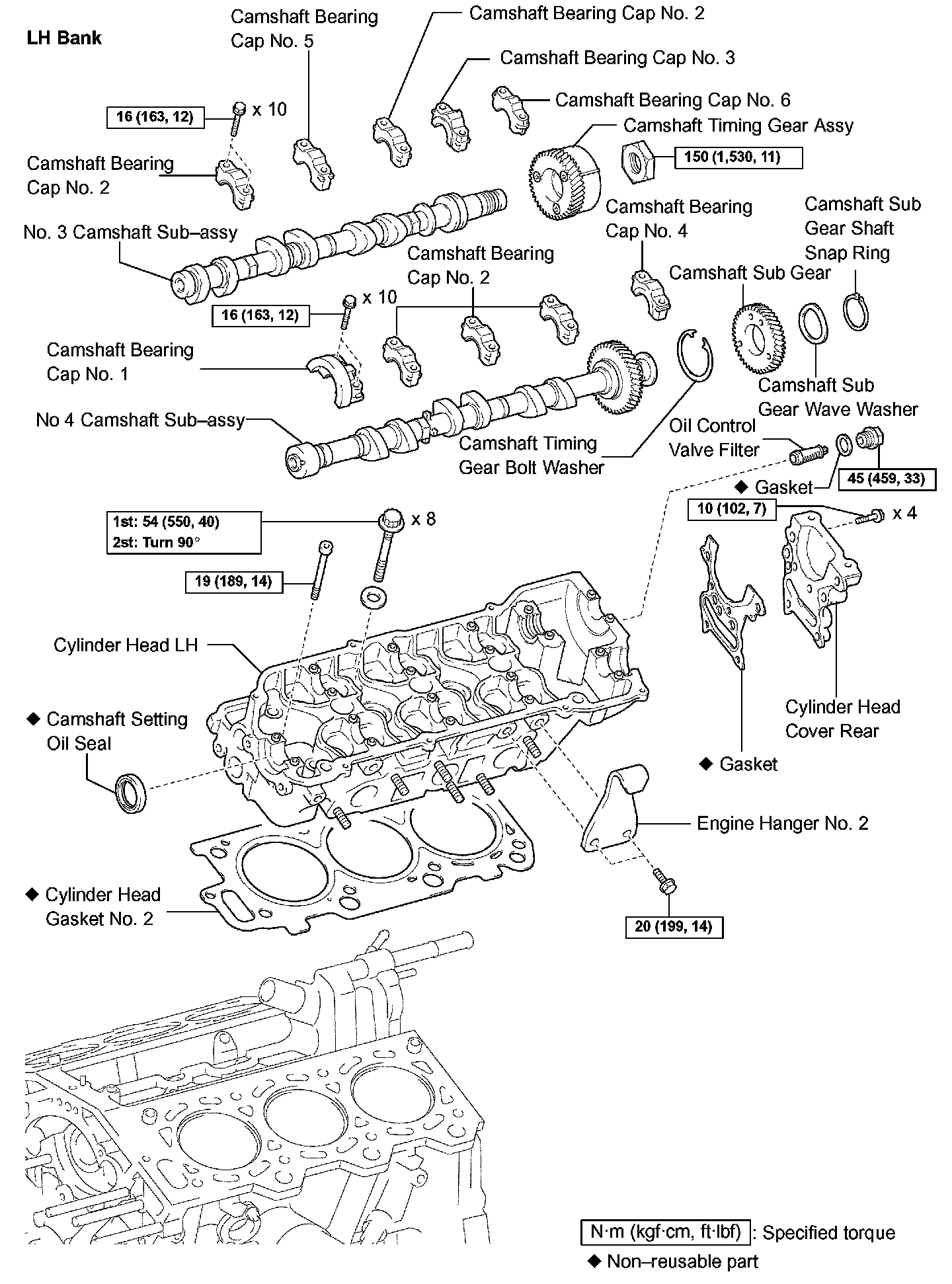

LH Bank:

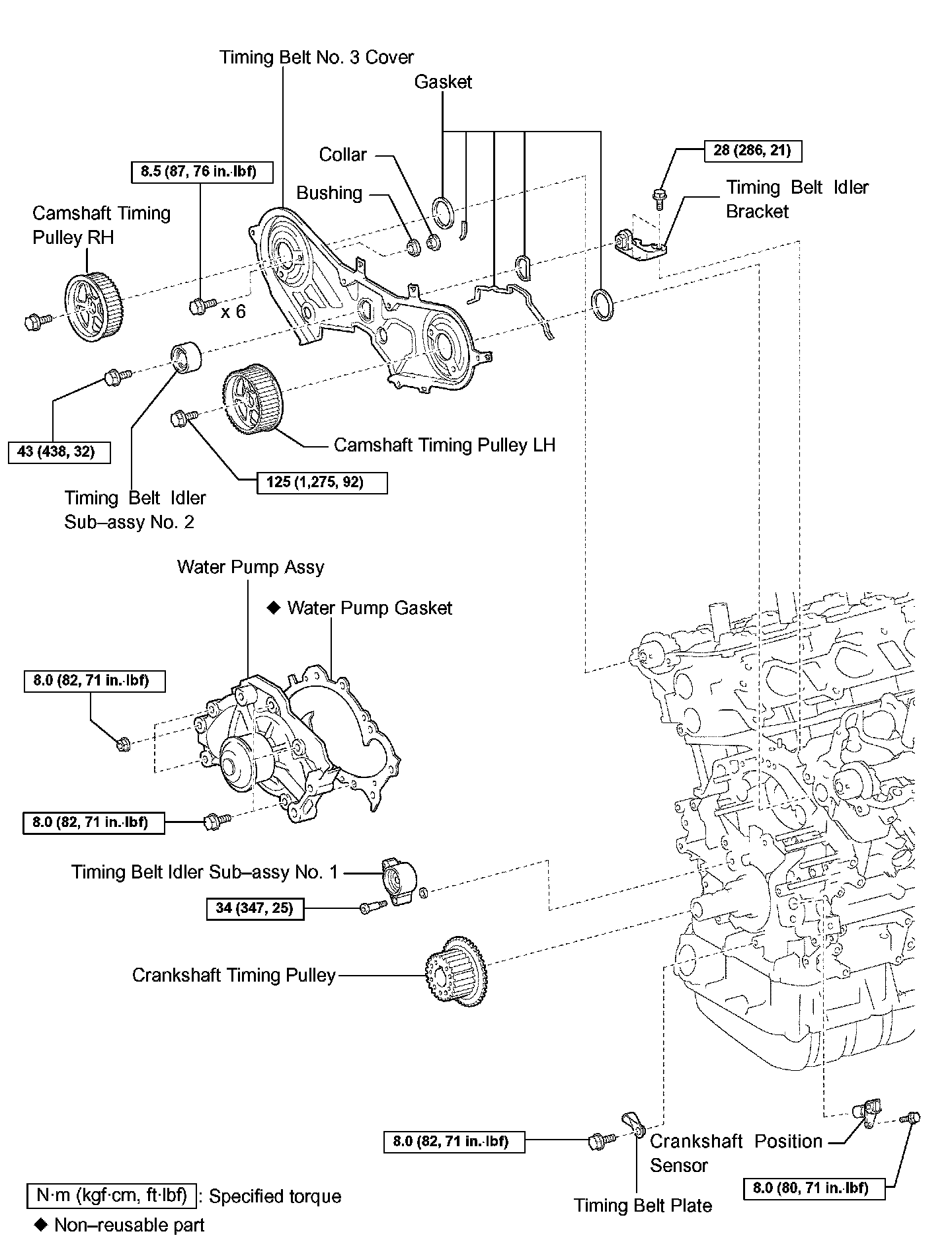

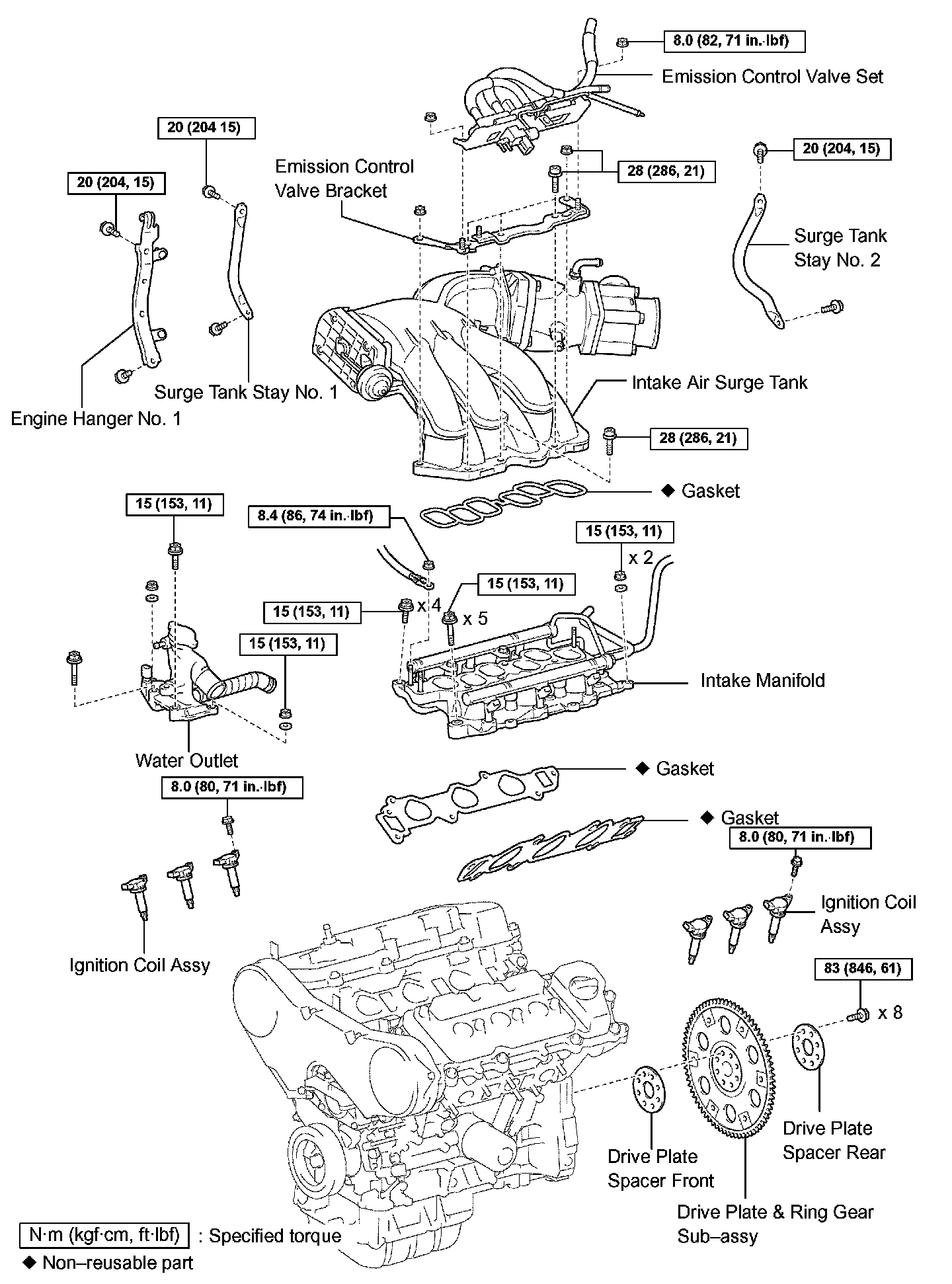

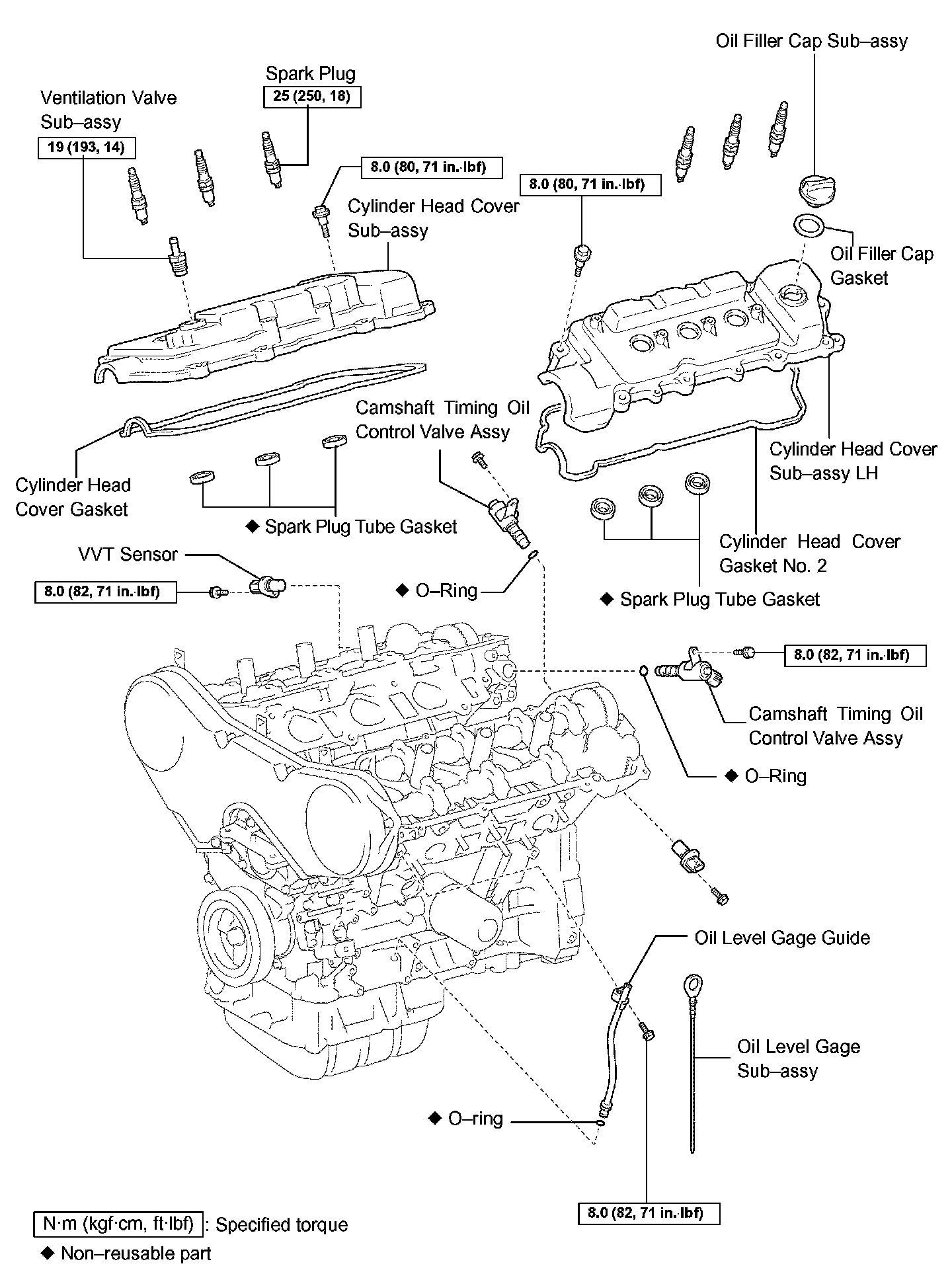

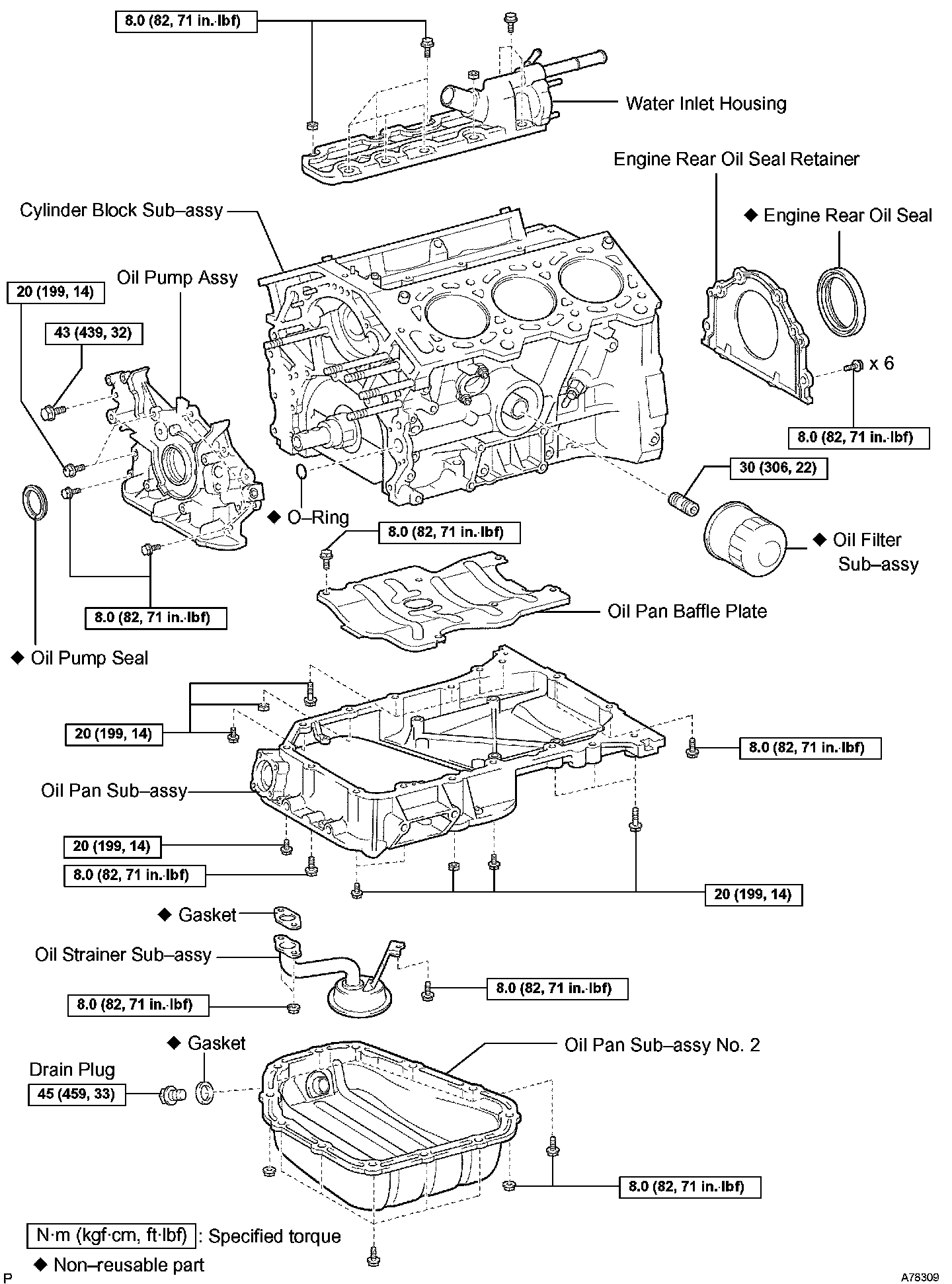

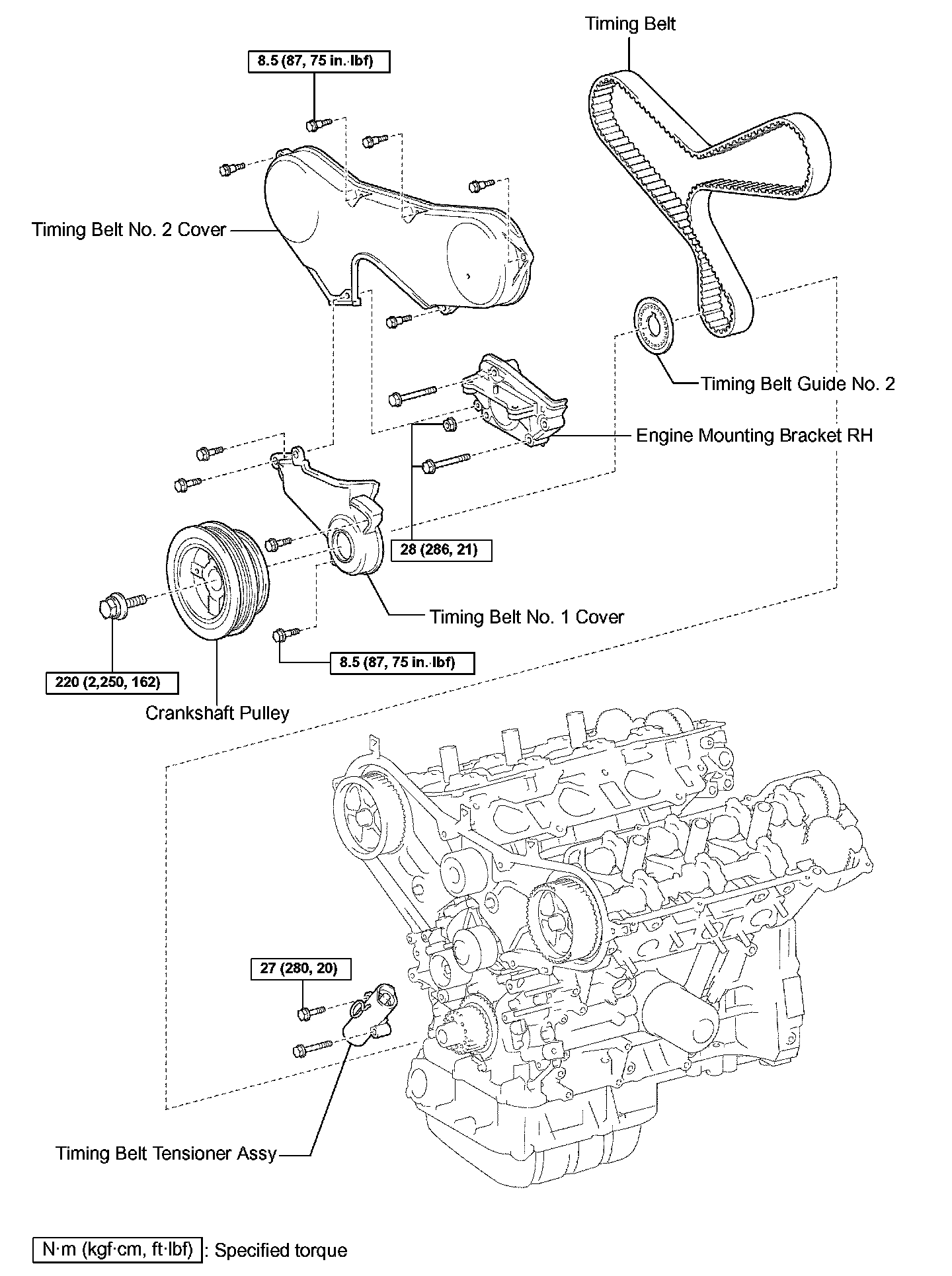

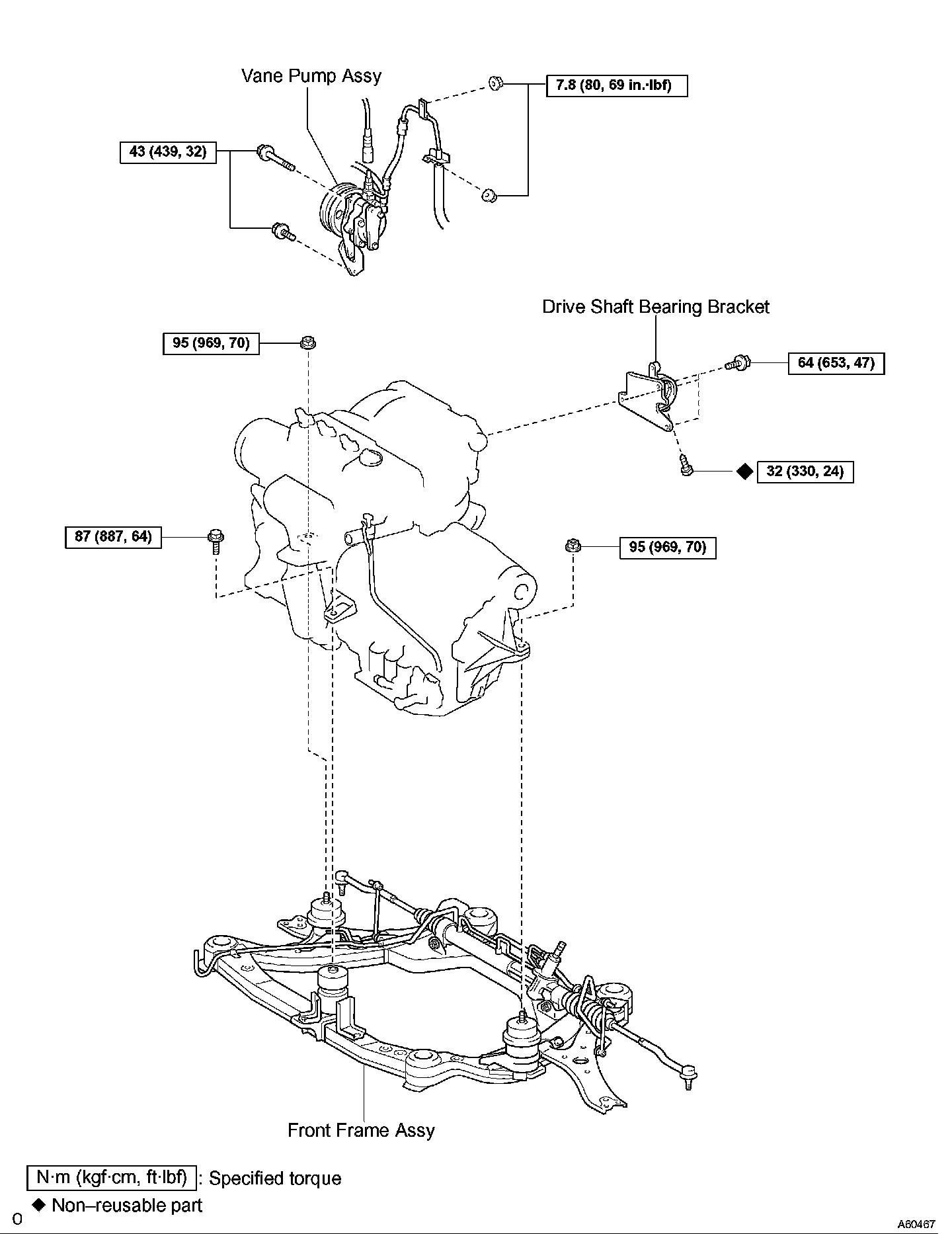

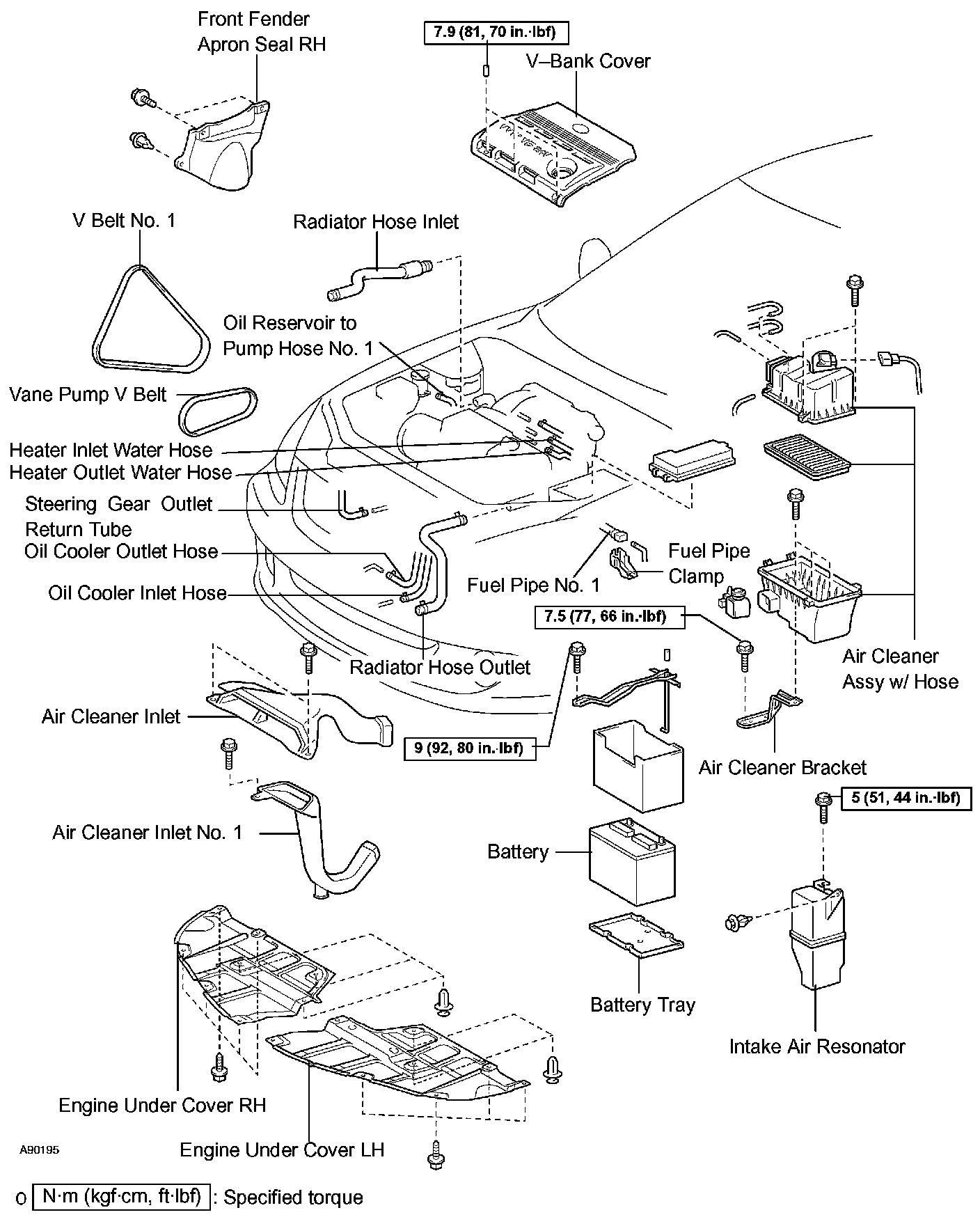

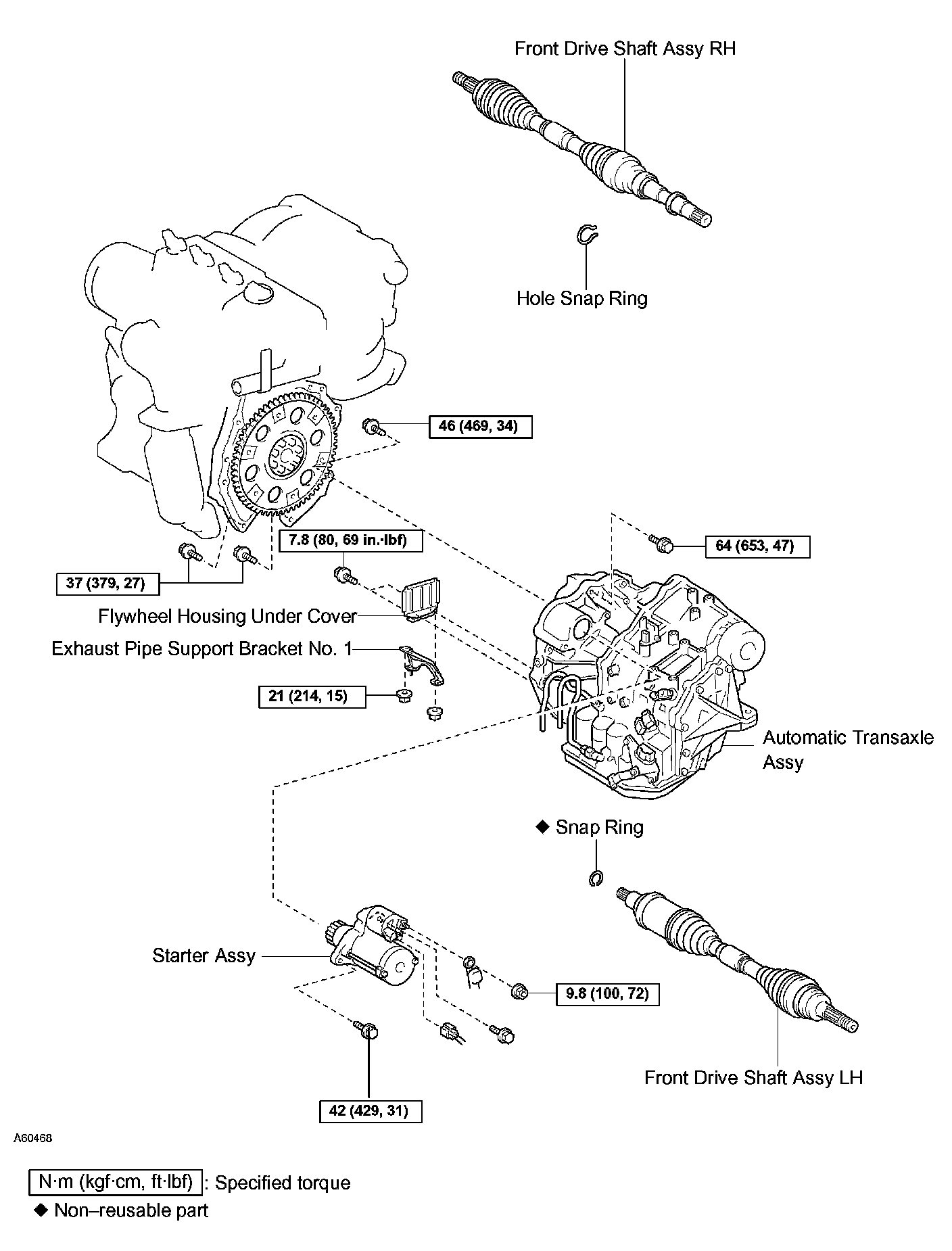

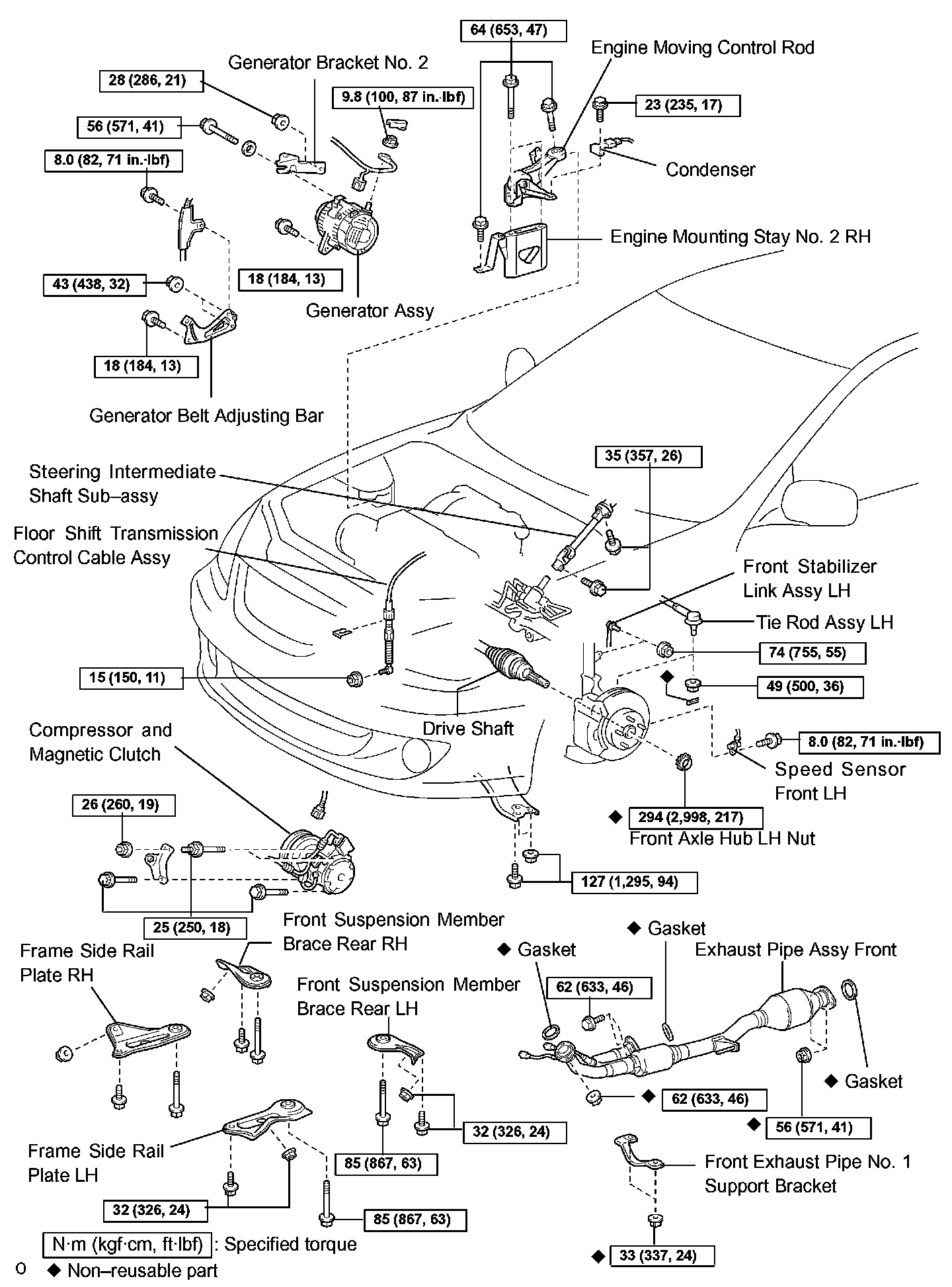

PARTIAL ENGINE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
