Compressor HVAC: Testing and Inspection
ON-VEHICLE INSPECTION 1.
INSPECT COOLER COMPRESSOR ASSY
a.

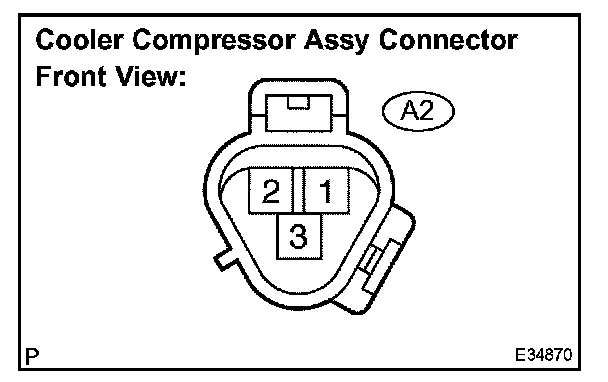

Disconnect the cooler compressor assy connector.
b.

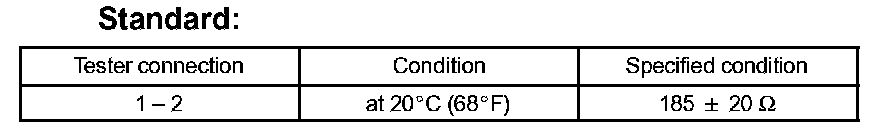

Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, replace the cooler compressor assy.
