Replacement

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
6. REMOVE COMBINATION METER ASSY
7. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
8. REMOVE CONSOLE PANEL SUB-ASSY UPPER
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
10. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY




11. REMOVE AIR CONDITIONING PANEL SUB-ASSY

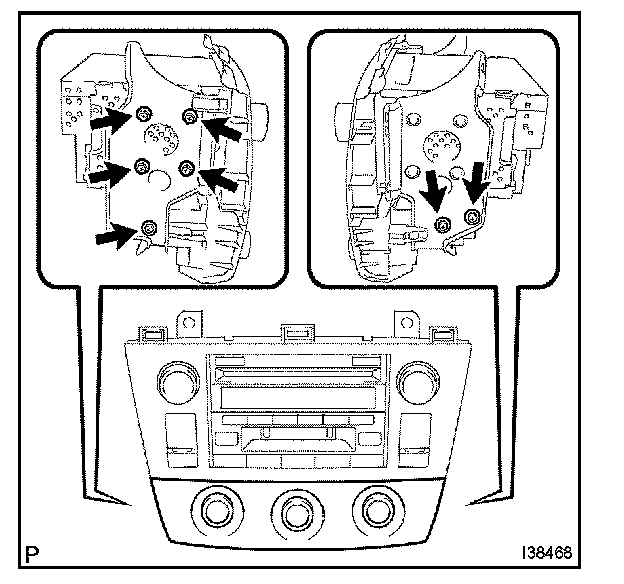

a. Remove the 4 bolts, 3 screws and air conditioning panel sub-assy.
