Back-Up Power Source Circuit

BACK-UP POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the back-up power source circuit for the A/C amplifier. Power is supplied even when turning the ignition switch off and is used for diagnostic trouble code memory, etc.

Wiring Diagram:

Step 1 - 2:

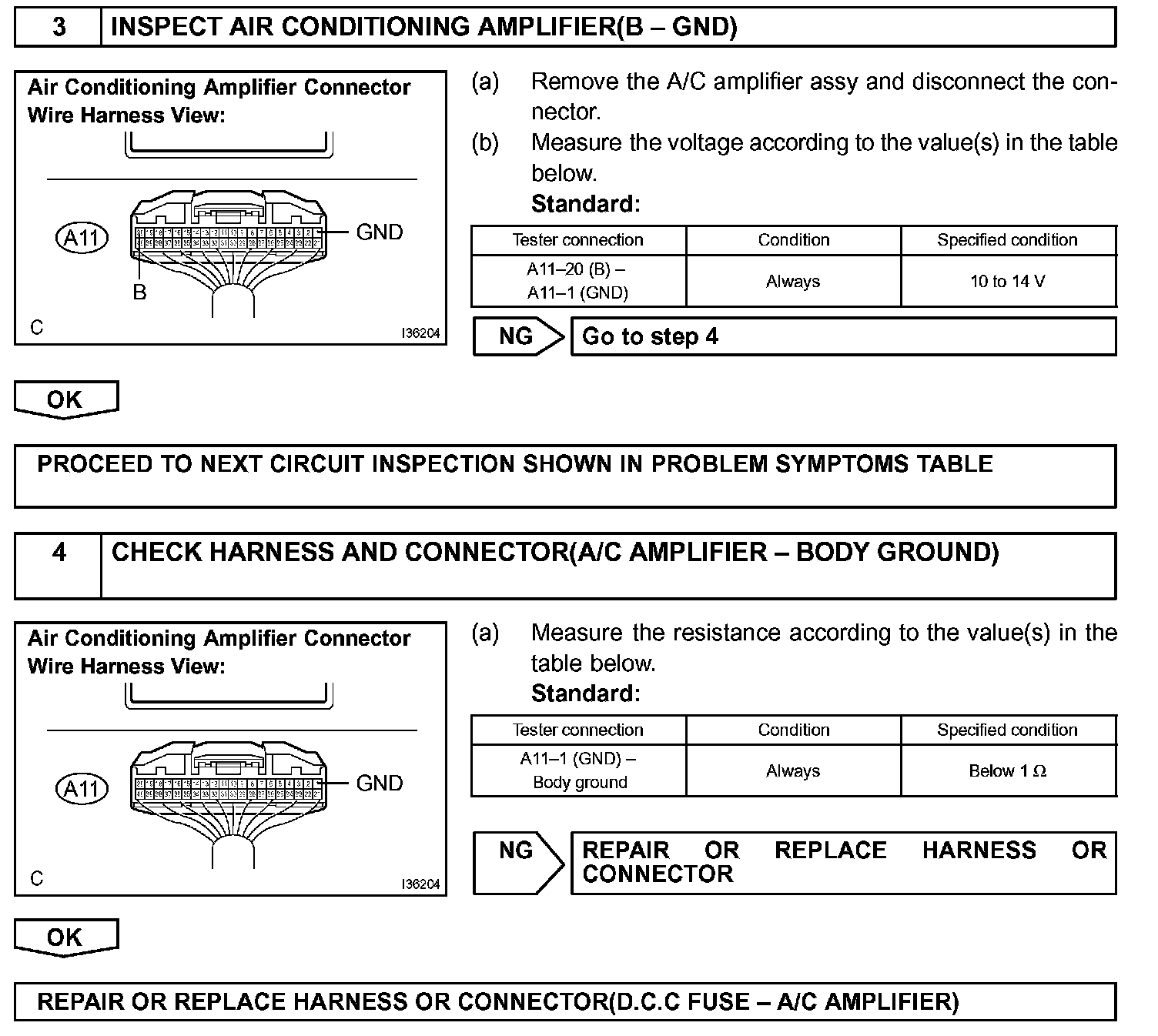

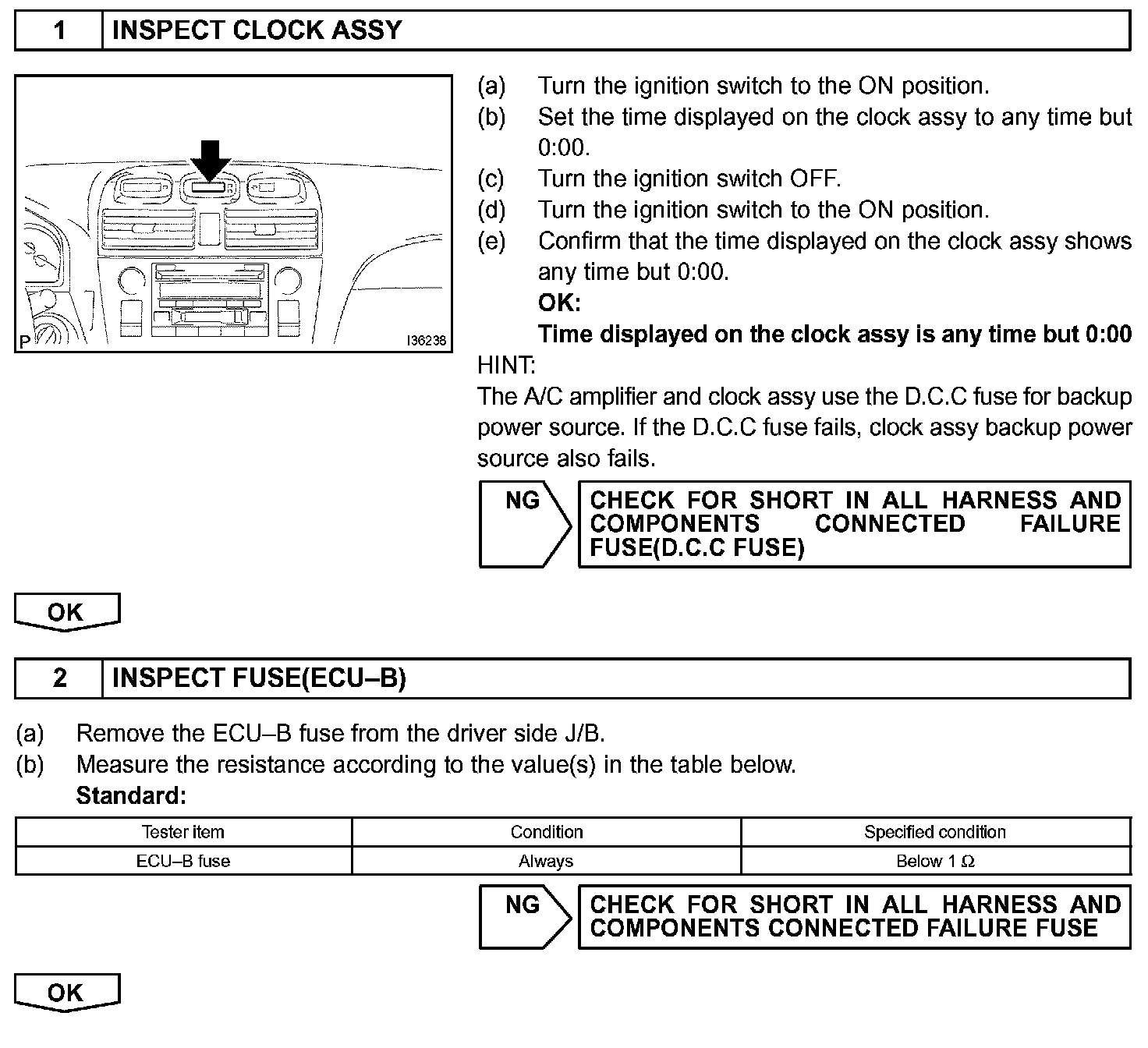

Step 3 - 4:

INSPECTION PROCEDURE
