Scan Tool Testing and Procedures
CHECK THE DLC3 a.

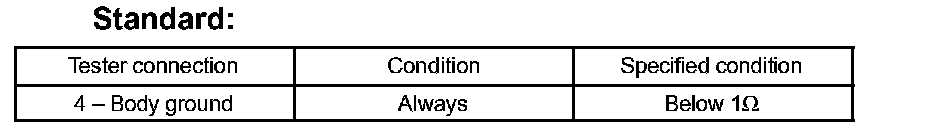

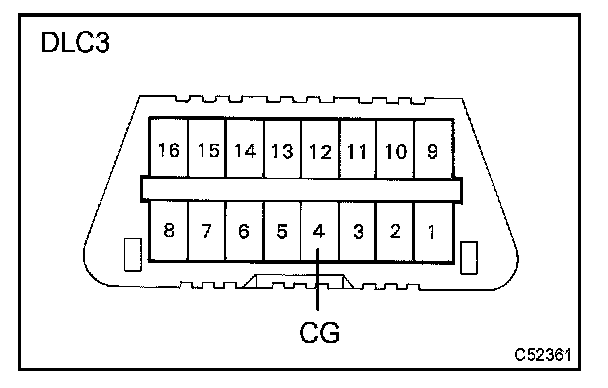

Measure the resistance according to the value(s) in the table.
If the resistance is not as specified, inspect the TC terminal circuit.
b.

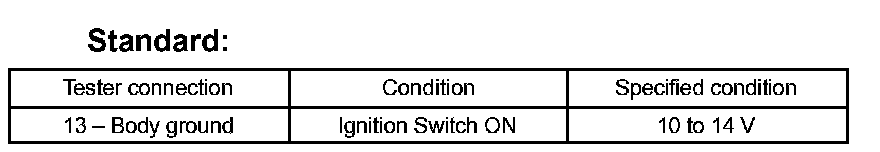

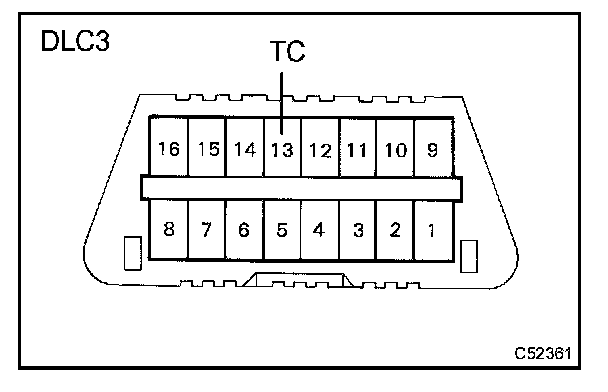

Measure the voltage according to the value(s) in the table.
If the resistance is not as specified, inspect the TC terminal circuit.
