System Specifications

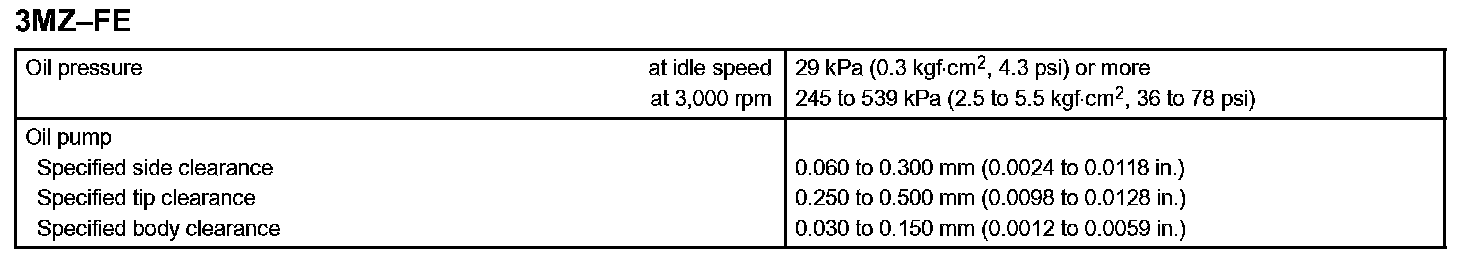

Lubrication - Service Data:

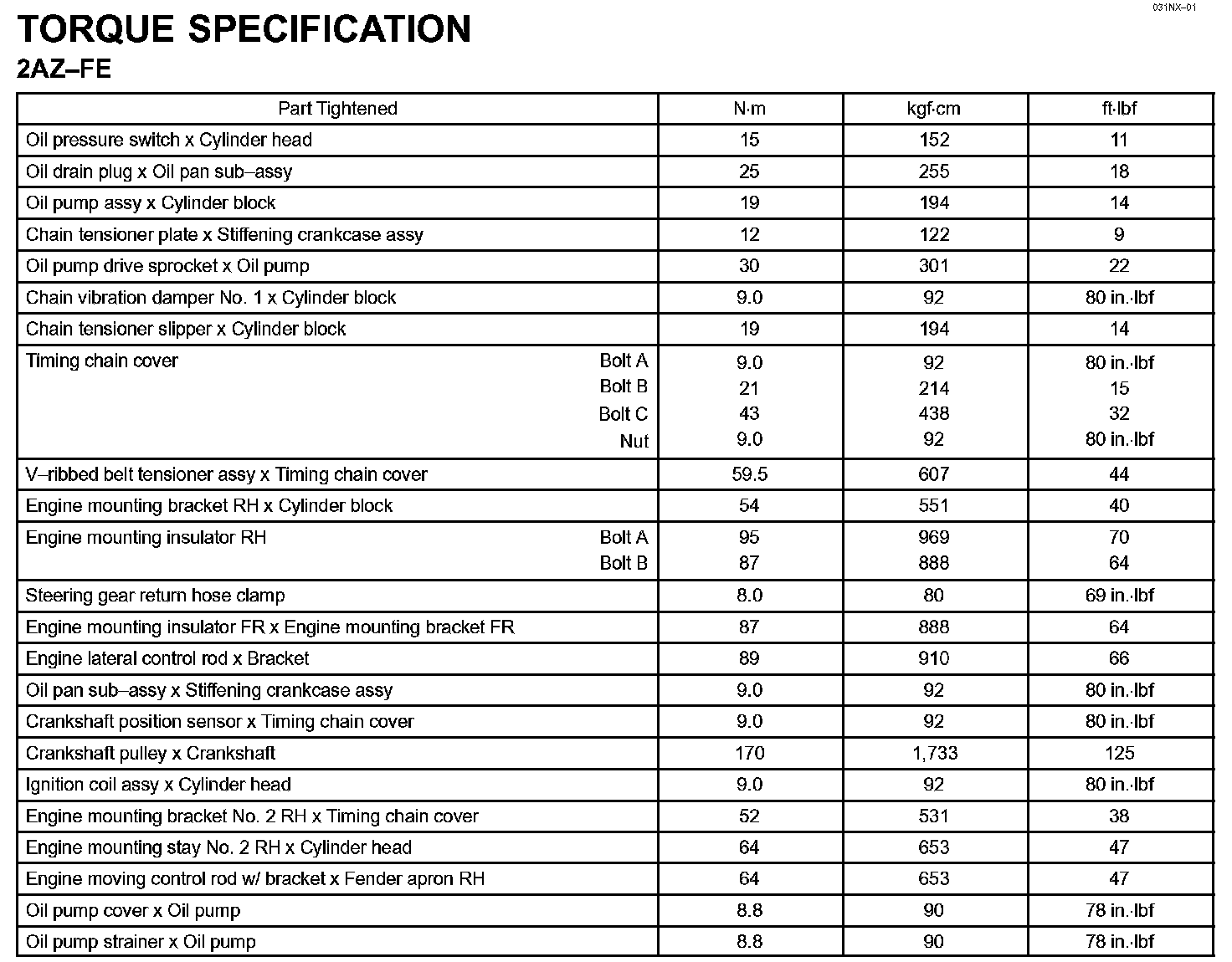

Lubrication - Torque Specification:

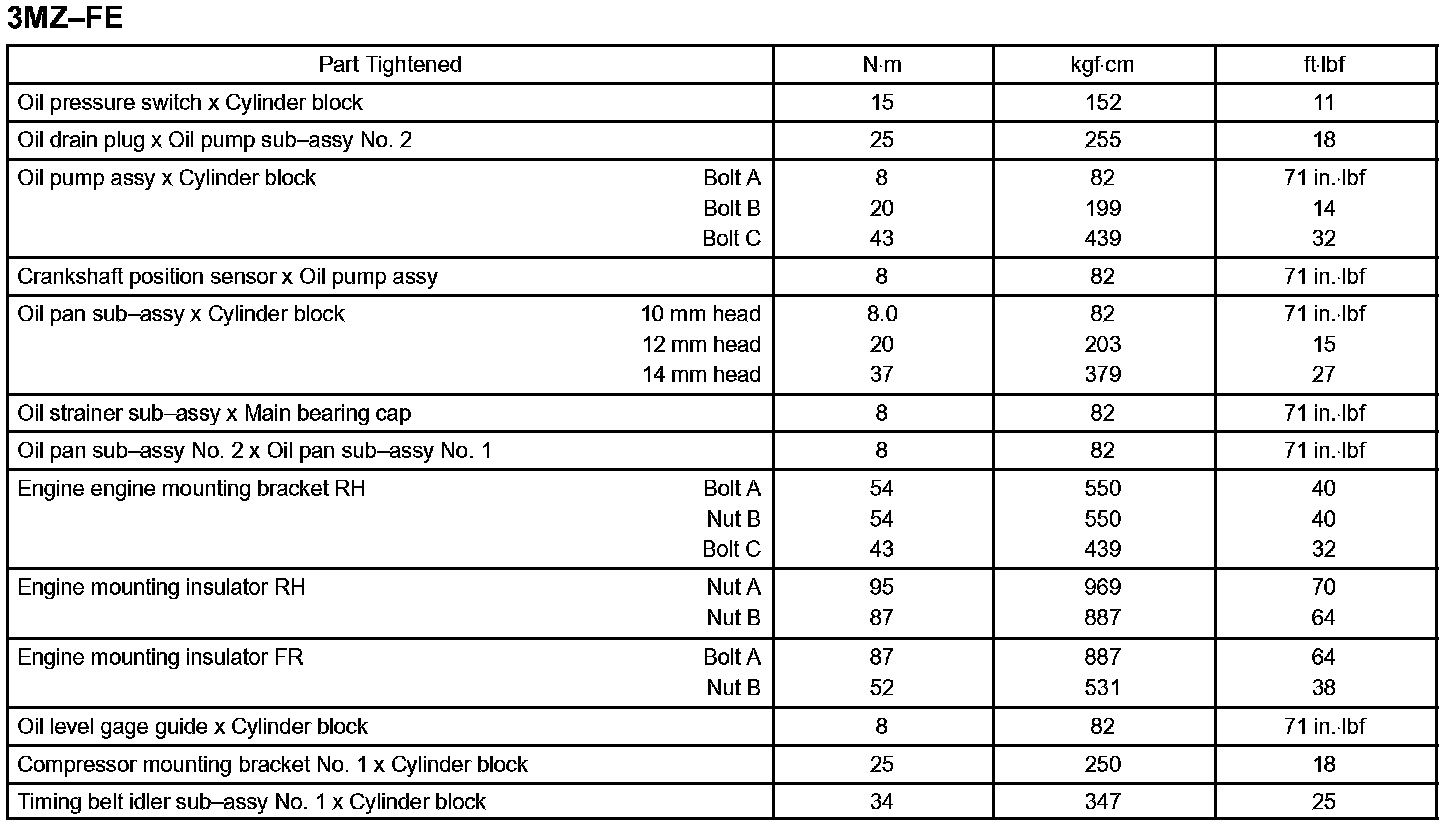

Lubrication - Torque Specification Part 1:

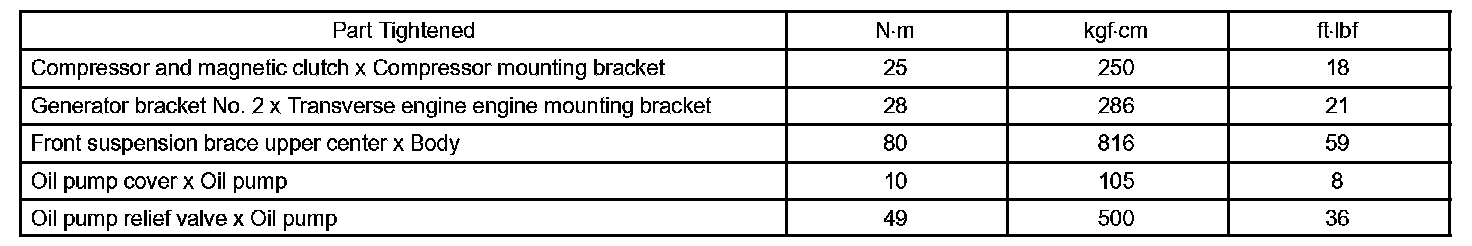

Lubrication - Torque Specification Part 2:
