System Specifications

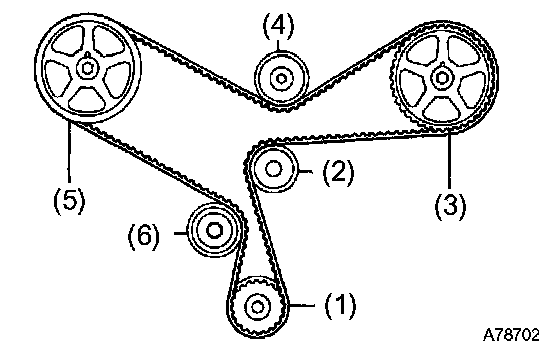

TIMING BELTInstall the

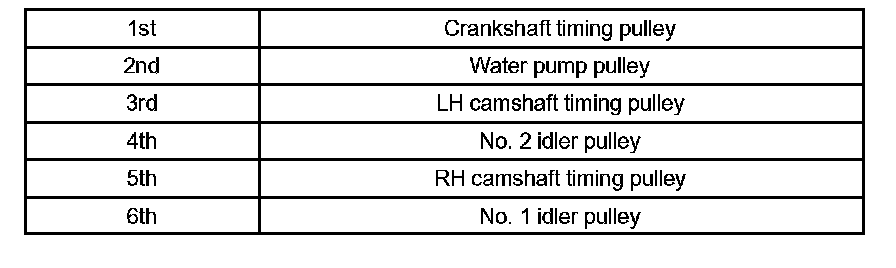

timing belt in this order
TIMING BELT TENSIONER Temporarily install the tensioner with the 2 bolts.
Torque
27 Nm (280 kgf-cm, 20 ft. lbs.)
TIMING COVER Install the timing belt cover.
Torque
8.5 Nm (87 kgf-cm, 76 inch lbs.)
CRANKSHAFT PULLEY
Using SST, install the pulley bolt.
SST 09213-54015 (91651-60855), 09330-00021
Torque
220 Nm (2,250 kgf-cm, 162 ft. lbs.)
