Front

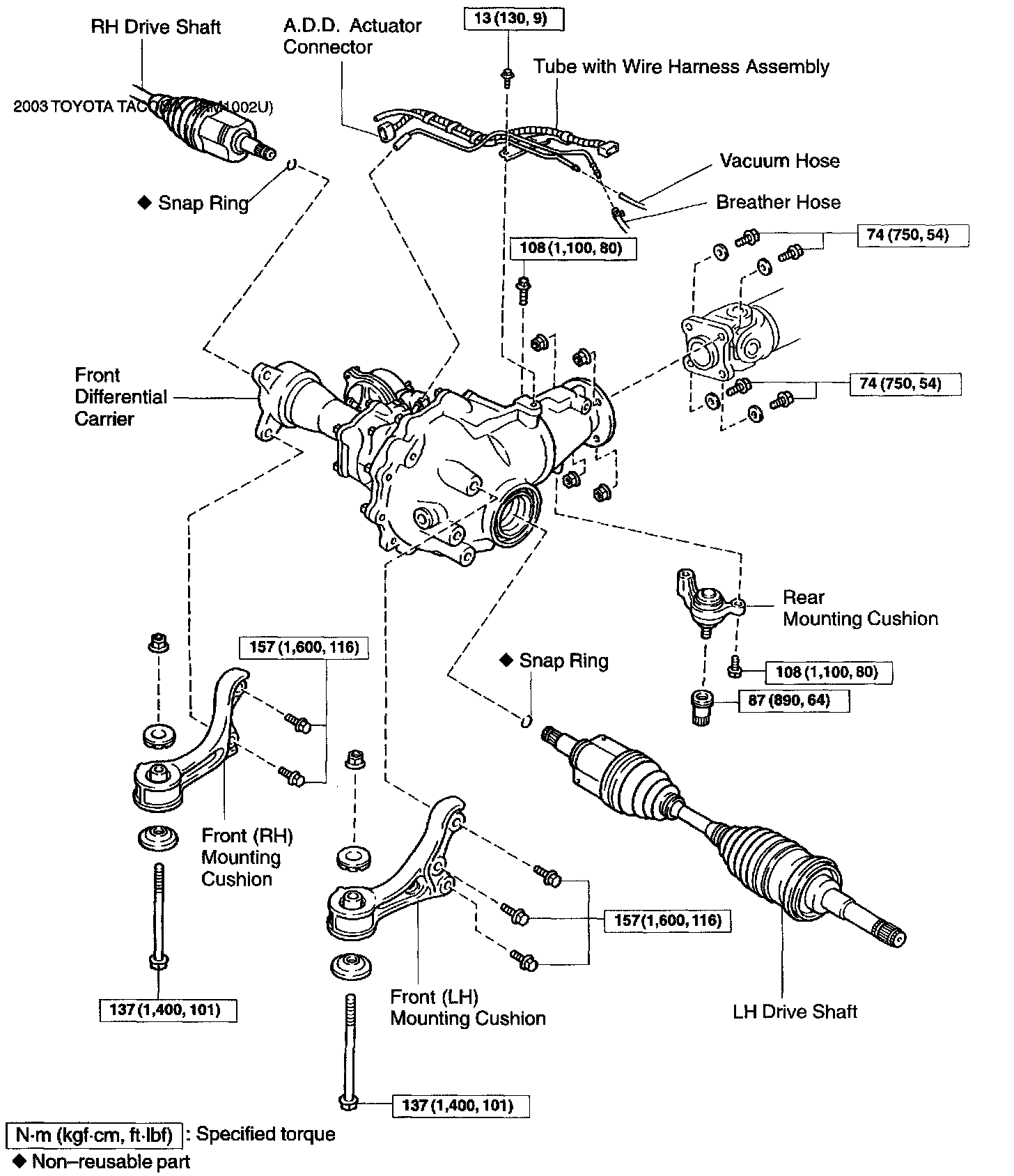

Part 1 Of 2:




Part 2 Of 2:





FRONT DIFFERENTIAL CARRIER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
