Cruise Control System (W/O ETCS-i)
Cruise Control System (W/O ETCS-i)

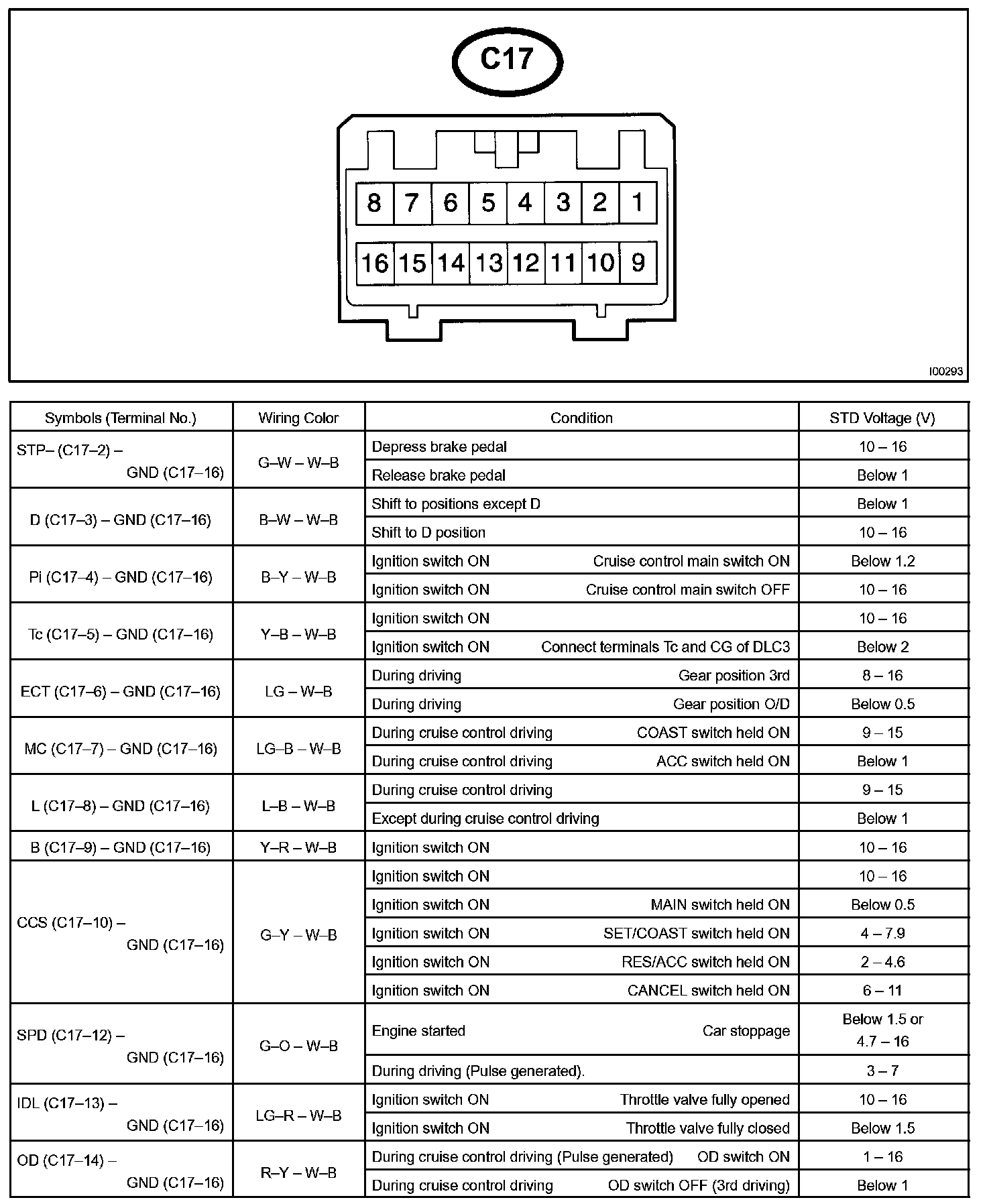

Terminals Of ECM/Pinouts Part 1:

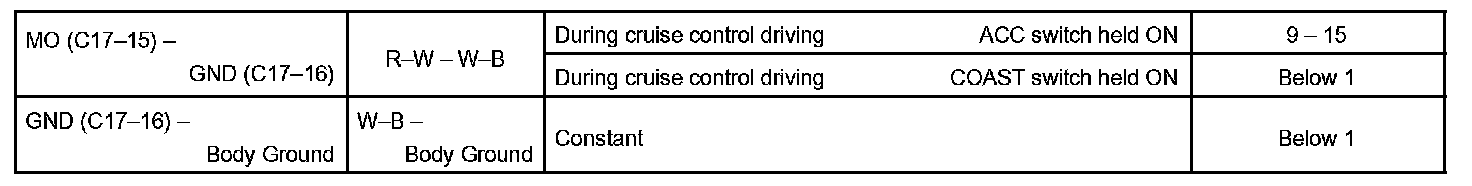

Terminals Of ECM/Pinouts Part 2:
