DATA LIST

HINT: According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the hand-held to the DLC3.
b. Turn the ignition switch ON.

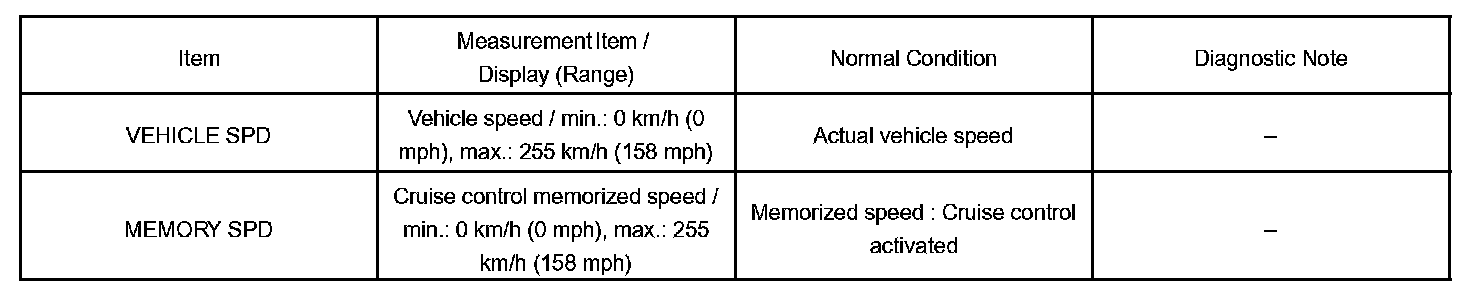

Part 1:

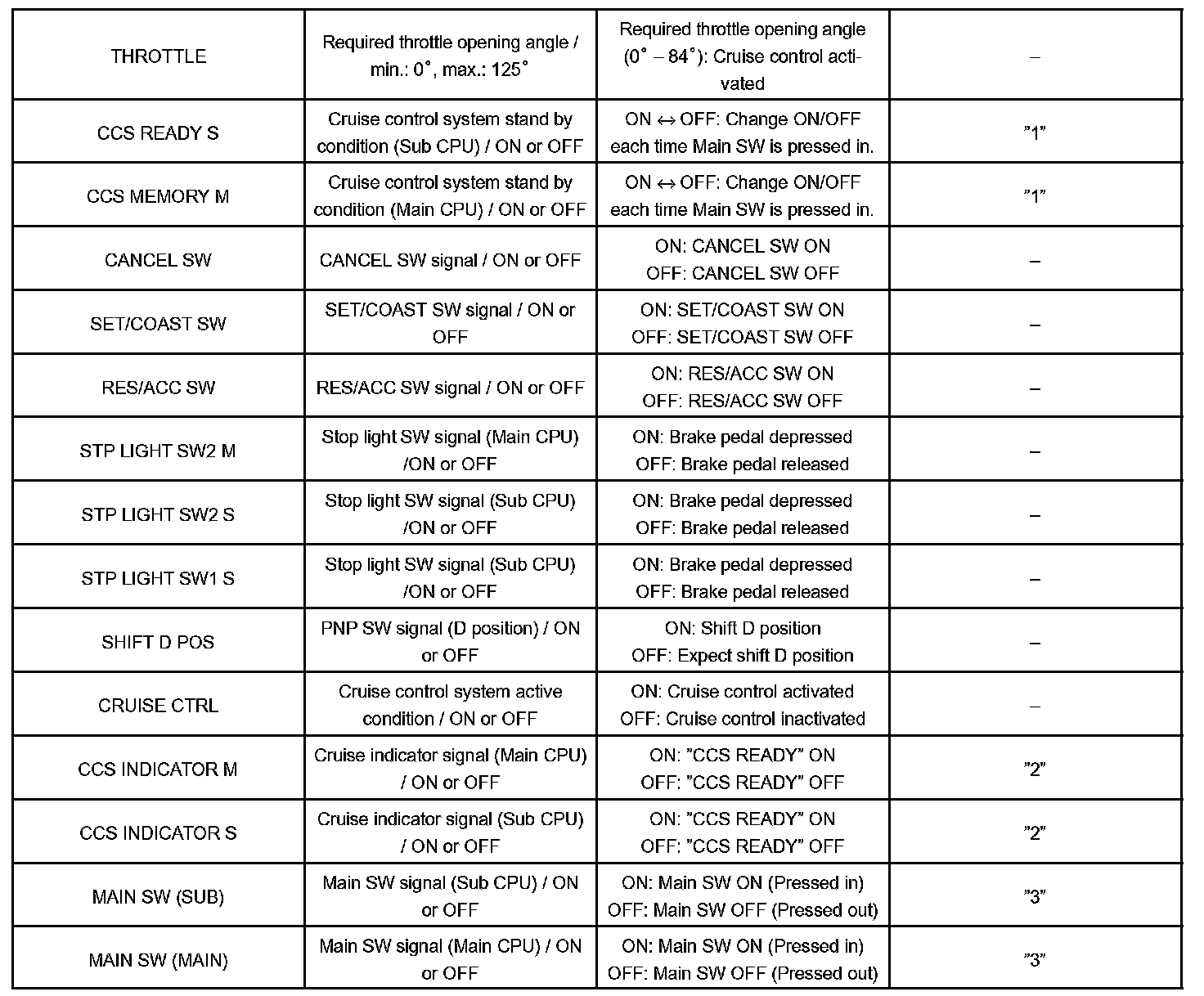

Part 2:

c. According to the display on the tester, read the "DATA LIST".

HINT:
"3" is OK but "1" is NG -> ECM failure.
"1" is OK but IS NG -> DTC output or ECM failure.
"3" is OK but cruise indicator not turn on �-> Indicator or W/H or ECM failure.
