Multiple Junction Connector
Multiple Junction Connector

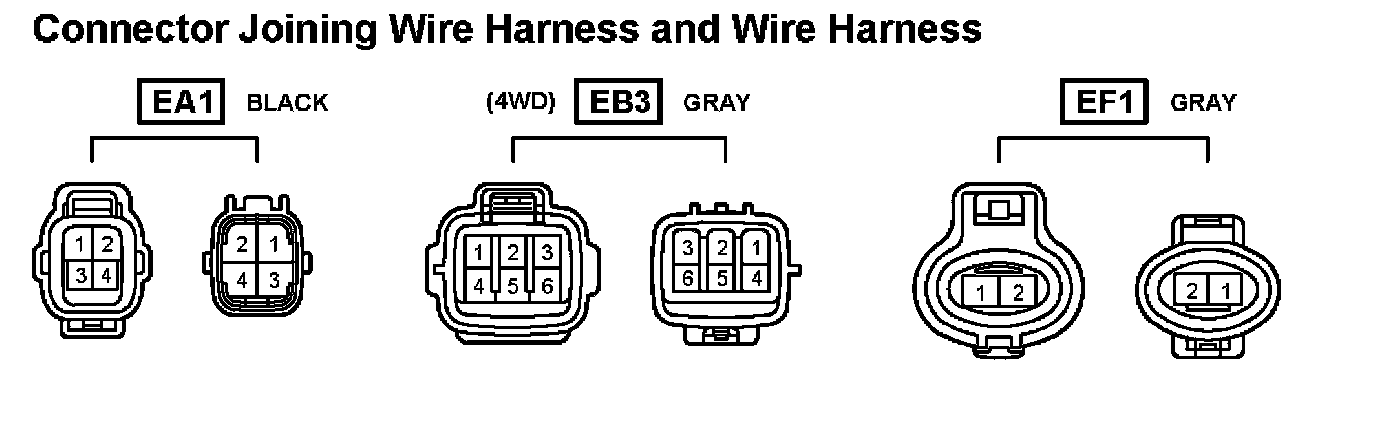

EA1 - EF1:

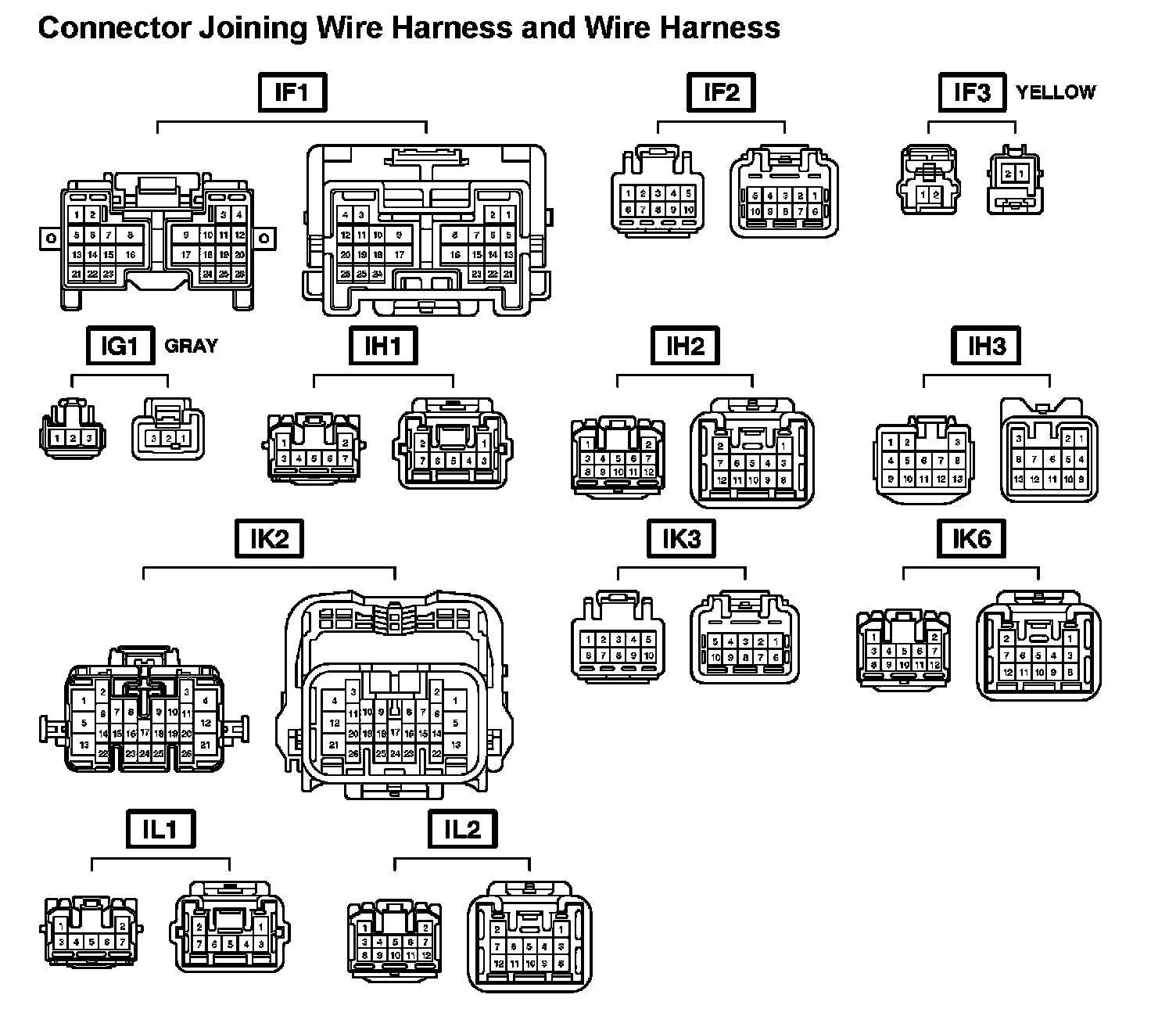

IF1 - IL2:

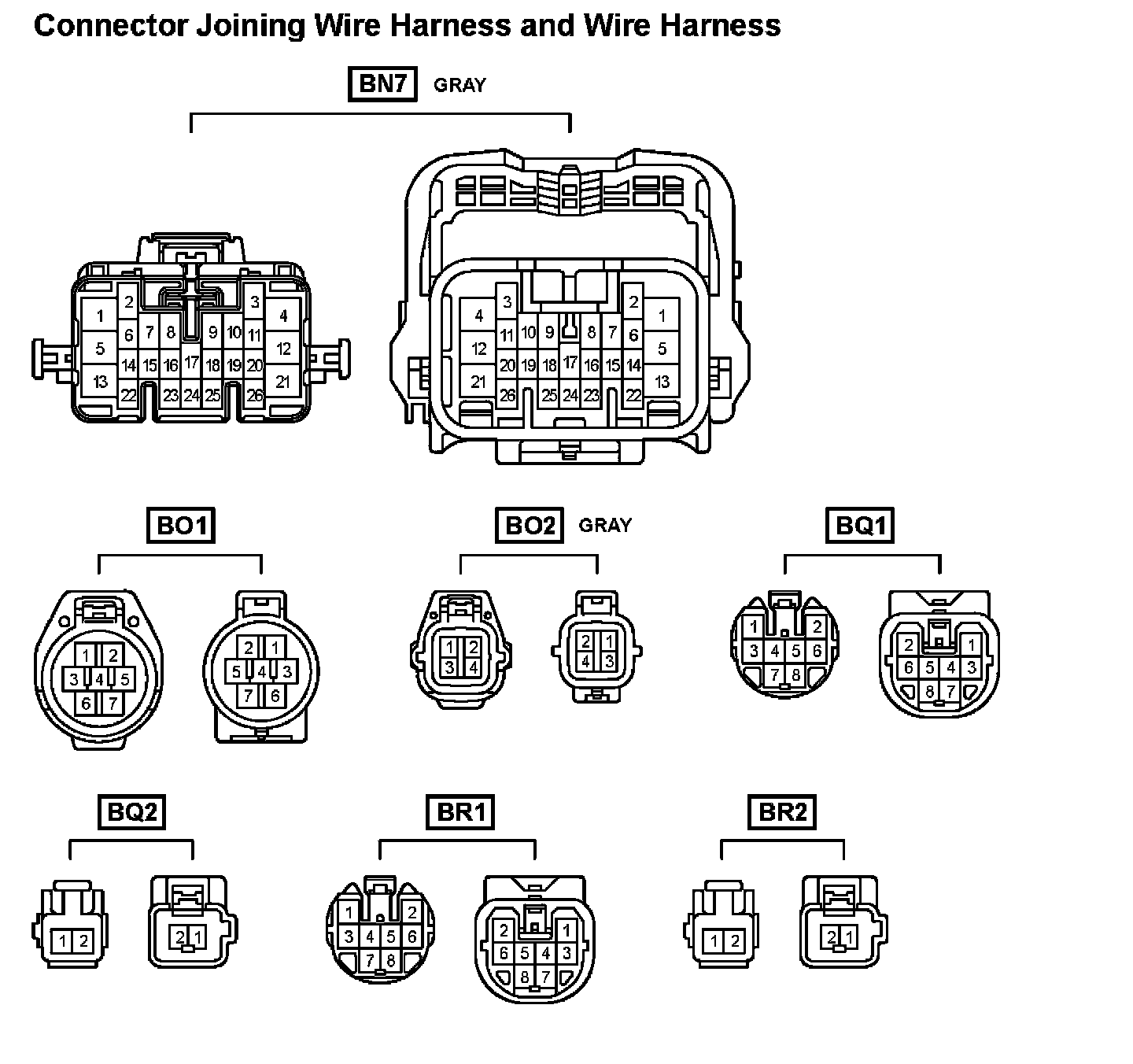

BN7 - BR2:

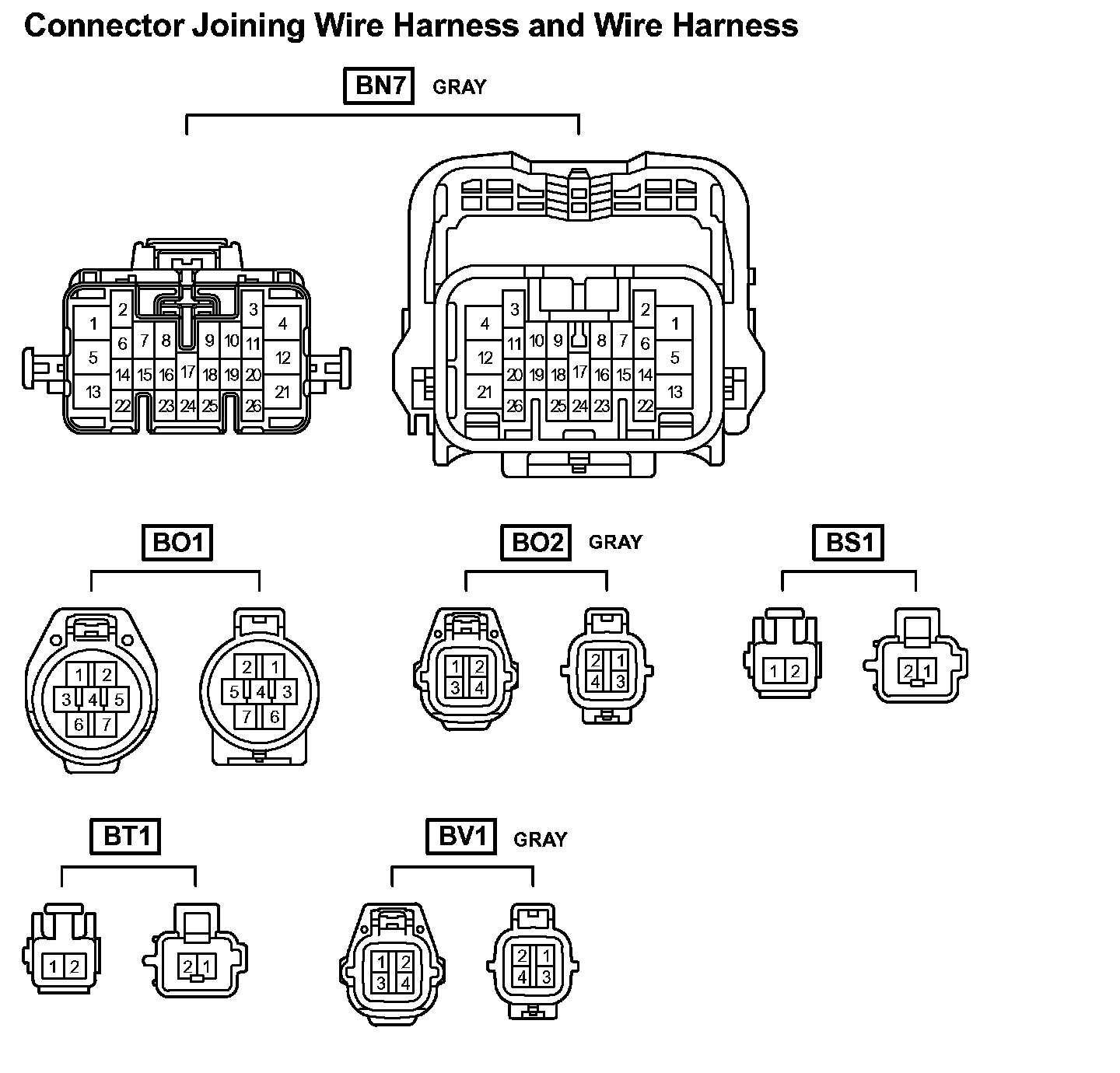

BN7 - BV1:

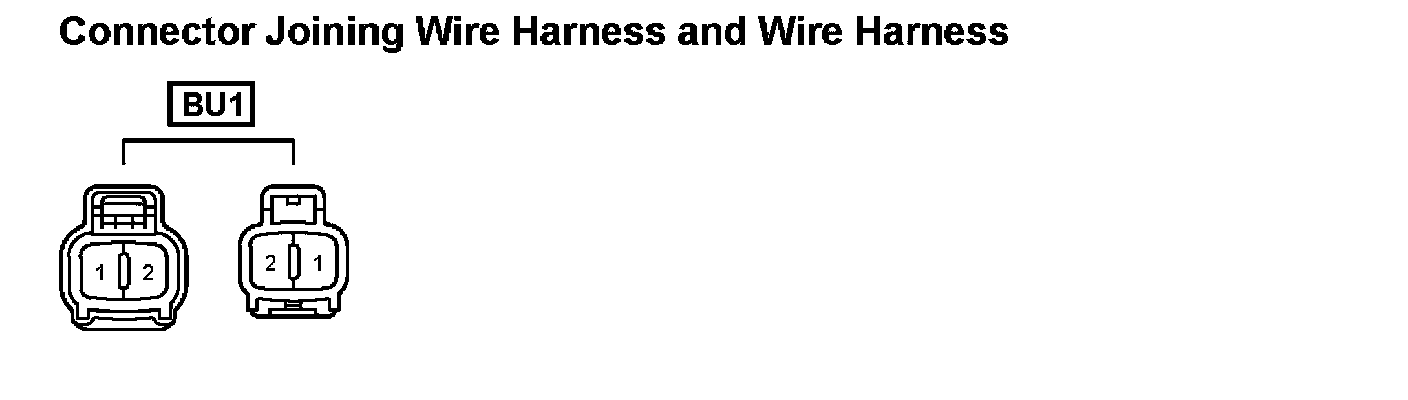

BU1:
