Wheel Hub

Part 1 Of 2:




Part 2 Of 2:

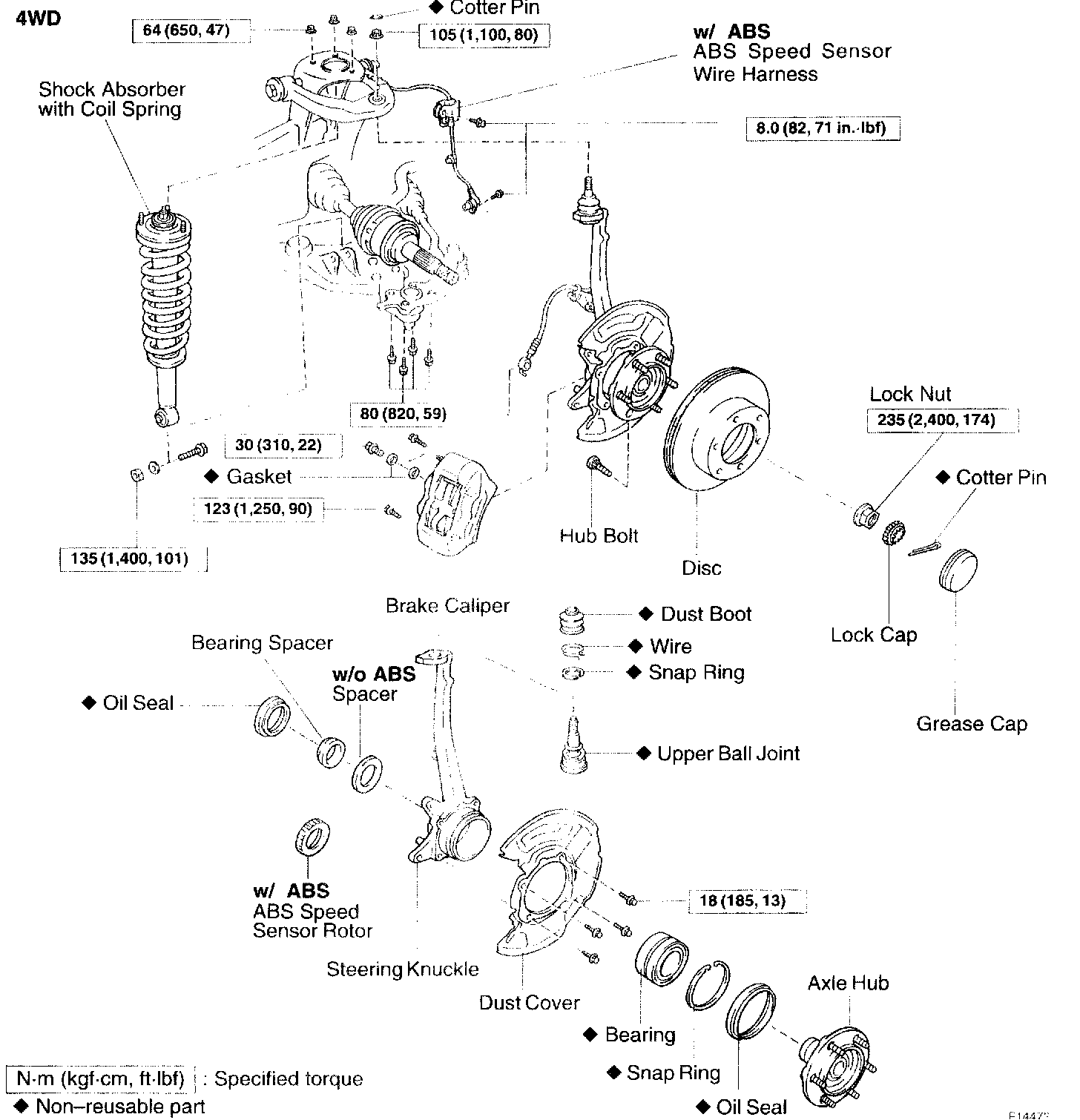

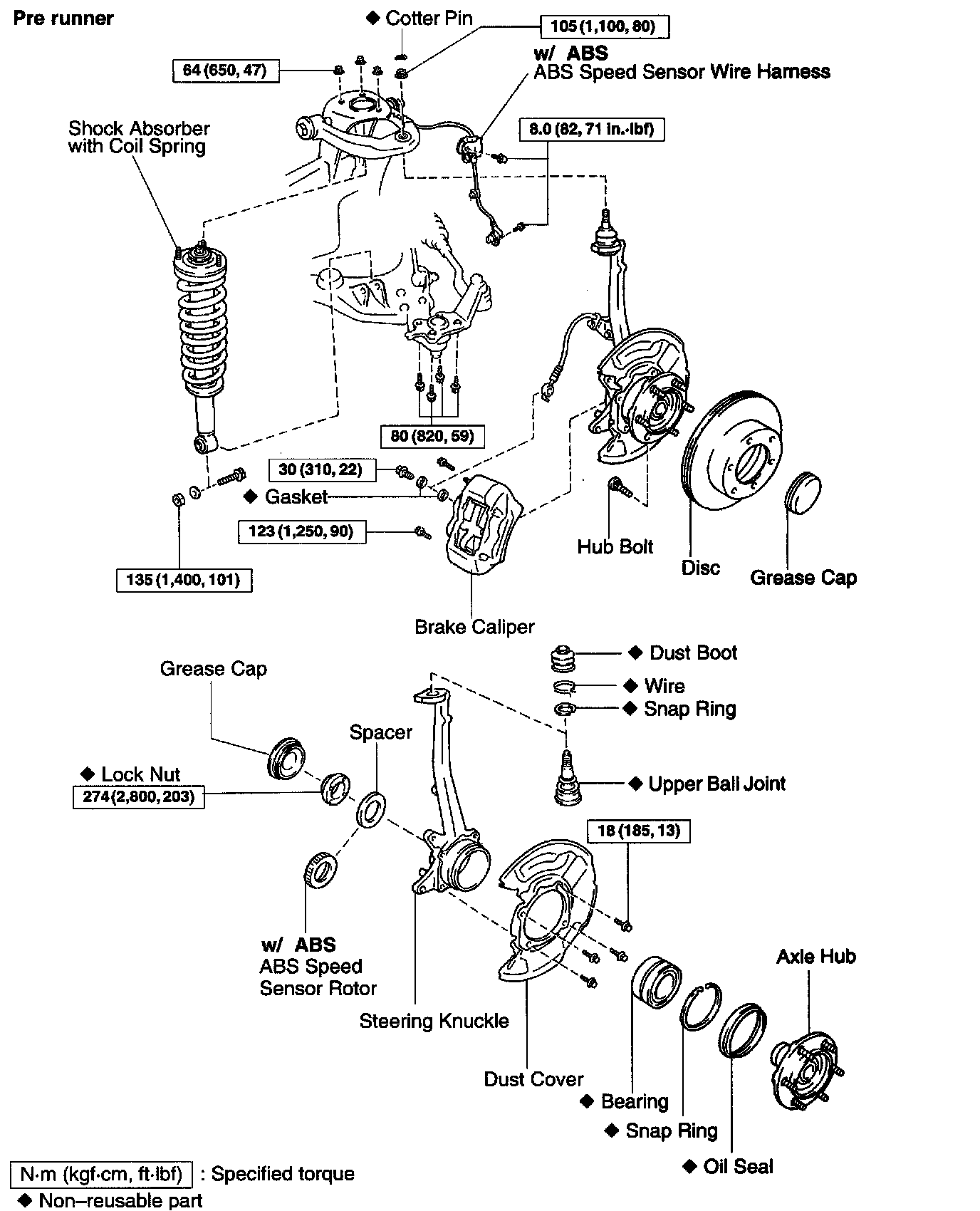

FRONT AXLE HUB REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
