Locations
>>
Connector Locations
Connector Locations

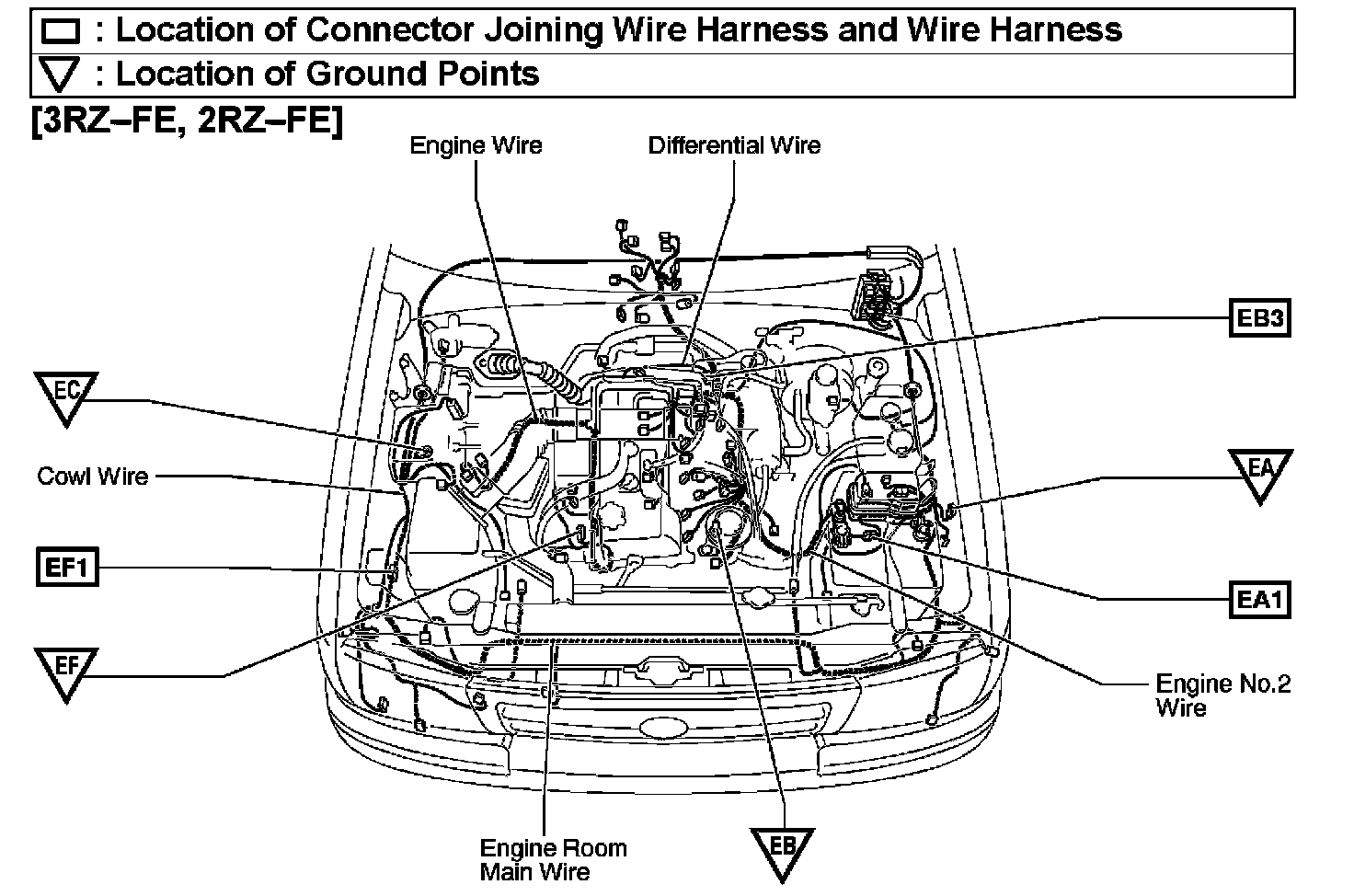

EA - EF, EA1 - EF1:

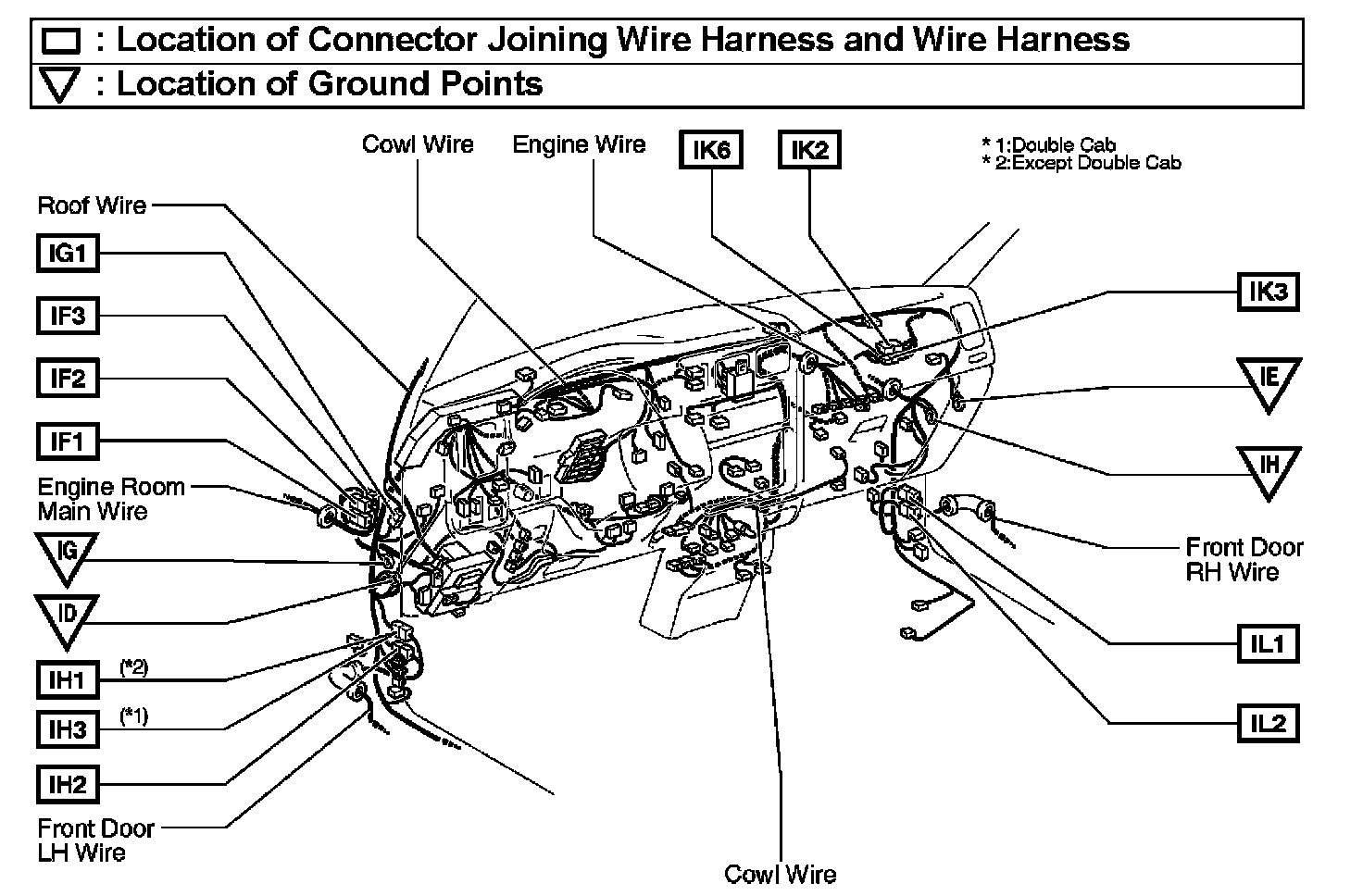

IF1 - IL2, ID - IH:

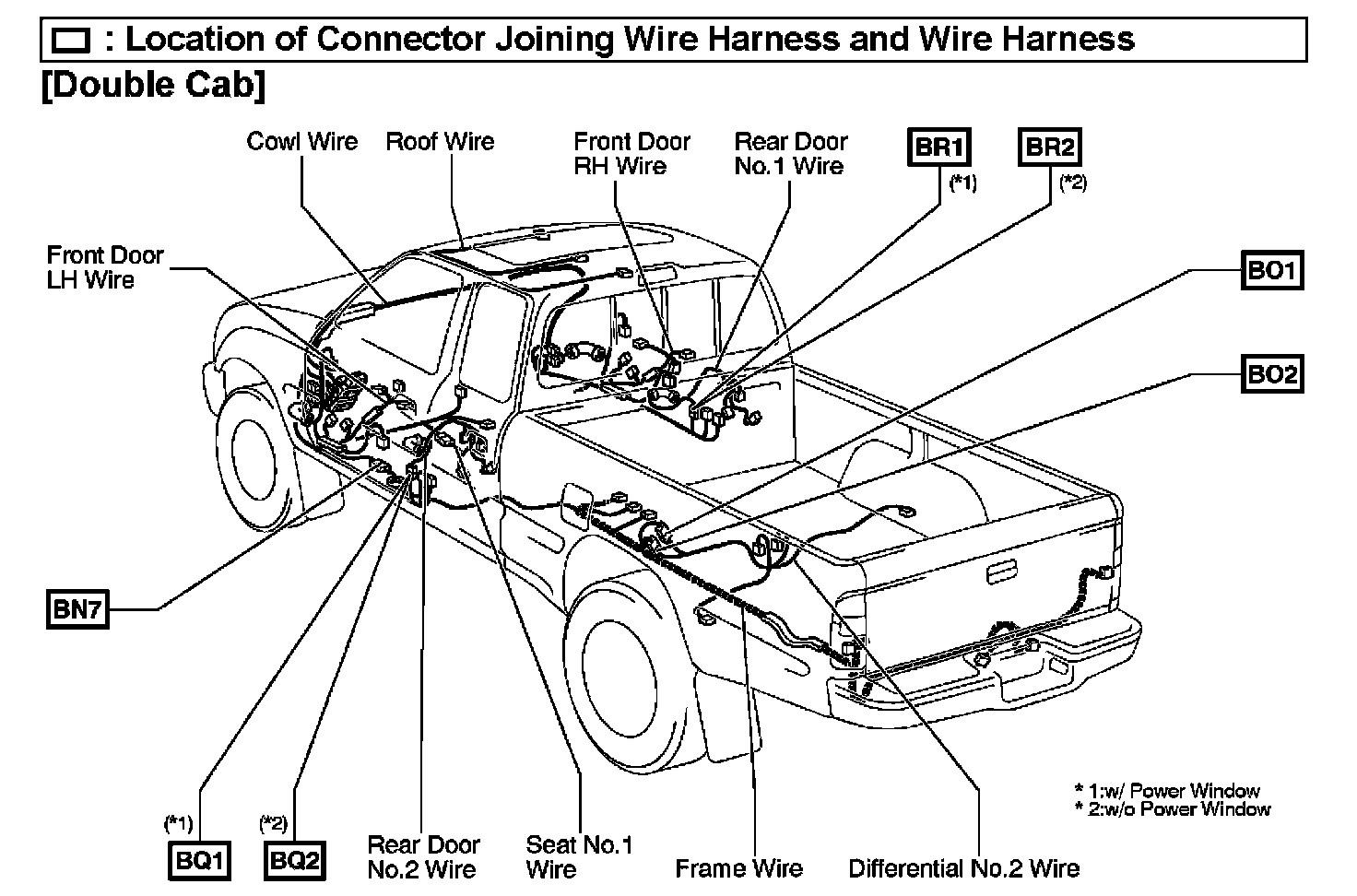

BN7 - BR2:

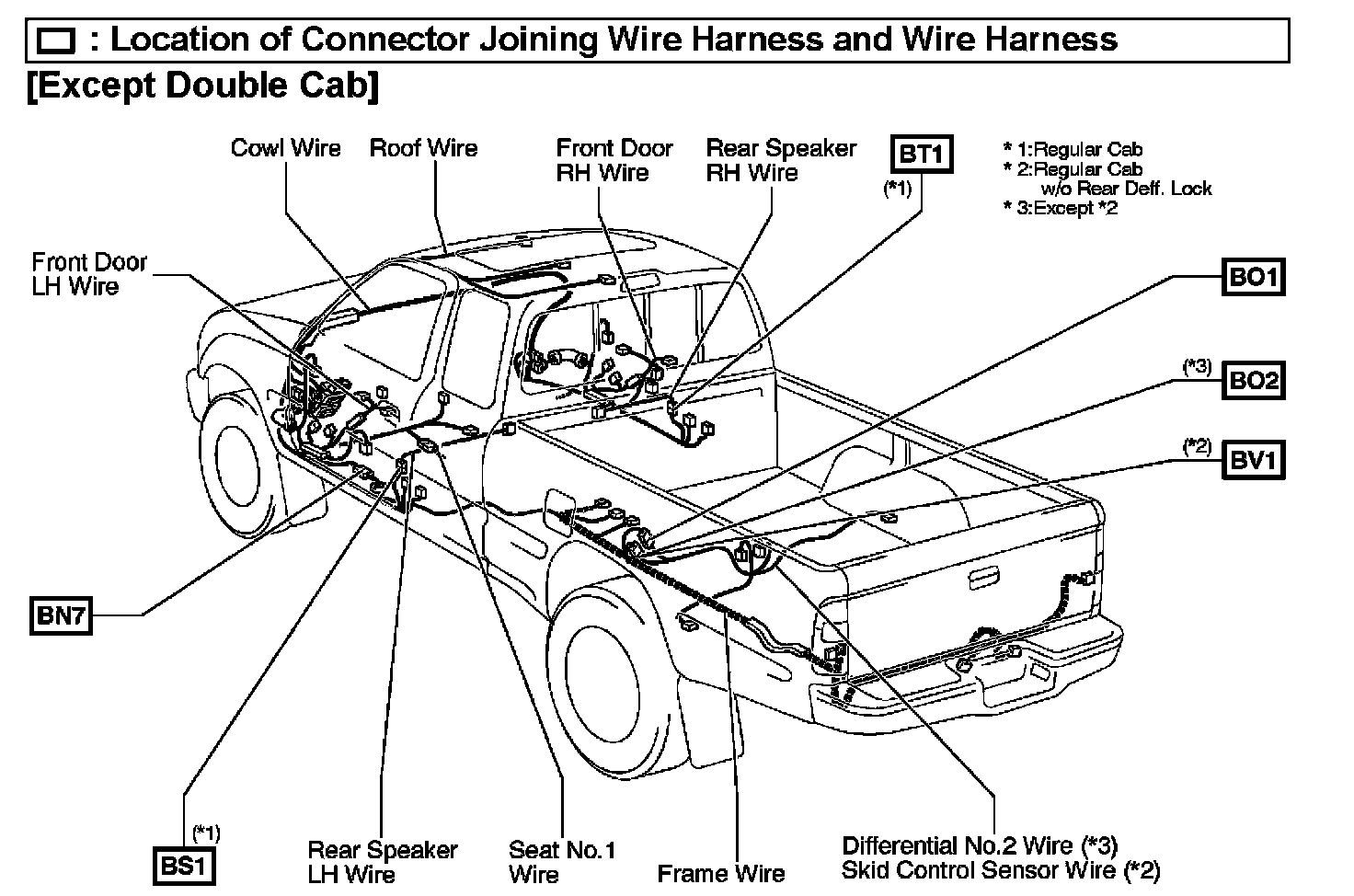

BN7 - BV1:

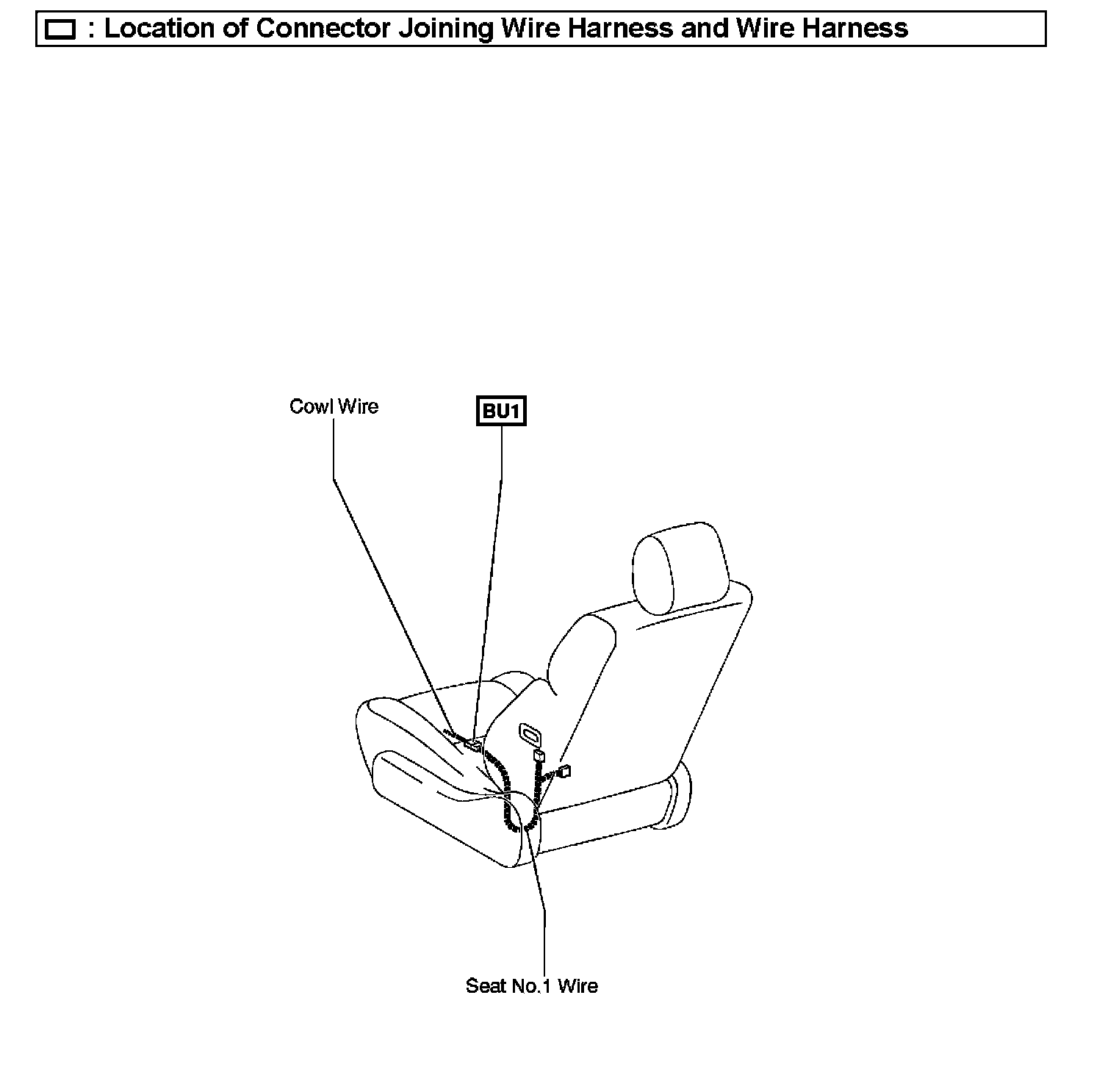

BU1:
