Tacoma PreRunner L4-2.7L (3RZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

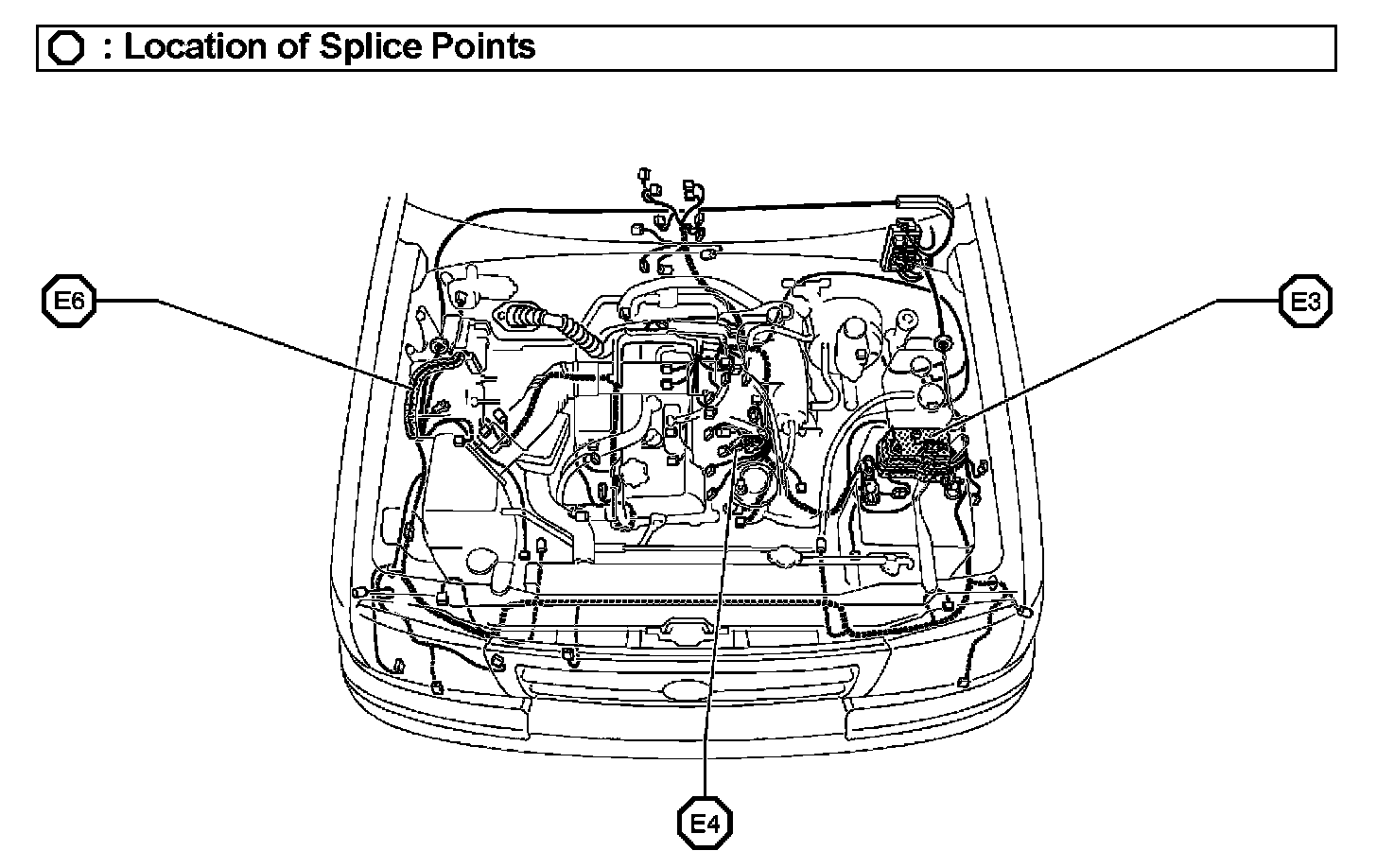

E3 - E6:

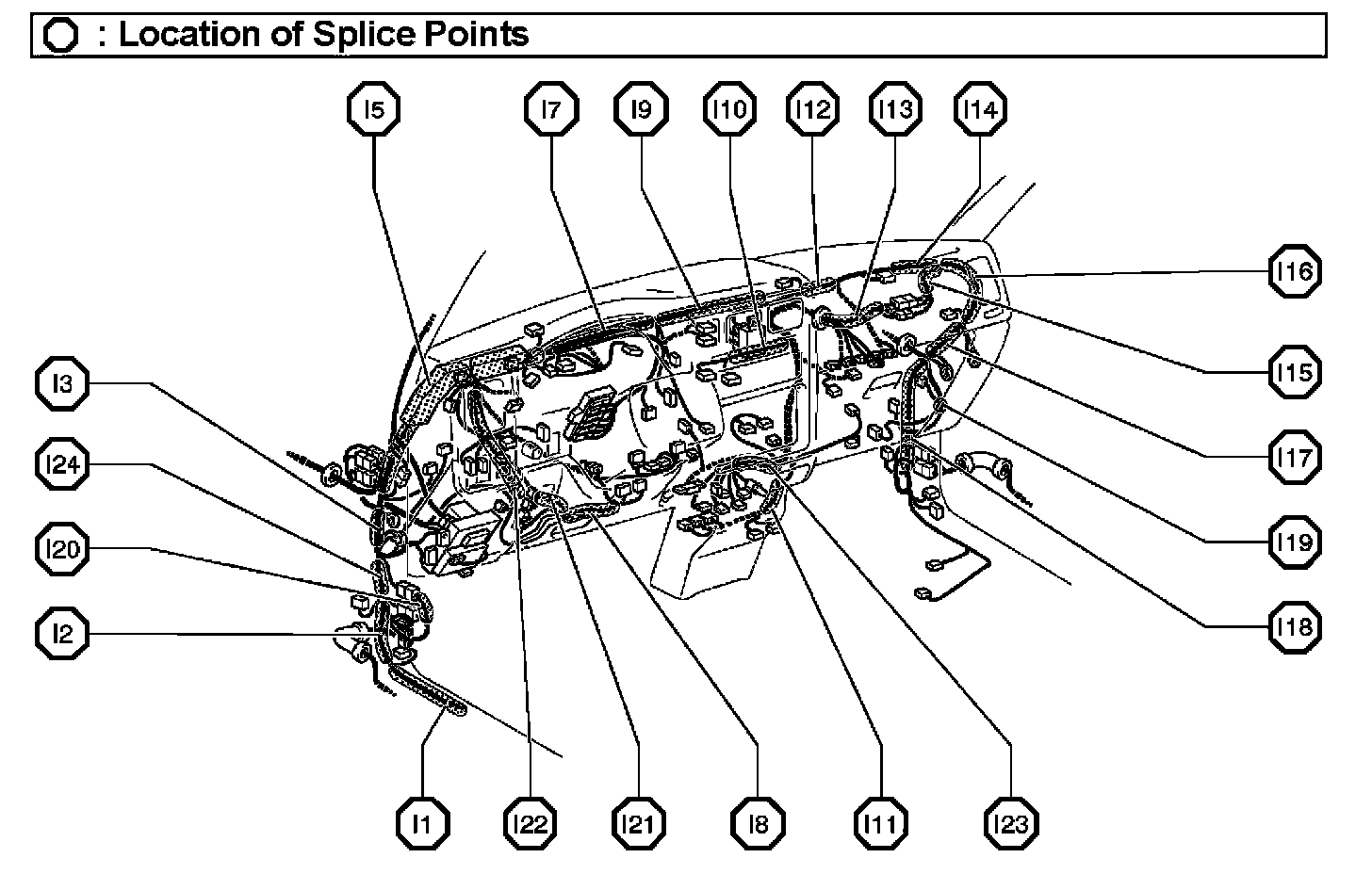

I1 - I24:

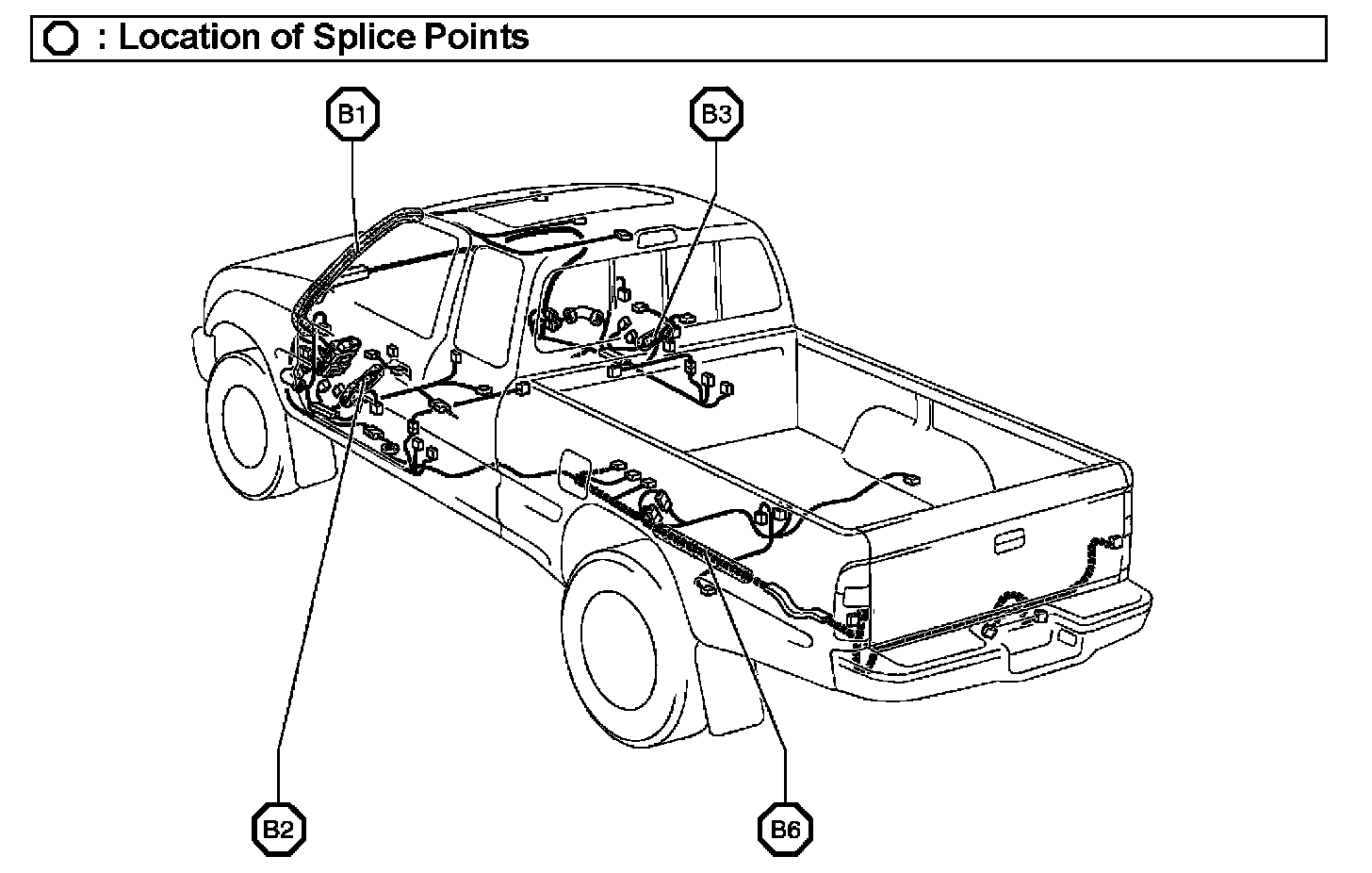

B1 - B6:

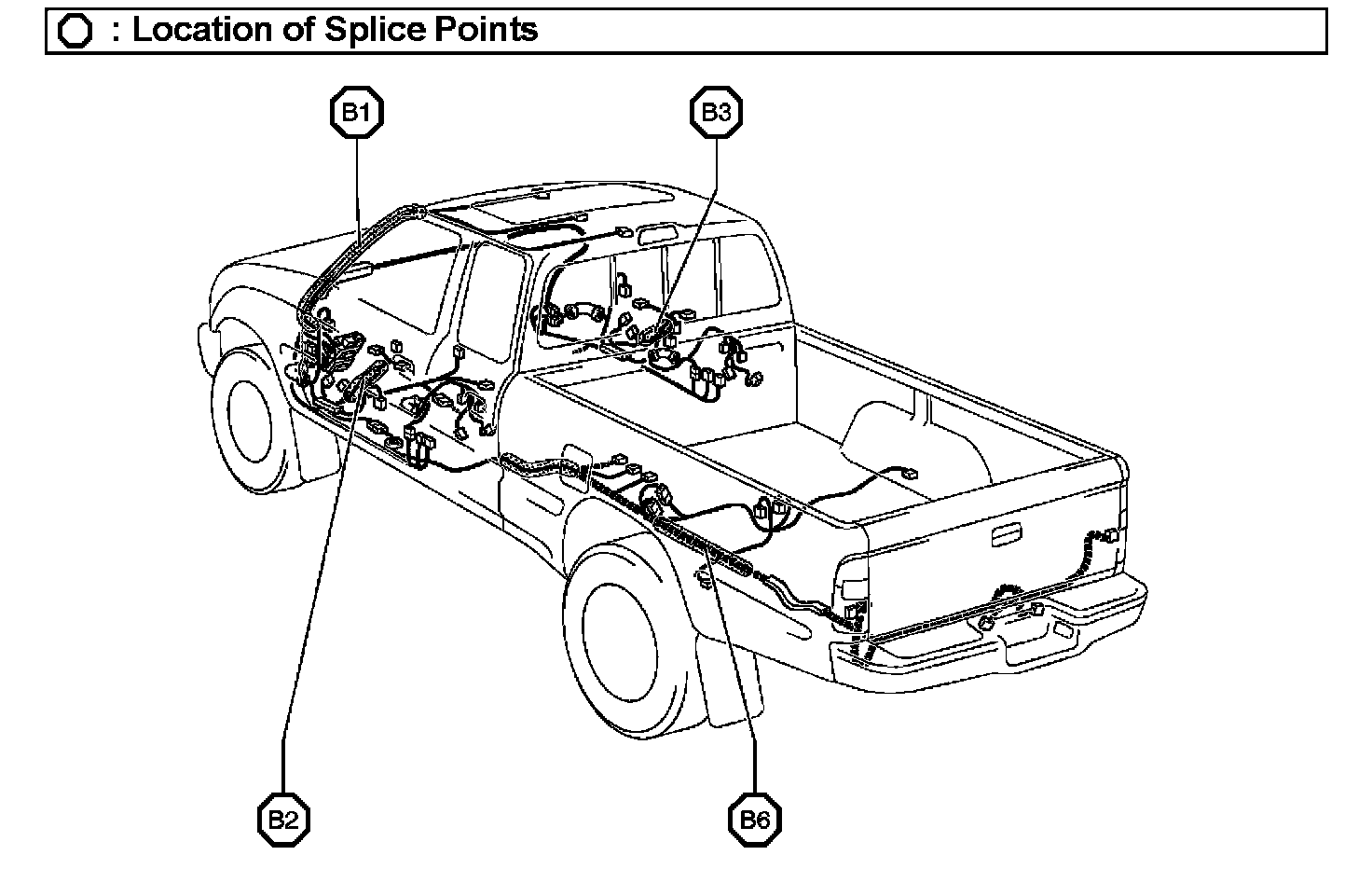

B1 - B6:
