Engine Oil: Testing and Inspection

INSPECTION





1. CHECK ENGINE OIL QUALITY
Check the oil for deterioration, entry of water, discoloring or thinning.
If the quality is visibly poor, replace the oil.

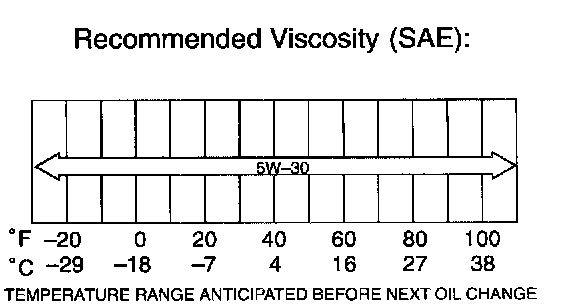

Oil grade: API grade SL Energy-Conserving or ILSAC multi-grade engine oil.
2. CHECK ENGINE OIL LEVEL
After warming up the engine and then 5 minutes after the engine stop, the oil level should be between the low level and full level marks on the dipstick.
If low, check for leakage and add oil up to the full level mark.

NOTICE: Do not fill with engine oil above the full level mark.

3. REMOVE ENGINE UNDER COVER

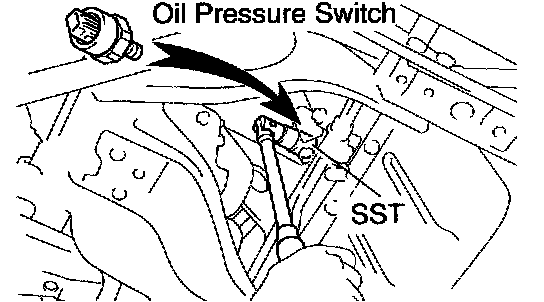

4. REMOVE OIL PRESSURE SWITCH
Using SST, remove the oil pressure switch.
SST 09268-46021

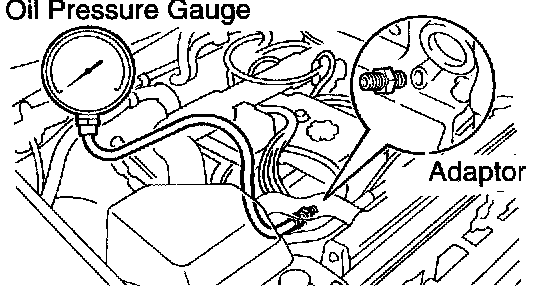

5. INSTALL OIL PRESSURE GAUGE
Install an oil pressure gauge to an adaptor.
6. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.





7. CHECK OIL PRESSURE





Oil pressure

8. REMOVE OIL PRESSURE GAUGE





9. REINSTALL OIL PRESSURE SWITCH

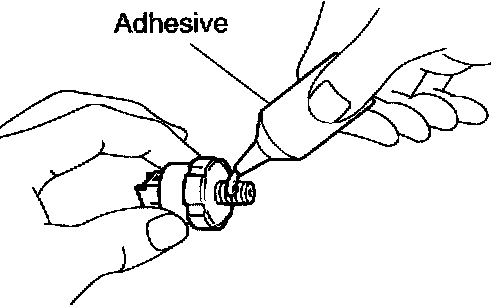

a. Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
b. Using SST, install the oil pressure switch.
SST 09268-46021
10. REINSTALL ENGINE UNDER COVER
11. START ENGINE AND CHECK FOR LEAKS
