Fuse: Application and ID

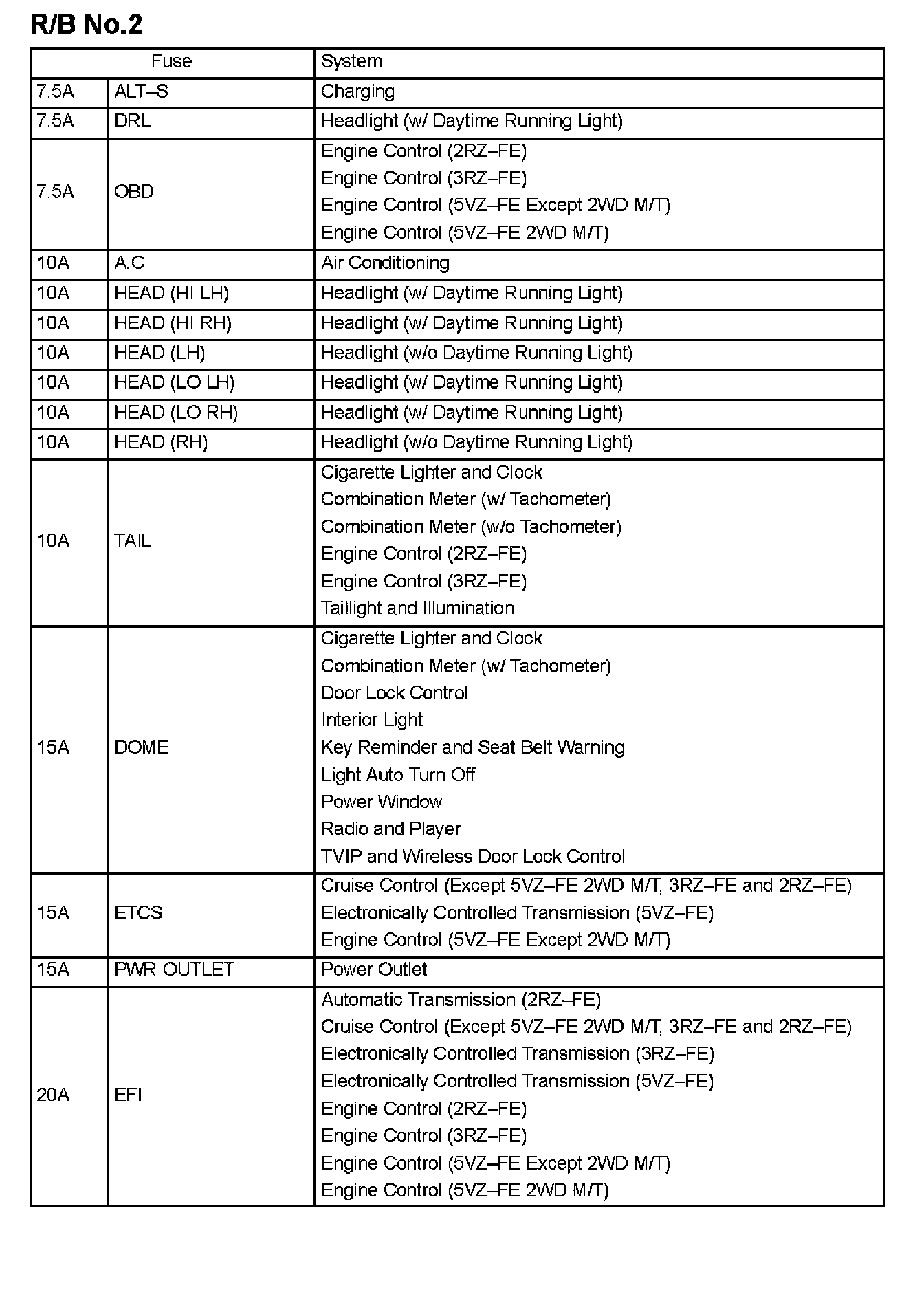

R/B No.2 Part 1:
R/B No.2 Part 2:
Engine Room Fuse Details

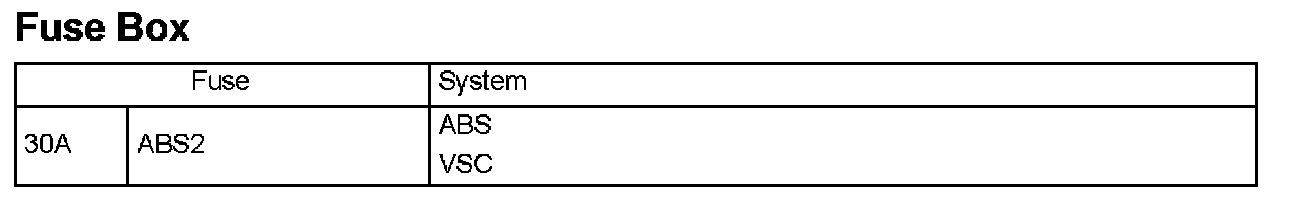

Fuse Box:

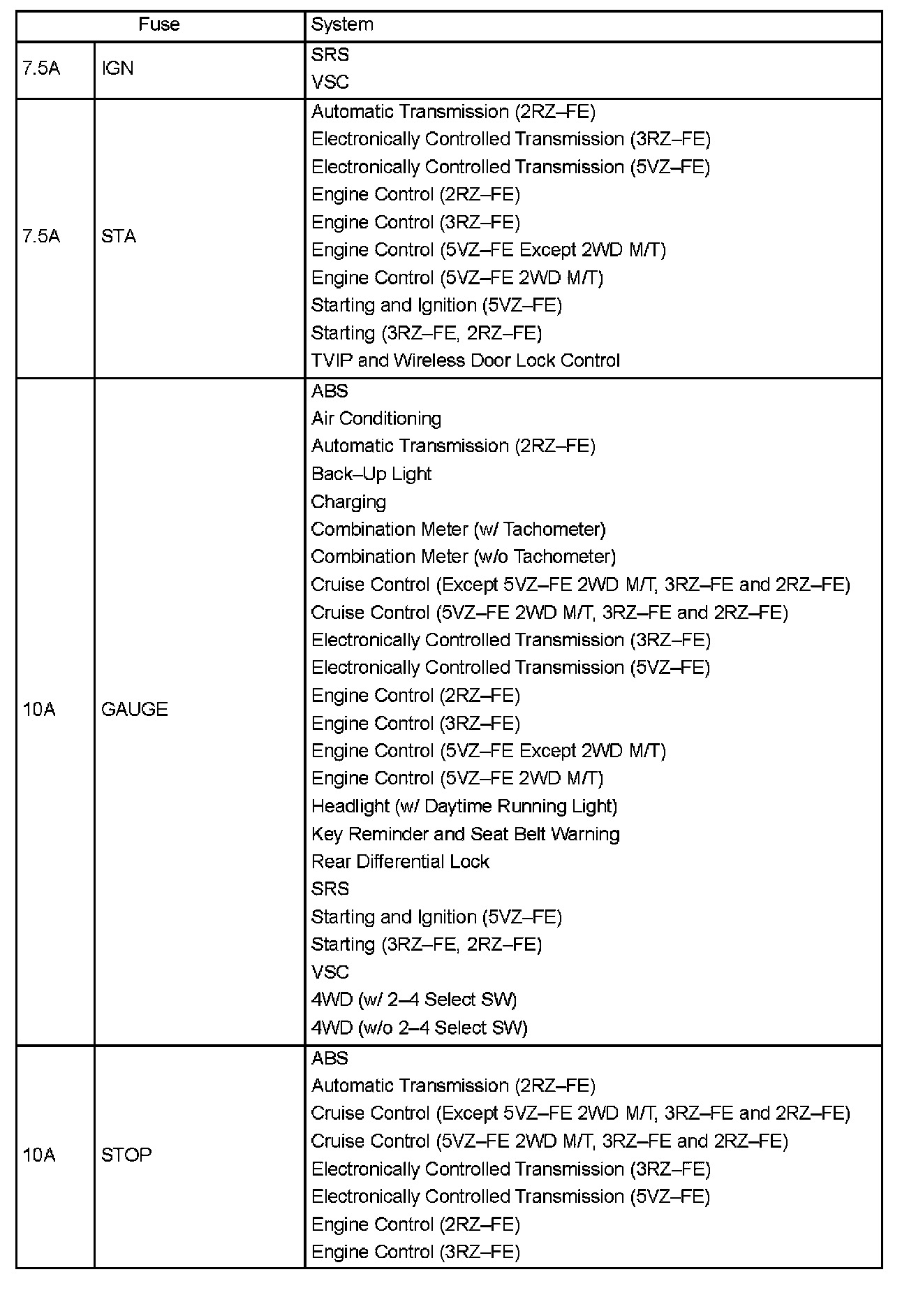

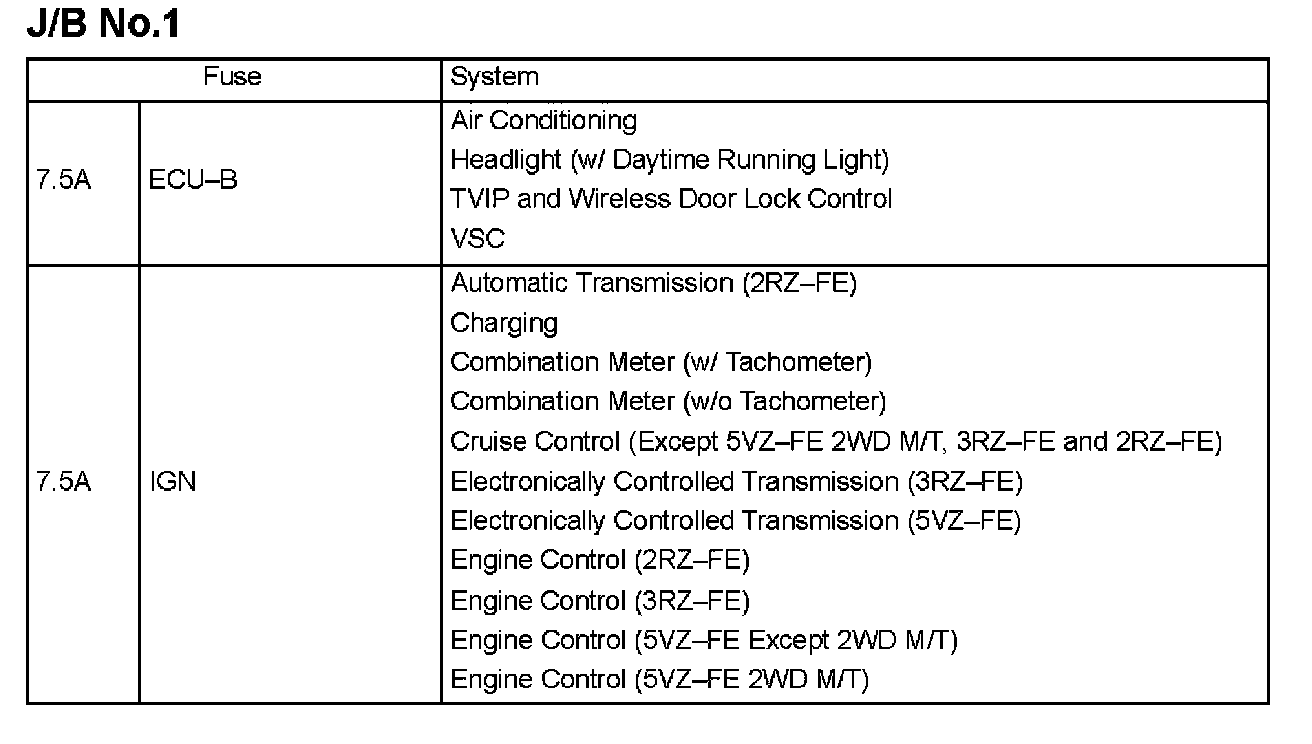

J/B No.1 Part 1:

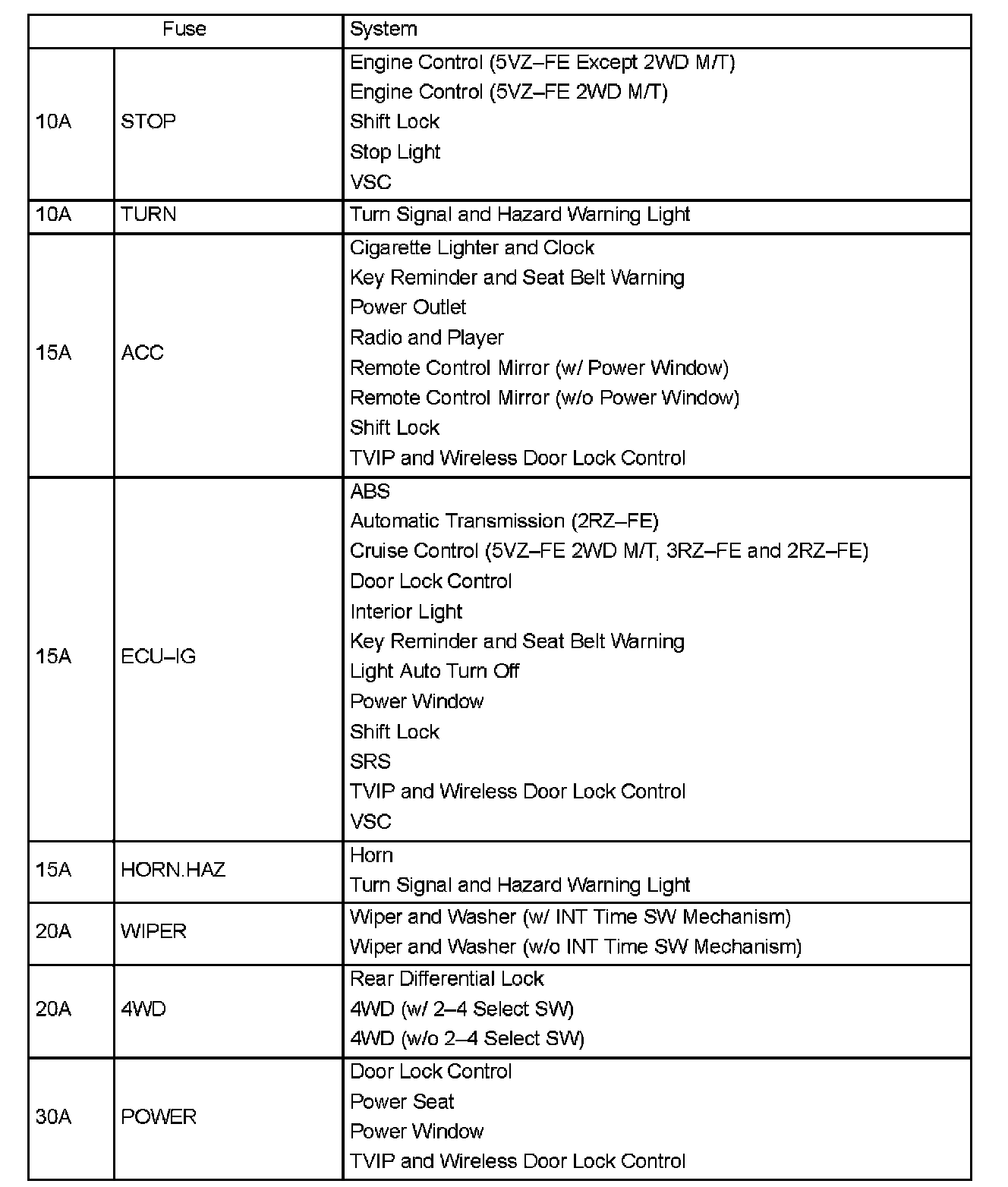

J/B No.1 Part 2:

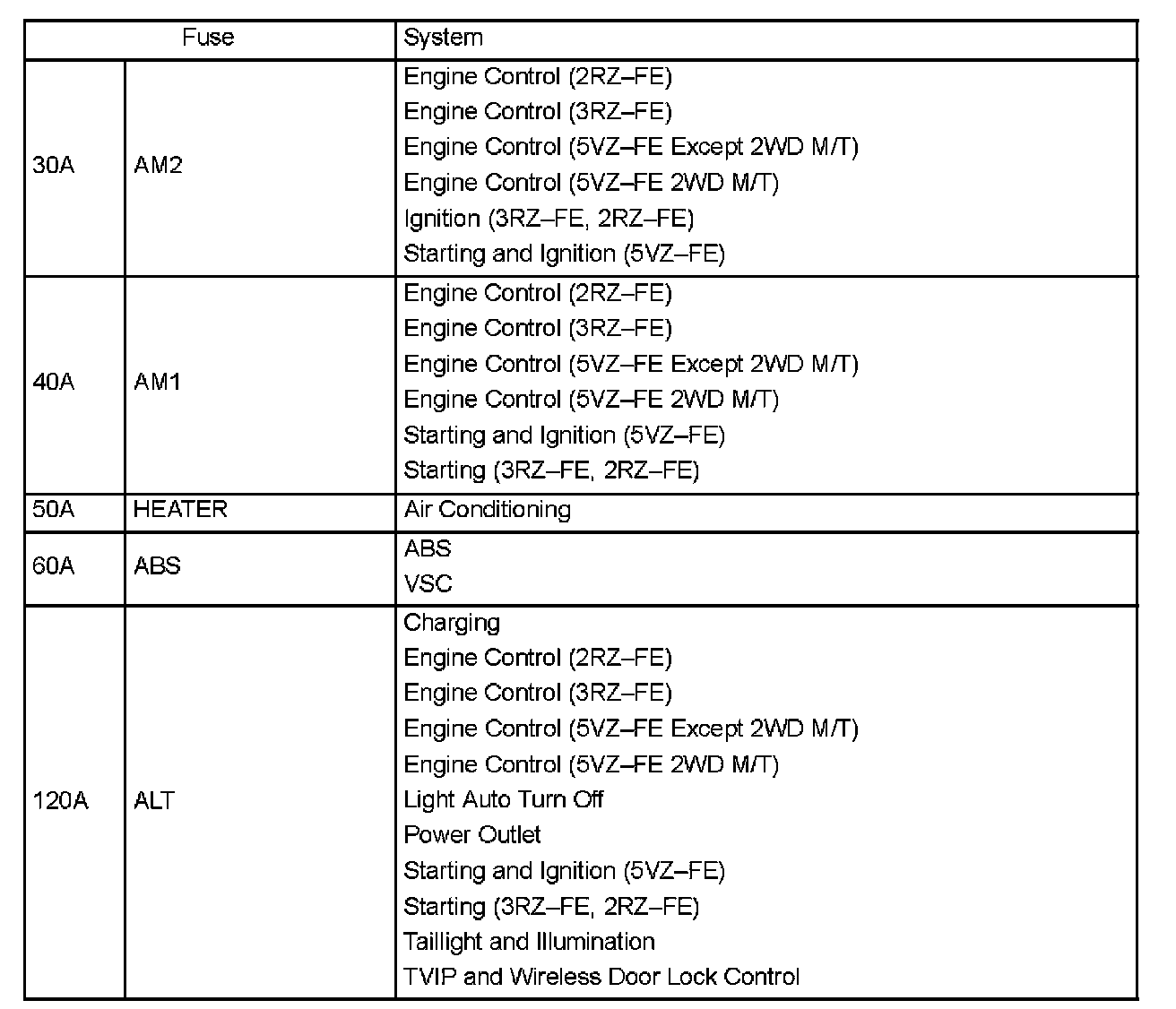

J/B No.1 Part 3:
Interior Panel Fuse Details
