Home >> Toyota >> 2004 >> Tacoma PreRunner L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

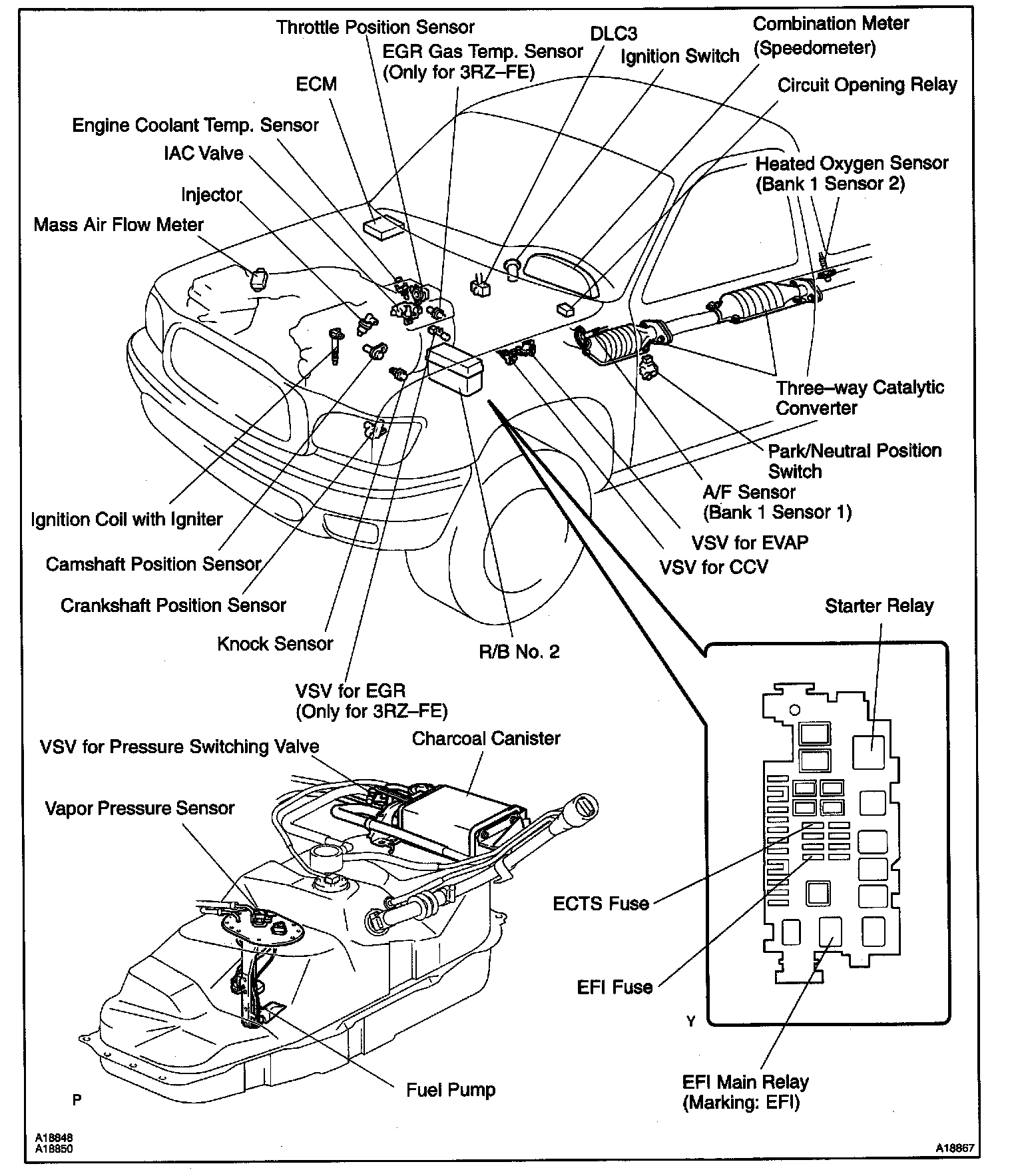

Air Flow Meter/Sensor: Locations

Engine:



Mass Air Flow (MAF) Meter:
