Active Test
ACTIVE TESTHINT: Performing the ACTIVE TEST using the hand-held tester or the OBD II scan tool allows the relay, VSV, actuator and so on to operate without parts removal. Performing ACTIVE TEST as a first step of troubleshooting is one method to shorten diagnostic time.
It is possible to display DATA LIST during ACTIVE TEST.
a. Warm up the engine.
b. Turn the ignition switch to OFF.
c. Connect the OBD II scan tool or the hand-held tester to the DLC3.
d. Turn the ignition switch to ON.
e. Turn the hand-held tester or the OBD II scan tool ON.
f. Enter: DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST.

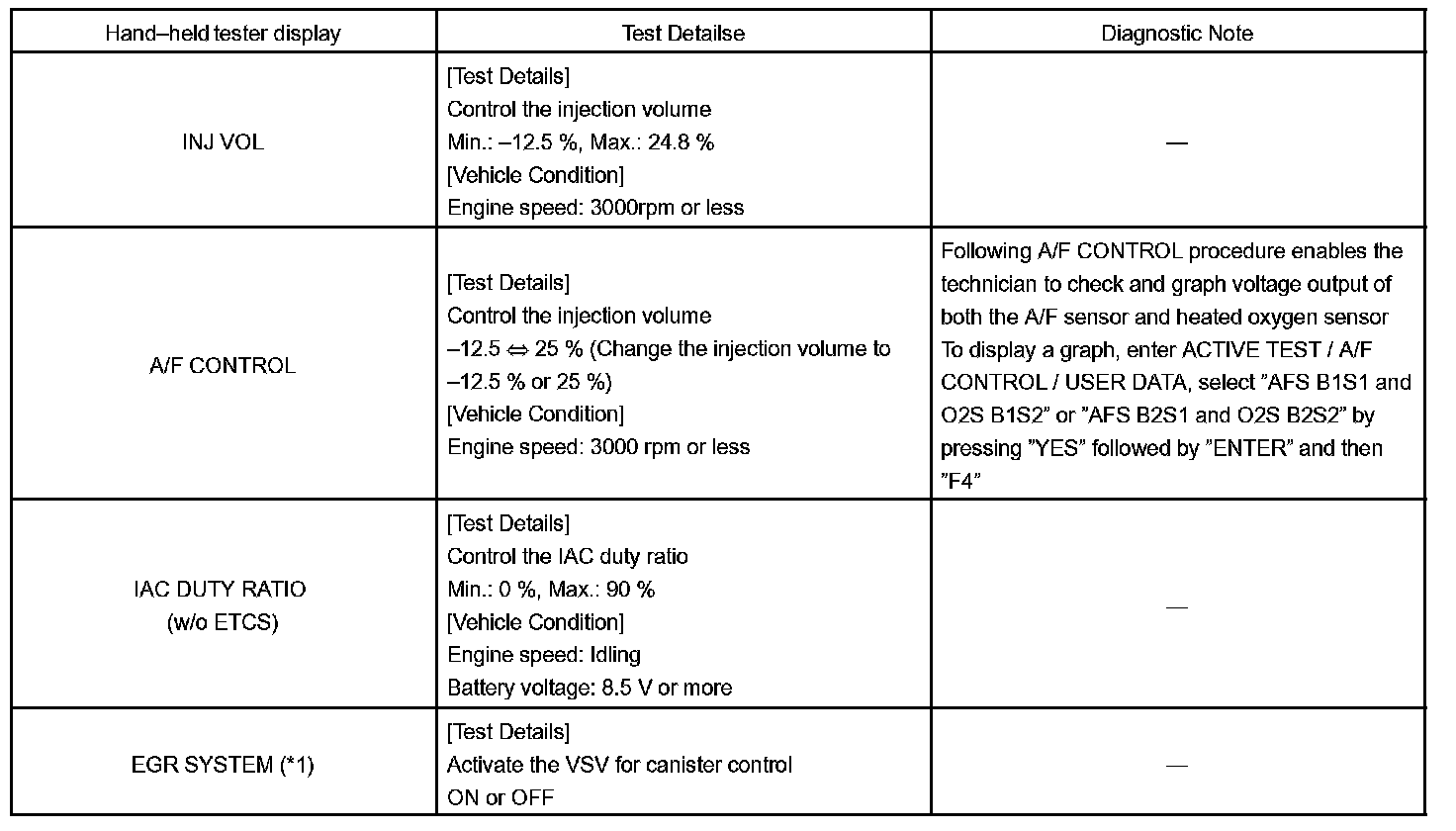

Part 1:

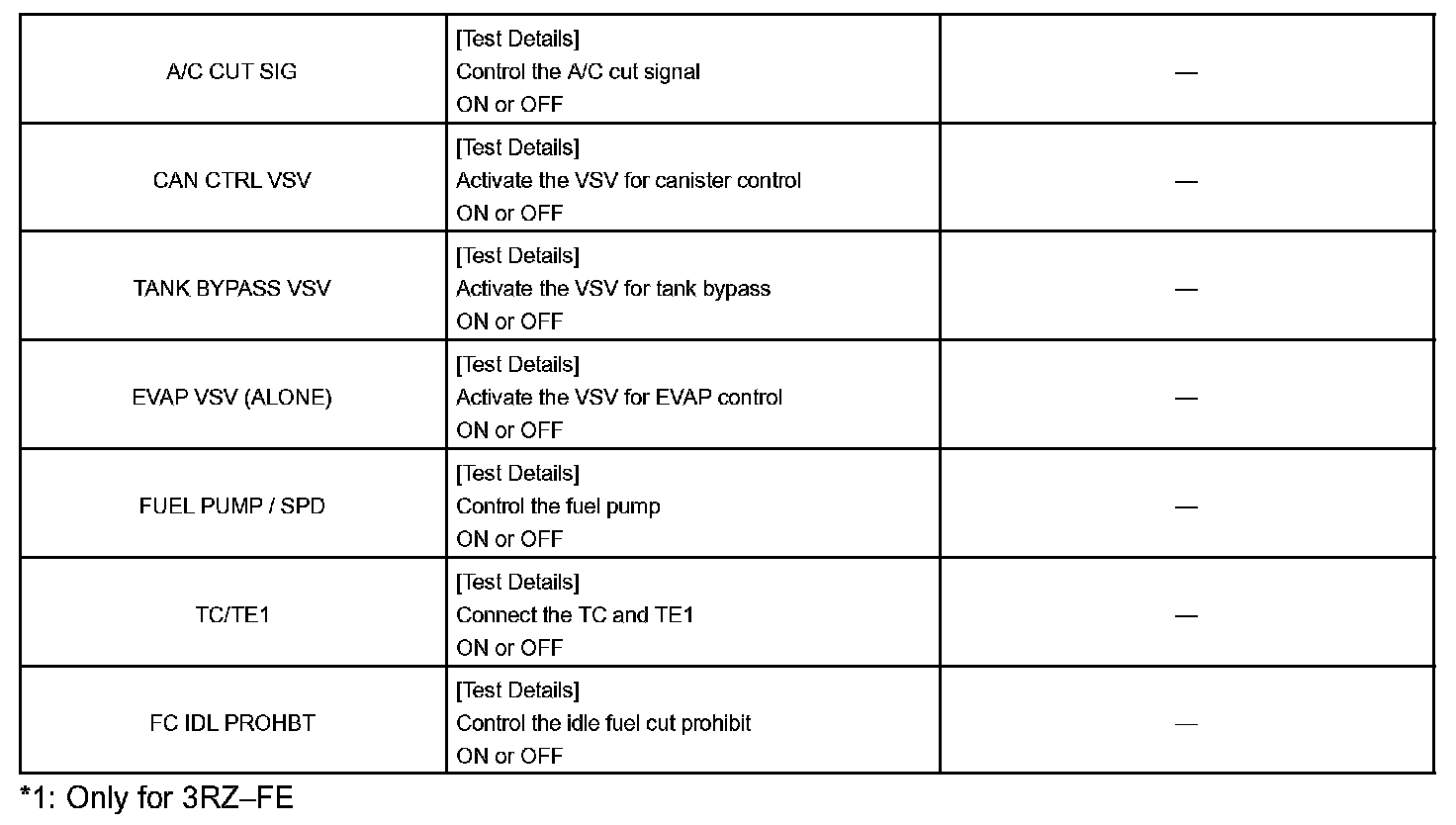

Part 2:
g. According to the display on the tester, perform ACTIVE TEST.
