Electronic Brake Control Module
>>
Testing and Inspection
>>
ABS W/BA & VSC System
ABS W/BA & VSC System

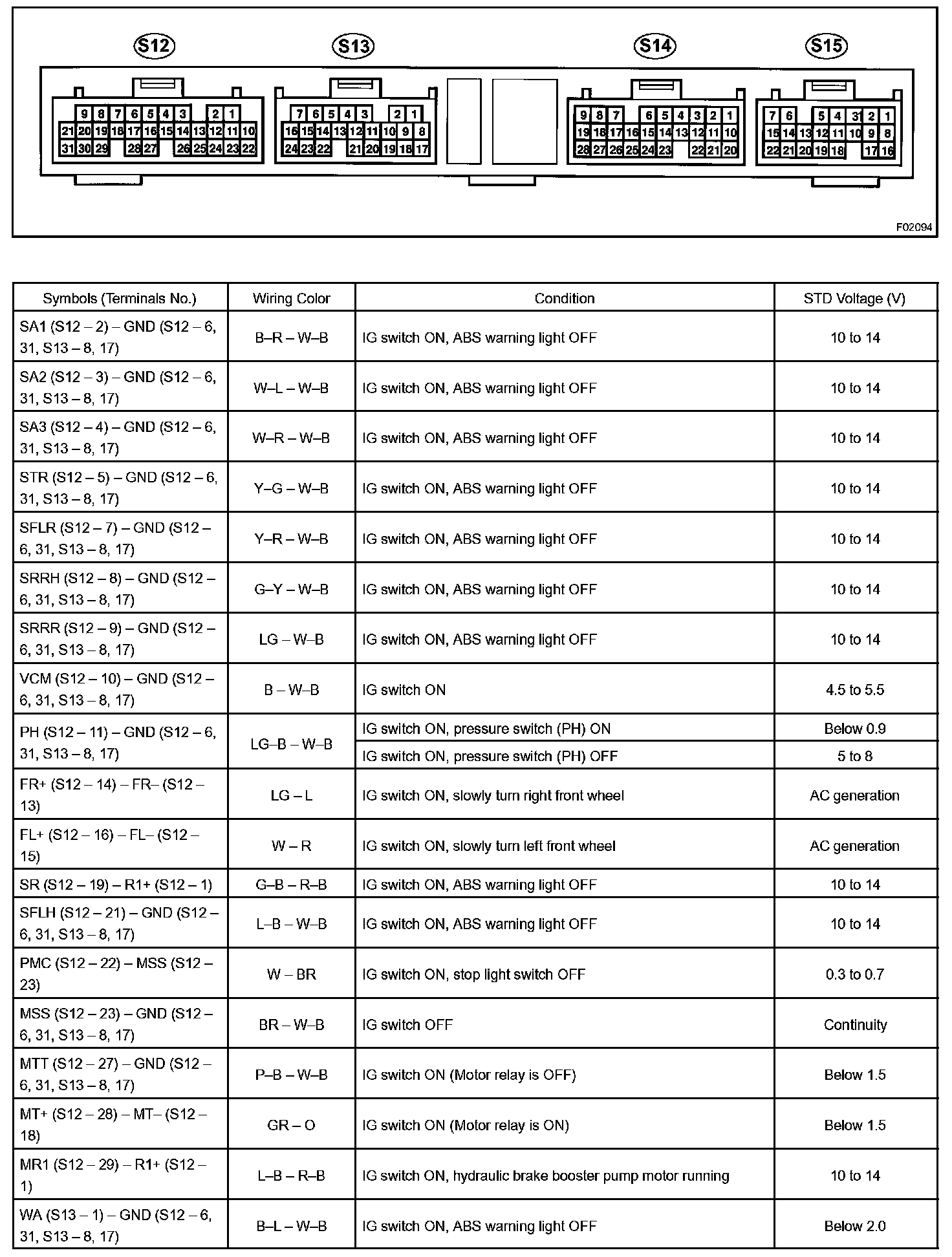

Terminals Of ECM/Pinouts Part 1:

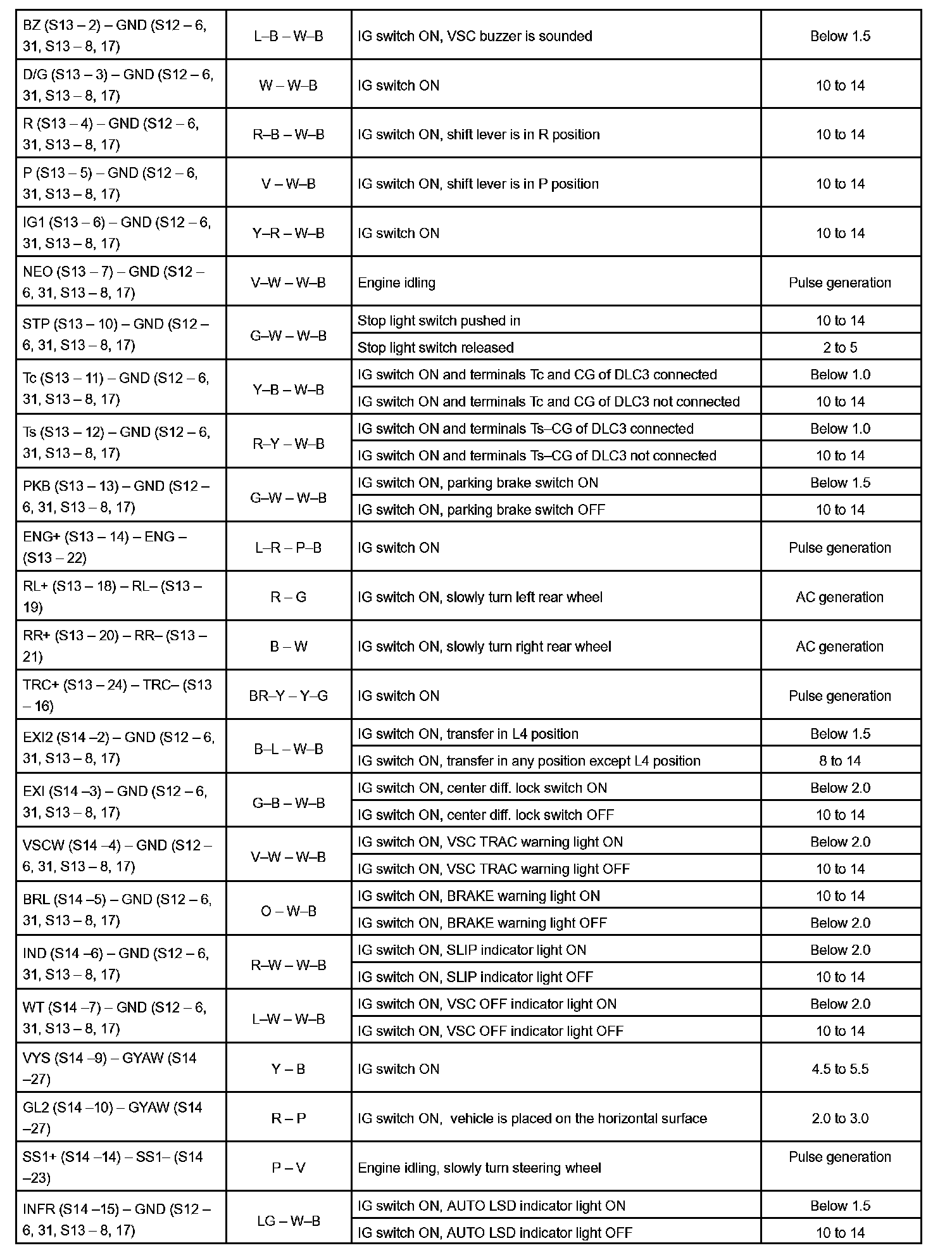

Terminals Of ECM/Pinouts Part 2:

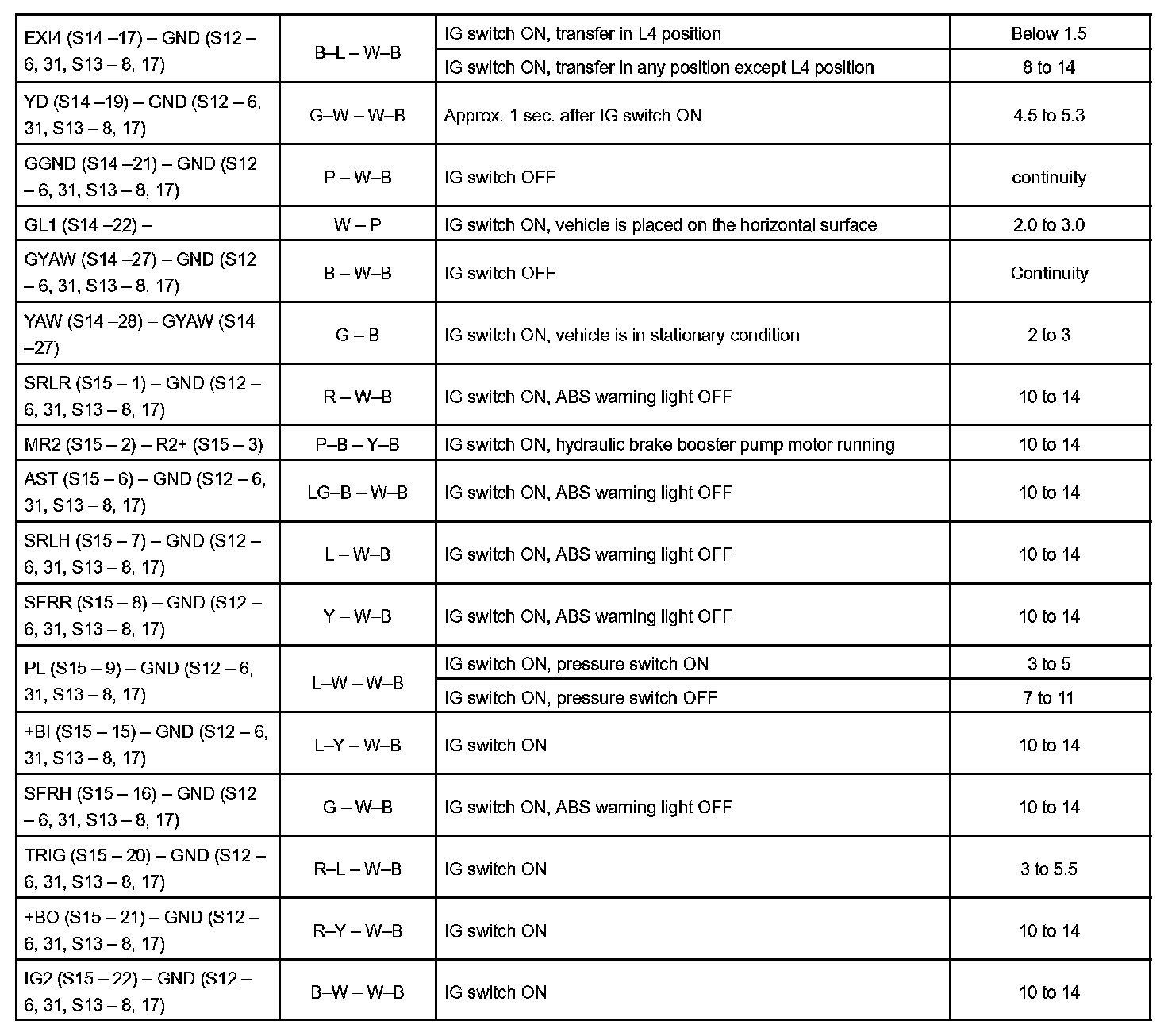

Terminals Of ECM/Pinouts Part 3:
