Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR

a. Remove the sensor connector.

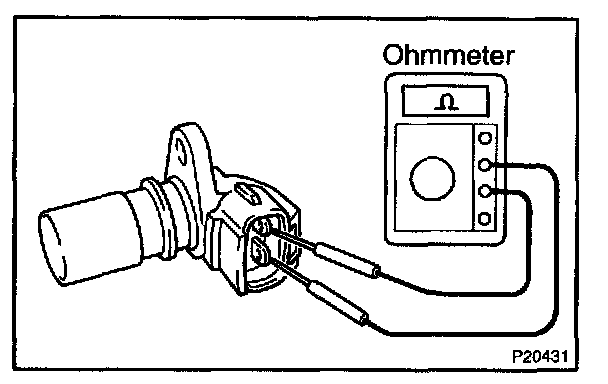

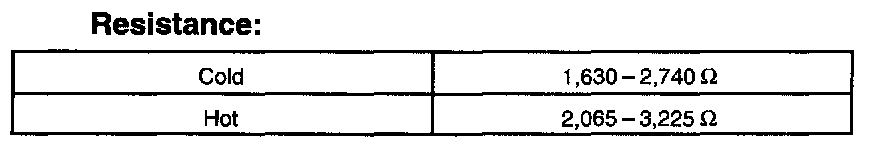

b. Using an ohmmeter, measure the resistance between the terminals.
c. Reinstall the sensor.
