Ignition Cable: Testing and Inspection

INSPECT HIGH-TENSION CORDS




a. Remove the air cleaner hose.

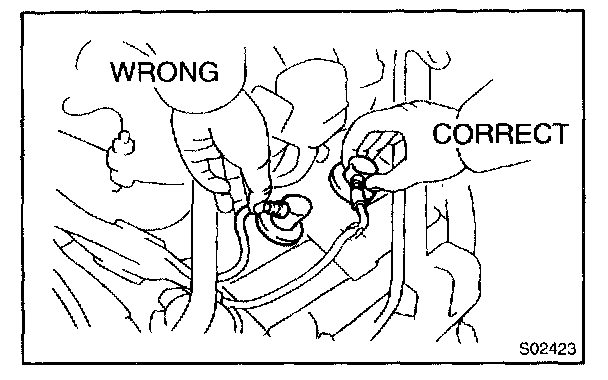

b. Disconnect the high-tension cords at the rubber boot.
Do not pull on the high-tension cords.

NOTE: Pulling on or bending the cords may damage the conductor inside.

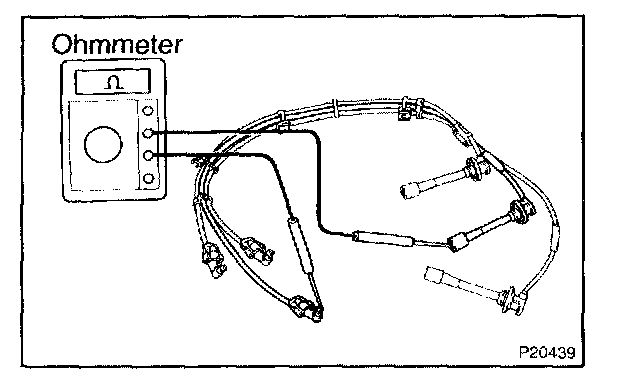

c. Using an ohmmeter, measure the high-tension cord resistance.

Maximum resistance: 25 kOhm per cord

If the resistance is greater than maximum, check the terminals.
If necessary, replace the high-tension cord.

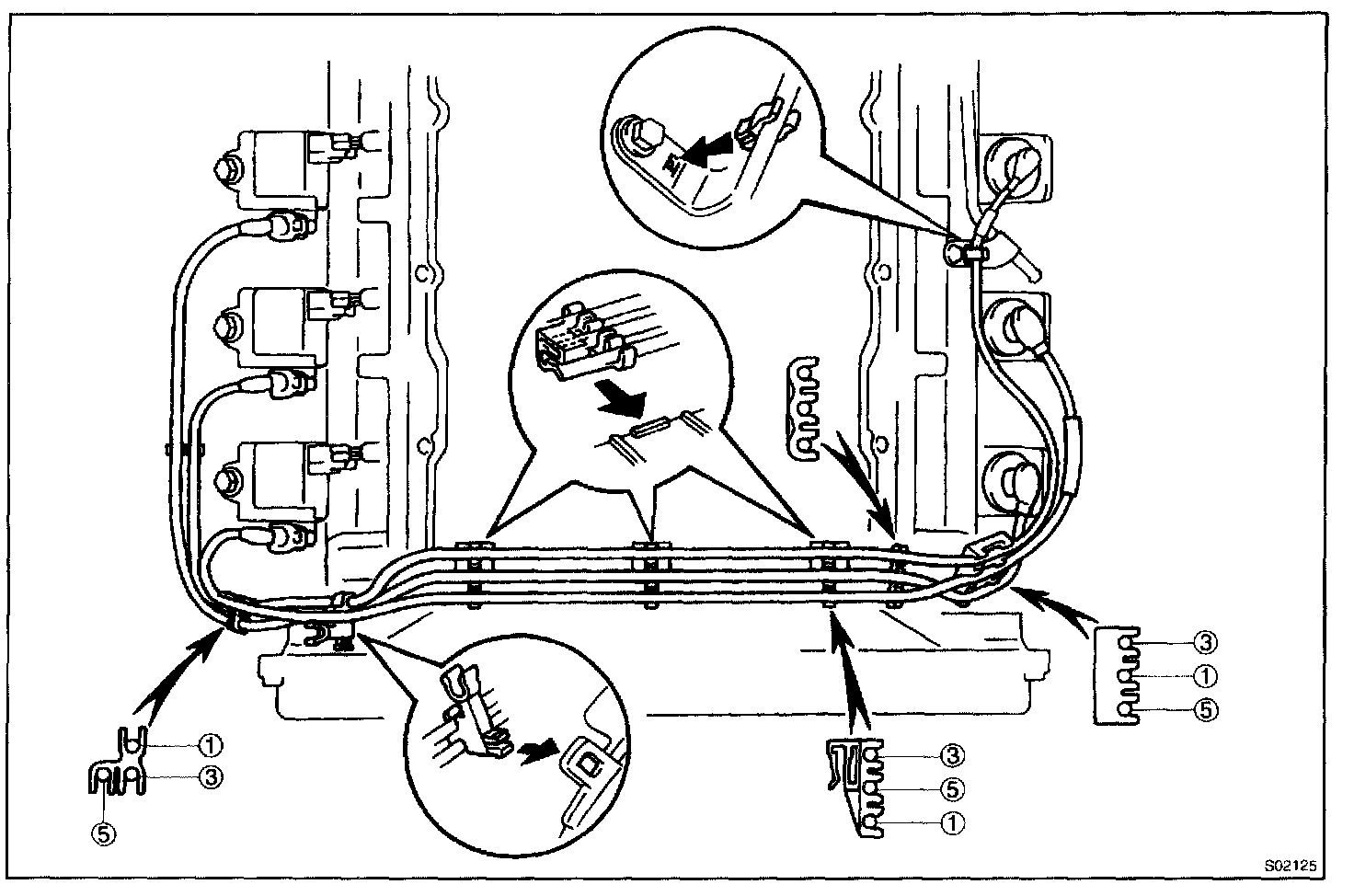

d. Reconnect and install the high-tension cords as shown in the illustration.
