Body Control Systems: Locations

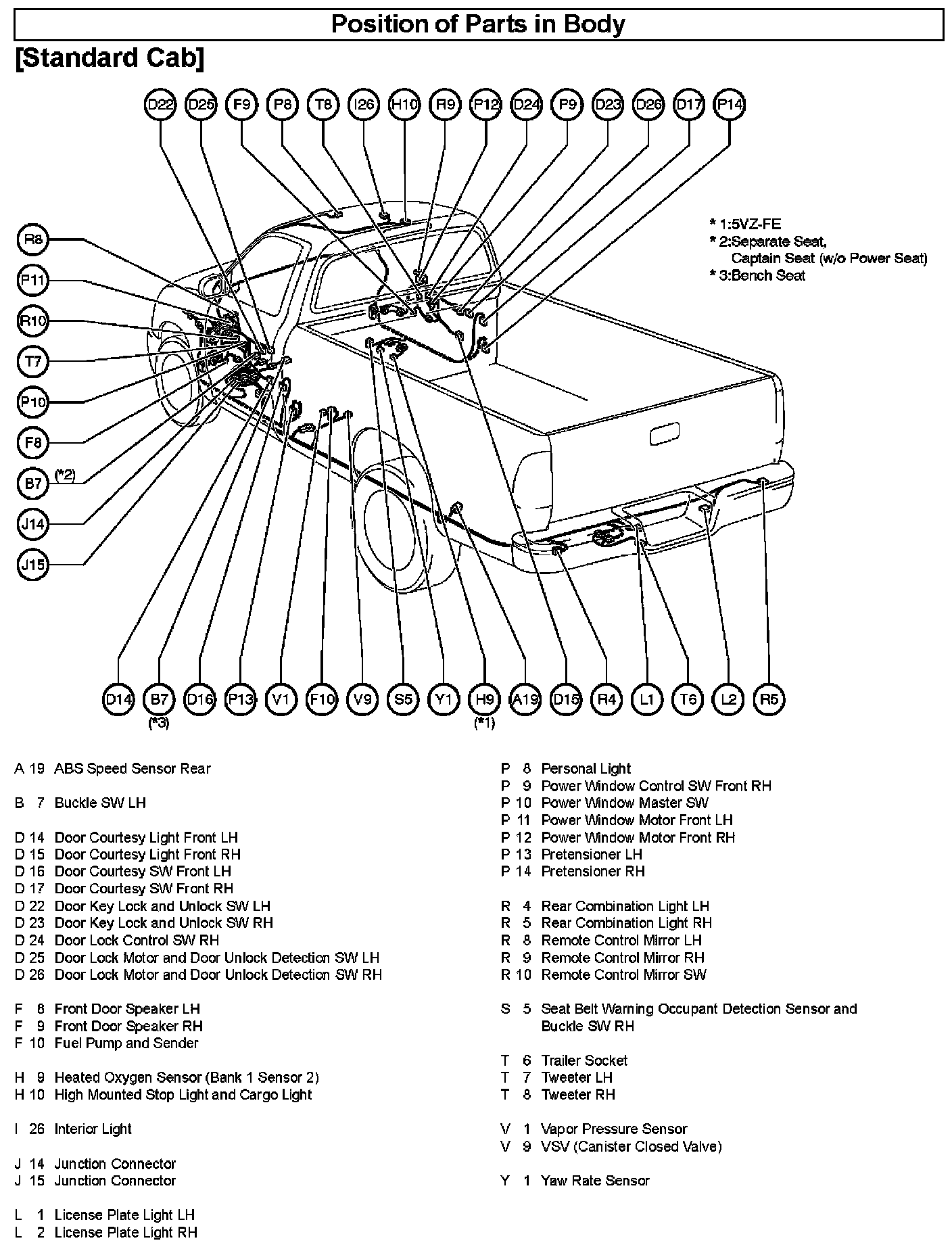

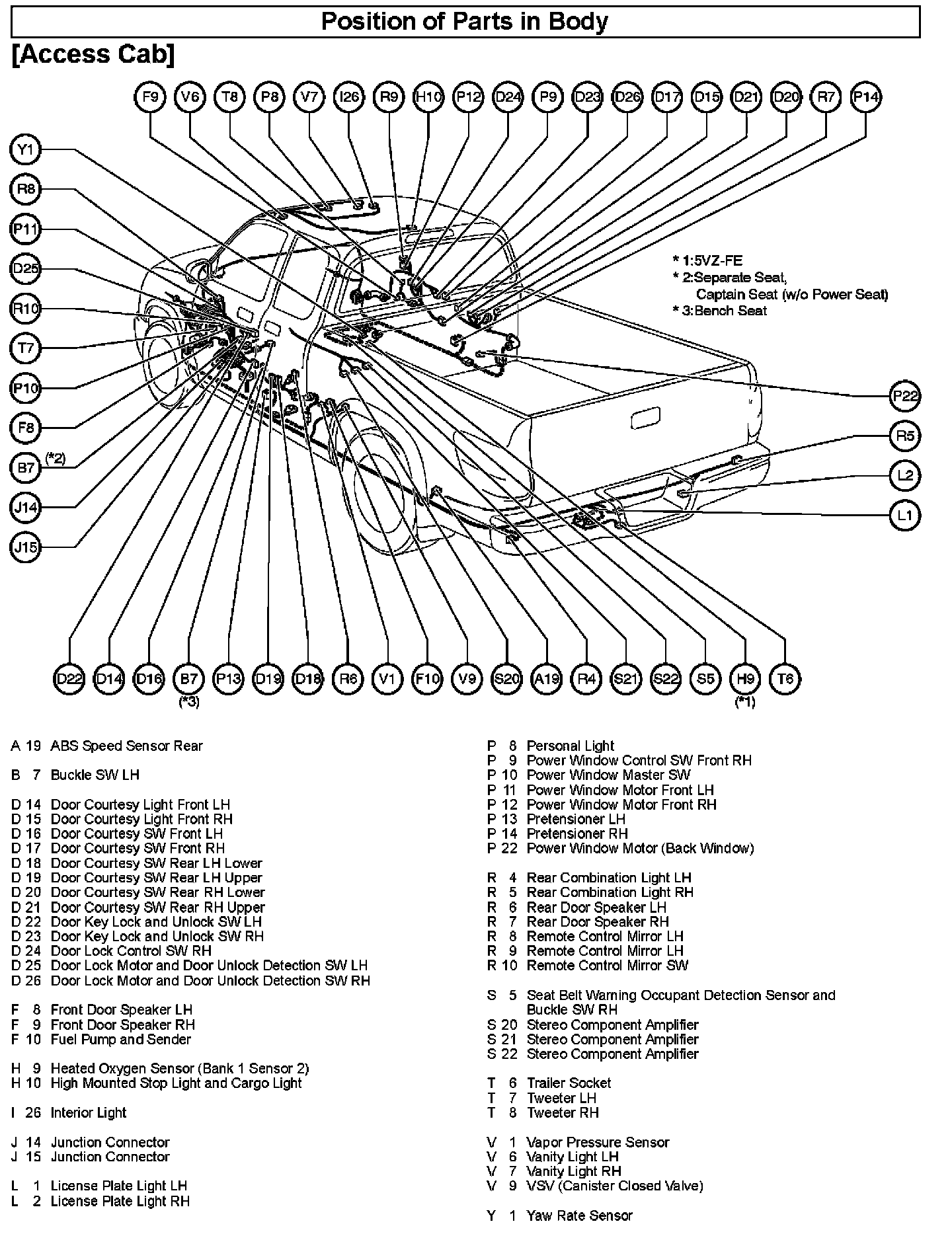

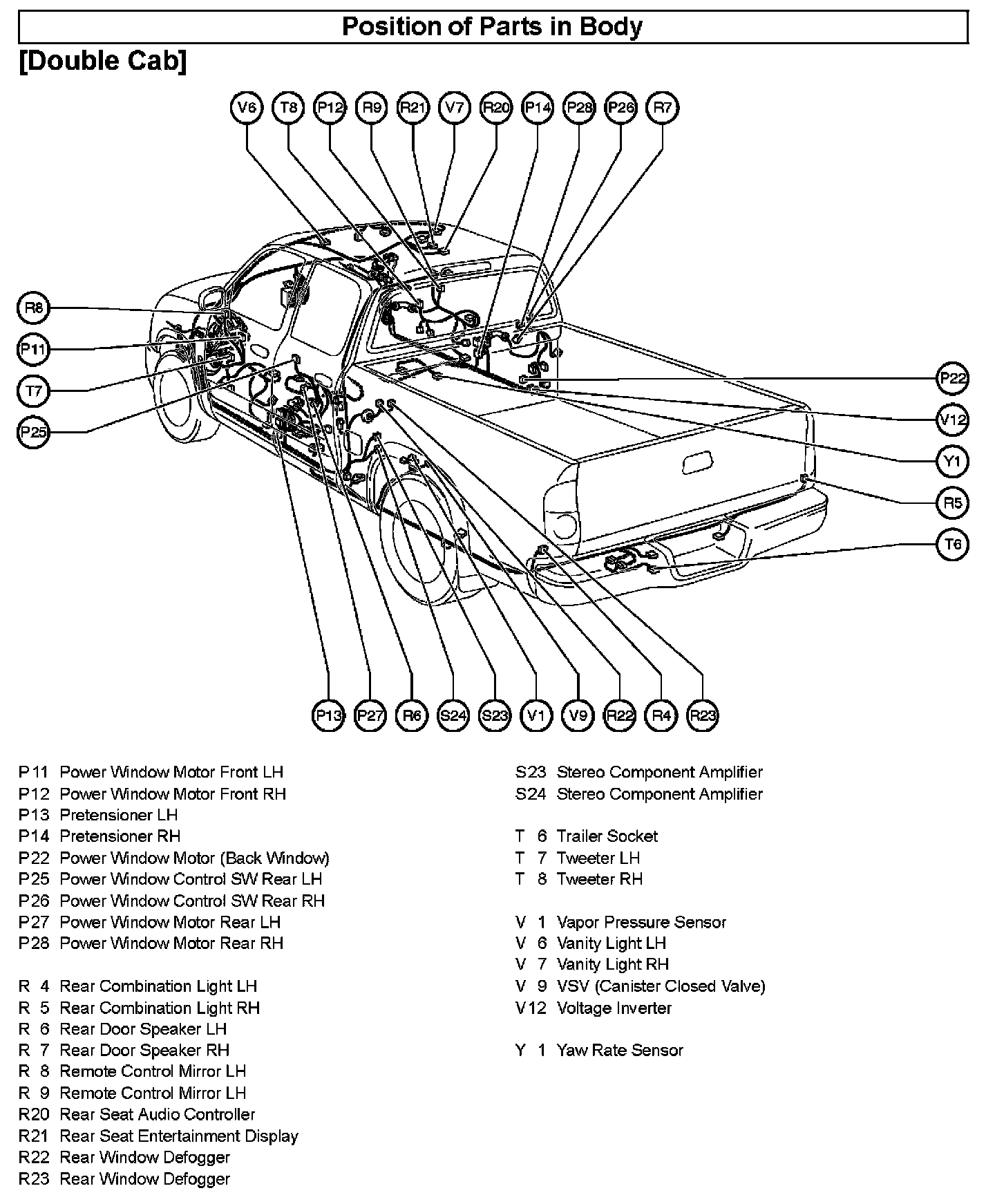

Body Control System Part 2:

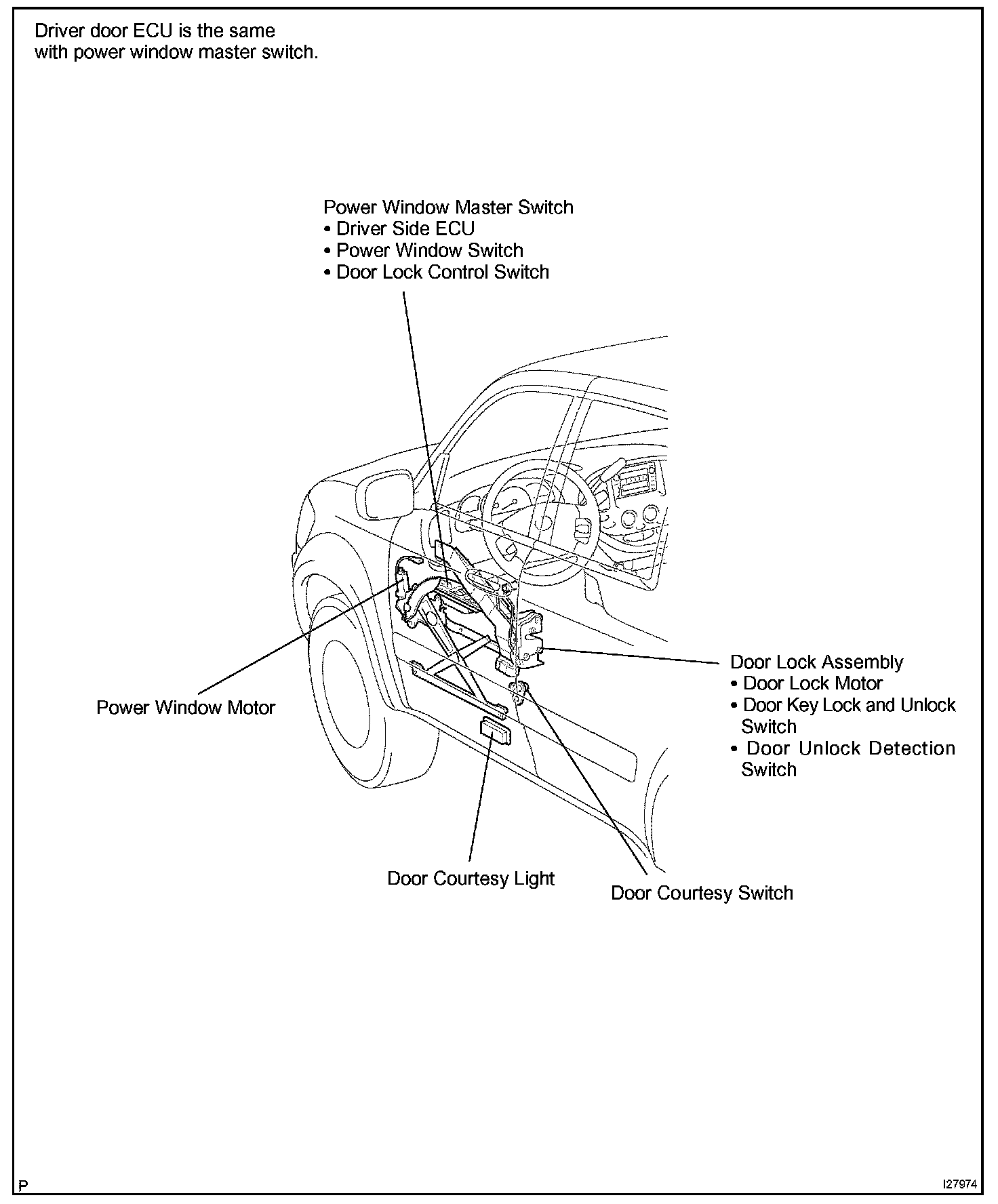

Driver Door Control System:

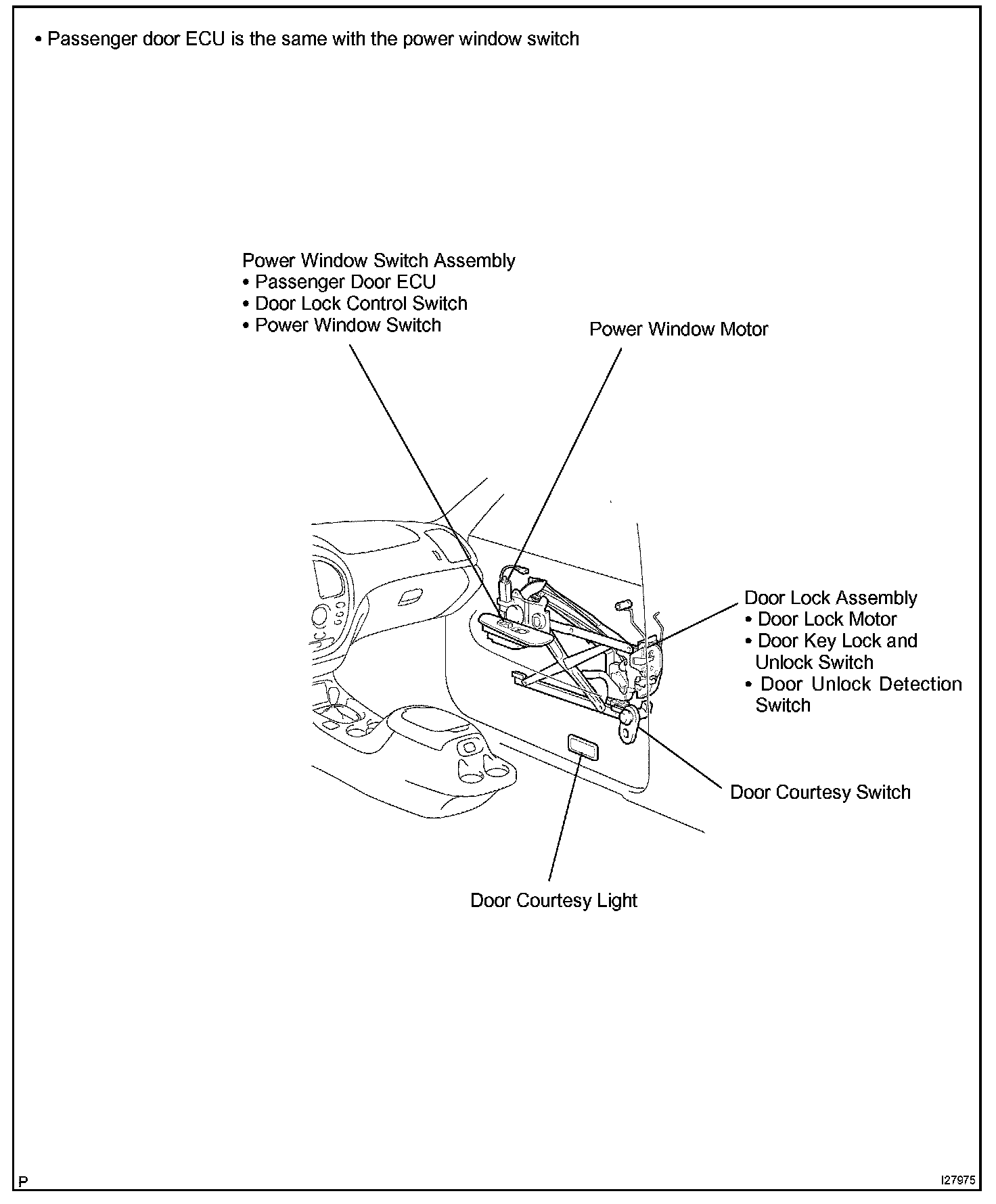

Passenger Door Control System:
Ab - Ya:
Ab - Ya:
Po - Ya:
