Traction Control Module: Testing and Inspection

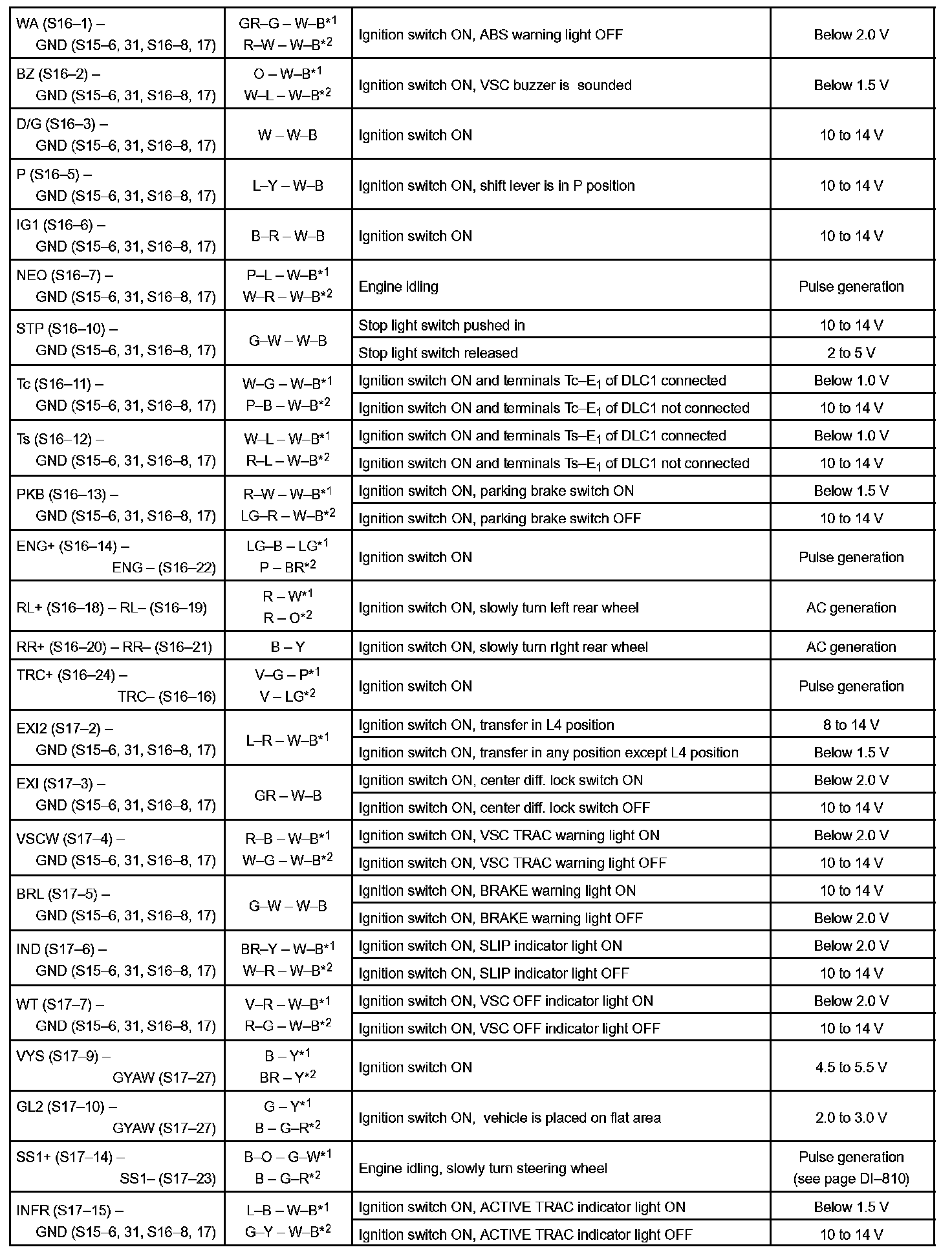

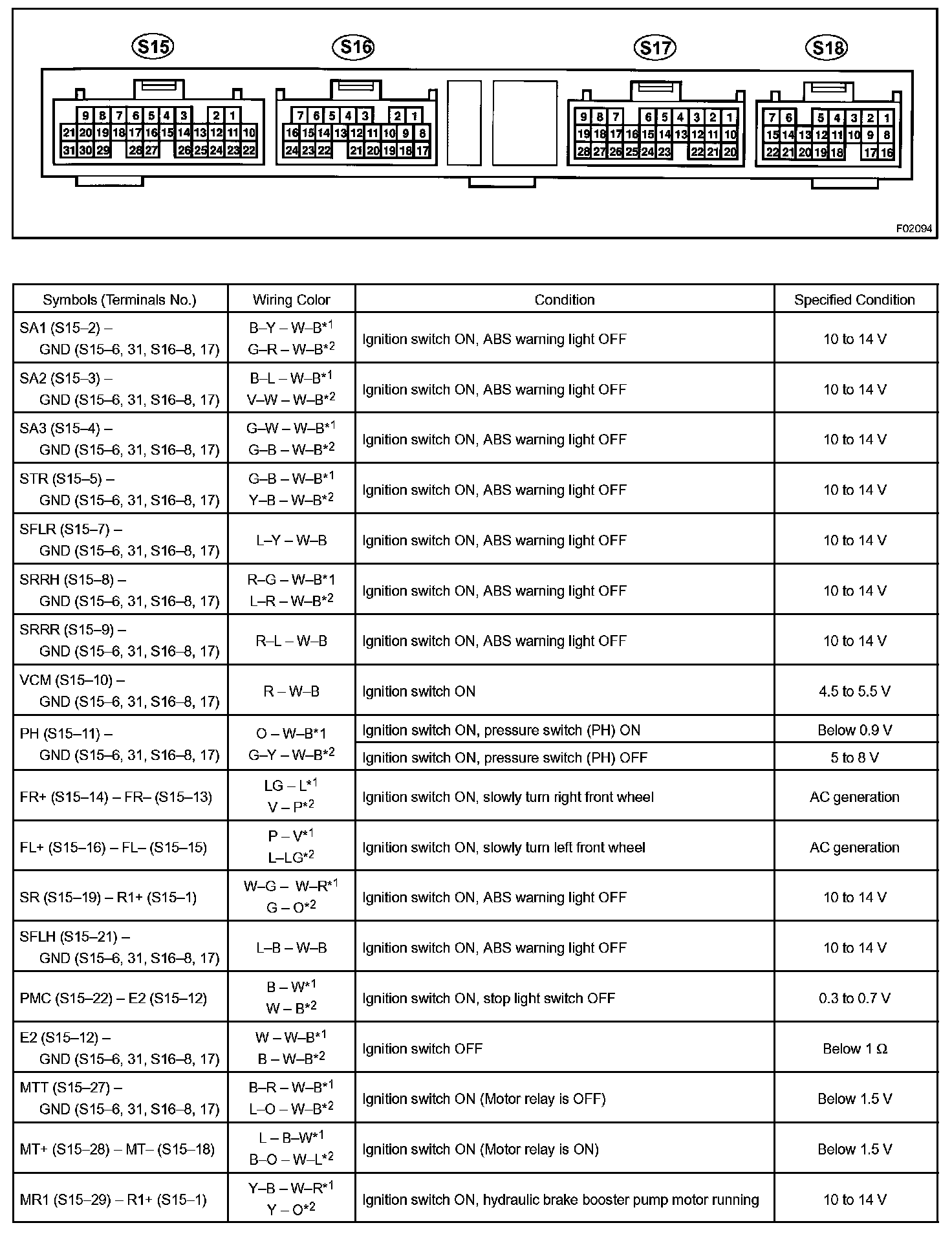

Terminals Of ECU/Pinouts Part 1:

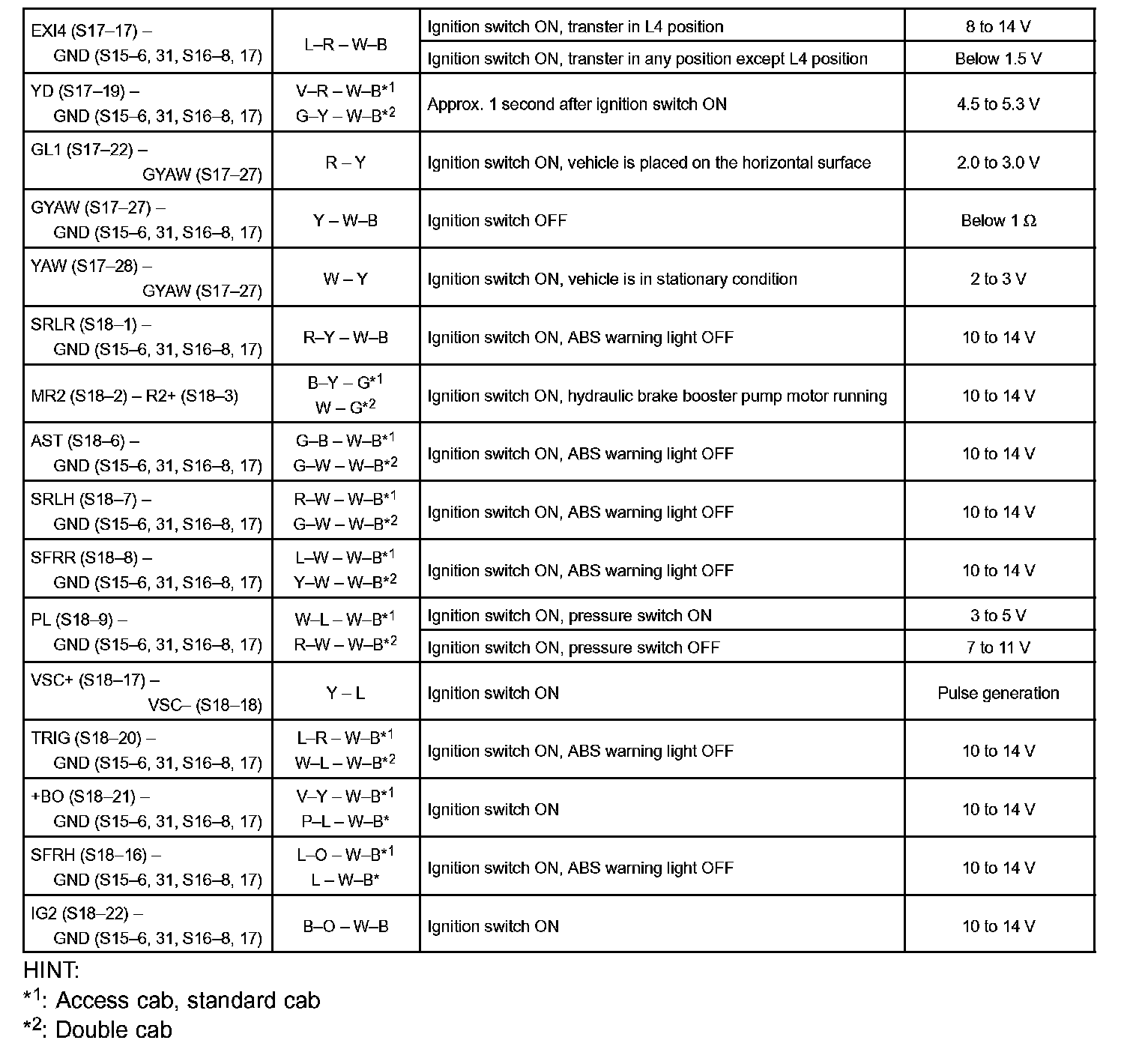

Terminals Of ECU/Pinouts Part 2:
Terminals Of ECU/Pinouts Part 3:
