Fuse Block

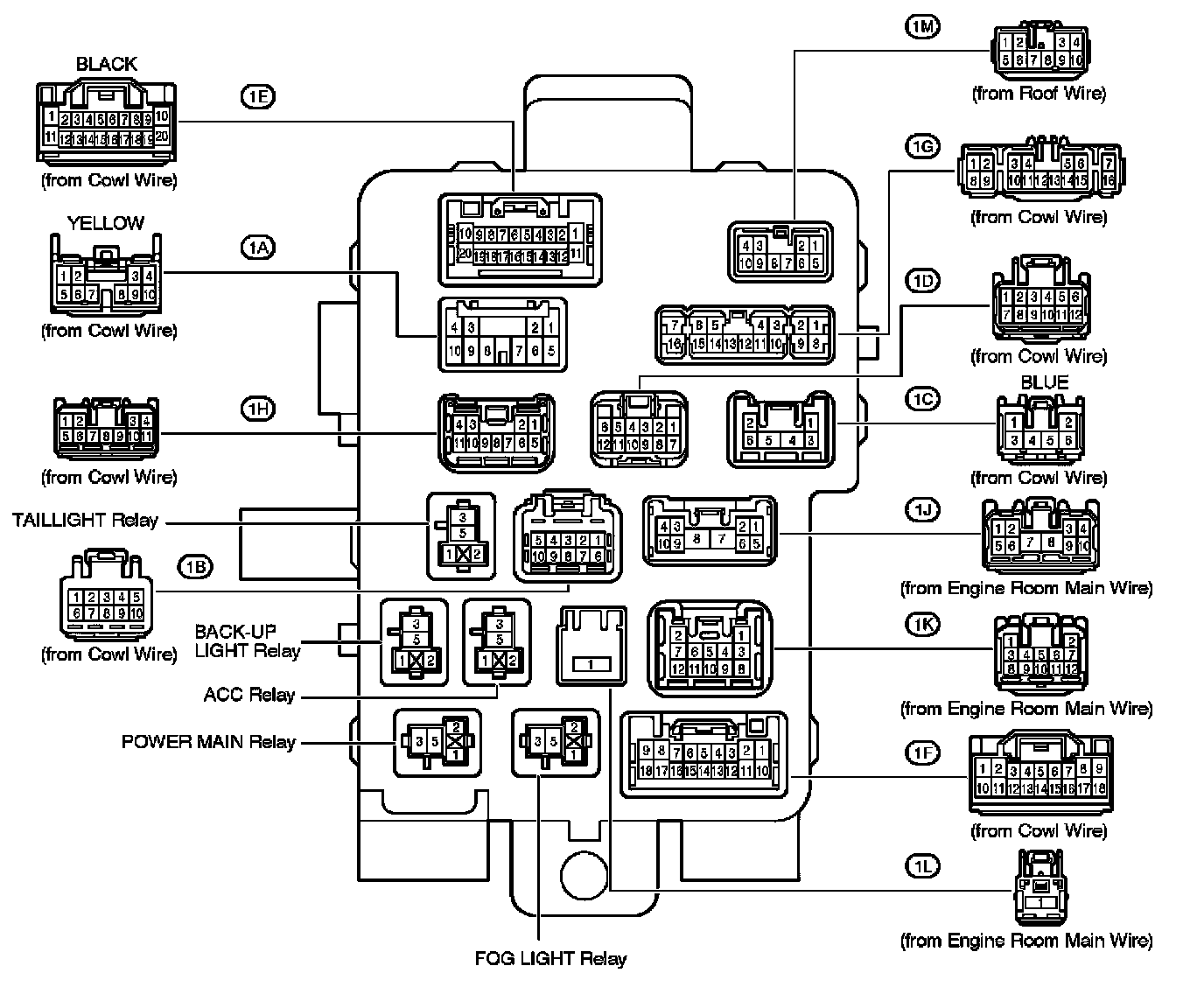

Driver Side J/B And Integration Relay - Lower Finish Panel:

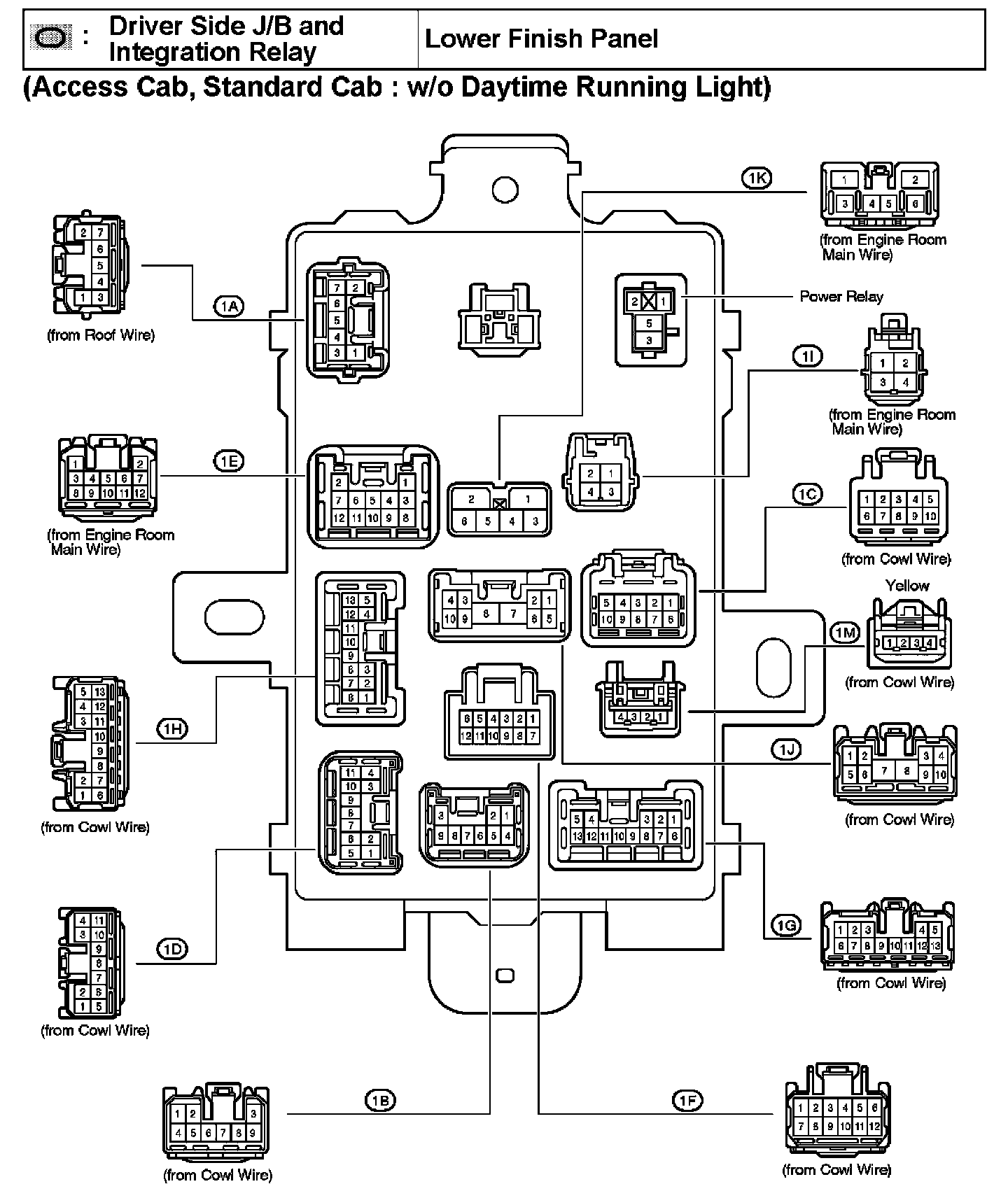

Driver Side J/B and Integration Relay - Lower Finish Panel:

Driver Side J/B And Integration Relay - Lower Finish Panel:

Driver Side J/B and Integration Relay - Lower Finish Panel:

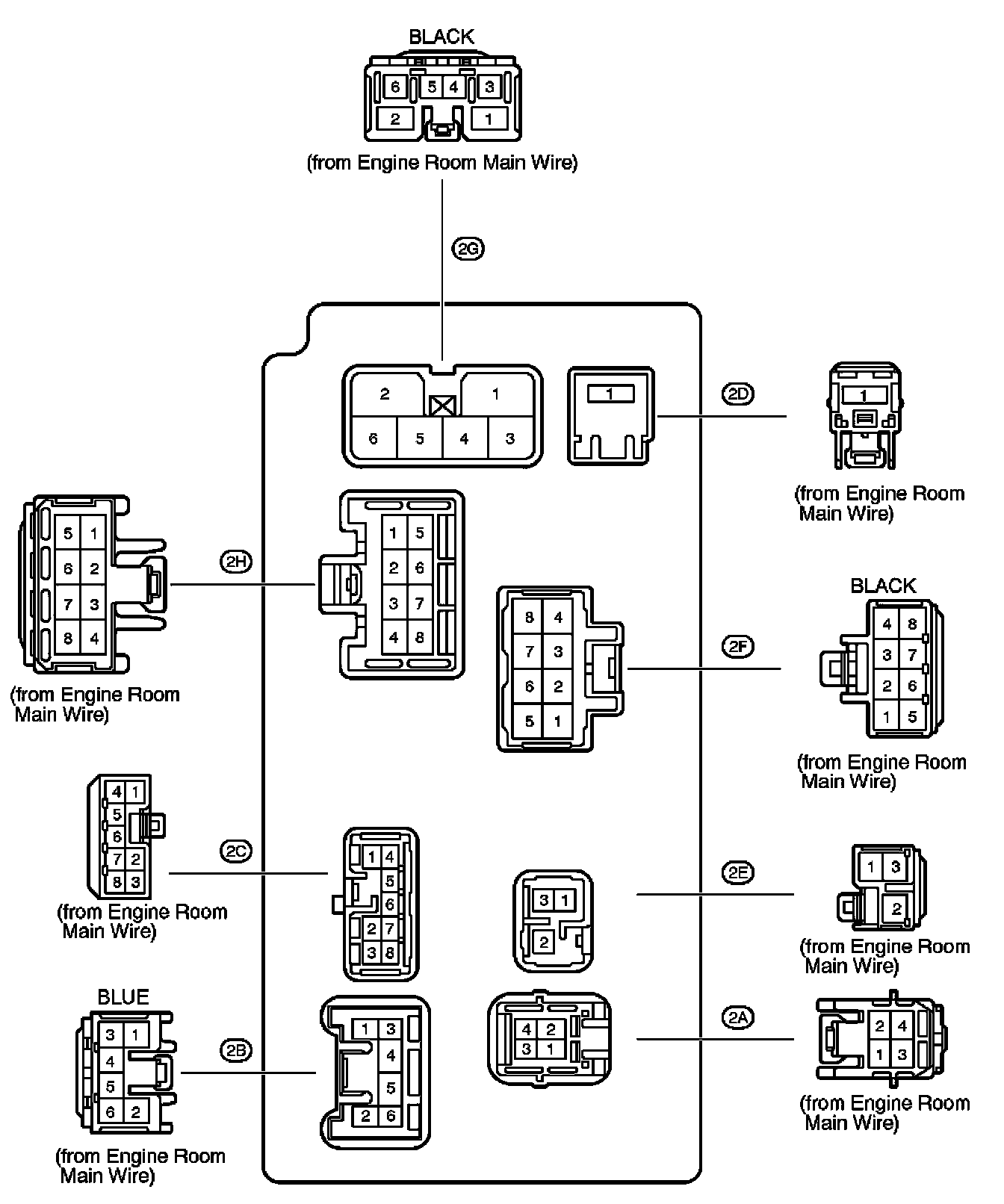

Engine Room J/B - Engine Compartment Left:

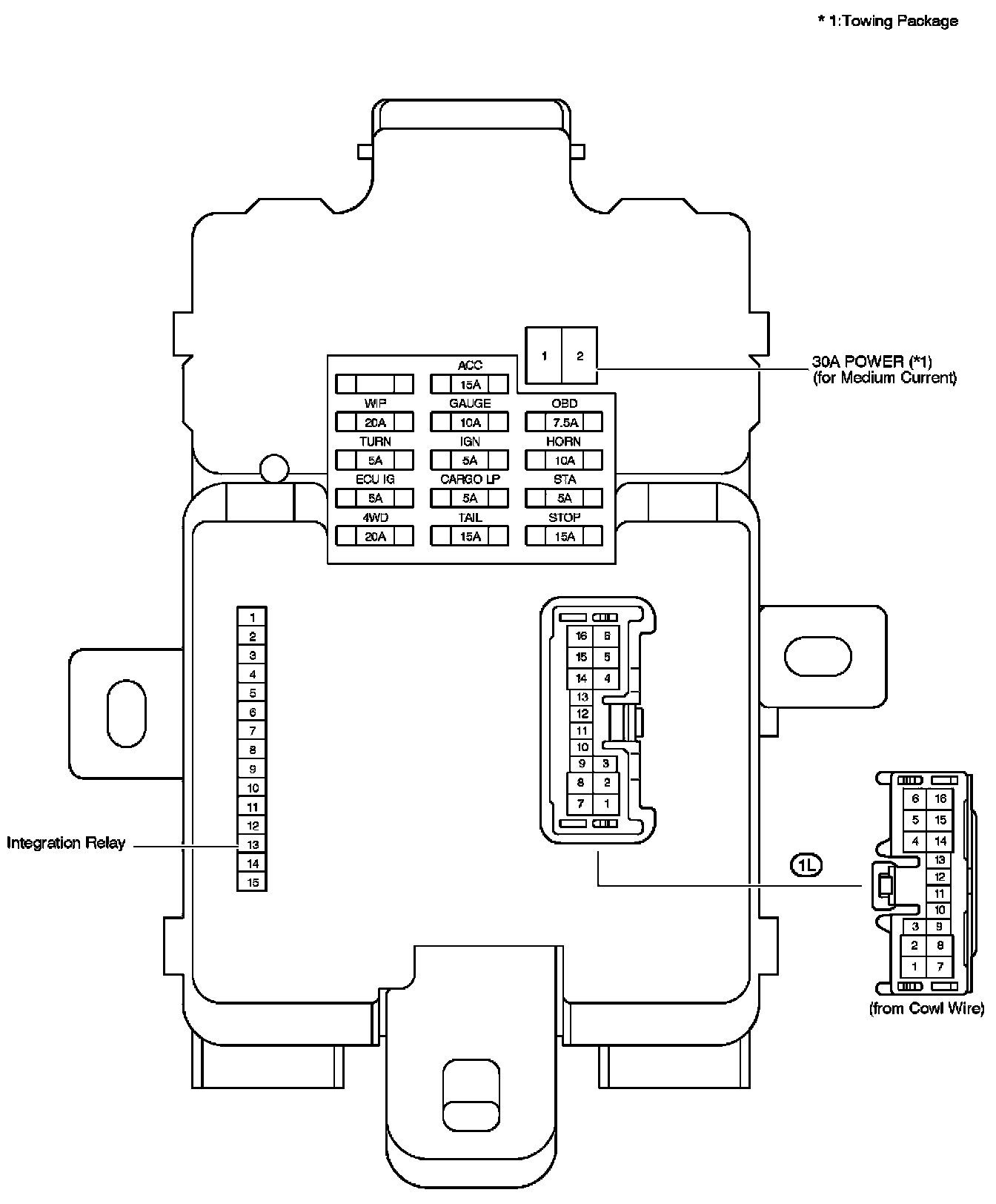

Driver Side J/B - Lower Finish Panel:

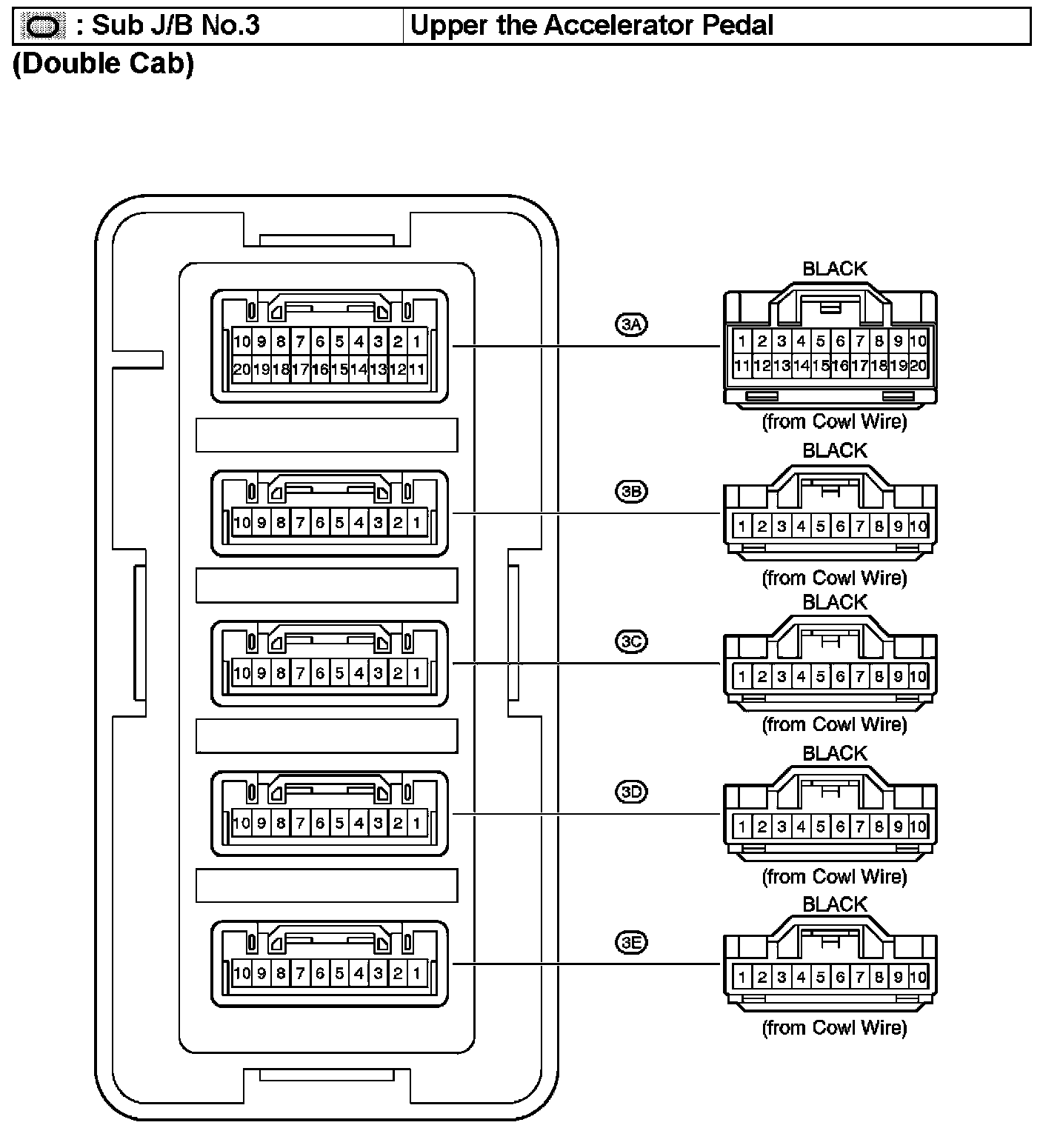

Sub J/B No.3 - Upper The Accelerator Pedal (Double Cab):

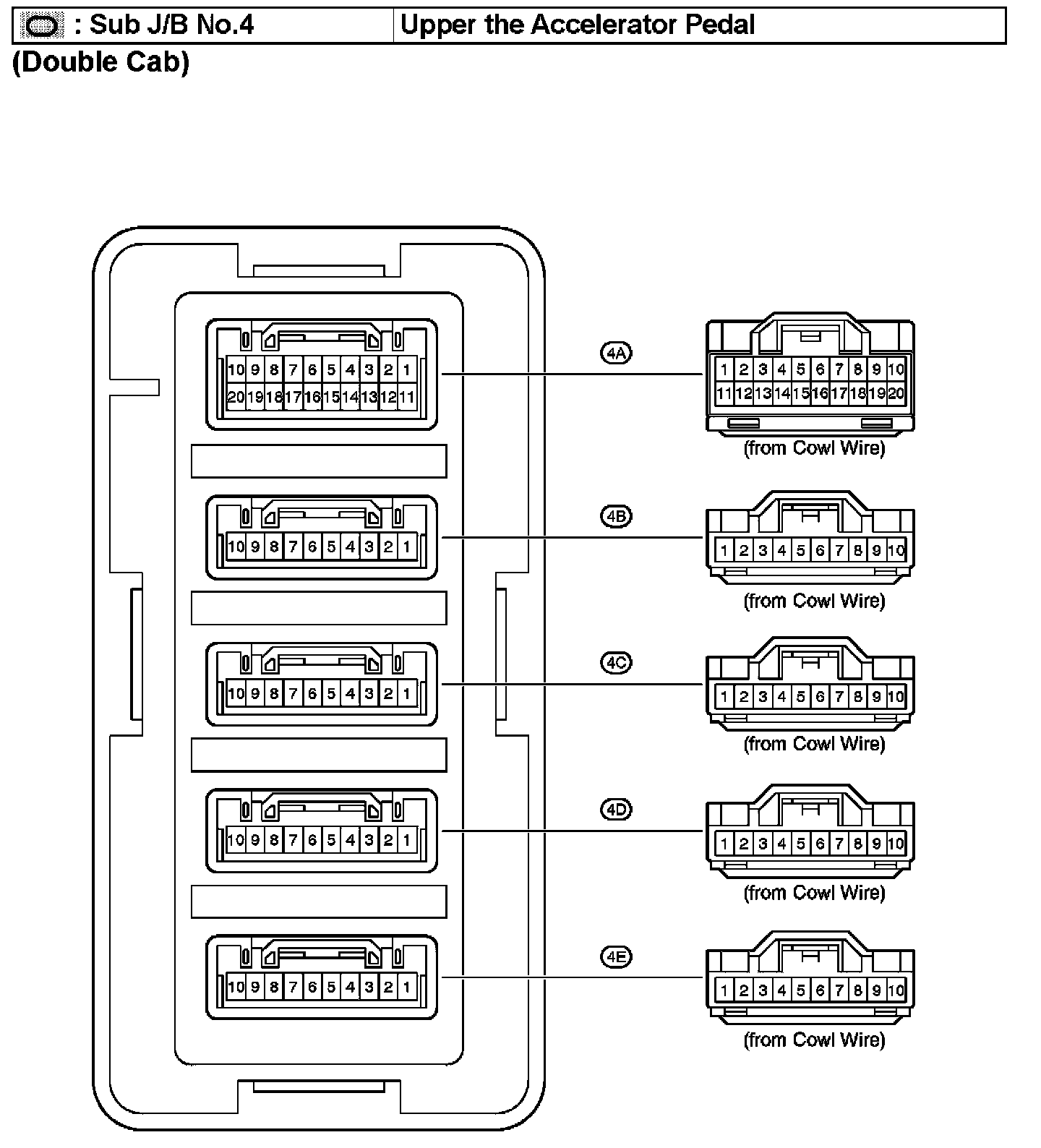

Sub J/B No.4 - Upper The Accelerator Pedal (Double Cab):
