Electronic Brake Control Module: Locations

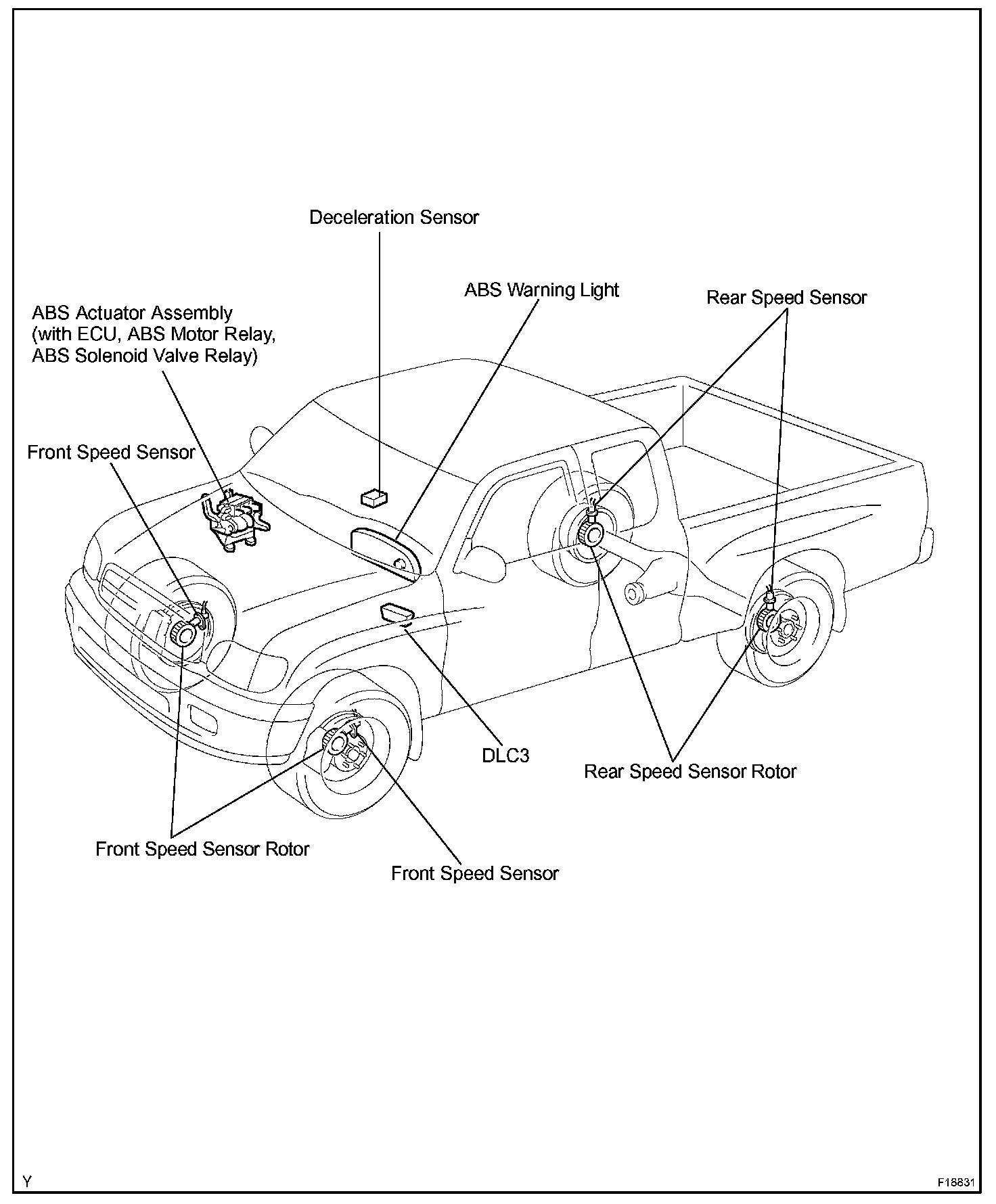

Antilock Brake System:



ABS With EBD & BA & TRAC & VSC System:



A/C - Ho:



Ab - Ya:



A/C - Ho:



Ab - Ov:
