Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
Tundra 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Alternator
Alternator

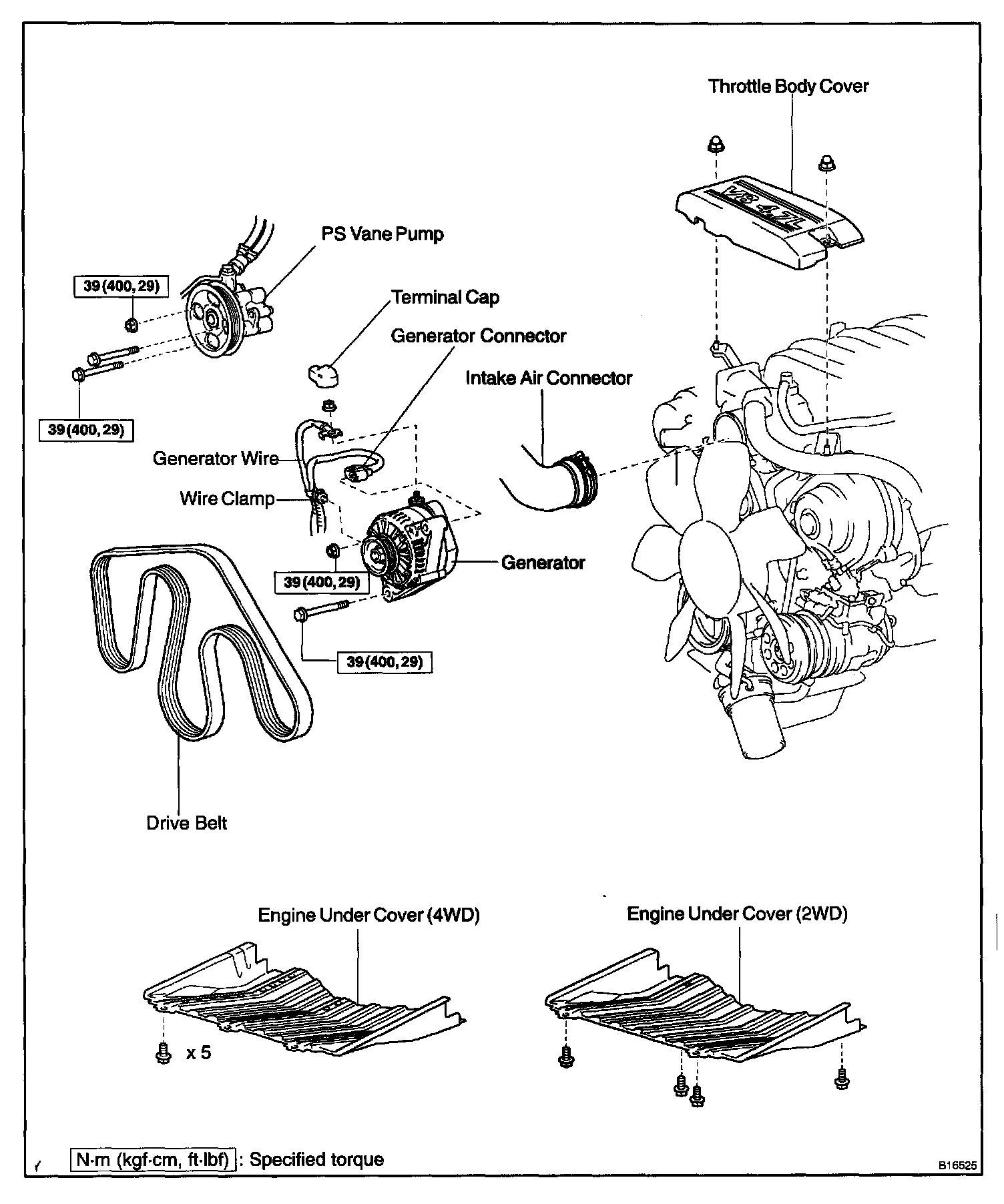

Genarator (Standard Spec) Part 1:
Genarator (Standard Spec) Part 2:

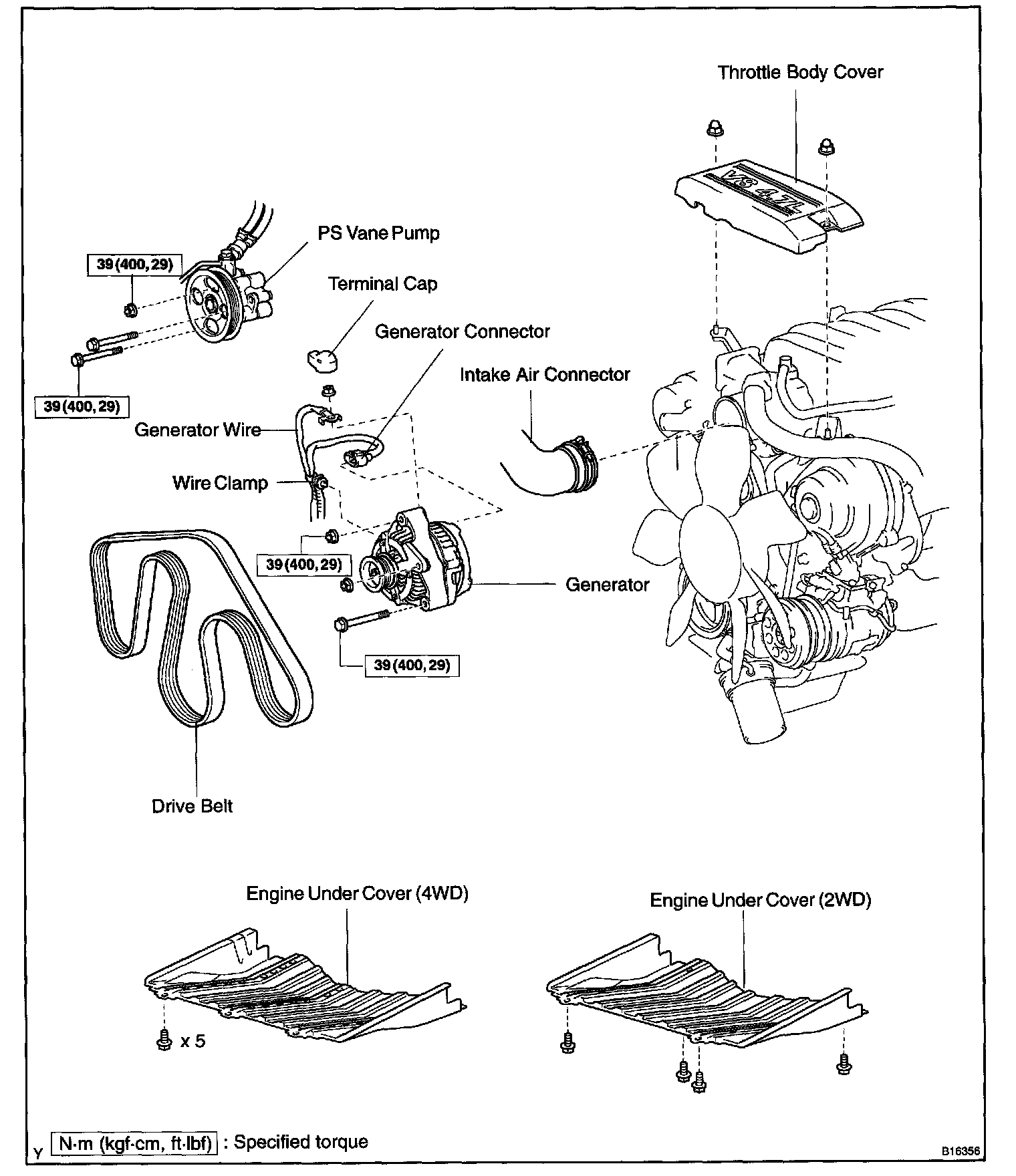

Generator (Towing Package Spec.) - Part 1:
Generator (Towing Package Spec.) - Part 2:
