Active Test

ACTIVE TEST






HINT:
Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the hand-held tester to the DLC3.
d. Turn the ignition switch ON.
e. Turn ON the hand-held tester.
f. Enter the following menus: DIAGNOSIS / ENHANCED OBD II /ACTIVE TEST.

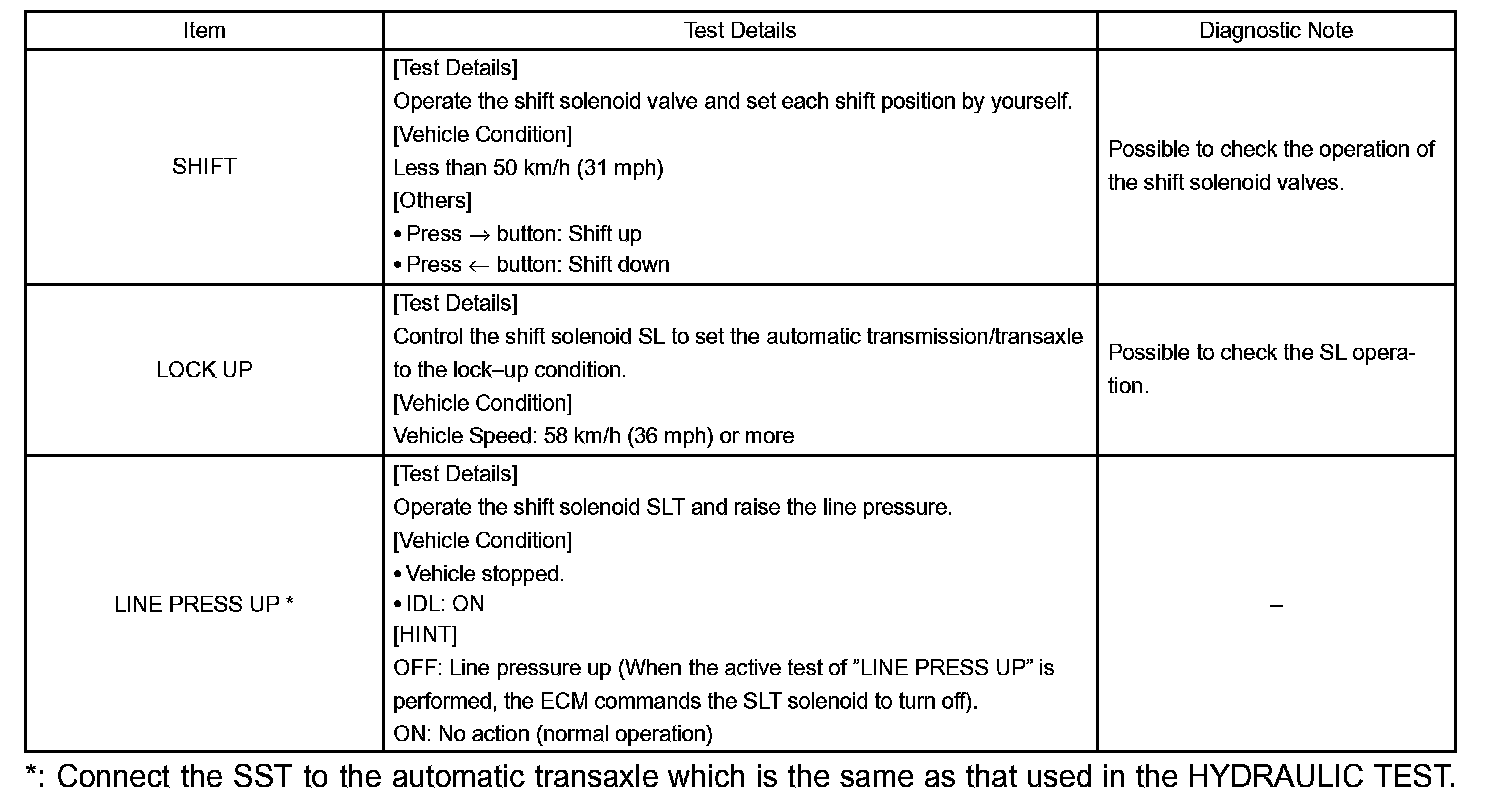

g. According to the display on tester, perform the ACTIVE TEST.

Then, perform " LINE PRESS UP" in ACTIVE TEST to check the line pressure changes.

HINT: The pressure values in ACTIVE TEST and HYDRAULIC TEST are different from each other.
