Engine Service Data

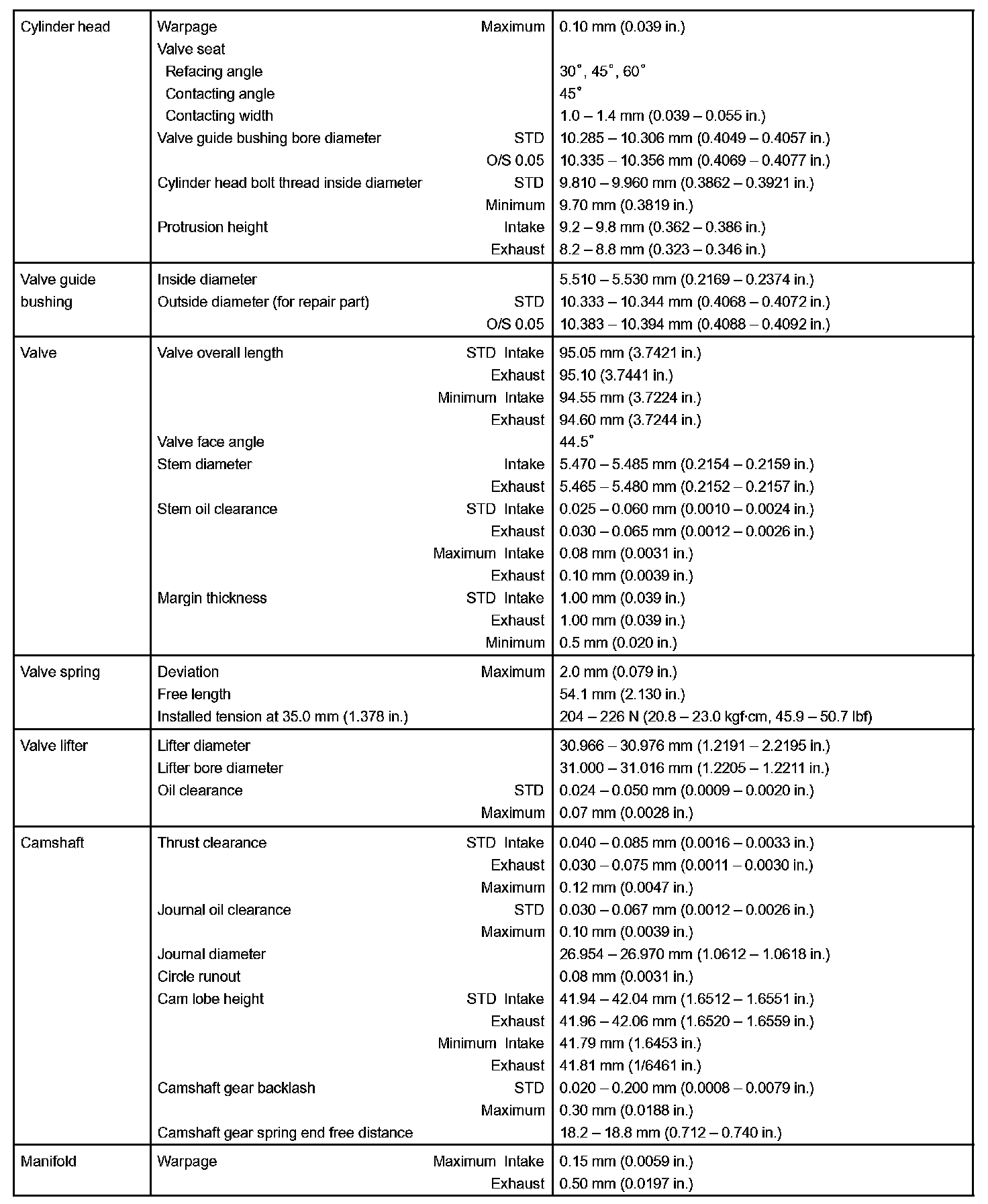

Engine Mechanical(2UZ-FE) - Service Data Part 1:

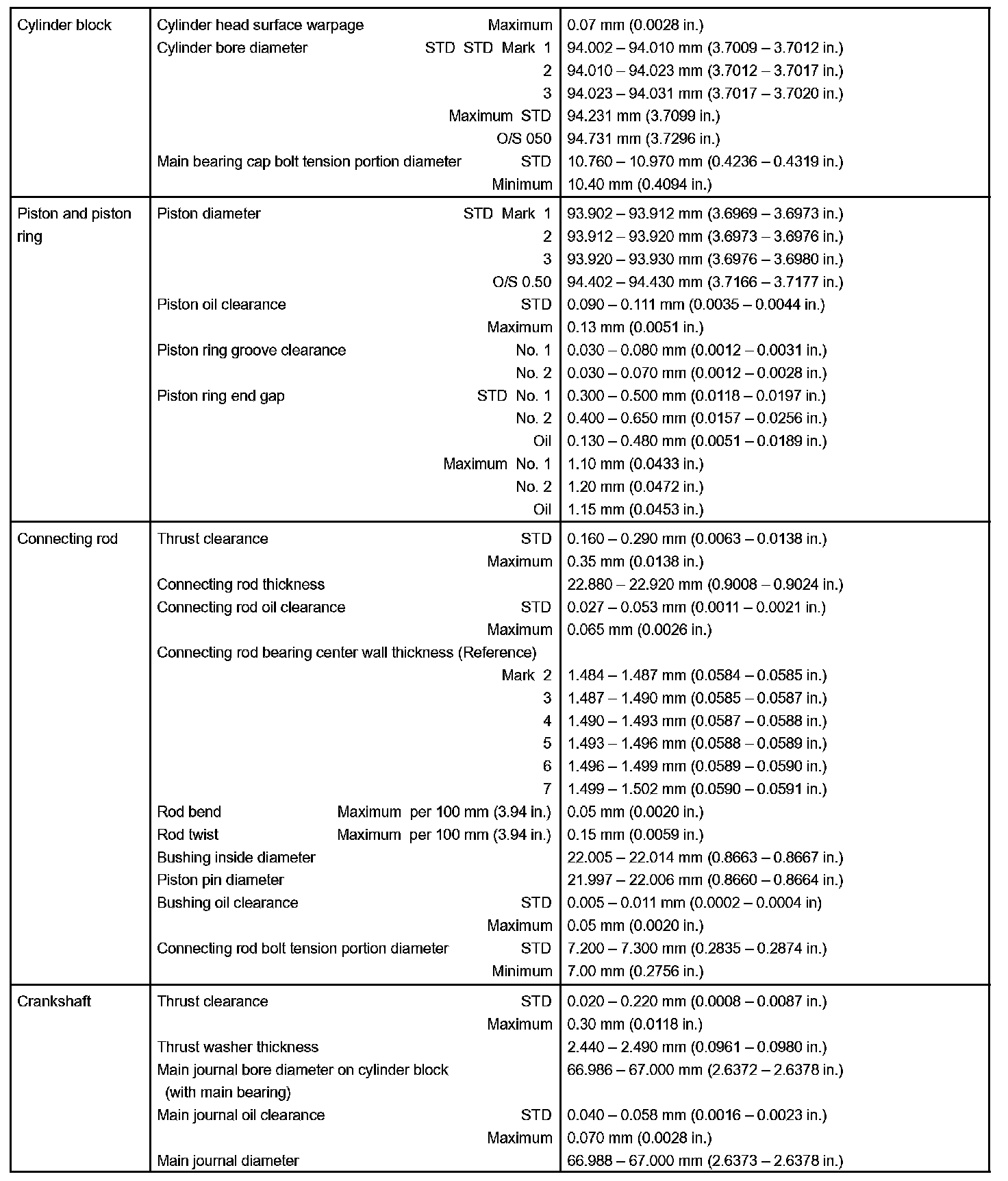

Engine Mechanical(2UZ-FE) - Service Data Part 2:

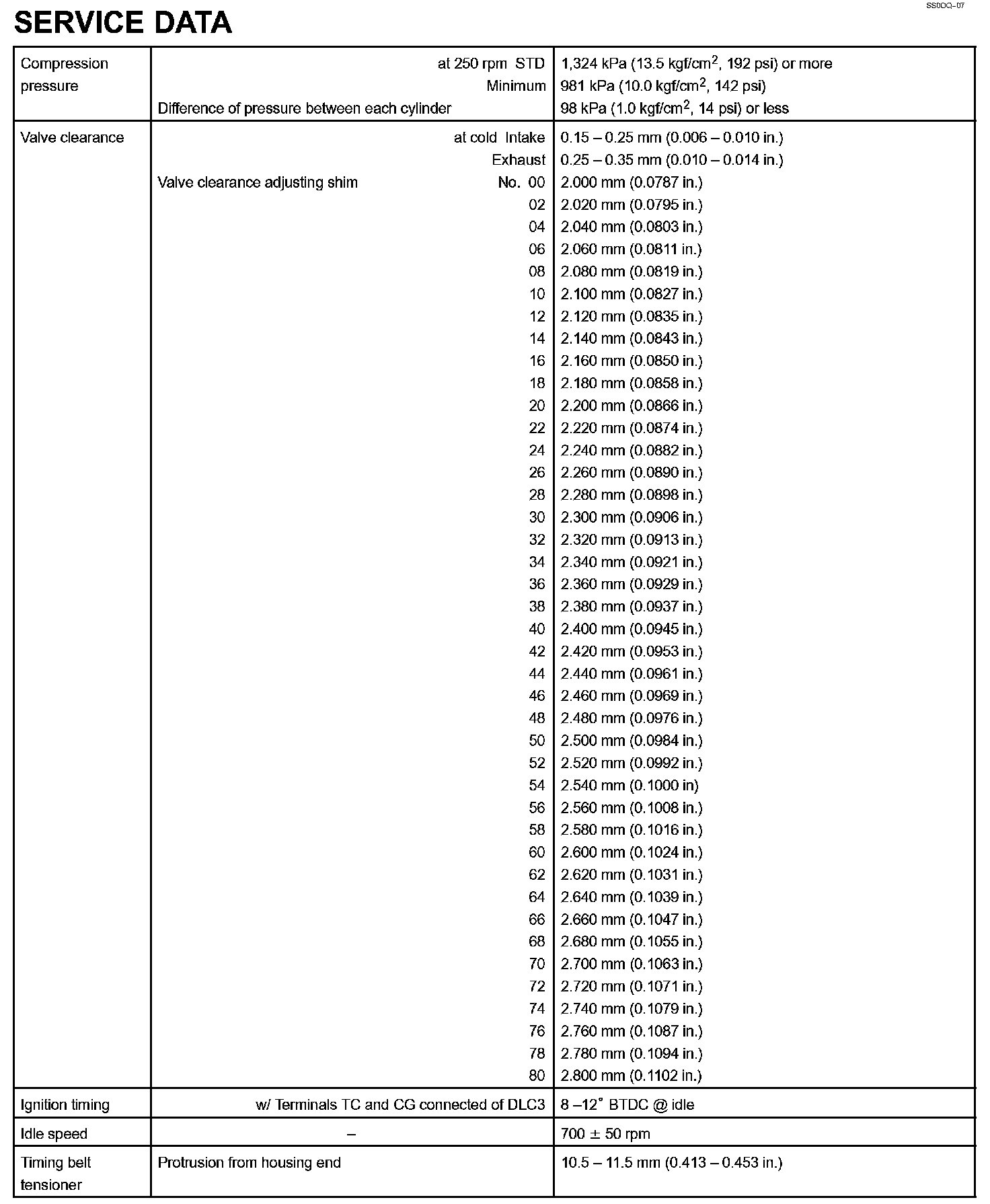

Engine Mechanical(2UZ-FE) - Service Data Part 3:




Engine Mechanical(2UZ-FE) - Service Data Part 4:
