Rear Power Window Switch Circuit

CIRCUIT DESCRIPTION
Power window switch circuit can be checked DTC check.
These DTCs notify how the switch works.:
If DTC is not indicated when operating the switch, it means failure of the switch contact. If DTC is indicated when not operating the switch, it means that the switch is stuck. When a malfunction is found by this diagnosis, inspect each switch. Replace the switch if there is a problem, or check the wire harness if there is no problem.

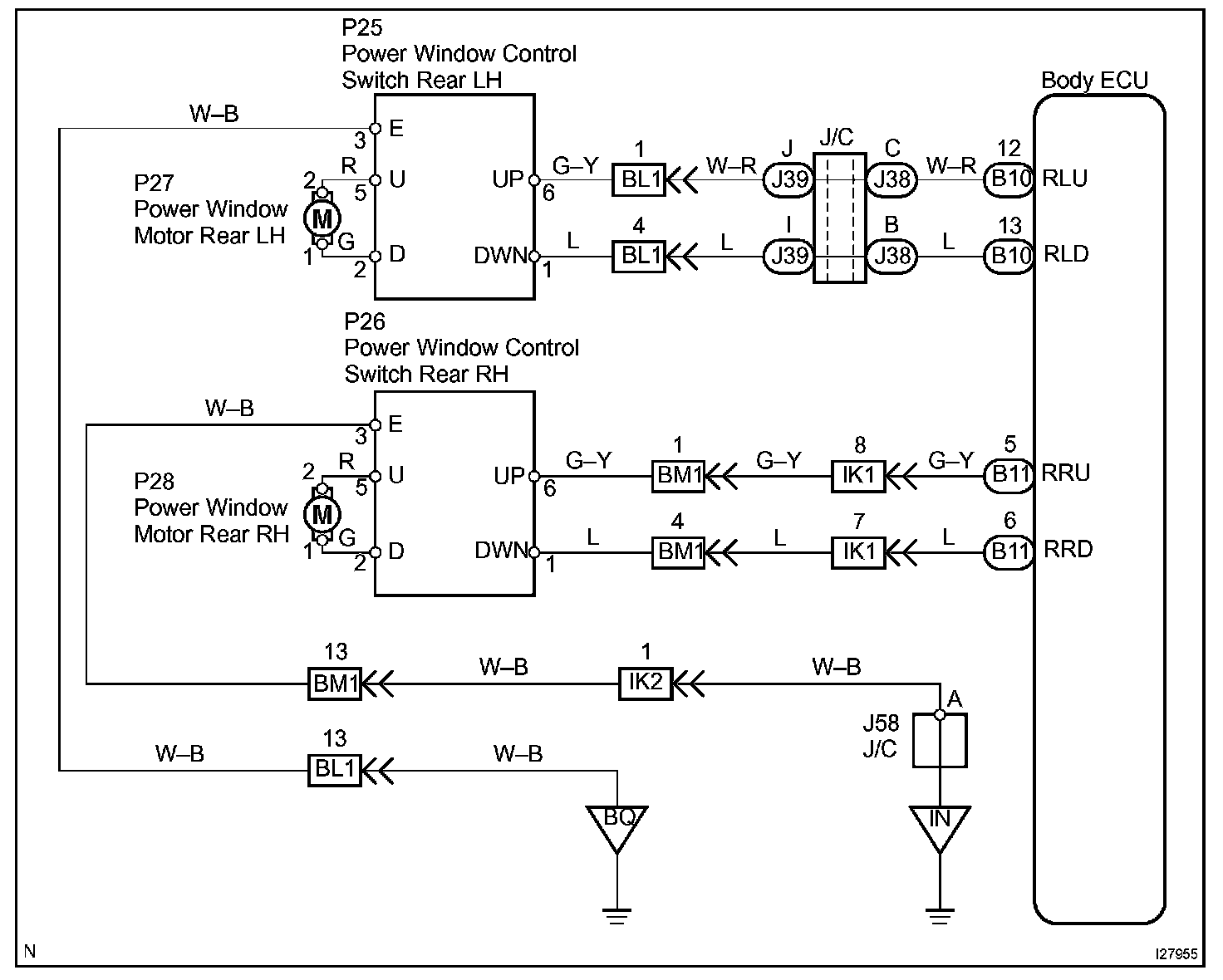

Wiring Diagram:

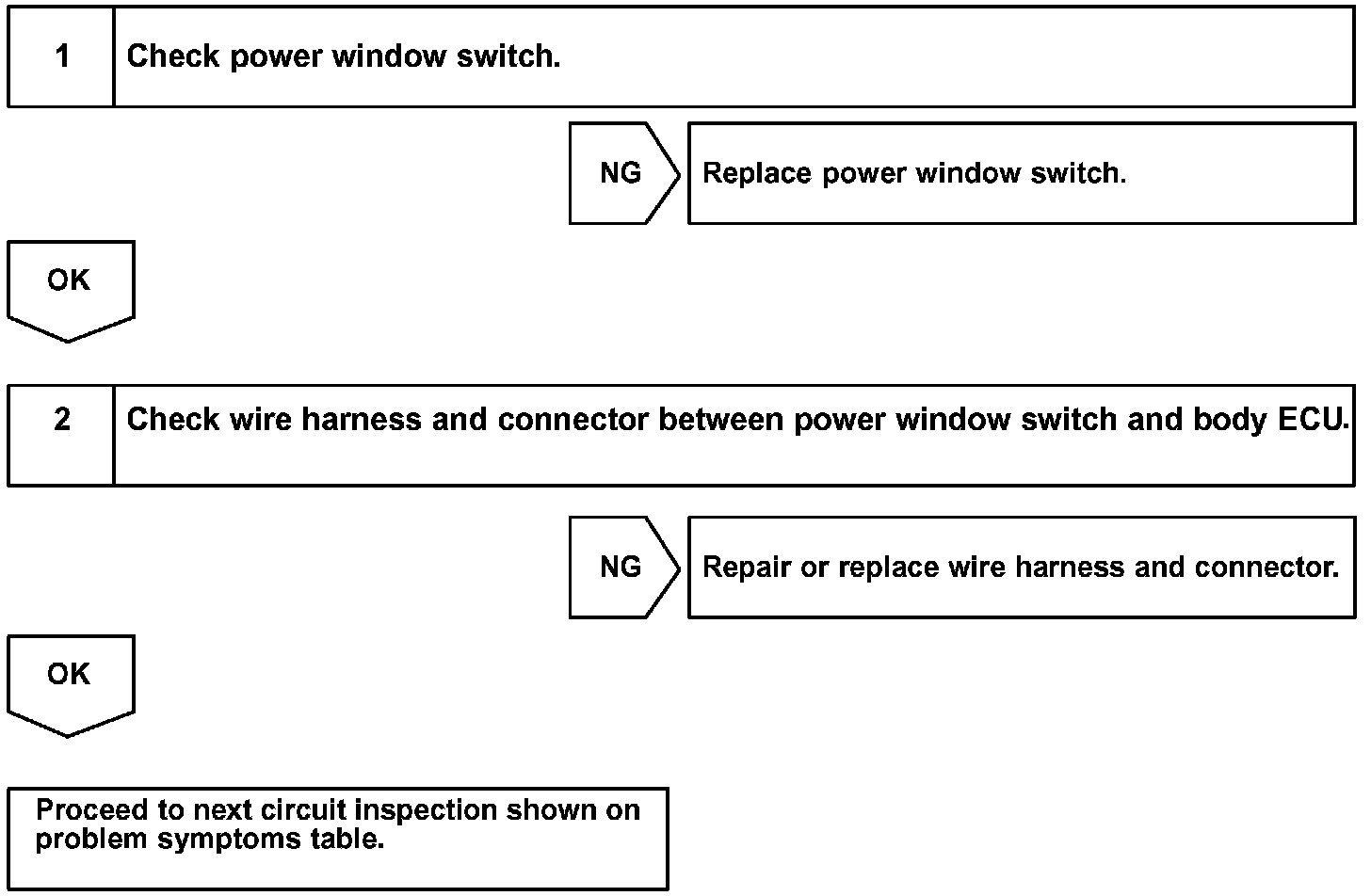

Step 1 - 2:

INSPECTION PROCEDURE
