Disassembly and Reassembly

DISASSEMBLY





1. Access cab, Standard cab: REMOVE AIRBAG INDICATOR CIRCUIT
Release the 2 claws and remove the indicator circuit, then disconnect the connecor.





2. REMOVE BULBS
(a) Access cab, standard cab: Remove the 5 bulbs.
(b) Double cab: Remove the 6 bulbs.

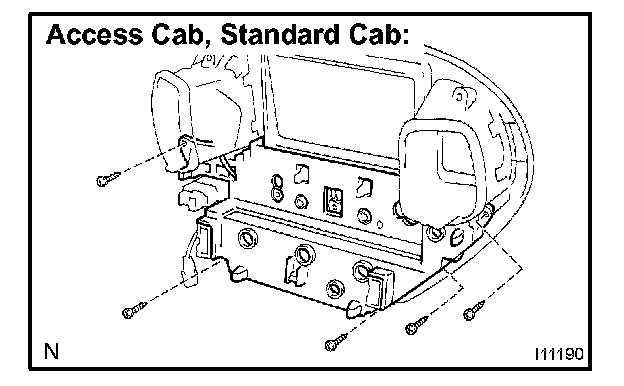

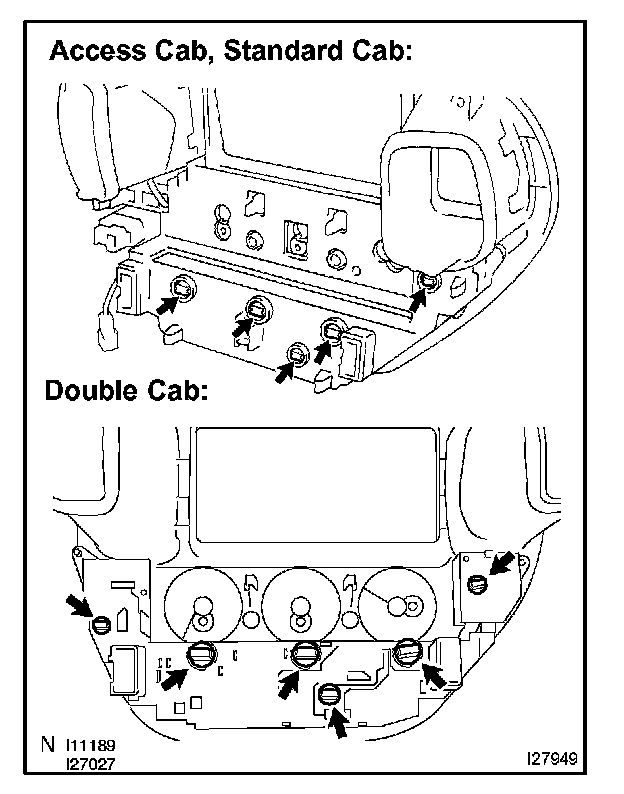

3. Access cab, Standard cab: REMOVE HEATER CONTROL HOUSING
(a) Remove the 5 screws.
(b) Remove the heater control housing.

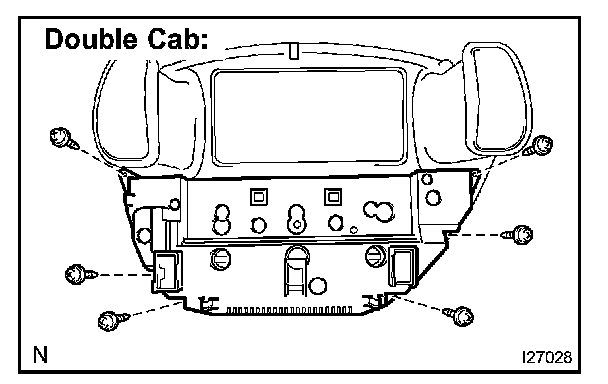

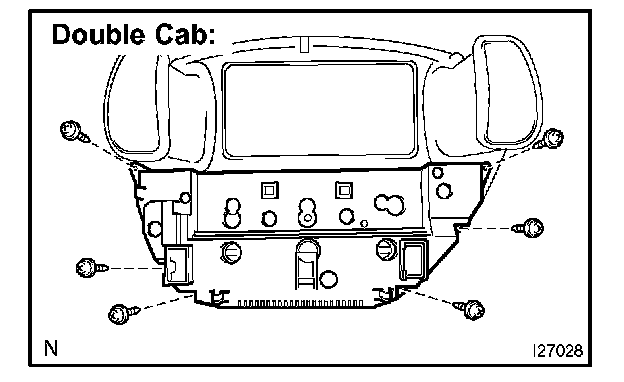

4. Double cab: REMOVE HEATER CONTROL HOUSING
(a) Remove the 5 screws.
(b) Remove the heater control housing.

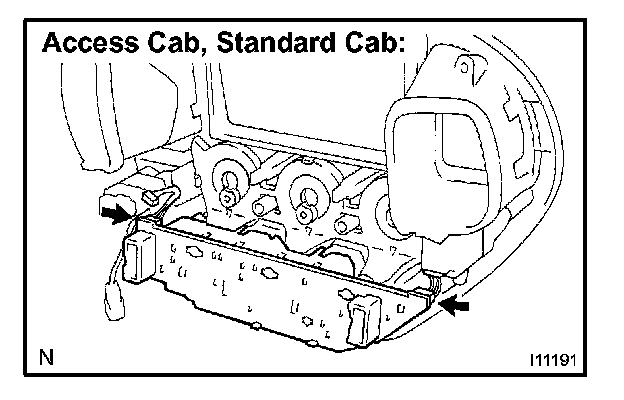

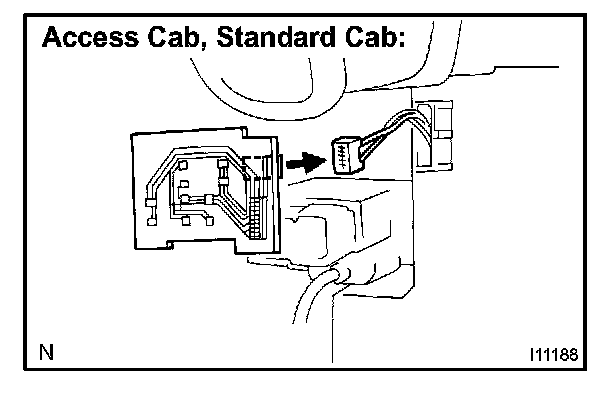

5. Access cab, Standard cab: REMOVE INTEGRATION CIRCUIT
(a) Disconnect the 2 connectors.
(b) Remove the circuit.

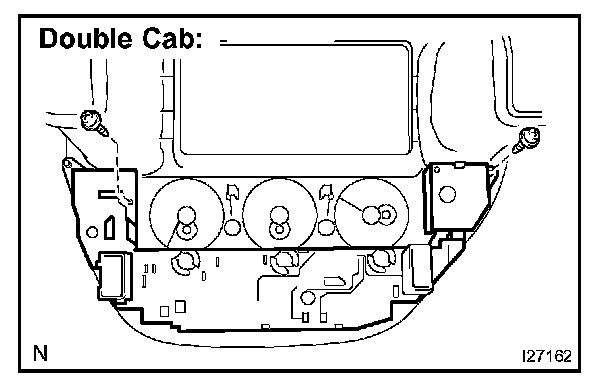

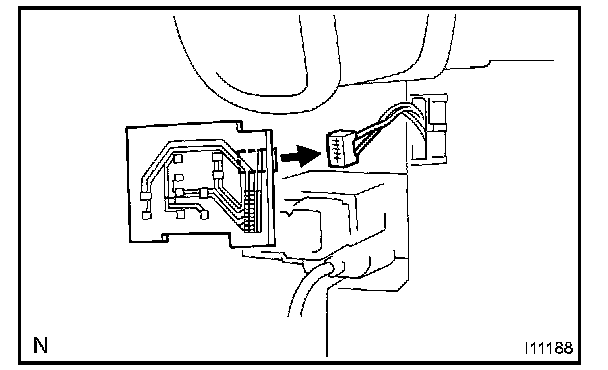

6. Double cab: REMOVE INTEGRATION CIRCUIT
(a) Disconnect the 2 screws.
(b) Remove the circuit.

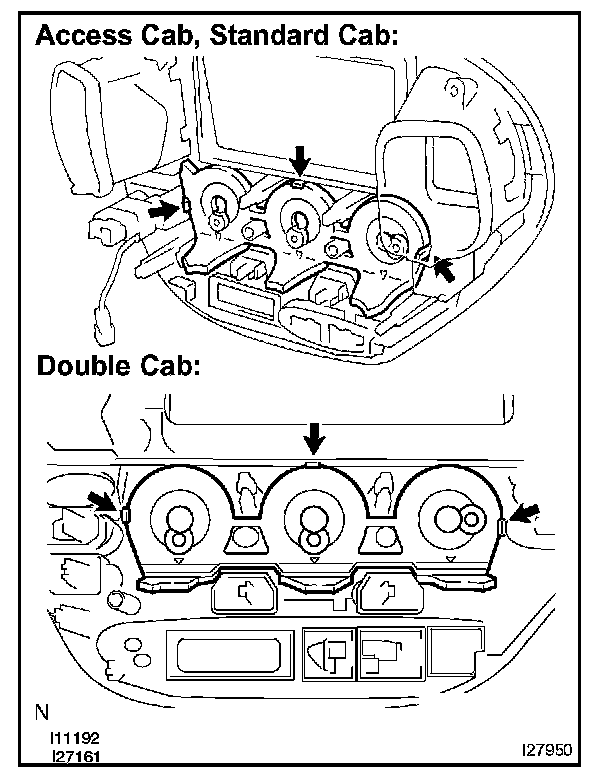

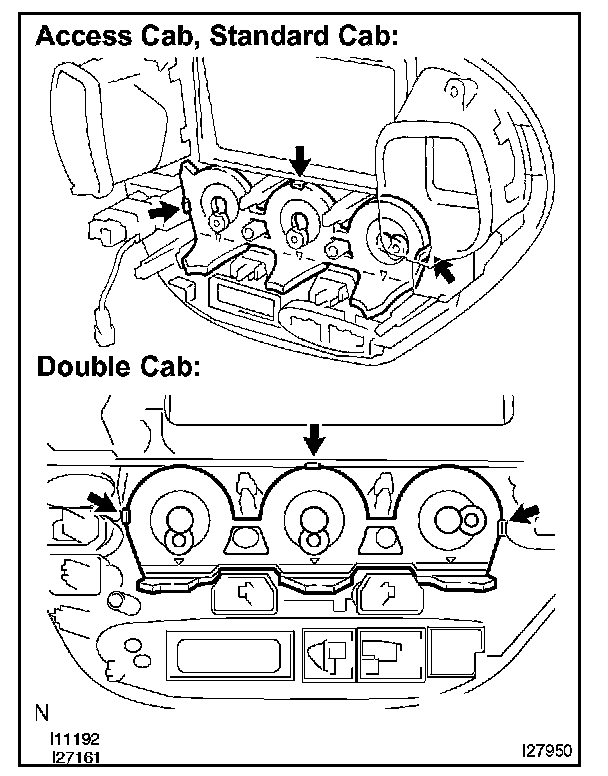

7. REMOVE LENS
Release the 3 claws, then remove the lens.

REASSEMBLY





1. INSTALL LENS
Install the lens.

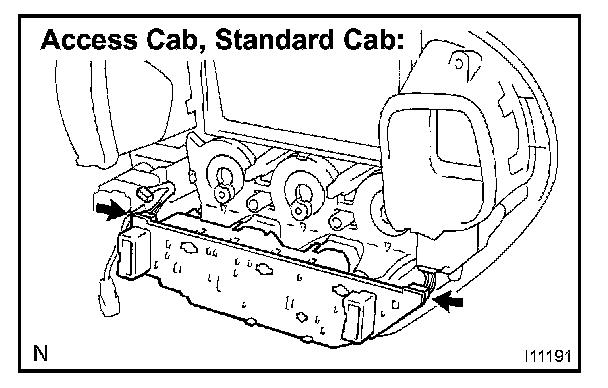

2. Access cab, Standard cab: INSTALL INTEGRATION CIRCUIT
(a) Connect the 2 connectors.
(b) Install the circuit.

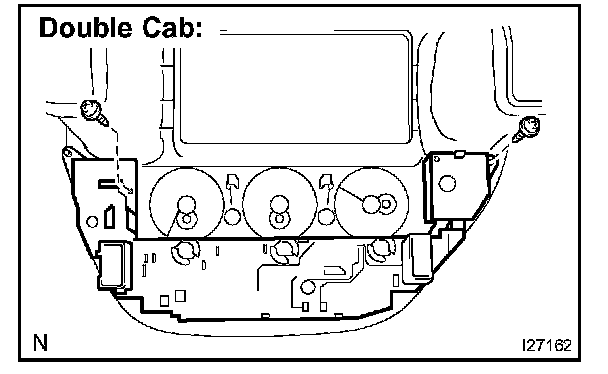

3. Double cab: INSTALL INTEGRATION CIRCUIT
(a) Install the circuit.
(b) Install the 2 screws.

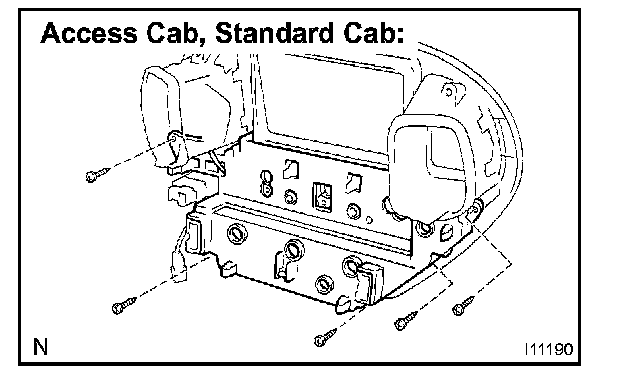

4. Access cab, Standard cab: INSTALL HEATER CONTROL HOUSING
(a) Connect theconnector.
(b) Install the heater control housing.
(c) Install the 5 screws.





5. Double cab: INSTALL HEATER CONTROL HOUSING
(a) Install the heater control housing.
(b) Install the 6 screws.





6. INSTALL BULBS
(a) Access cab, standard cab: Install the 5 bulbs.
(b) Double cab: Install the 6 bulbs.





7. Access cab, Standard cab: INSTALL AIRBAG INDICATOR CIRCUIT
(a) Connect the connector.
(b) Install the circuit.
