Ignition Switch: Locations

Toyota Vehicle Intrusion Protection System:



Cruise Control System:

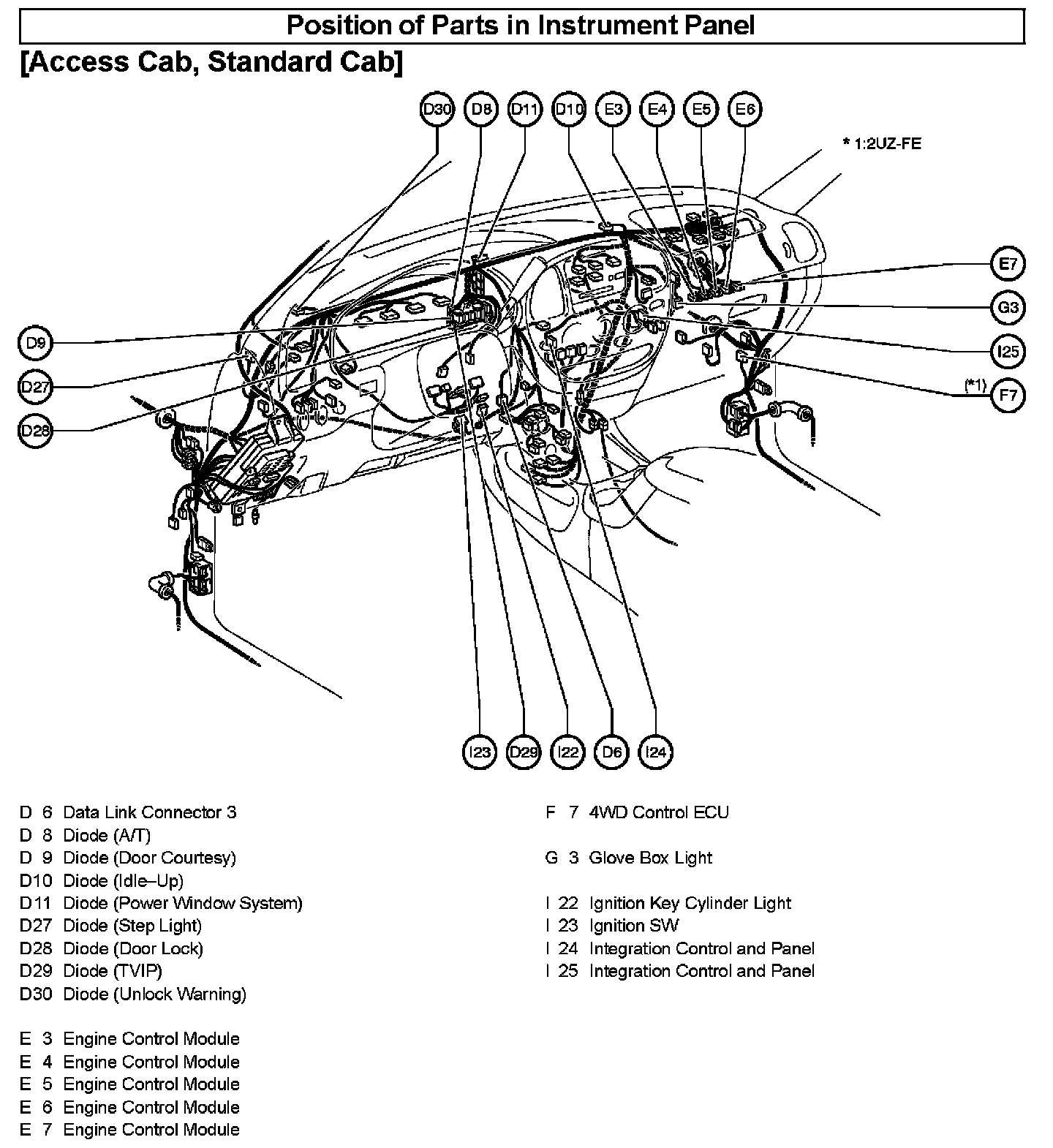

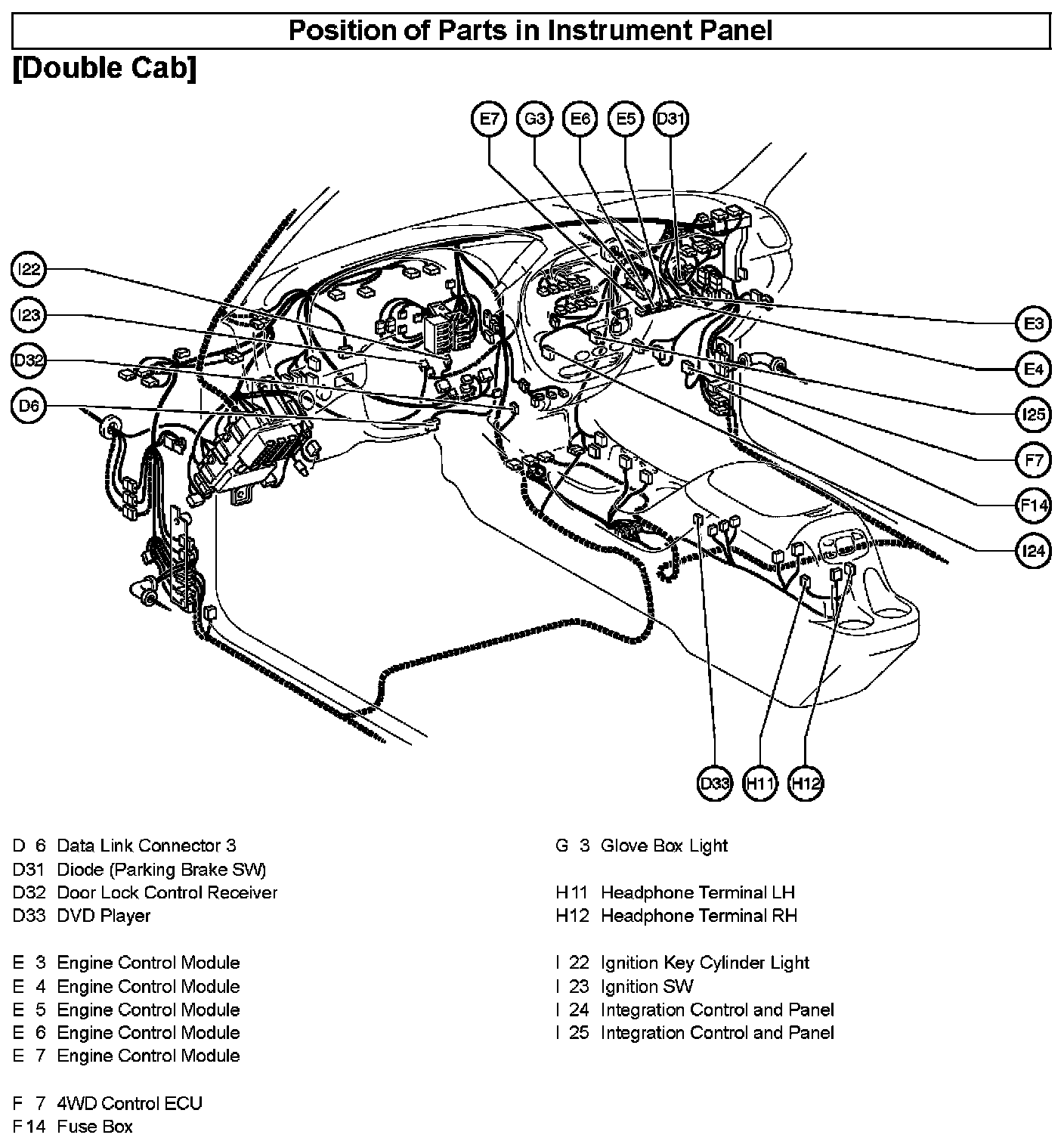

Body Control System Part 1:

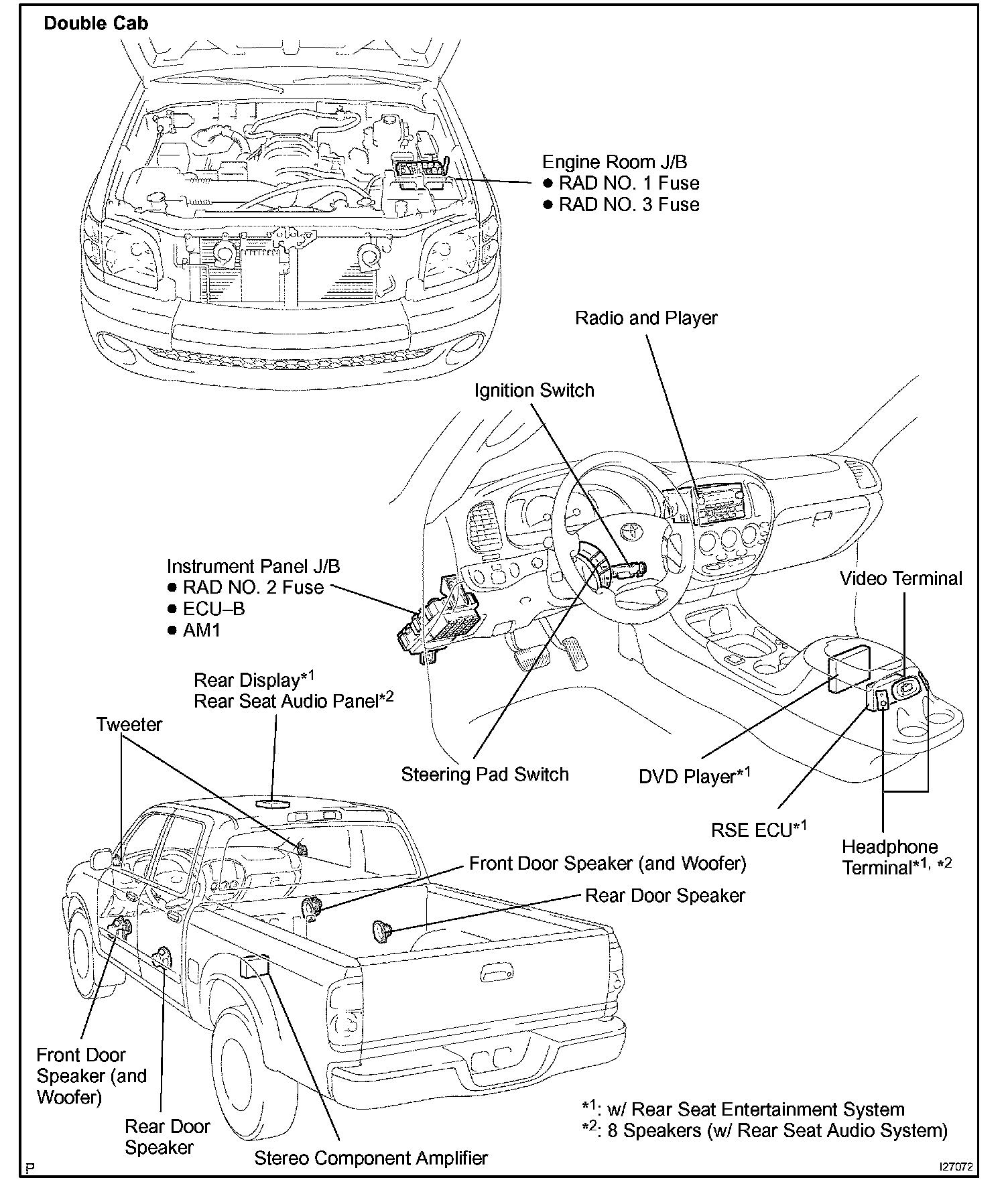

Audio and Visual System Part 1:



Da - In:



Da - In:
