Engine Controls - MIL ON/DTC's P0171/P0174/P2195/P2197
ENGINEEG049-05
Title:
M.I.L. "ON" DTC P0171, P0174, P2195, OR P2197
Models:
'05 - '06 4Runner
November 16, 2005
Introduction
Under certain driving conditions, some 2005 and 2006 model year 4Runner vehicles may exhibit a M.I.L. "ON" condition with at least one of the following DTCs:
^ P0171 (System Too Lean [Bank 1])
^ P0174 (System Too Lean [Bank 2])
^ P2195 (Oxygen [A/F] Sensor Signal Stuck Lean [Bank 1, Sensor 1])
^ P2197 (Oxygen [A/F] Sensor Signal Stuck Lean [Bank 2, Sensor 1])
The Air Fuel (A/F) sensor manufacturing process has been improved to correct this condition. The following repair procedures should be used to properly diagnose and repair the affected vehicles.
Applicable Vehicles
^ 2005 - 2006 model year 4Runner vehicles produced BEFORE the Production Change Effective VINs shown below.
Production Change Information
Parts Information
Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Federal Emission Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date. For California specification vehicles sold, registered, and operated in California, Maine, Massachusetts, and Vermont, this repair is covered under the California Emission Warranty, which is 36 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

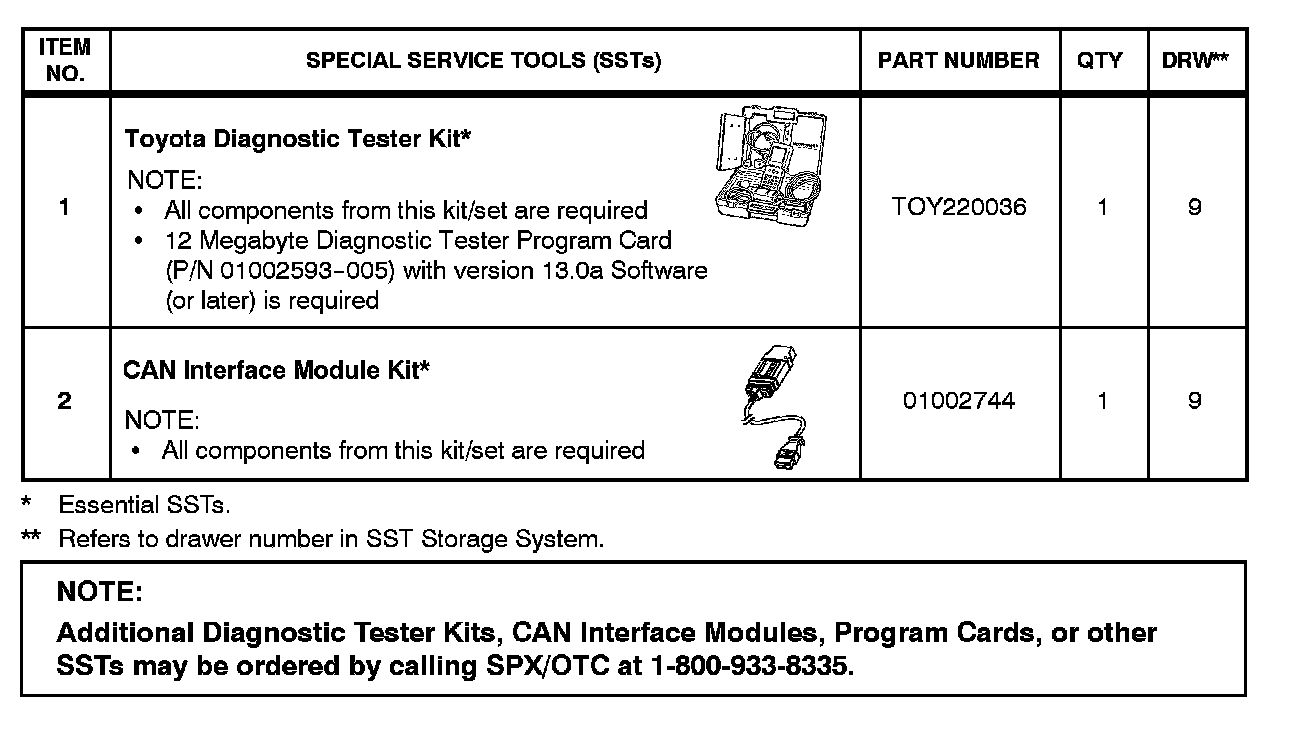

Required SSTs
Repair Procedure
DTC P0171 or P0174
Refer to the Technical Information System (TIS), 2005 or 2006 model year 4Runner Repair Manual: Diagnostics: SF1 System (applicable engine): P0171, P0174.
NOTE:
Only replace the A/F sensor indicated by the M.I.L. "ON" DTC(s).
DTC P2195 or P2197
Refer to TIS, 2005 or 2006 model year 4Runner Repair Manual: Diagnostics: SFI System (applicable engine): P2195, P2197.
NOTE:
Only replace the A/F sensor indicated by the M.I.L. "ON" DTC(s).
