Power Distribution Relay: Testing and Inspection

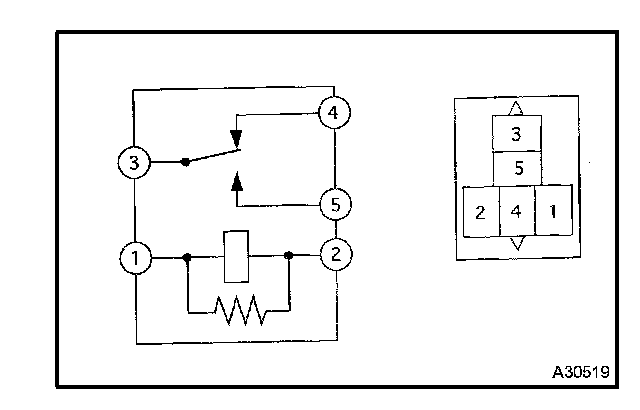

INSPECT ACC RELAY







a. Continuity inspection.

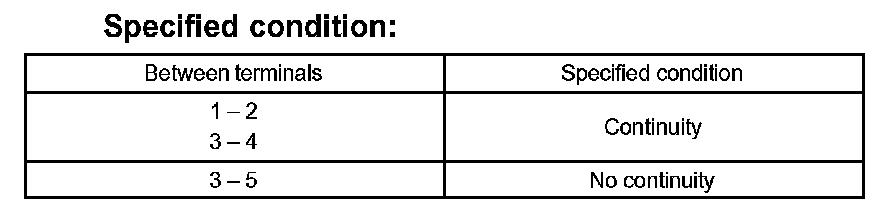

1. Using an ohmmeter, check for continuity between each terminal.
2. Using an ohmmeter, check for continuity between terminals 3 and 5 when voltage is applied across terminals 1 and 2.

Specified condition: Continuity
