Control Assembly: Service and Repair

AIR CONDITIONING CONTROL ASSEMBLY

OVERHAUL




1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
a. Remove the screw.
b. Release the 4 claw fittings.
c. Disconnect the connector and remove the air conditioning control assembly.




2. REMOVE COOLER CONTROL SWITCH BULB (EXCEPT INDEPENDENCE TEMPERATURE CONTROL)

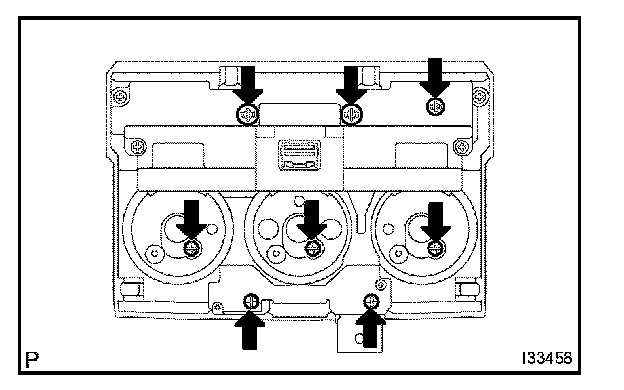

a. Remove the 8 cooler control switch bulbs from the air conditioning control assembly.




3. REMOVE COOLER CONTROL SWITCH BULB (INDEPENDENCE TEMPERATURE CONTROL)

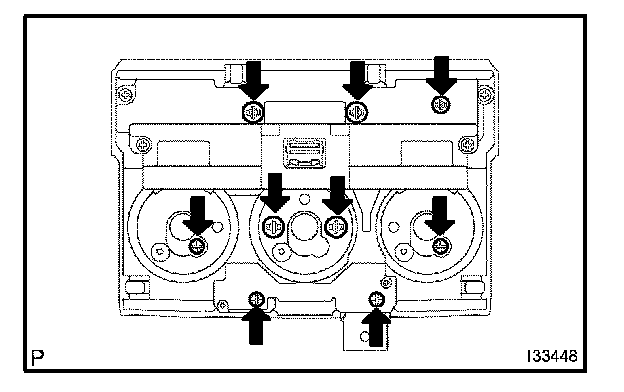

a. Remove the 9 cooler control switch bulbs from the air conditioning control assembly.
