Customize Parameters

CUSTOMIZE PARAMETERS

HINT: The following can be customized.

NOTE:
- After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

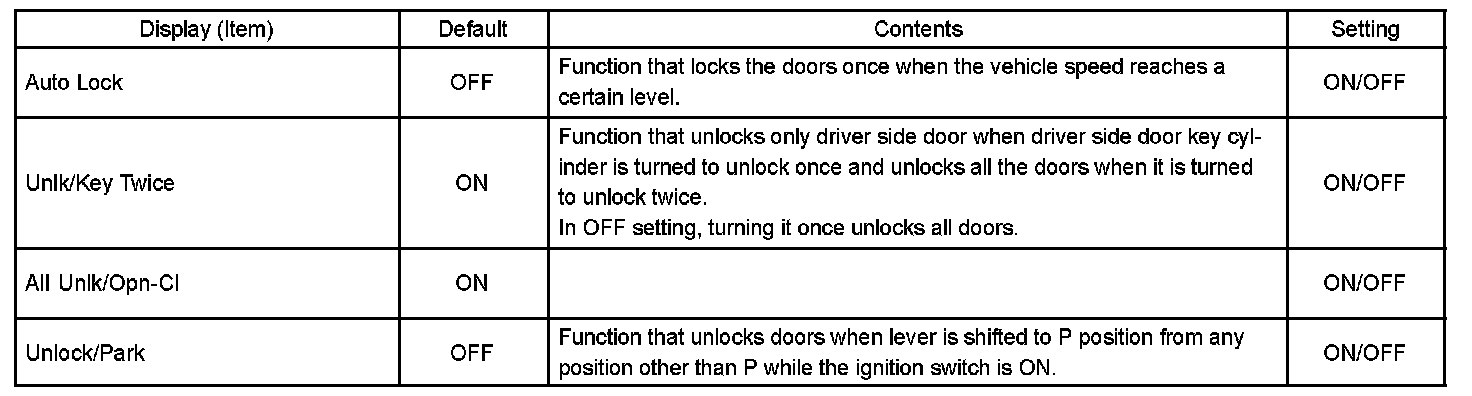

POWER DOOR LOCK CONTROL SYSTEM

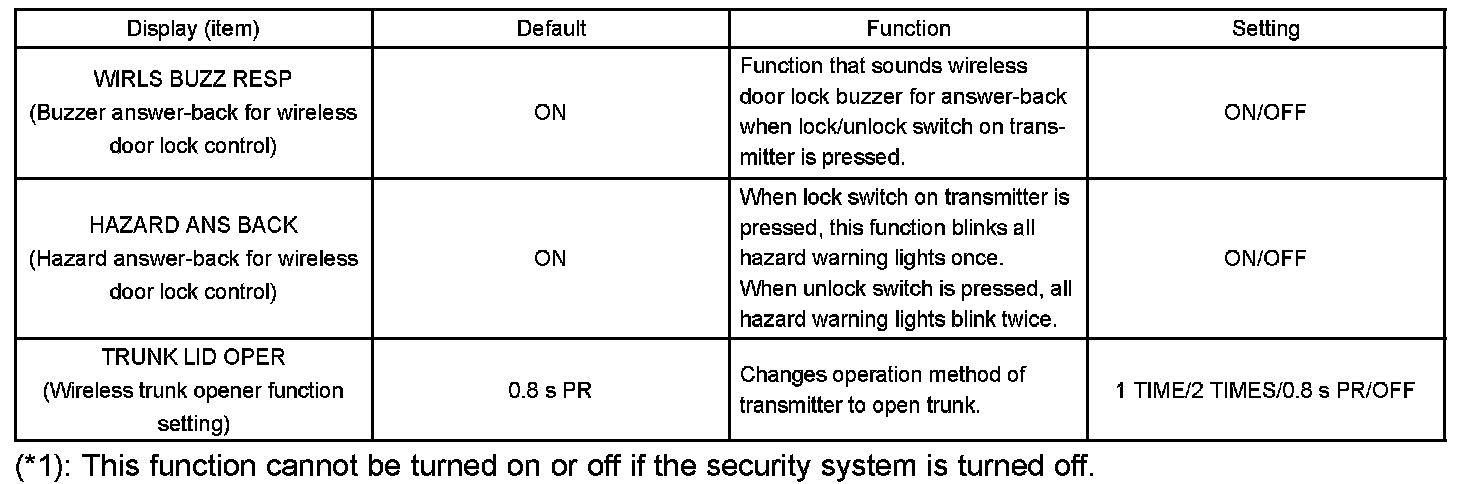

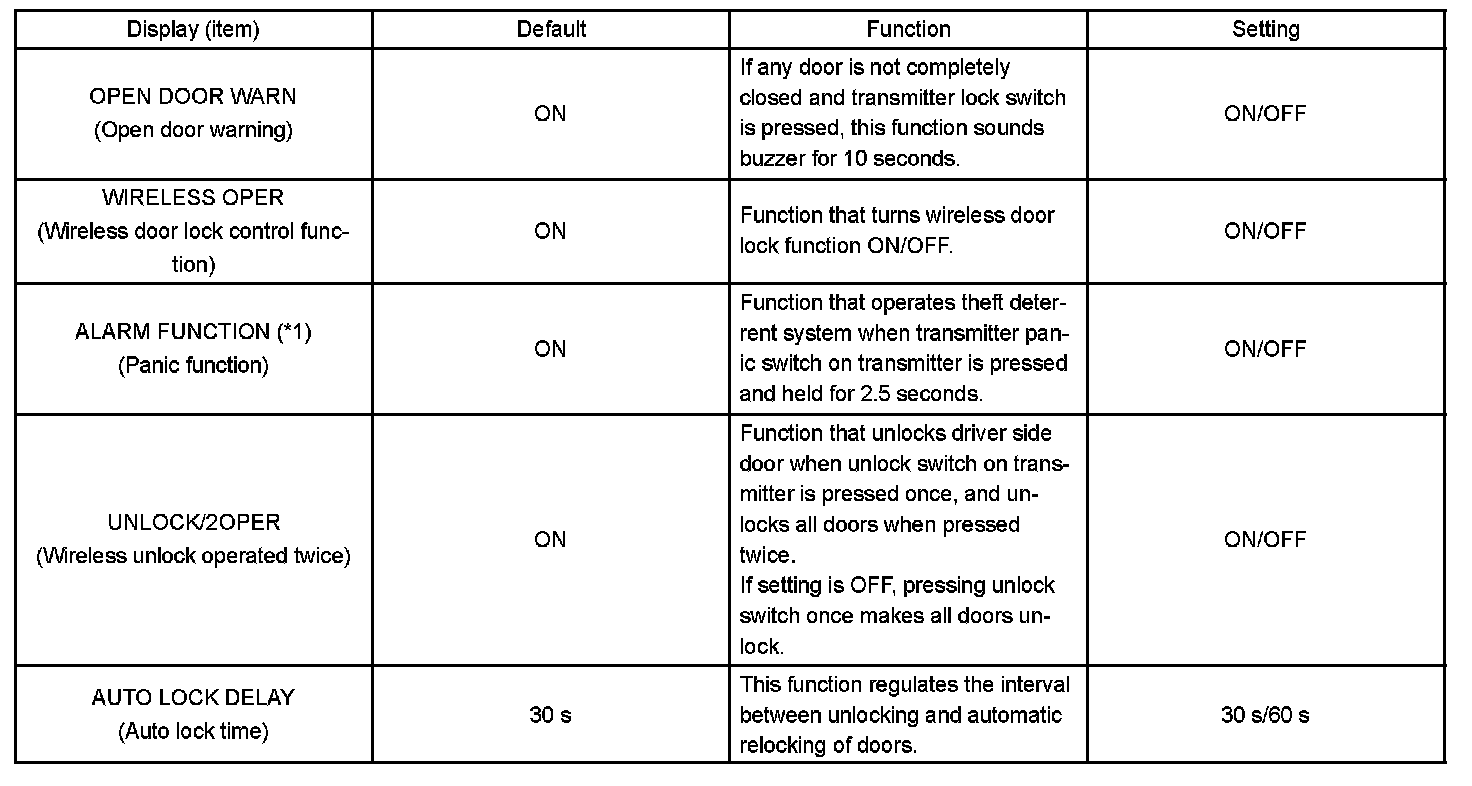

WIRELESS DOOR LOCK CONTROL SYSTEM










SMART KEY SYSTEM


CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customize operations.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.




1. BODY ECU (Using hand-held tester):

2. MANUAL SETTING (Switch operation)
a. Close all the doors.
b. Turn the ignition switch on (IG).
c. Within ten seconds after the ignition switch on (IG).
- To set function (Shift-linked Automatic Door Lock) Push and hold the LOCK side of the power door lock switch for five seconds with the sift lever in the P.
- To set function (Speed-sensitive Automatic Door Lock) Push and hold the LOCK side of the power door lock switch for five seconds with the sift lever in any position except P.
- To set function (Shift-linked Automatic Door Unlock) Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in the P.
- To set function (Opening Driver's Door-linked Automatic Door Unlock) Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in any position except P.

If user wants to cancel a function, repeat the procedure. Each time user perform the procedure, the function is set or cancelled.
