Power Mirror Control Module: Testing and Inspection

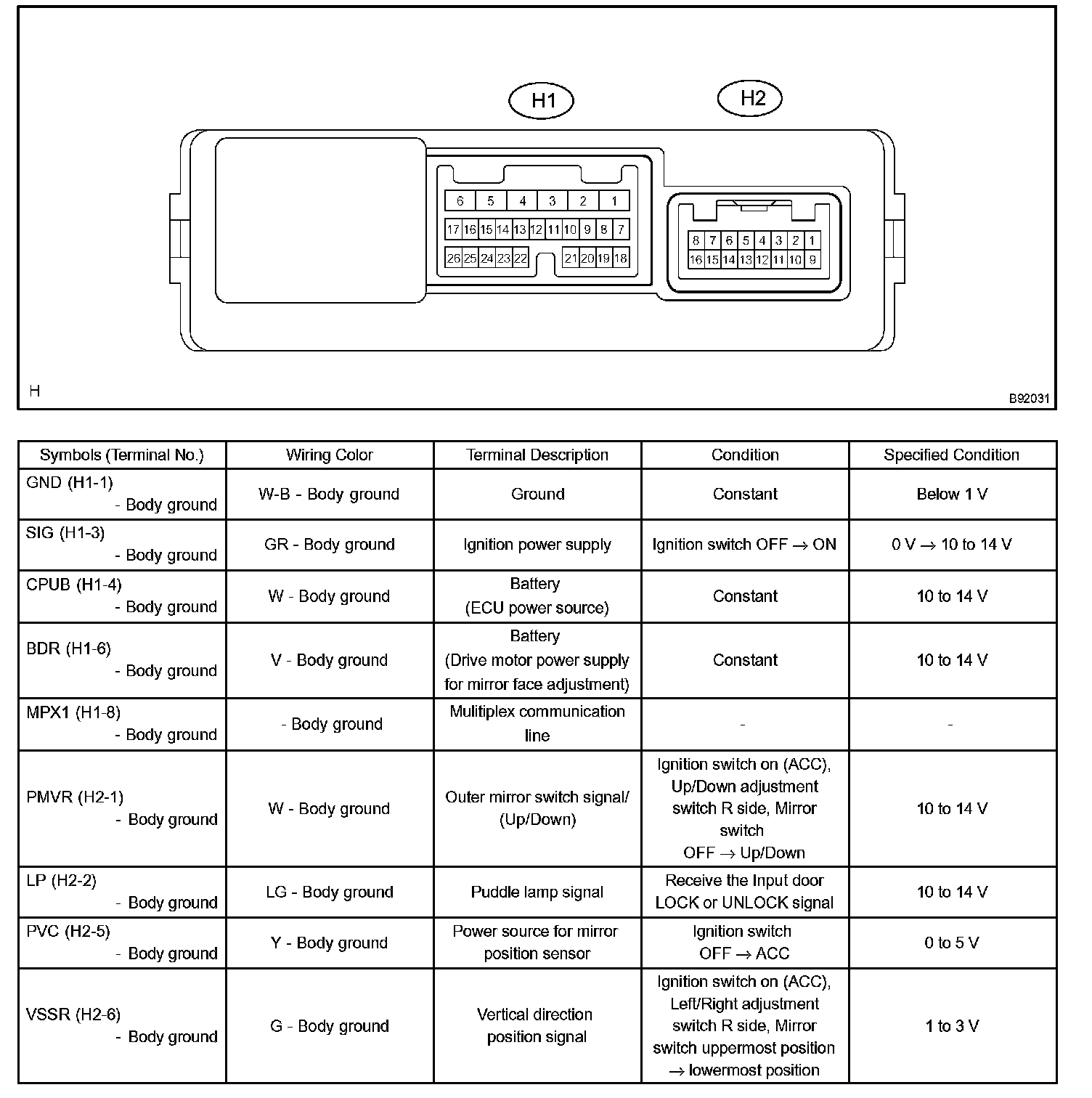

Terminals Of Control Module/Pinouts - Memory Mirror ECU (LH) Part 1:

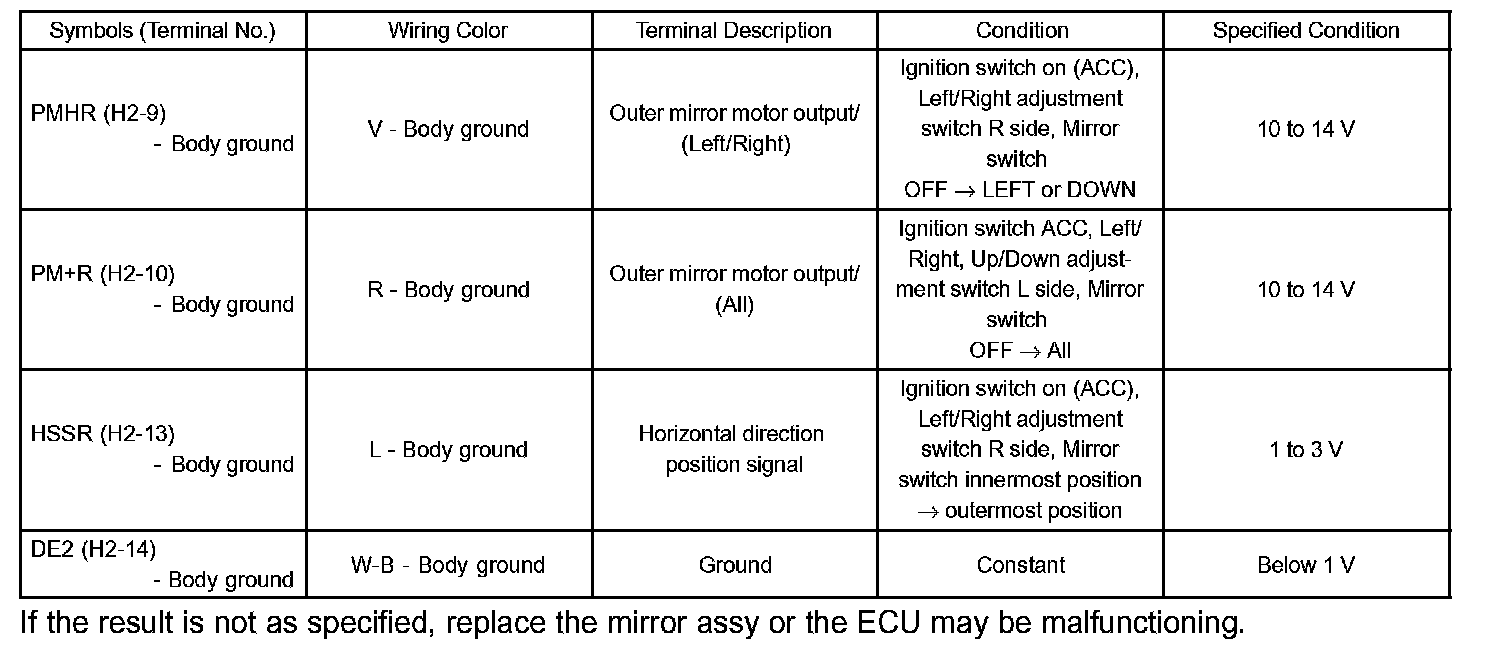

Terminals Of Control Module/Pinouts - Memory Mirror ECU (LH) Part 2:

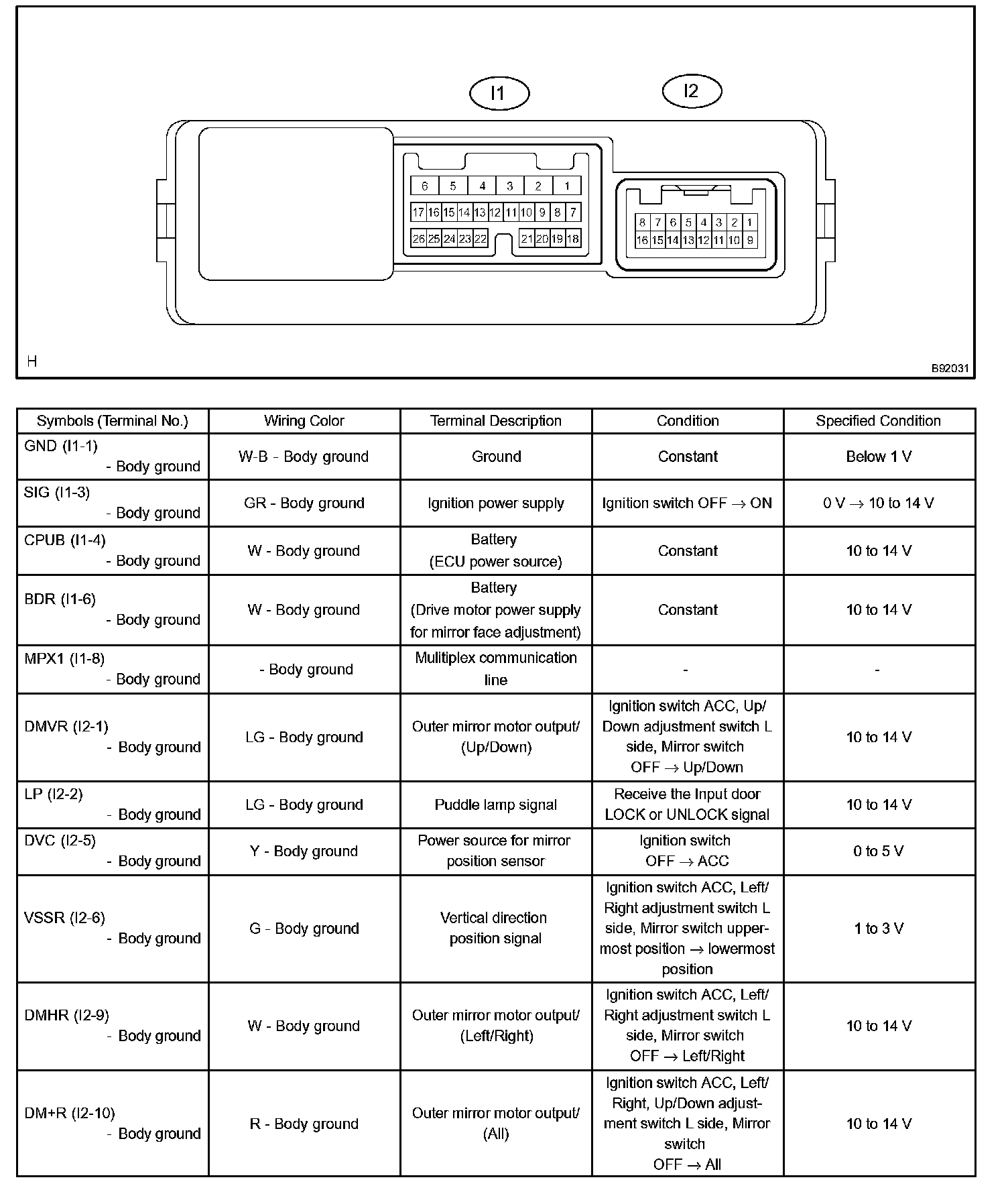

Terminals Of Control Module/Pinouts - Memory Mirror ECU (RH) Part 1:

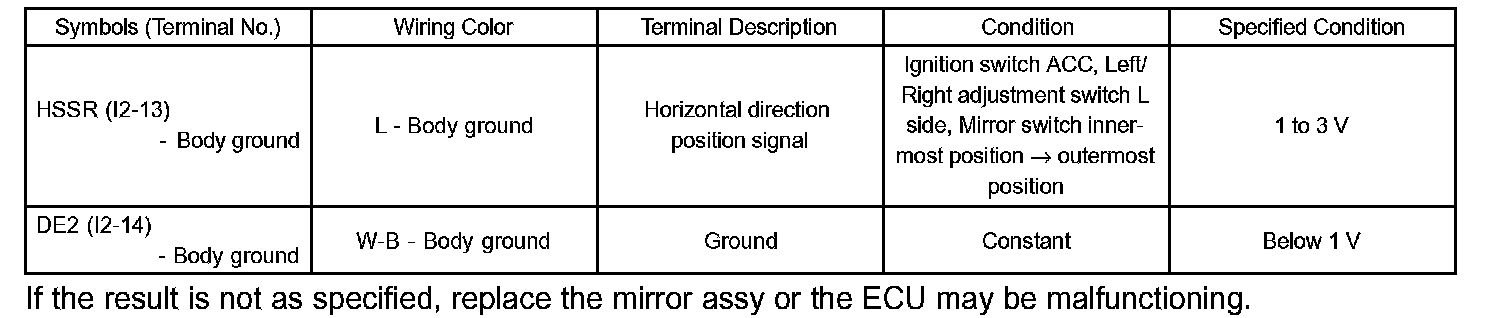

Terminals Of Control Module/Pinouts - Memory Mirror ECU (RH) Part 2:
