Power Seat Control Module: Locations

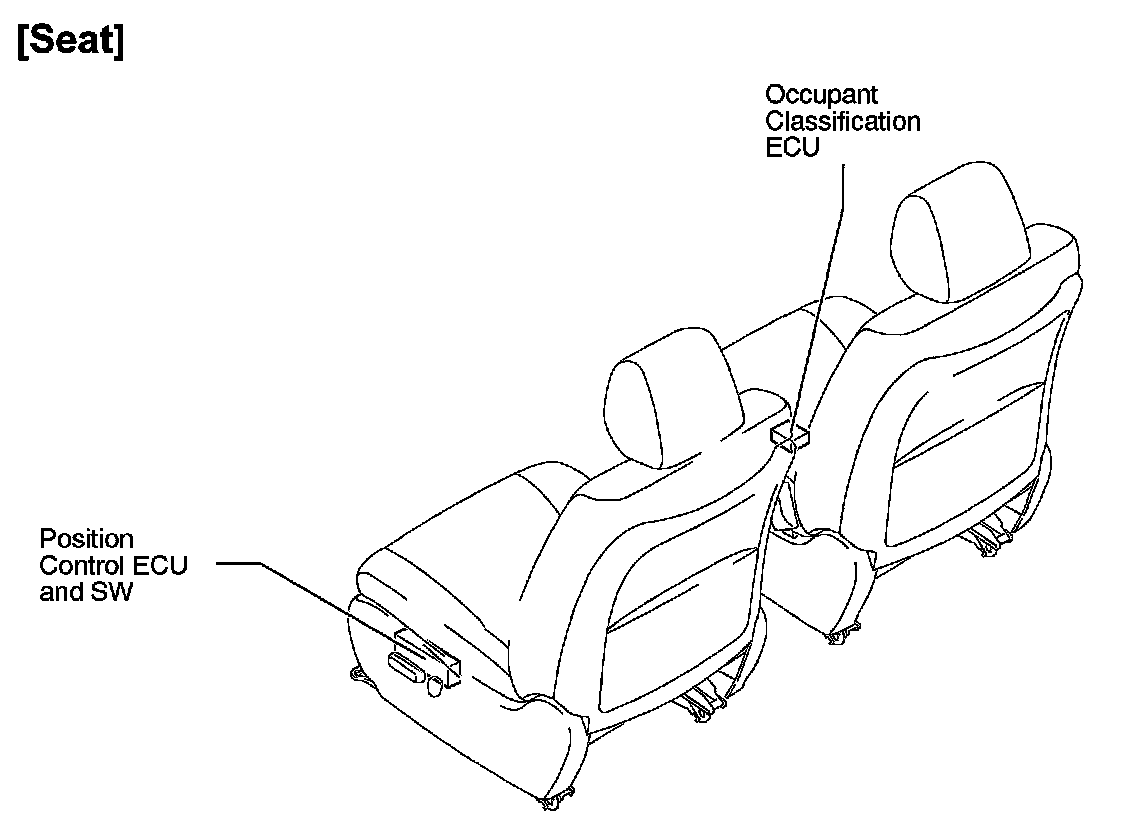

Seat:

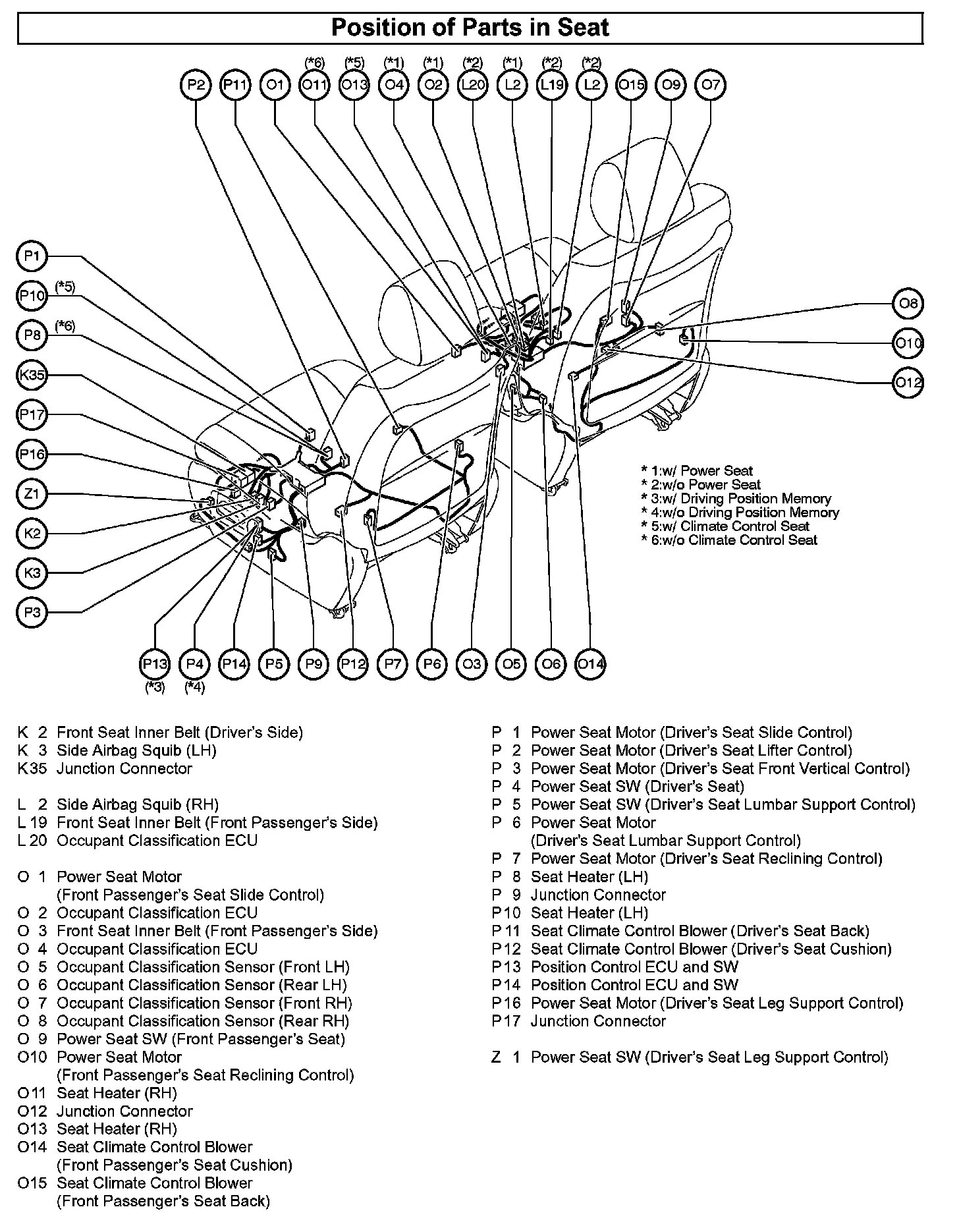

Position of Parts In Seat:

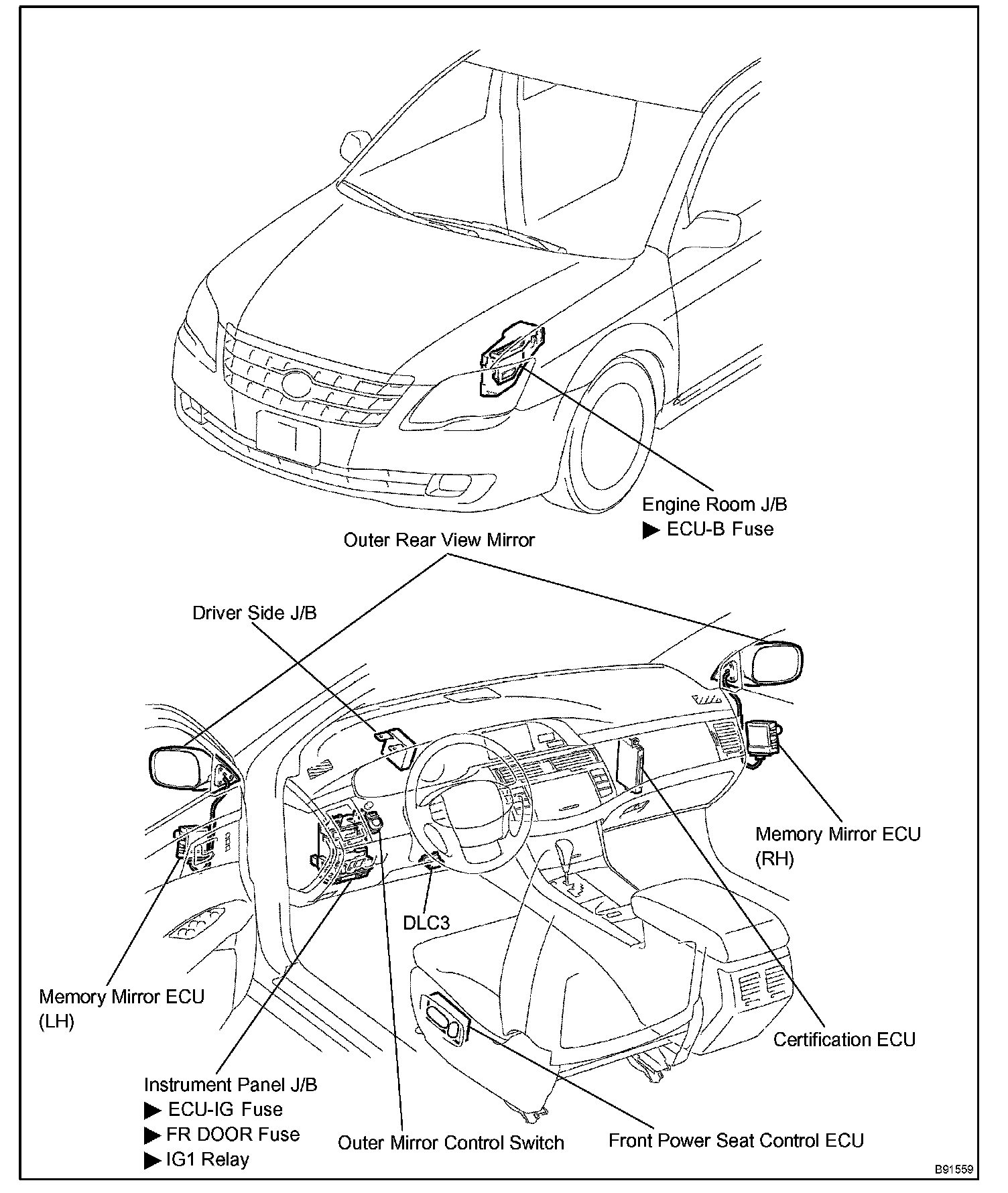

Power Mirror Control System (W/ Memory):

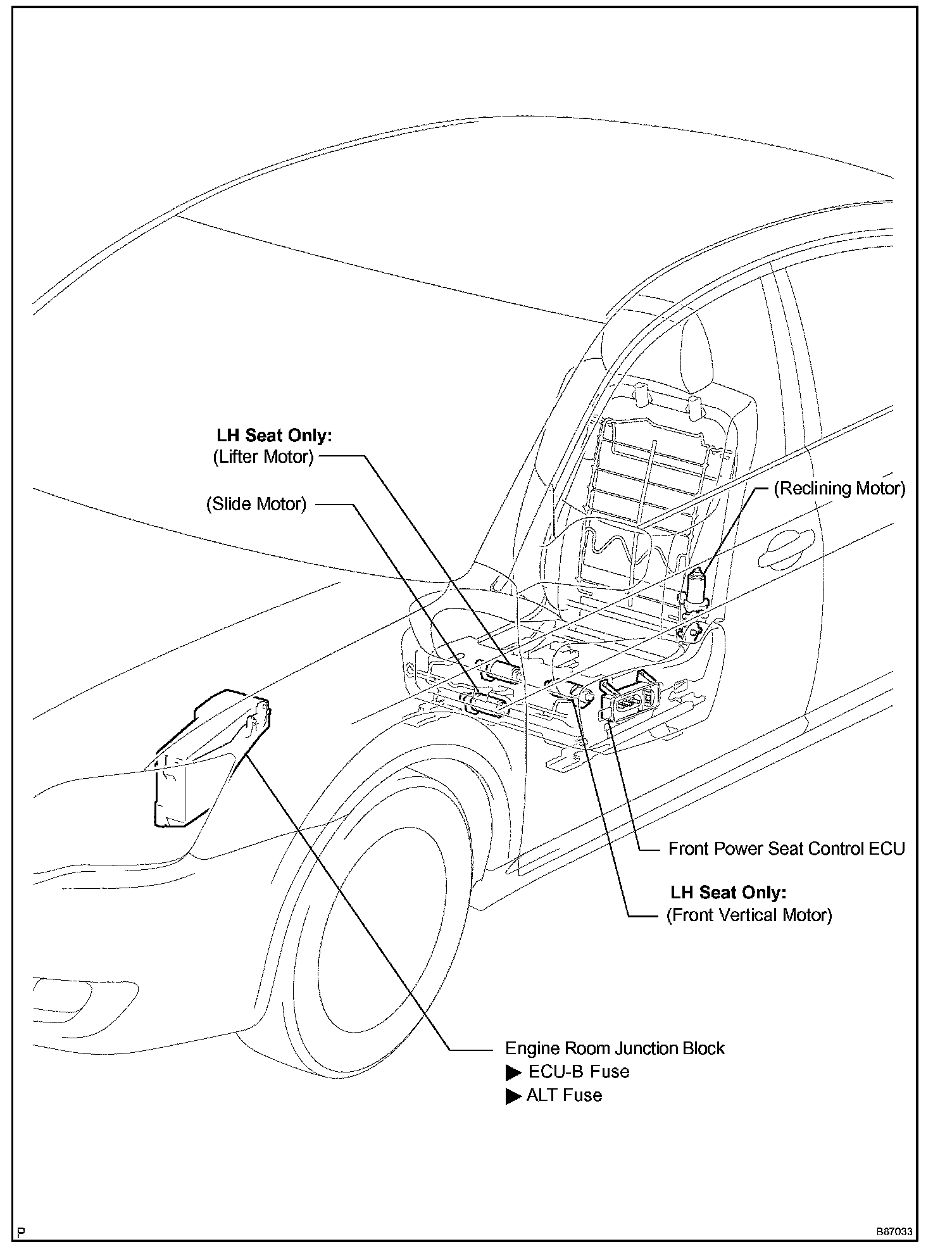

Front Power Seat Control System(w/ Memory):
