SFI System - Engine Control Systems
SFI System - Engine Control Systems

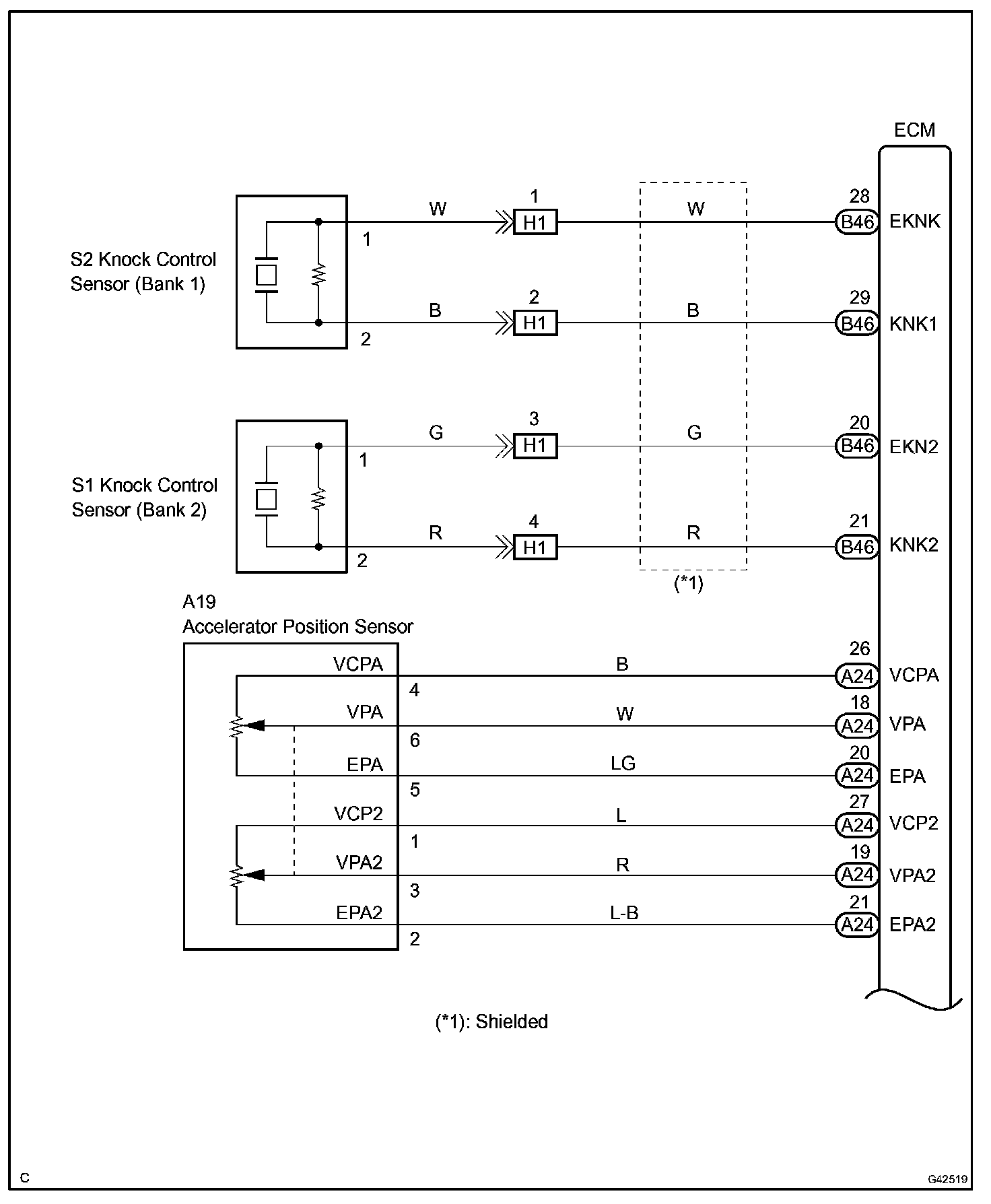

System Diagram:

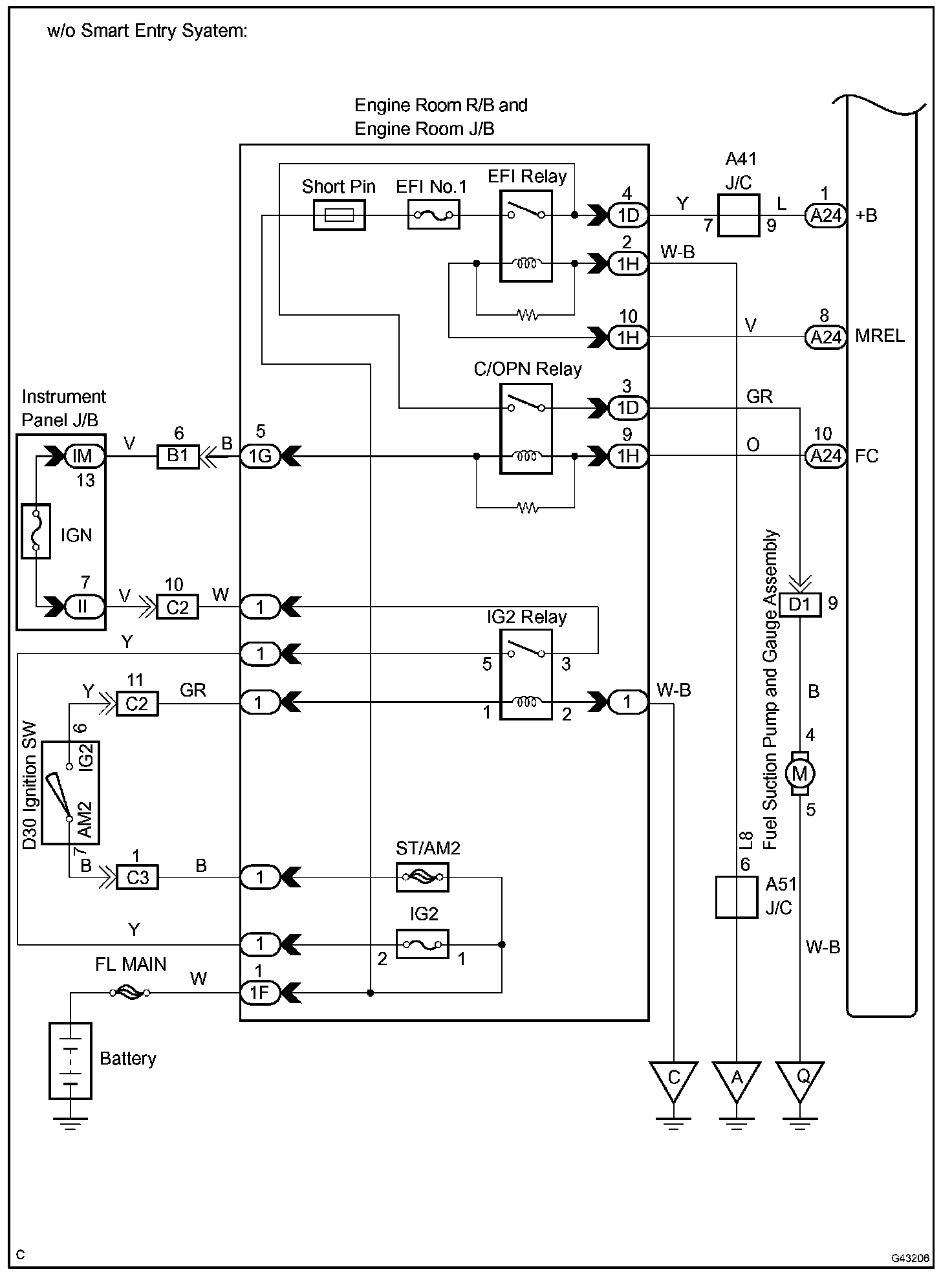

System Diagram:

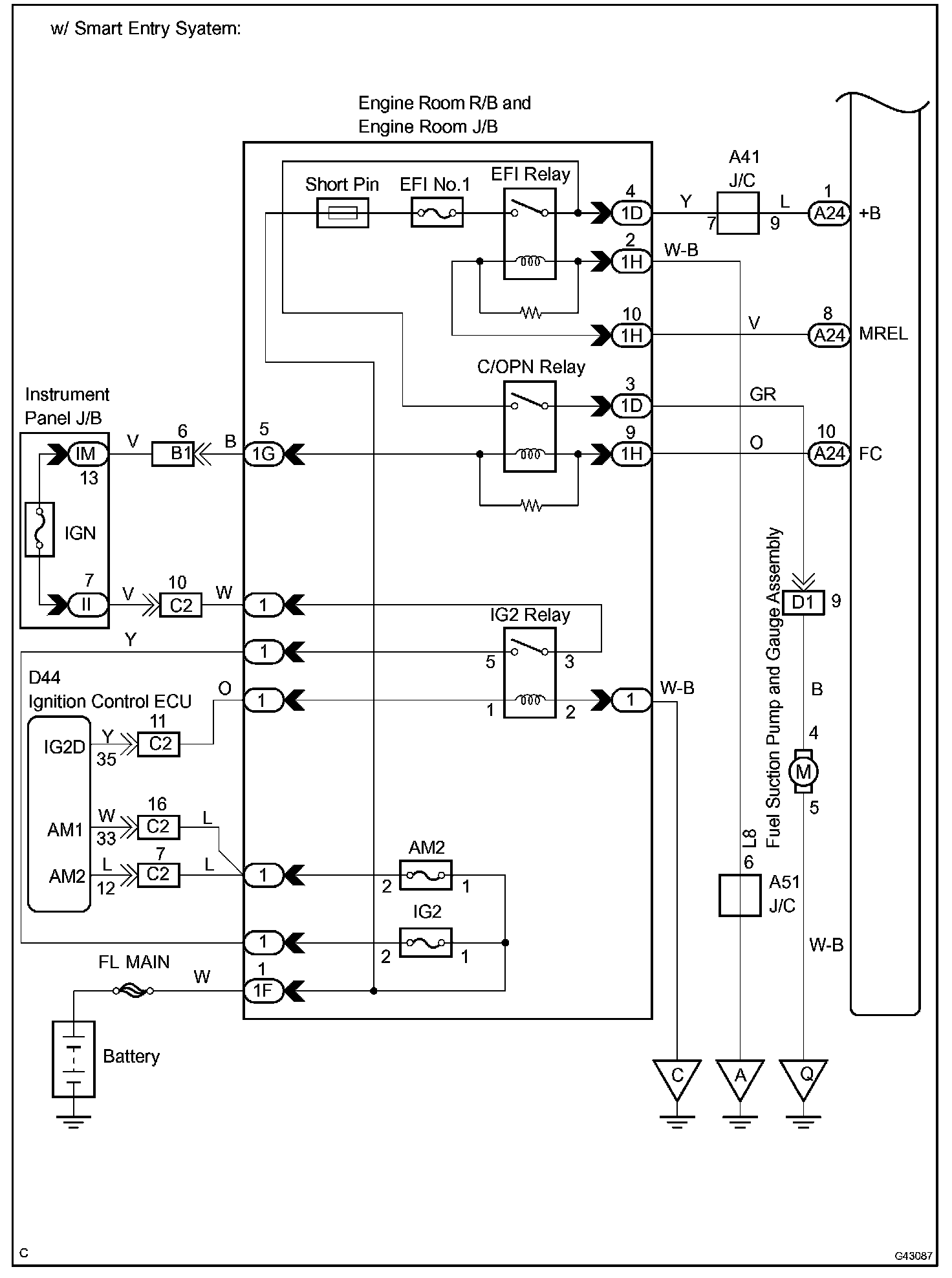

System Diagram:

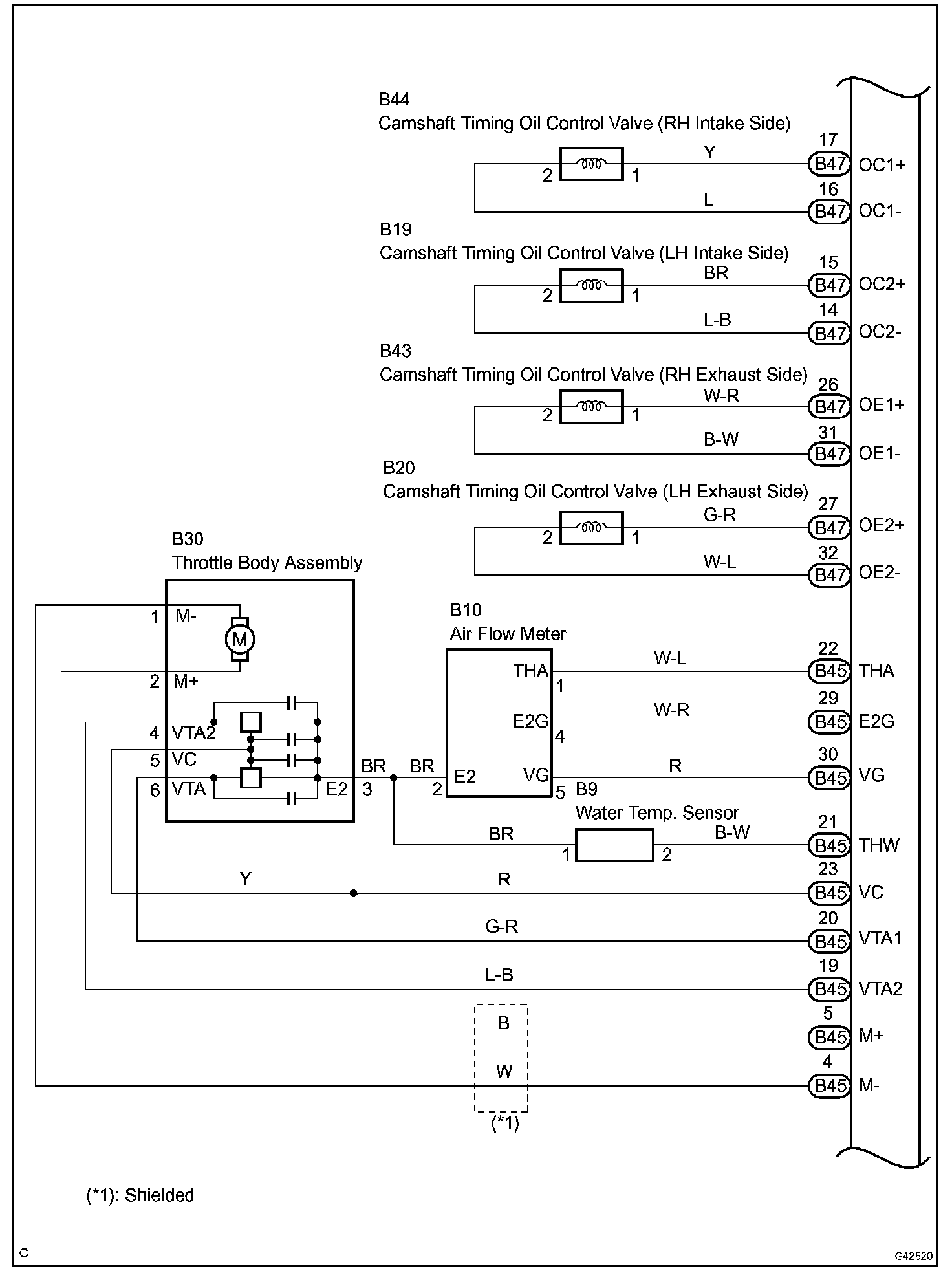

System Diagram:
