Radiator Cooling Fan Control Module: Locations

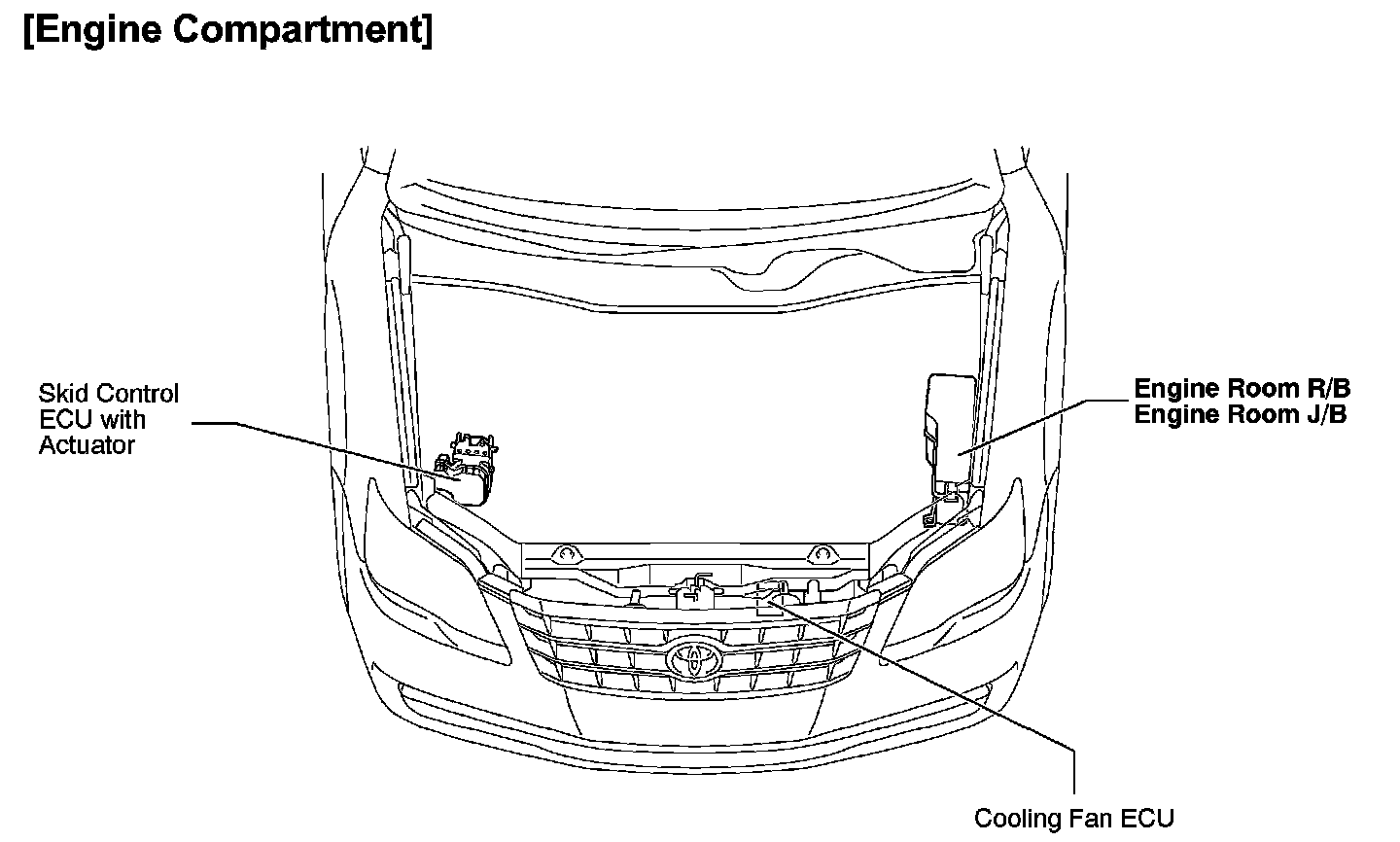

Engine Compartment:

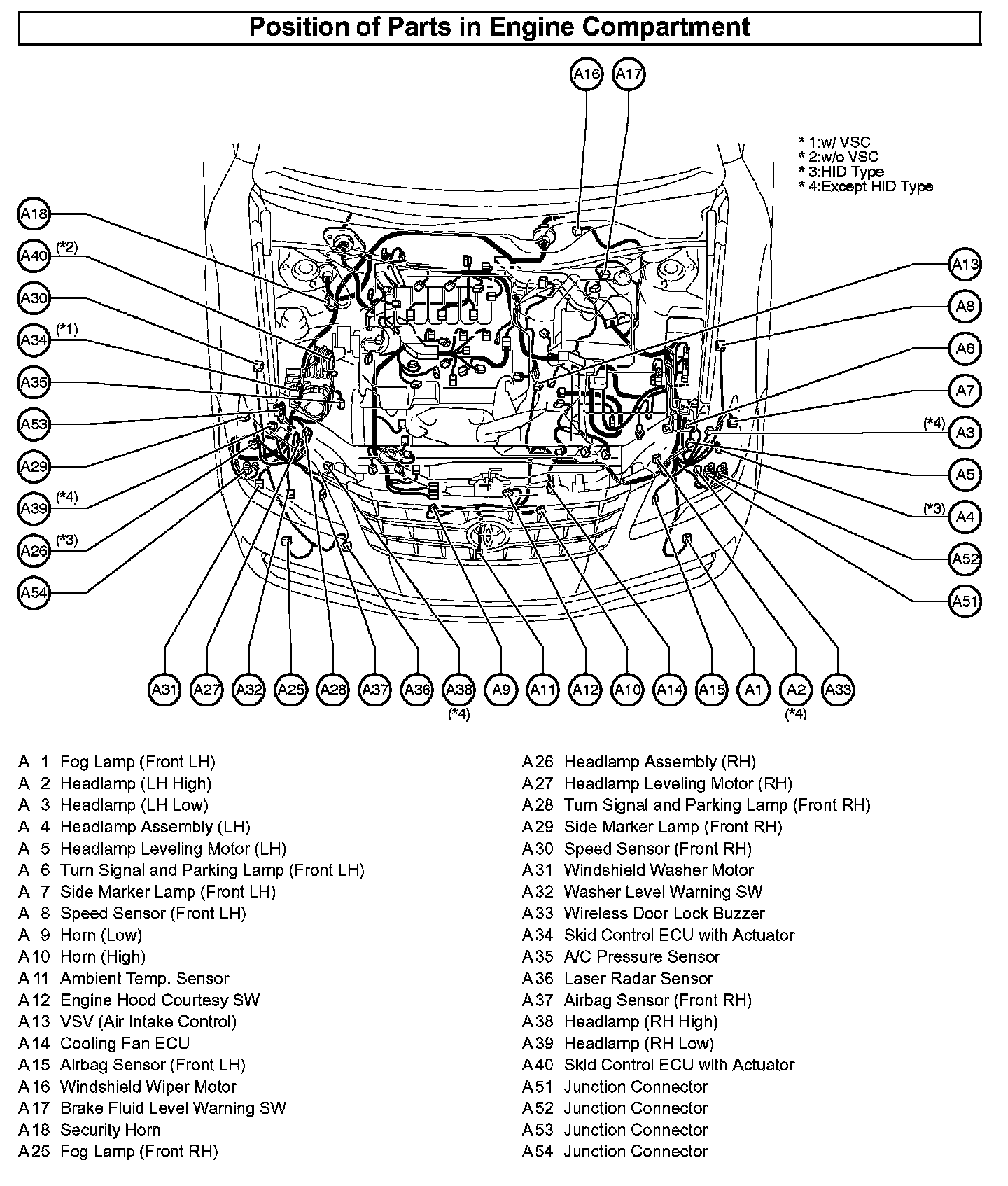

Position of Parts In Engine Compartment:
SFI System:
