Cruise Control Module
>>
Testing and Inspection
>>
Cruise Control
Cruise Control

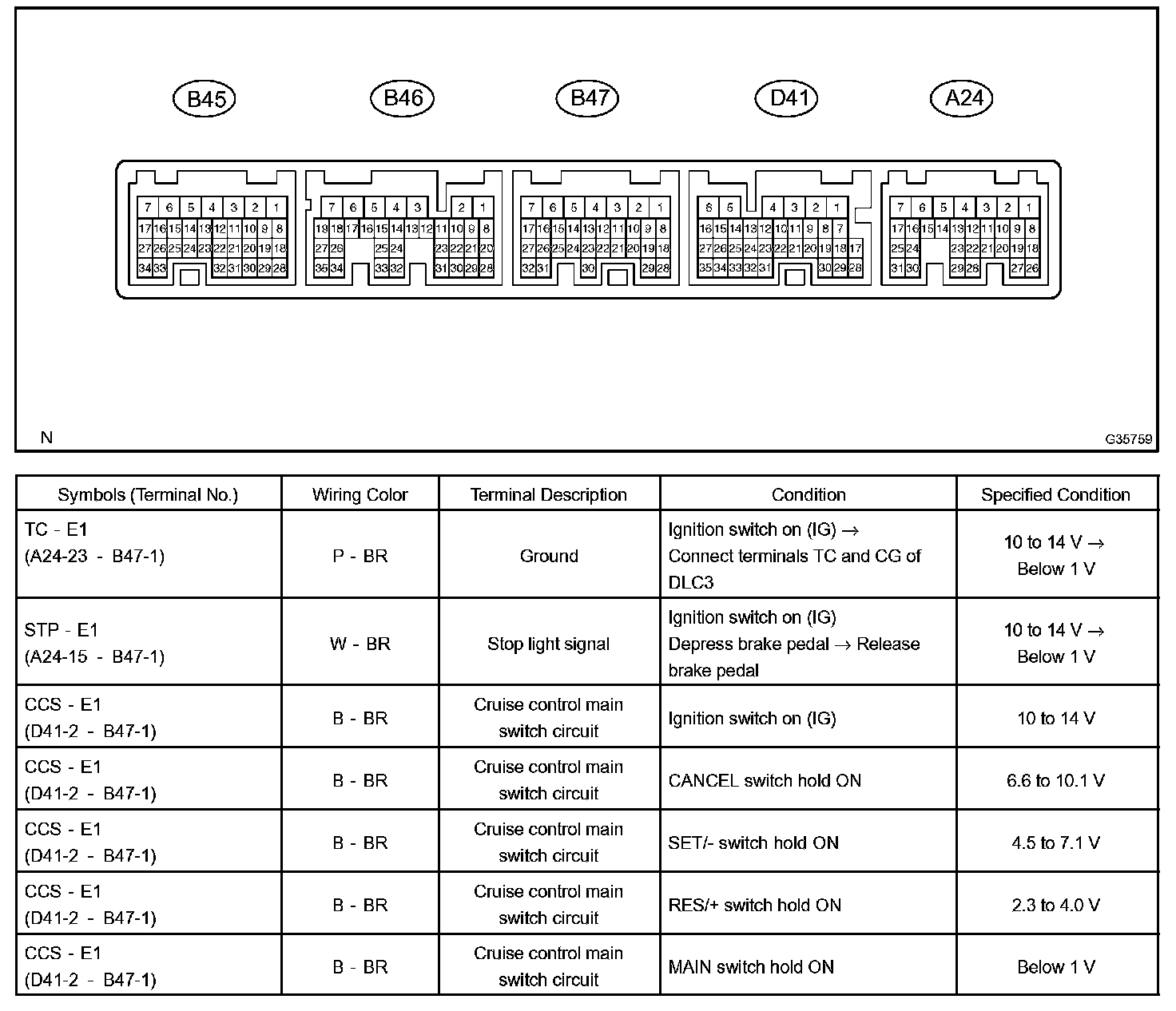

Terminals Of ECM/Pinouts:
