Diagrams
>>
Exploded Views
>>
Variable Induction Control Valve
Variable Induction Control Valve

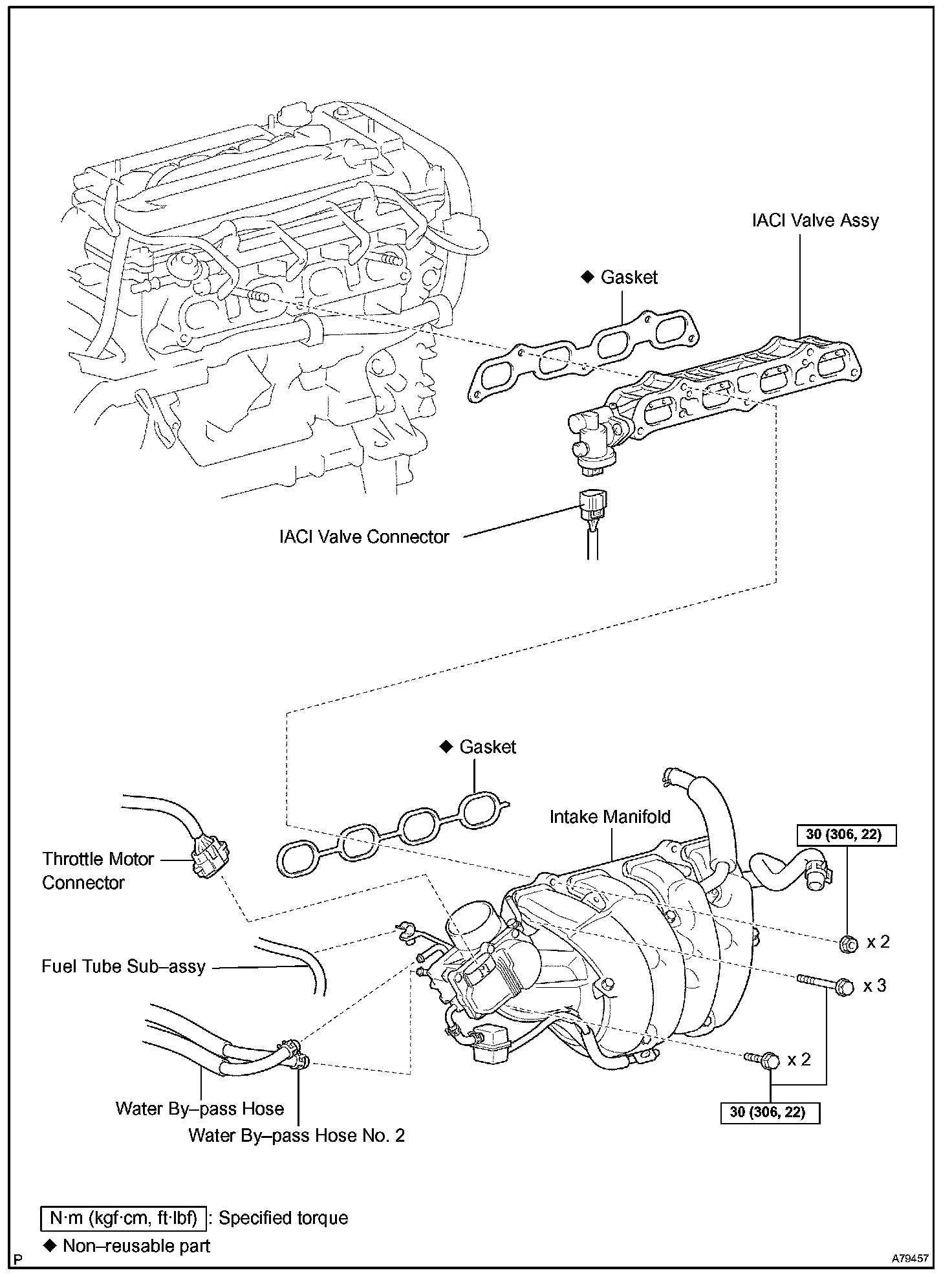

Intake Manifold Runner Valve Assy (PZEV):
Intake Manifold Runner Valve Assy (PZEV):
