Skid Control ECU Communication Stop Mode
Skid Control ECU Communication Stop Mode
SKID CONTROL ECU COMMUNICATION STOP MODE

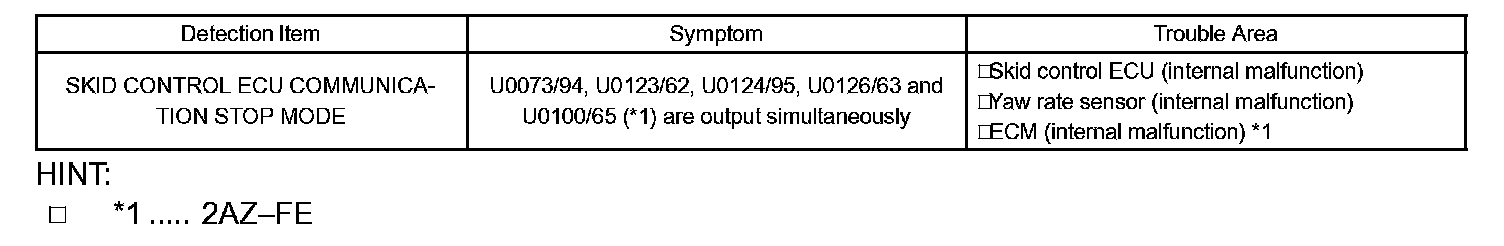

Detection Item:
CIRCUIT DESCRIPTION

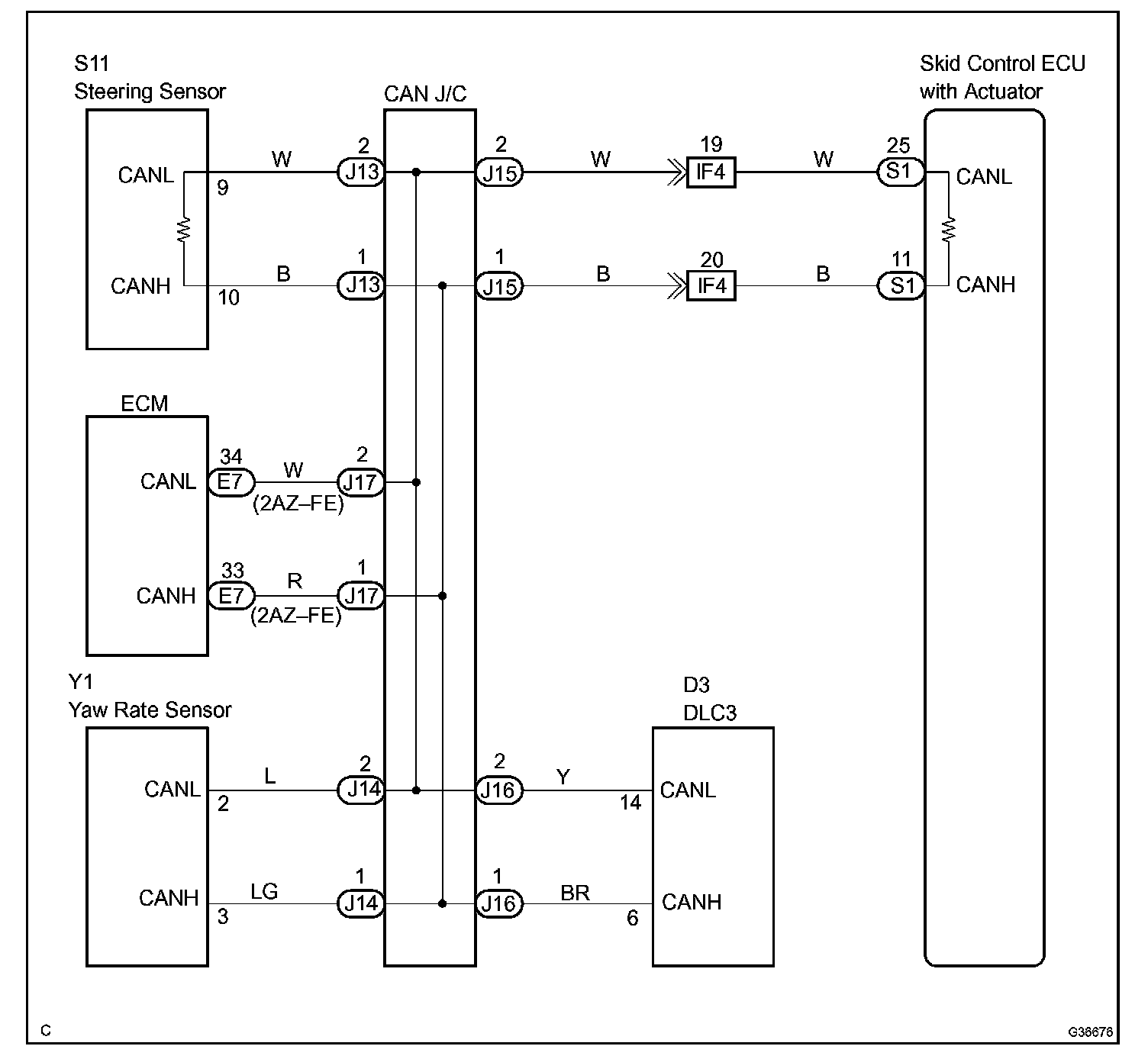

Wiring Diagram:

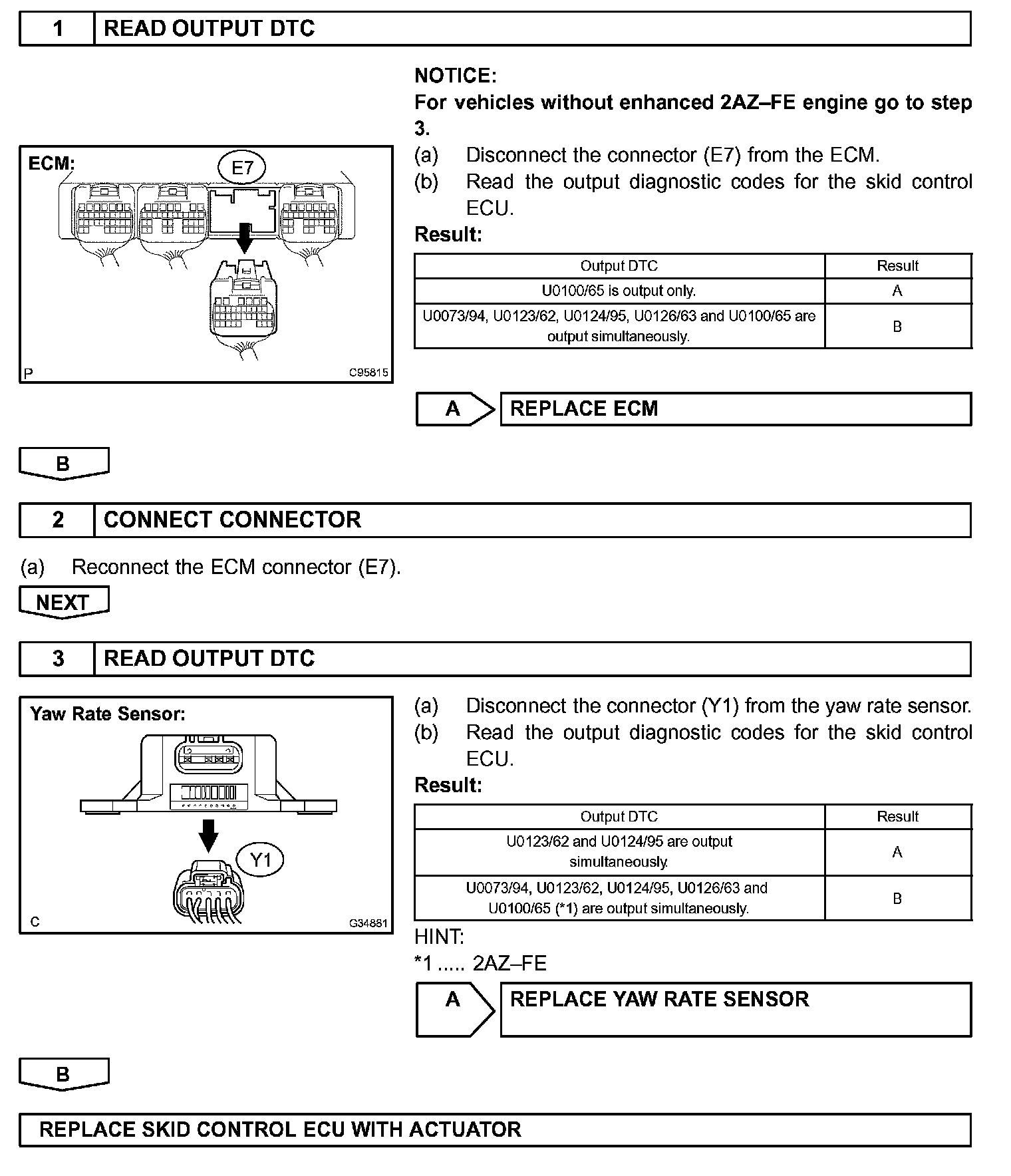

Step 1 - 3:
INSPECTION PROCEDURE
