INSPECT
THROTTLE BODY
ASSEMBLY (From July 2003)

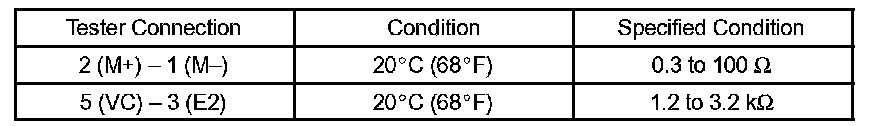

Standard:

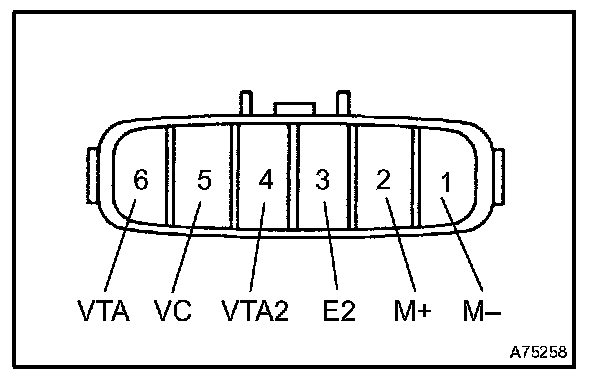

Measure the resistance between the terminals.
If the result is not as specified, replace the
throttle body
assembly.
