Multiplex Communication System
Multiplex Communication System

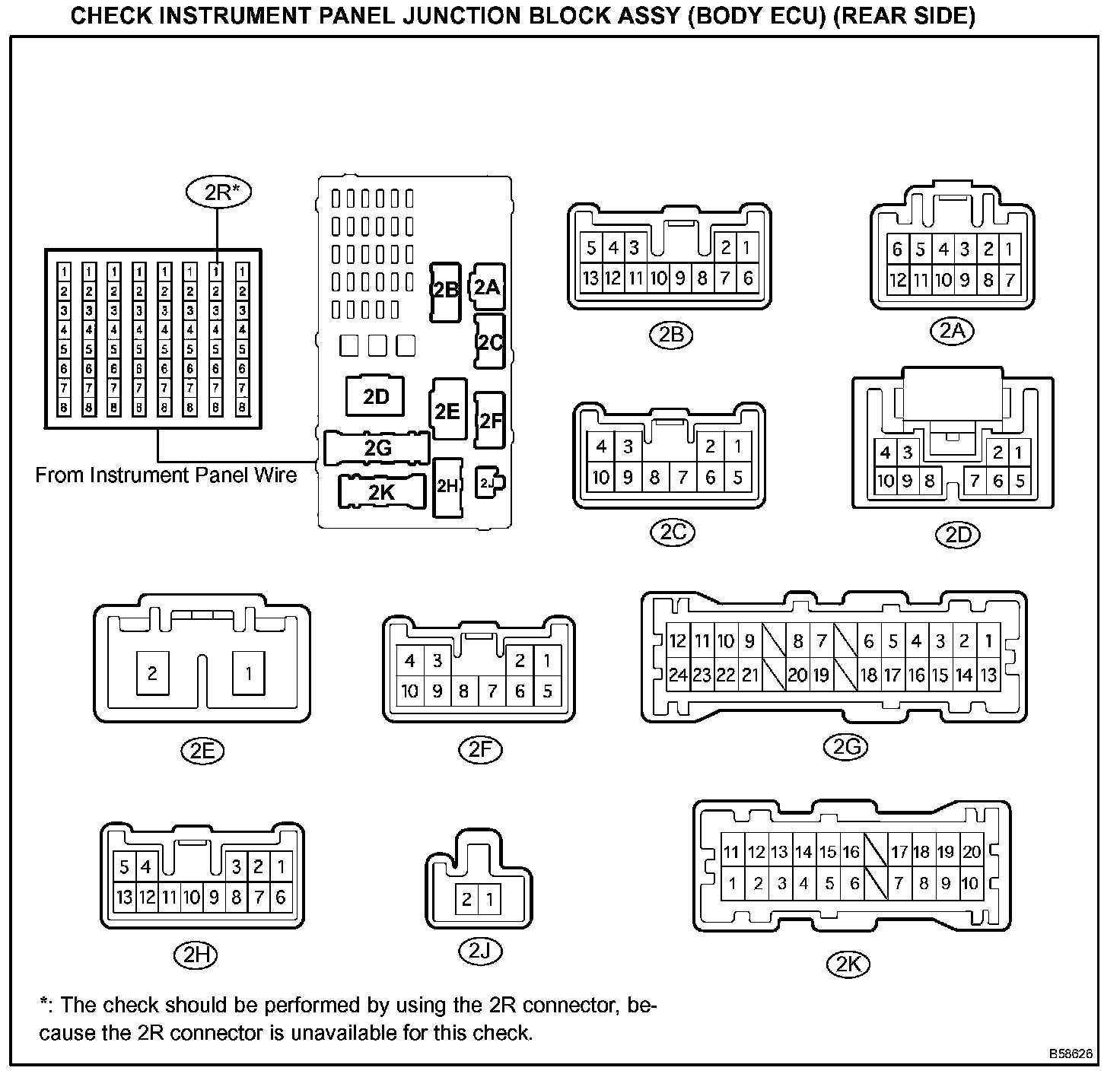

Terminals Of Control Module / Pinouts Part 1:

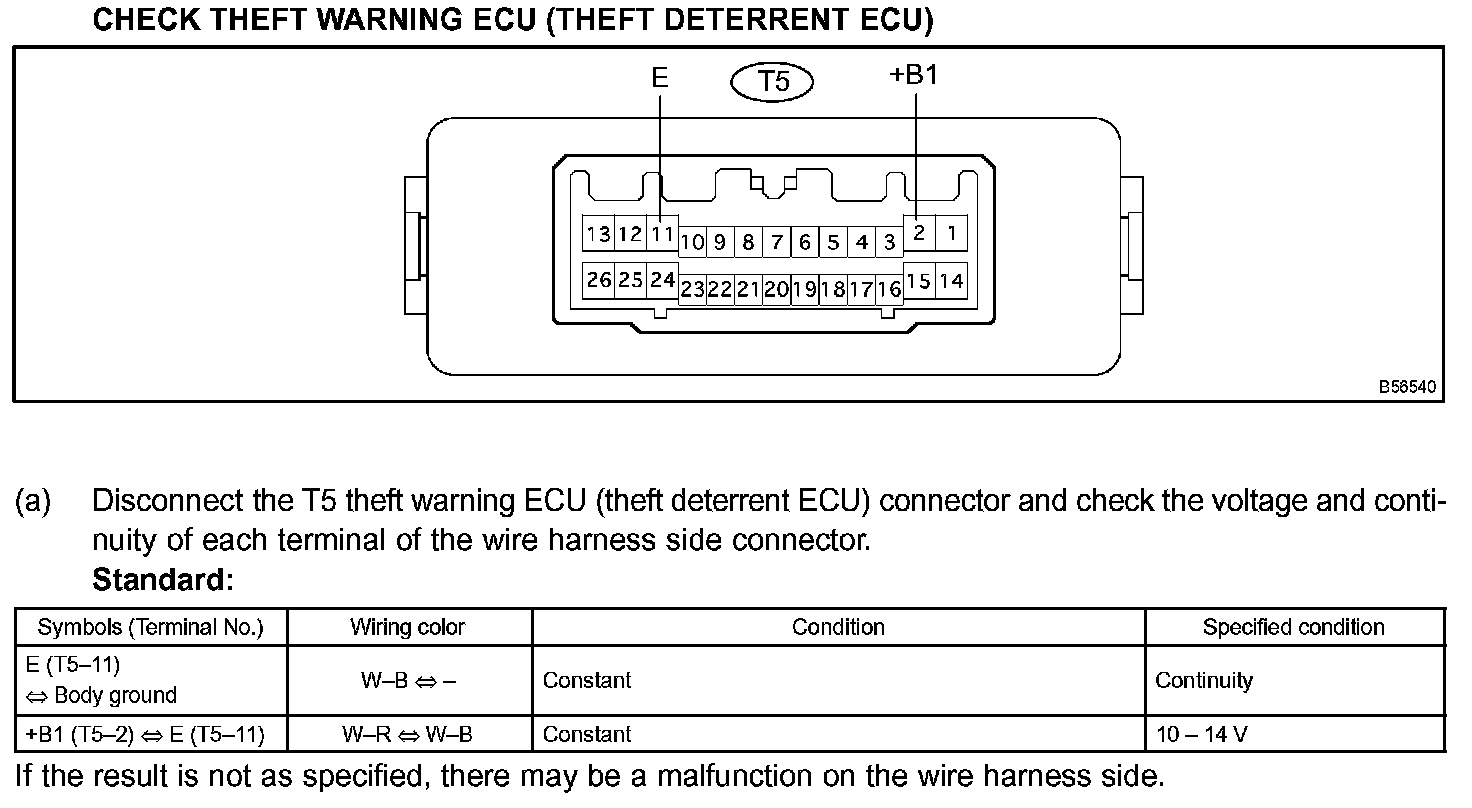

Terminals Of Control Module / Pinouts Part 2:

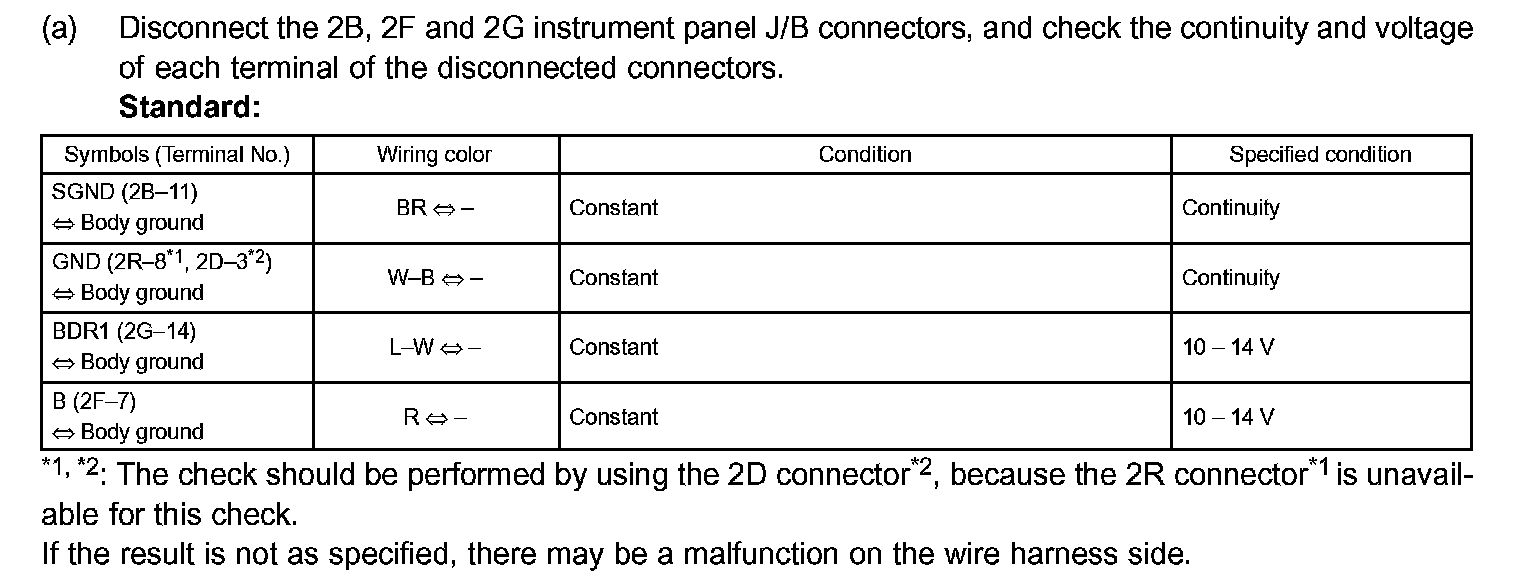

Terminals Of Control Module / Pinouts:
