Power Window Control Module: Testing and Inspection

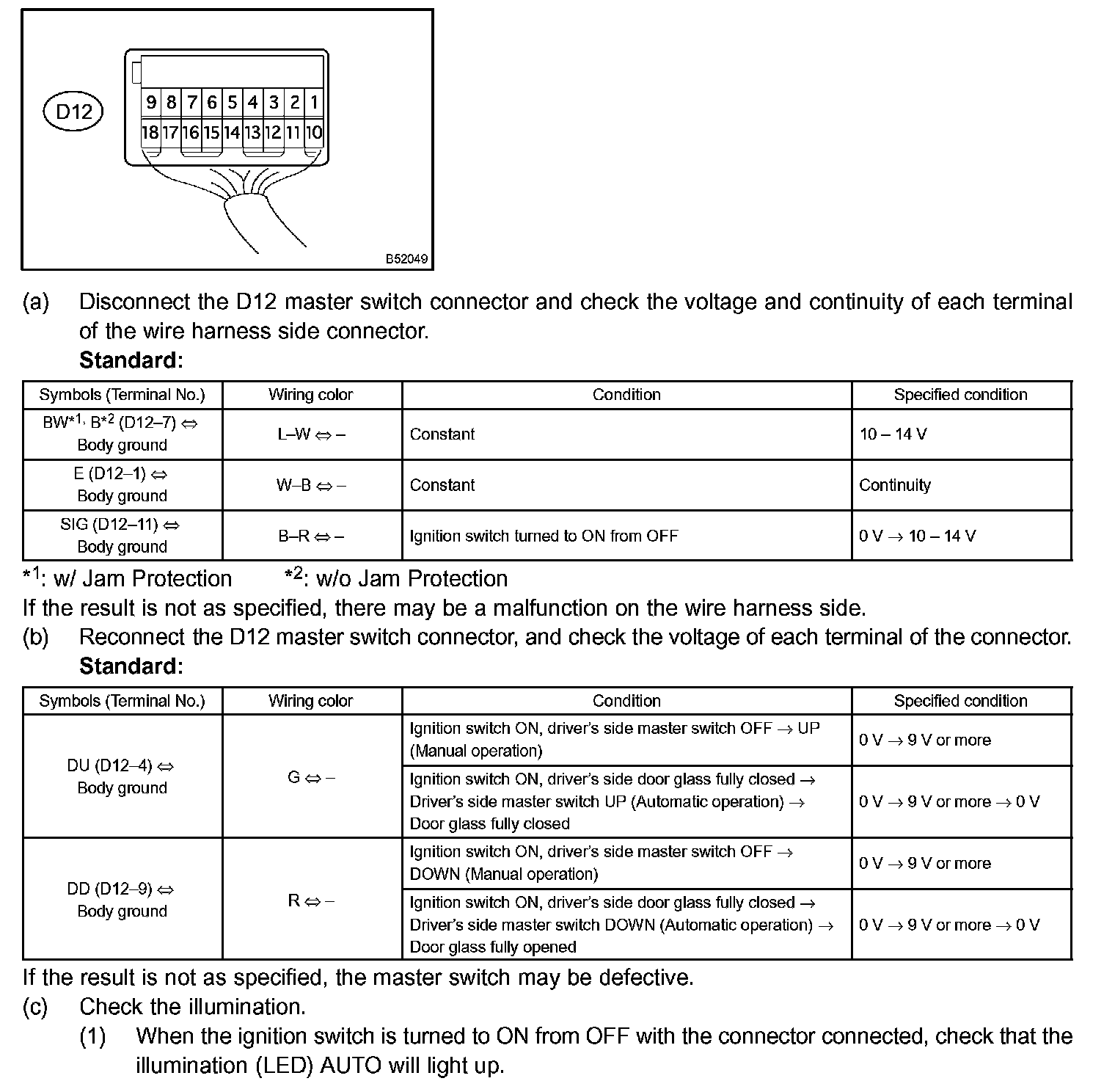

Terminals of Control Module/Pinouts - Check Power Window Regulator Master Switch Assy:
